1 Channel Wireless Microphone System With Handheld Microphone

Name: 1 Channel Wireless Microphone System With Handheld Microphone
Brand: Commerical Audio Outlet
SKU: UHF-301
Price: 159.0 GBP
Availability: InStock

1 Channel Wireless Microphone System With Handheld Microphone

SKU:UHF-301

£159.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Omnitronic UHF-601 1-Channel Wireless Microphone System (823–832 / 863–865 MHz)

Crystal-Clear Audio, Unmatched Wireless Reliability

Take control of your stage, conference room, or live event with the Omnitronic UHF-601. Designed for professionals who refuse to compromise on sound quality, this premium 1-channel wireless microphone system blends advanced True Diversity technology with exceptionally user-friendly operation.

Operating in the European-optimized, license-free UHF bands (823–832 MHz and 863–865 MHz), the UHF-601 guarantees rock-solid audio transmission up to 60 meters with a clear line-of-sight. Whether you are a public speaker, musician, or live presenter, this system delivers the pristine, lag-free vocal reproduction you need to captivate your audience.

Key Features & Benefits

True Diversity Technology: Dual receiver modules continuously monitor and select the strongest signal, virtually eliminating dead zones, dropouts, and multi-path interference.
License-Free Operation: Spend time on your performance, not paperwork. The 823–832 MHz and 863–865 MHz bands are license-free and pre-approved for use across large parts of Europe.
Scale Without Interference: Need a larger setup? You can operate up to 24 transmitters across two bands simultaneously without worrying about cross-channel chatter.
Smart ID Verification & Setup: Built-in auto-scan technology finds the cleanest available frequency at the touch of a button. Transmitter ID checks prevent external radio signals from hijacking your audio feed.
Onboard 7-Band Equalizer: Fine-tune your sound directly from the receiver console using the multifunctional jog dial. Shape your tone perfectly to suit any room's acoustics.
Vibrant TFT Displays: Stay informed at a glance. Both the desktop receiver console and the rugged handheld microphone feature sharp, multi-color displays showing frequency, group, channel, RF/AF levels, and precise battery status.

What’s in the Box?

1 x Multi-frequency True Diversity Receiver
1 x Dynamic Handheld Microphone (Cardioid Pattern)
2 x BNC Antennas
1 x External Power Supply Adapter
1 x 6.3 mm Jack Audio Cable
2 x Rack Mount Brackets (for standard 19" 1U rack installation)
1 x Microphone Holder

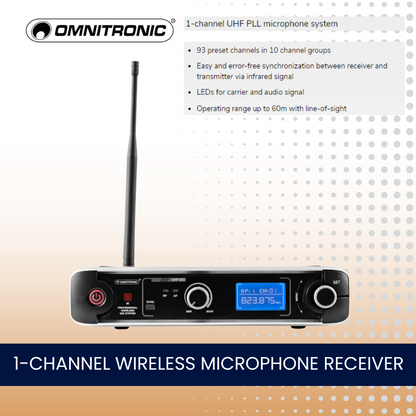

Receiver Specification

OMNITRONIC UHF-301 1-Channel Wireless Receiver

1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LEDs for carrier and audio signal
Detachable BNC antenna
1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
LCD display
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 60m with line-of-sight
Desktop console housing
(19") 48.3 cm rack installation possible 1 U

Power supply: 100-240 V AC, 50/60 Hz
12 V DC 350 mA
Power consumption: 4 W
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels: 1
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
THD: <0,5 % at 1 kHz
Control elements: Power switch, level control, encoder
Connections: Input: antenna via 1 x BNC (F)
Output: Microphone via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 1 x 3-pin XLR
Material: Metal
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions: Width: 20,5 cm
Depth: 24,5 cm
Height: 4,8 cm

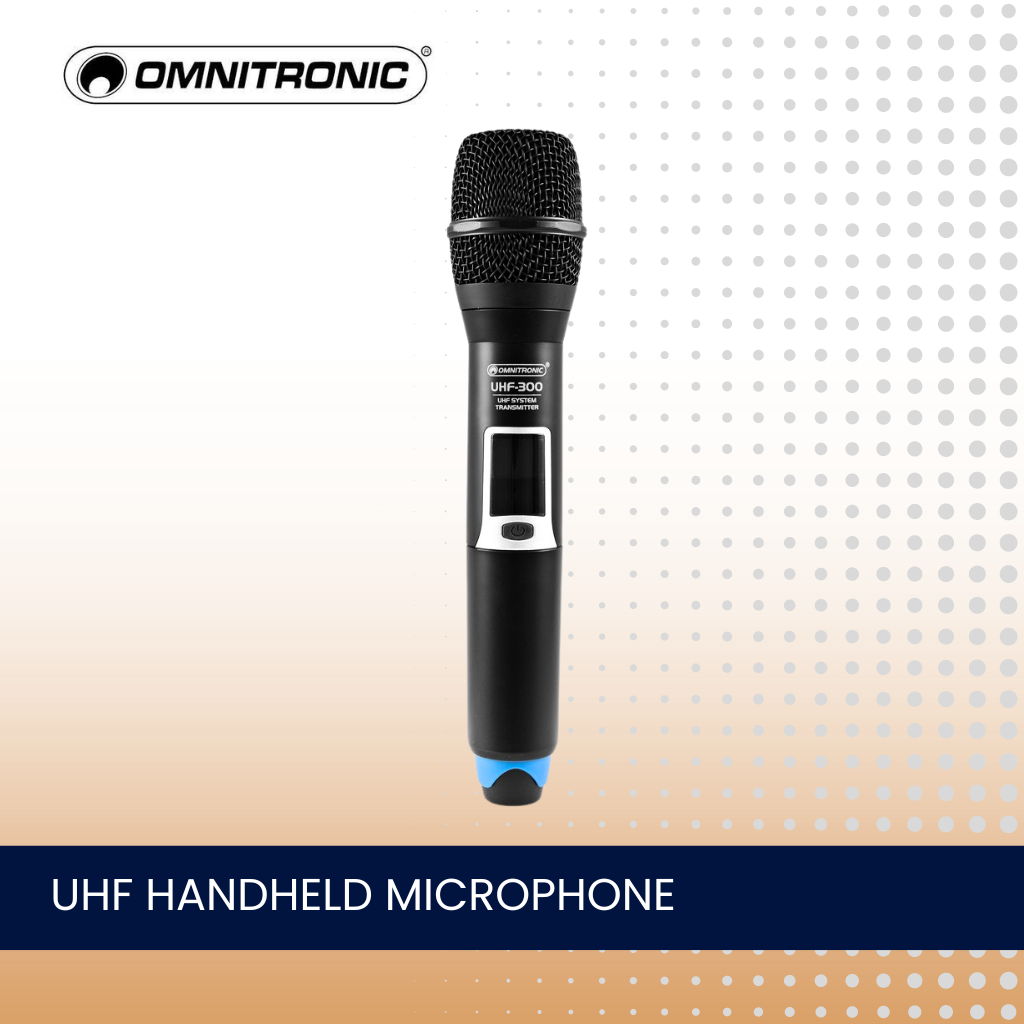

Microphone Specification

OMNITRONIC UHF-300 Handheld Microphone

Hand-held microphone with UHF PLL technology, matching receivers with the same carrier frequency
Polar pattern: Cardioid
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe

Type: Hand-held transmitter
Power supply: 3 V DC
Power connection: Battery/battery pack
Capsule type: Dynamic
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Range: Range up to 60m with line-of-sight
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
RF power output: 10 mW
Frequency selection: Switchable frequencies
Switch: On/off switch
Material: Plastic
Color: Black
Dimensions: Length: 25 cm
Diameter: Ø 5,2 cm
Weight: 240 g
