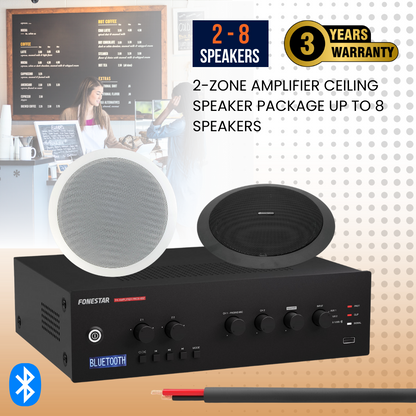

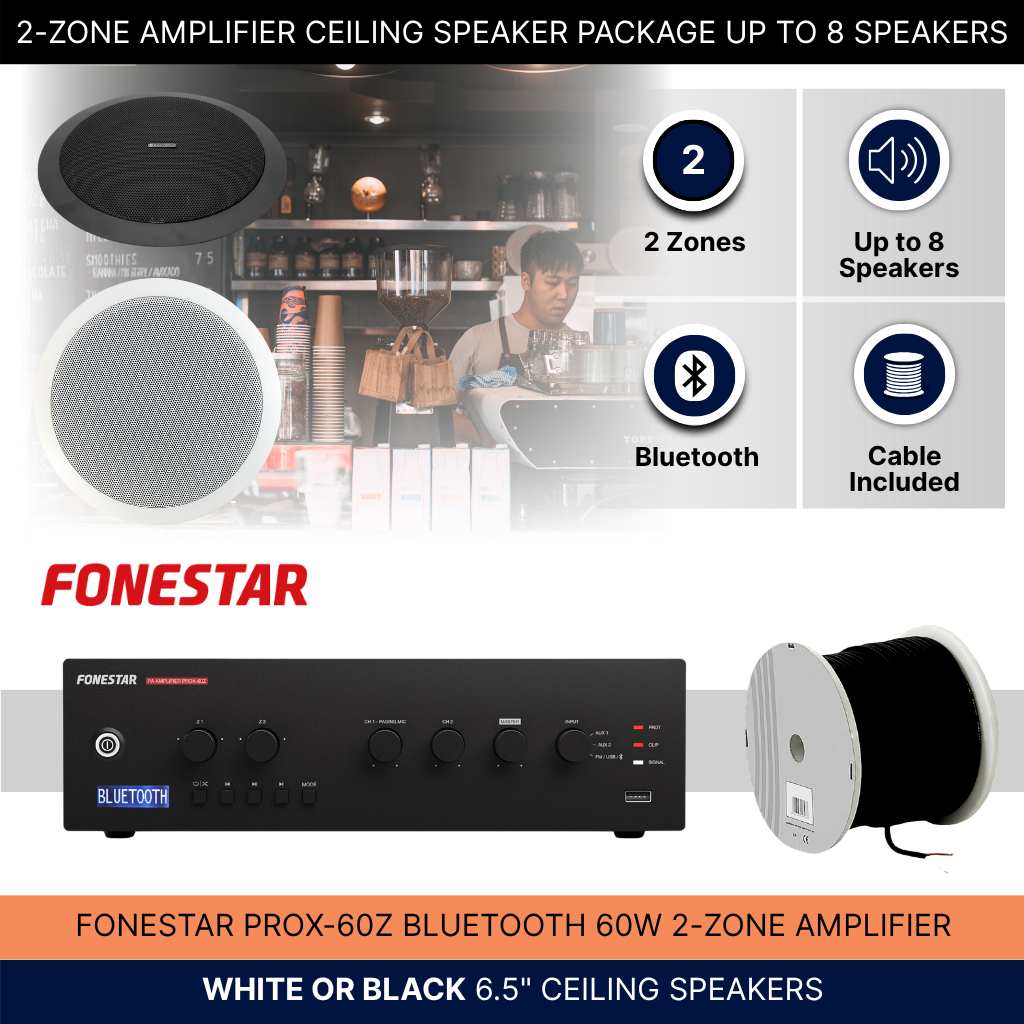

2-Zone Amplifier Ceiling Speaker Package Up To 8 Speakers Background Music System

Fonestar PROX-240Z 4-zone amplifier

FEATURES: Public address amplifier

• Bluetooth/USB/FM player.
• Microphone input with mix, gain and priority level control.
• Input priorities by signal level.

• Tone controls.

• 100 V and 4 Ω outputs.

• 4 outputs zones with volume control and Off.

• POWER: 240 W RMS

• RESPONSE: 40-20,000 Hz (-10 dB)

• DISTORTION: THD+N: < 1% @ 1 kHz
  S/N RATIO: >77 dB

• PROTECTIONS: Overcurrent, DC and short-circuit at the output

• INPUTS: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.

• CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector.

• Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω

• Line signal level: 250 mV RMS (-12 dBV) / 100k Ω

• 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω

• 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
  1 Mute (Emergency Priority) by contact closure. Euroblock connector

• OUTPUTS: 1 line, 2 x RCA connectors, 1.25 V RMS (+2 dBV) signal level
  100 V or 4 Ω speaker output, or 4 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone).
• Connector screw terminals

• IMPEDANCE: 4 Ω and 100 V line (42Ω)

• FUNCTIONS: Input priority (voice over VOX inputs):
  100V Emergency input with highest priority, attenuates all other inputs.

• Mute by contact closure, attenuates all inputs except the 100V Emergency input.
  Channel 1 with priority over all other inputs, level selectable.

• Channel 2, 3 and 4 with priority over auxiliary inputs and player, level selectable.

• Other functions:
  Power on, protection, signal peak and output signal indicator lights

• Temperature-controlled forced ventilation cooling

• PLAYER: Bluetooth/USB/FM player for background music playback
  MP3 and WAV files supported
  Maximum USB memory capacity 64 GB

• Autoplay, starts playback automatically on power on
  Memory of playback mode (random, repeat)

• CONTROLS: Microphone volume

• Mic/line/phantom selector

• Master volume

• Aux input or player selector
  Zone volume

• Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)

• Microphone gain

• Priority activation signal level (VOX)

• OPERATING TEMPERATURE: Operation: 0º ~ 40ºC
  MAXIMUM HUMIDITY: 95%
  POWER SUPPLY: 230/115 V AC 50-60 Hz, 480 W
  Fuse AC 230 V 4 A / 115 V 8 A

• DIMENSIONS: 433 x 89 x 360 mm depth. 2 U 19” rack
  WEIGHT: 11.5 kg

• ACCESSORIES: FM Antenna
  Bluetooth antenna
  Power cable
  Rack mounts

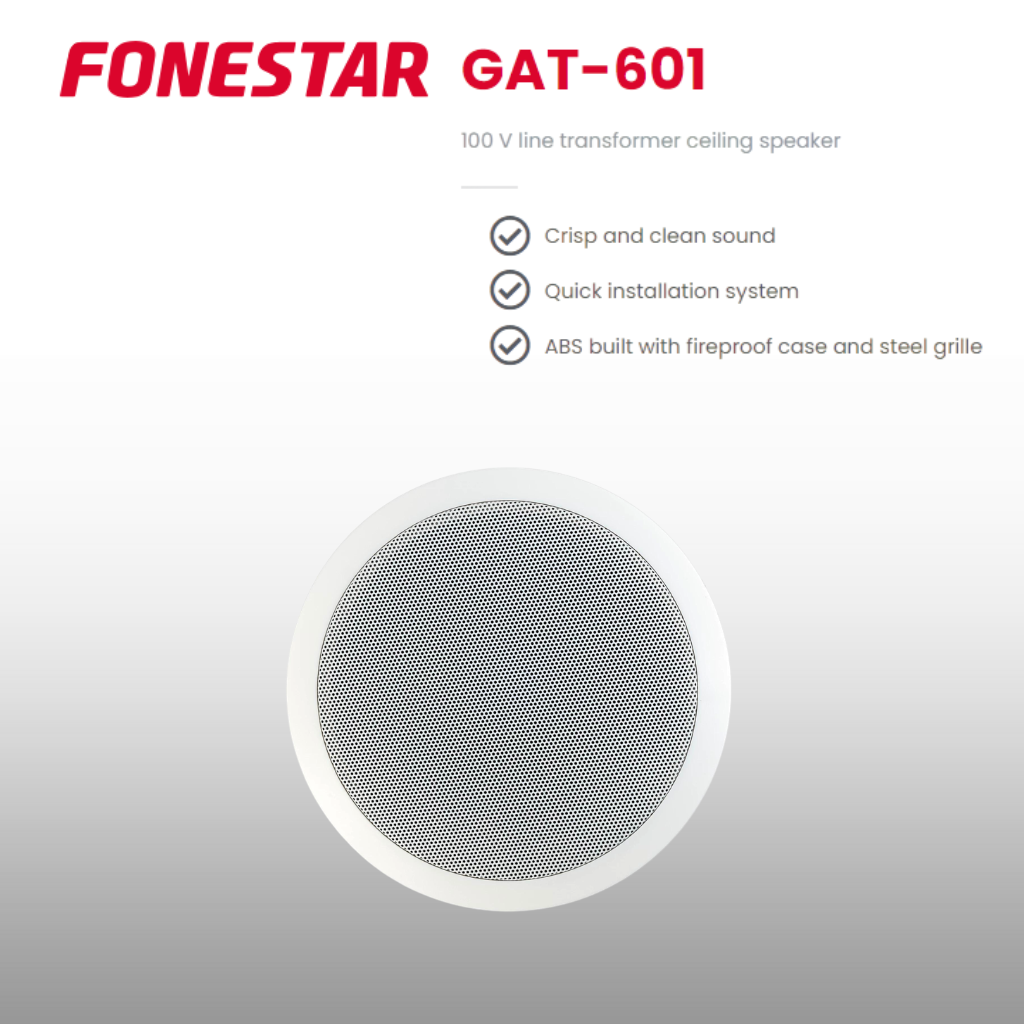

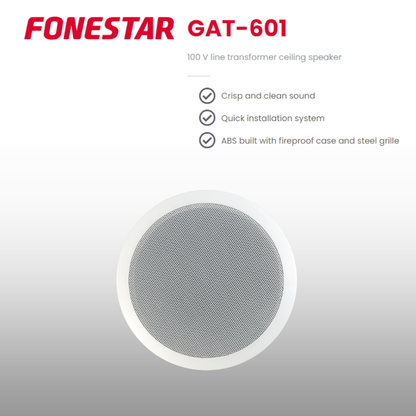

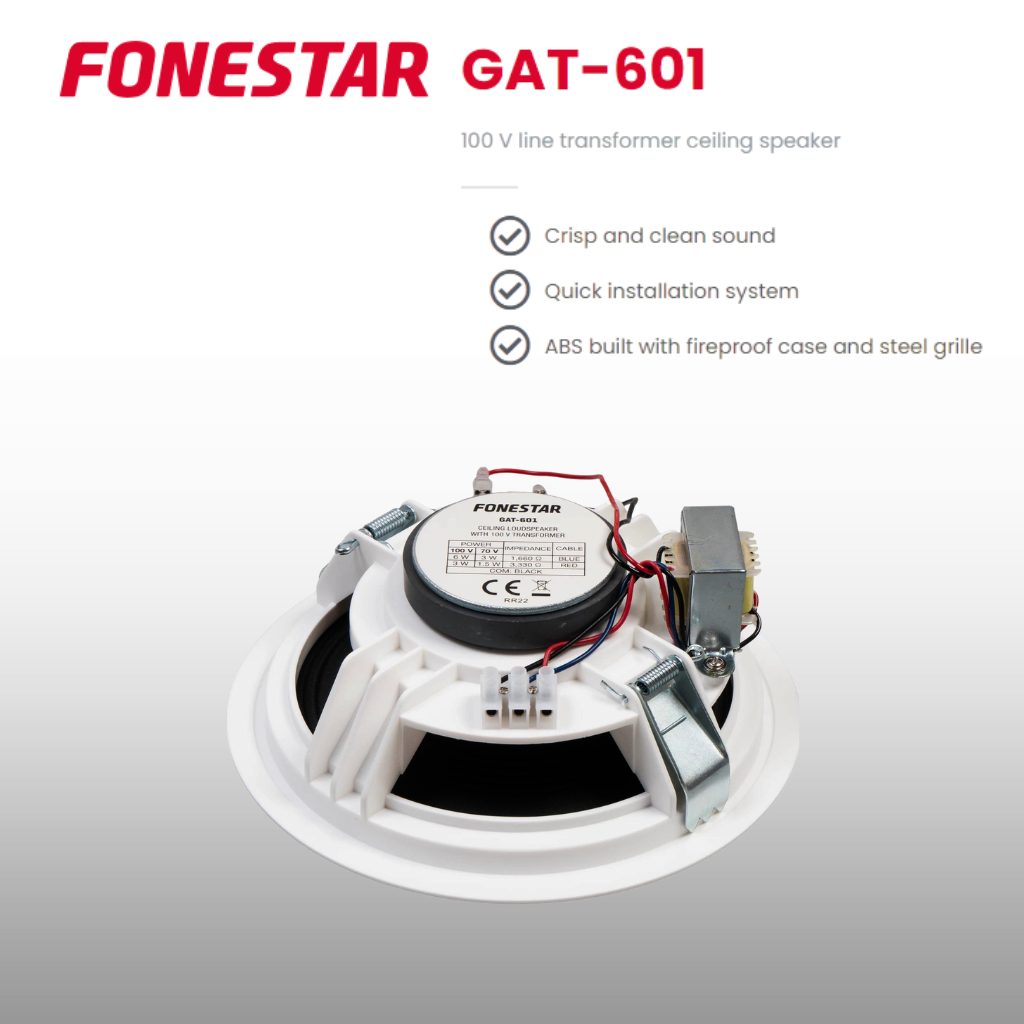

Fonestar GAT-601 flush-mount speakers (white)

FEATURES: Ceiling loudspeaker with 100 V line transformer and round grille.
POWER: 10 W maximum, 6 W RMS
LOUDSPEAKERS: 6 ½" double cone
RESPONSE: 140-20,000 Hz
IMPEDANCE: 6 W RMS@100V (1,660 Ω)
3 W RMS@100V (3,330 Ω)
SENSITIVITY: 92 dB ±3 dB at 1 W/1 m
MATERIAL: ABS and steel grille
COLOUR: White (RAL 9003)
DIMENSIONS: 188 mm Ø x 80 mm depth
HOLE: 168 mm Ø
WEIGHT: 0.6 kg
: Rapid installation system

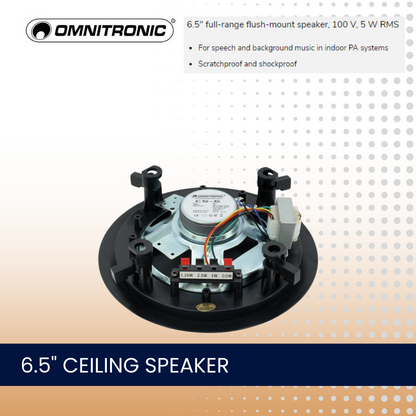

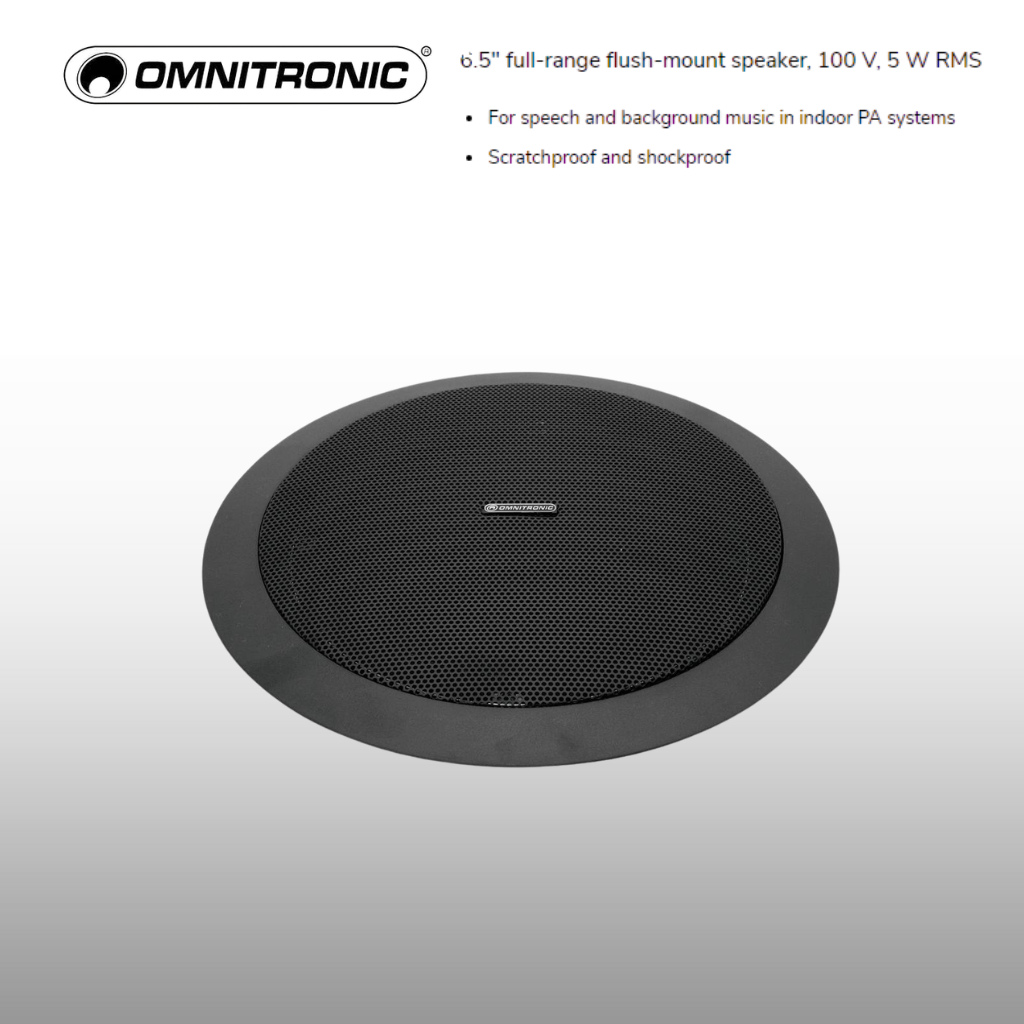

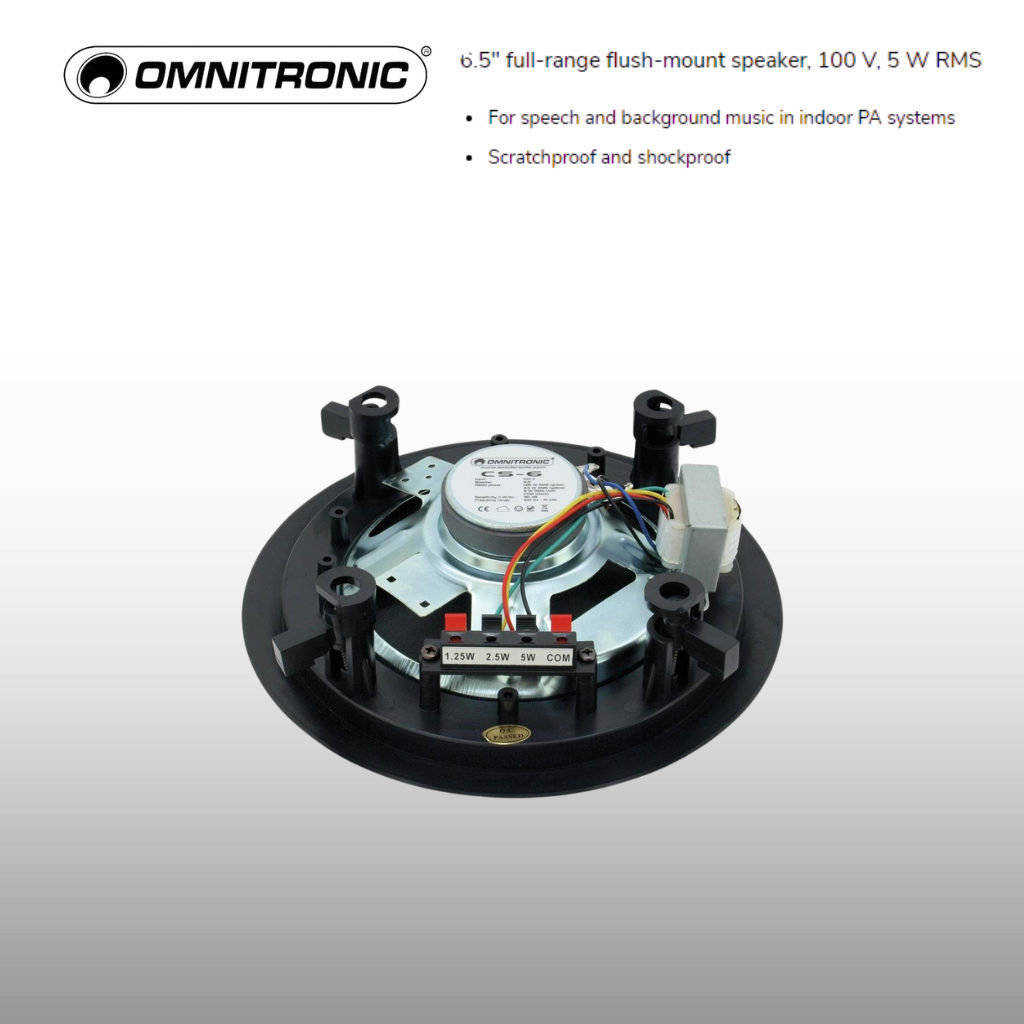

Omnitronic CS-6 ceiling speakers (black)

Power: Program: 10W
Rated: 5W RMS
Frequency range: 100 - 10000 Hz
Sensitivity: 90 dB (1W/1m)
Impedance: Public address systems 100V
Power tapping: 1,25W; 2,5W; 5W RMS via Spring terminal switchable
Speaker: 1 x woofer (6.5") approx. 17 cm
Type of speaker: Flush-mount speaker
Material: ABS Acrylonitrile butadiene styrene
Color: White, scratchproof and shockproof
Mounting dimensions: Ø 19,5 cm
Dimensions: Depth: 7 cm
Diameter: Ø 23 cm
Weight: 890 g

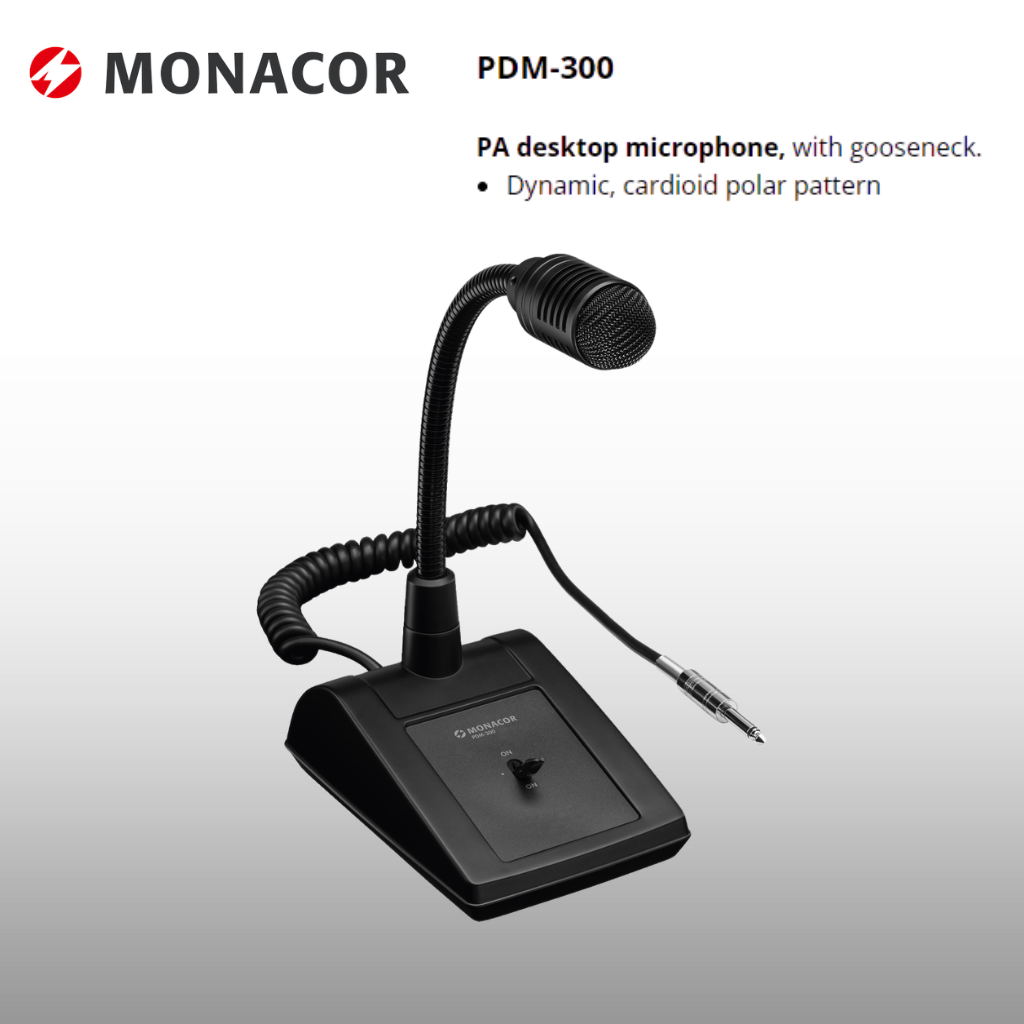

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)

Weight 810 g
Cable 1 m
Connection 6.3 mm plug
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.015 kg
Net weight 0.818 kg
