2-Zone Professional Matrix Amplifer Wall Speaker Package Up To 24 Speakers Background Music System

Name: 2-Zone Professional Matrix Amplifer Wall Speaker Package Up To 24 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 2Z4SP-MATPROW
Price: 1249.0 GBP
Availability: InStock

2-Zone Professional Matrix Amplifer Wall Speaker Package Up To 24 Speakers Background Music System

SKU:2Z4SP-MATPROW

£1,249.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White Black

Speakers 4 8 12 16 24

Optional Extras None Internet Media Player

Product variants

Quantity

This top-quality wall speaker background music system is an ideal choice for those looking for superior sound at a budget-friendly price.

The user-friendly, rack-mountable professional 2-zone matrix amplifier offers versatile inputs for both LINE and MIC sources.

You can select from 4 to 24 stylish wall speakers in either white or black, all of which provide clear, distortion-free audio.

Included in the package are 2 wall modules that facilitate local connections for LINE or MIC sources, along with zonal volume control.

Additionally, we provide a paging microphone for making announcements in specific zones.

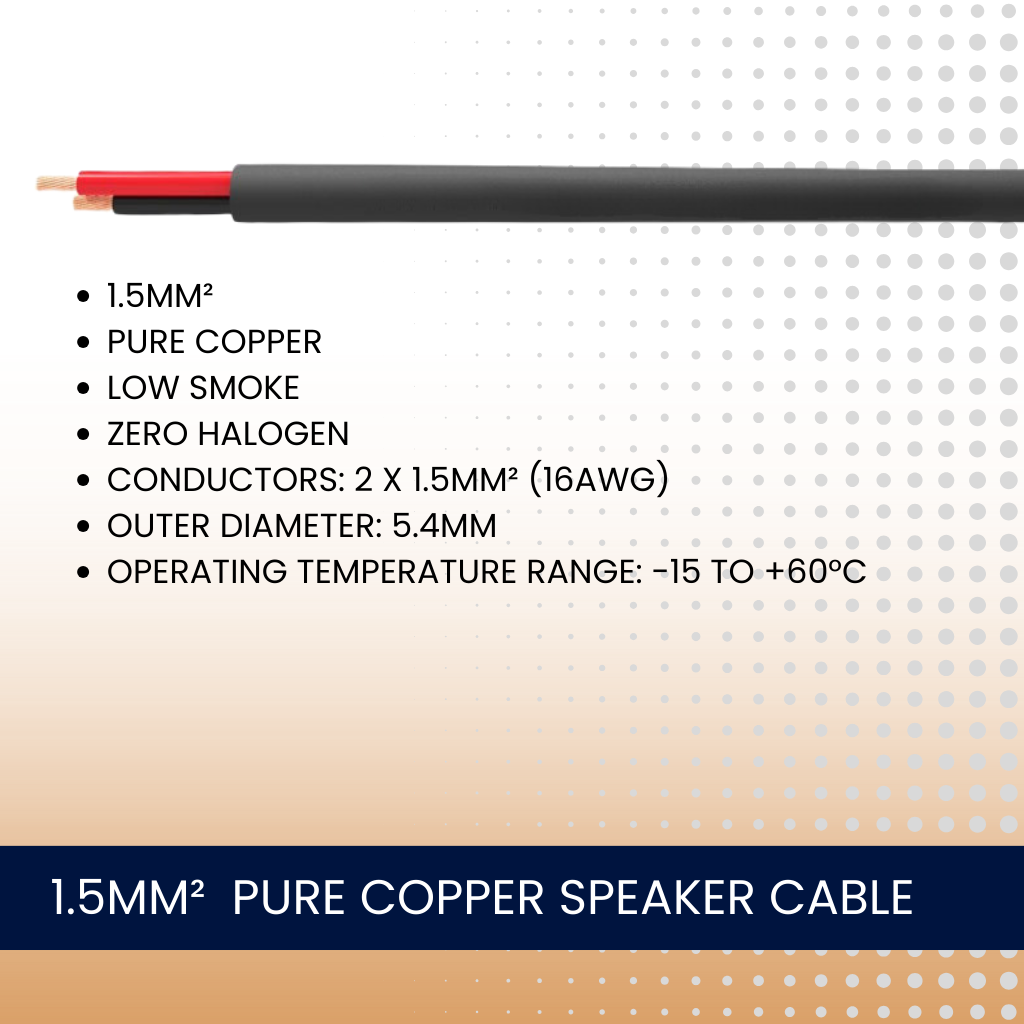

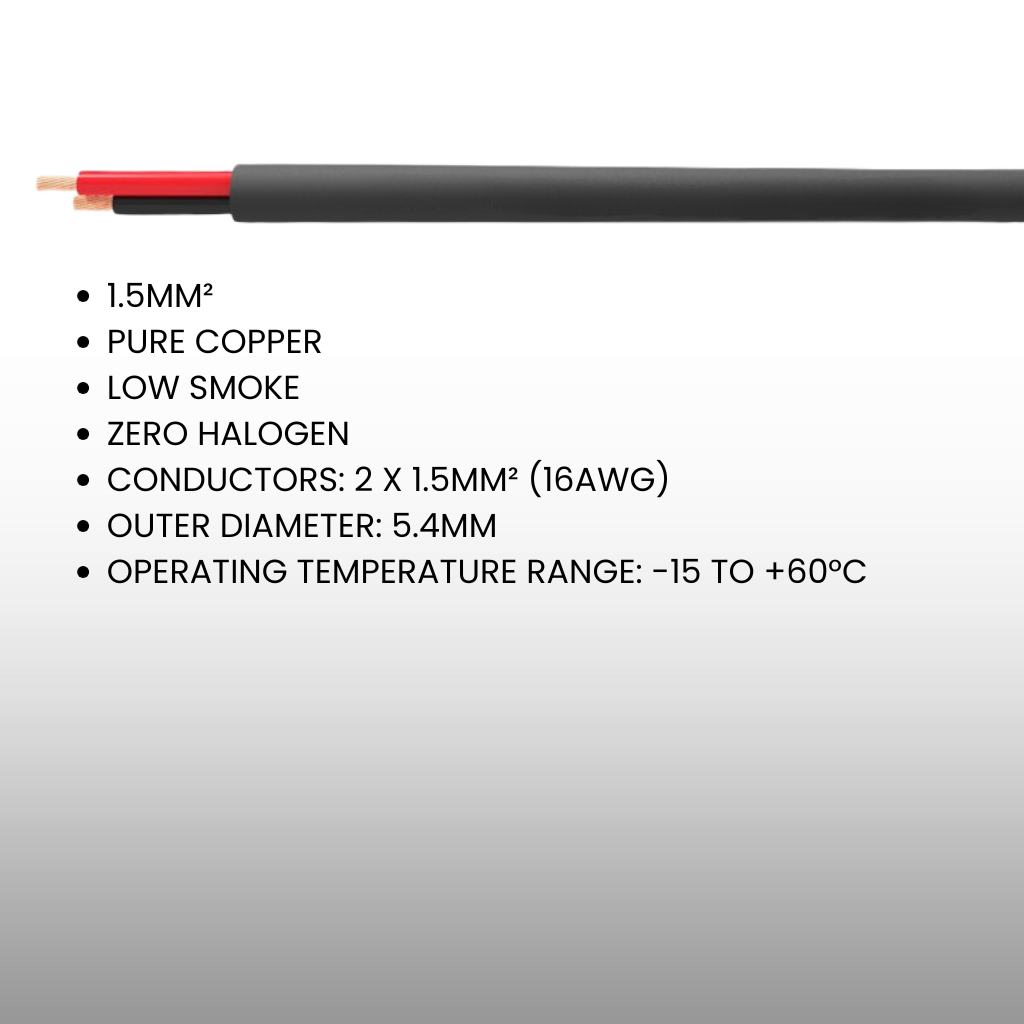

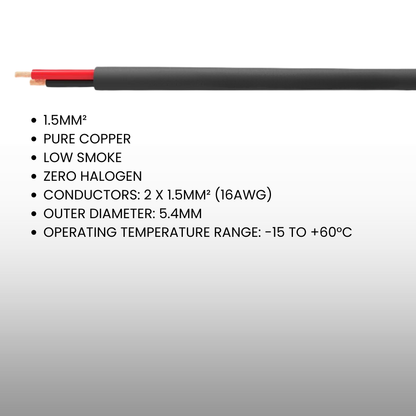

To simplify installation, we include 50 or 100 meters of 1.5mm² pure copper low smoke zero halogen 2-core insulated speaker cable (depending on your package selection).

For added convenience, consider the optional internet media player which allows you to stream music and connect via Bluetooth to your system.

Features

High quality professional background music system
Affordable price
Rack mountable 2-zone matrix amplifier
LINE and MIC inputs
Local source connection
Zonal volume control
Zonal announcements
High quality wall speakers
1.5mm² pure copper low smoke zero halogen 2 core insulated speaker cable

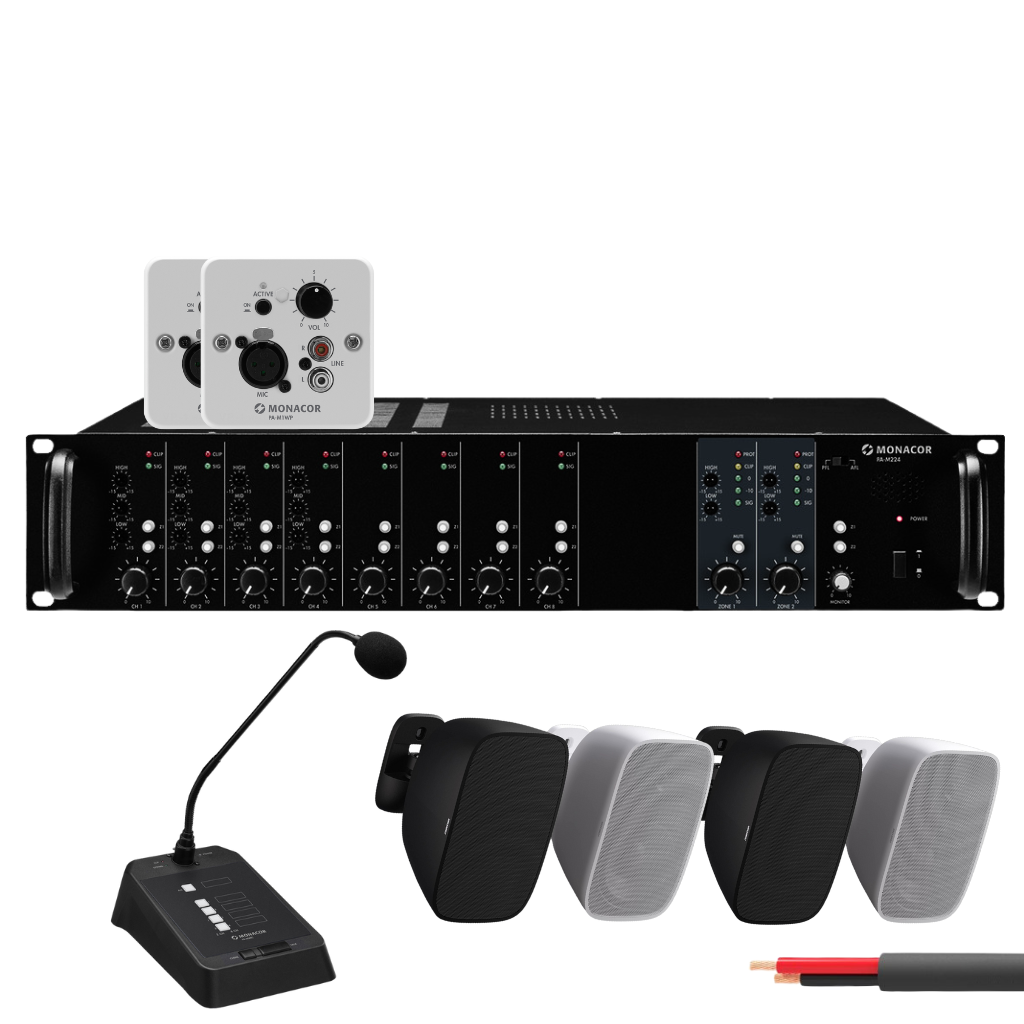

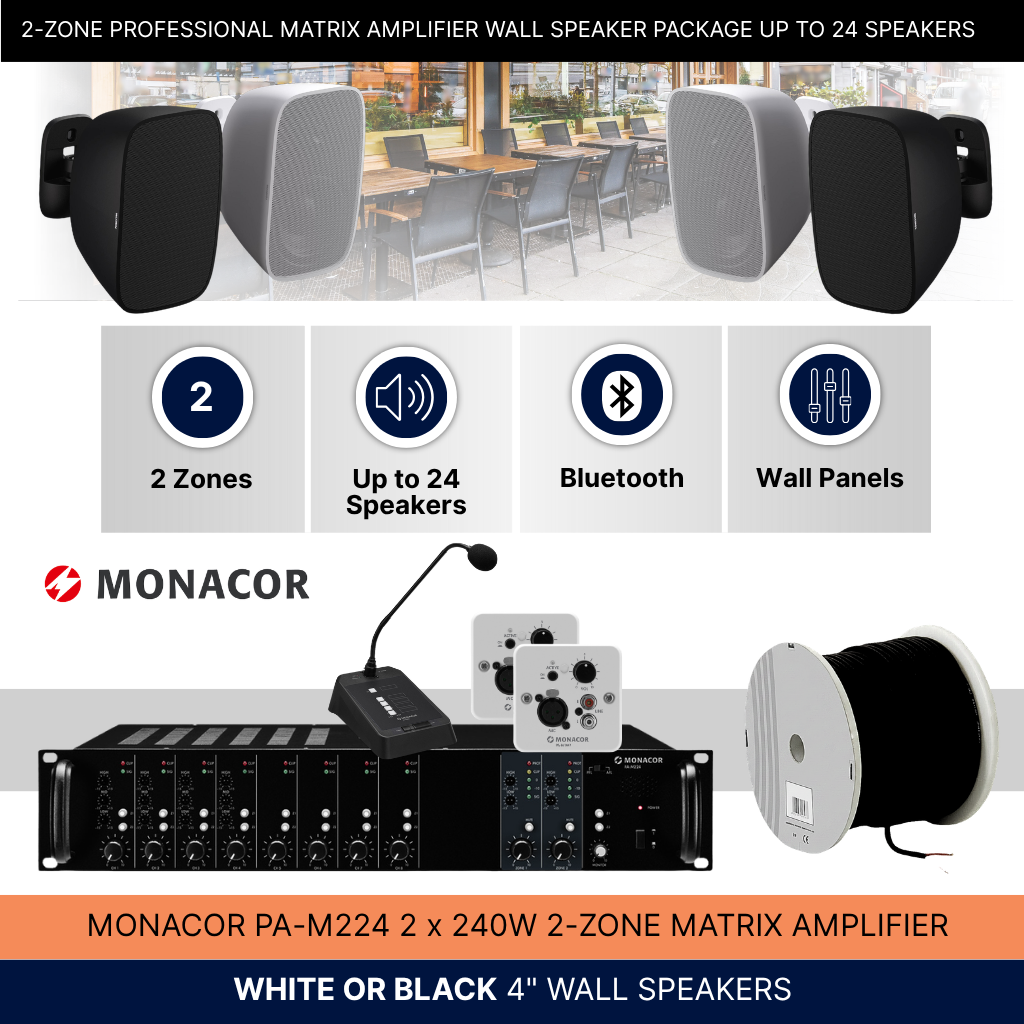

Included

Monacor PA-M224 2-zone matrix amplifier
4 to 24 Fonestar SONORA-4T wall speakers (white or black)
2 Monacor PA-M1WP wall panels
Monacor PA-M4RC paging microphone
50 metres of 1.5mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 speaker packages)
100 metres of 1.5mm² pure copper low smoke zero halogen 2 core insulated speaker cable (8 - 24 speaker packages)

Optional Extras

ZZiPP ZZONE-IR internet media player

Amplifier Specification

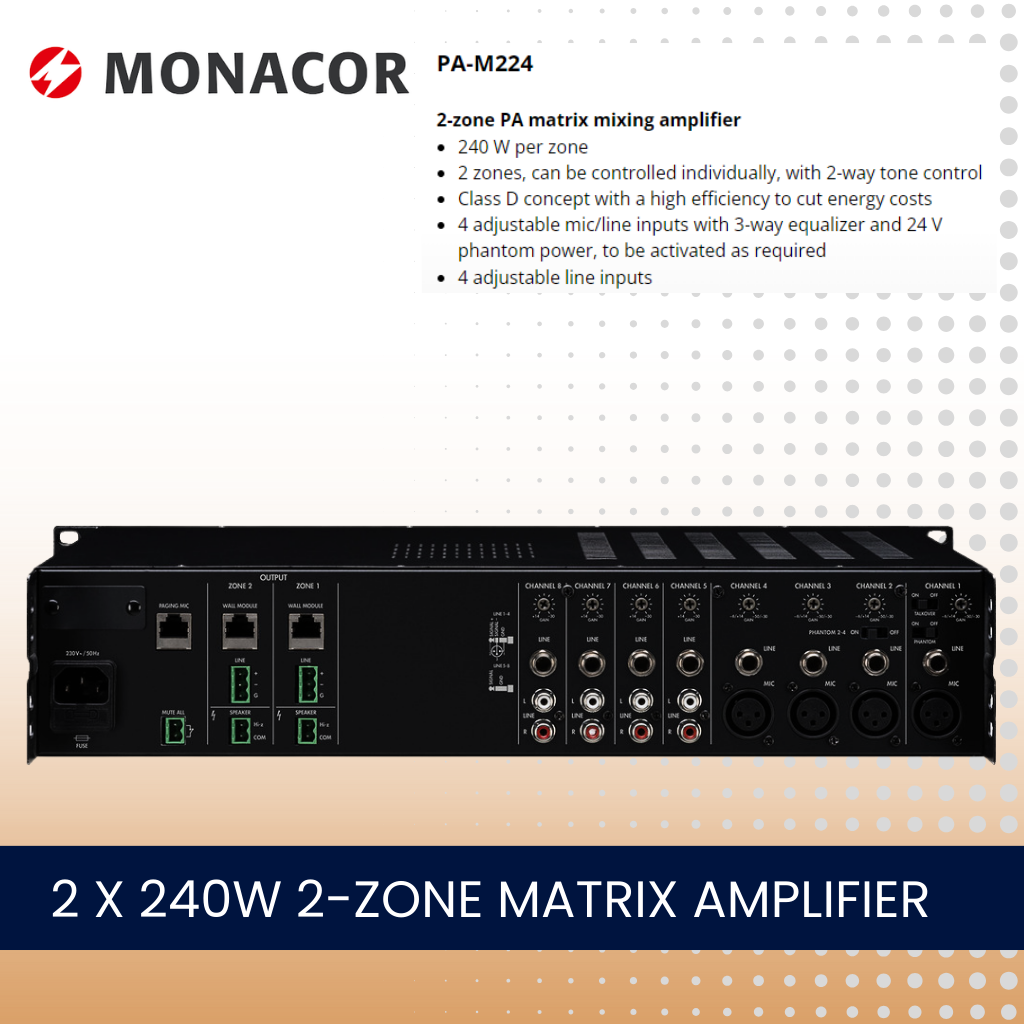

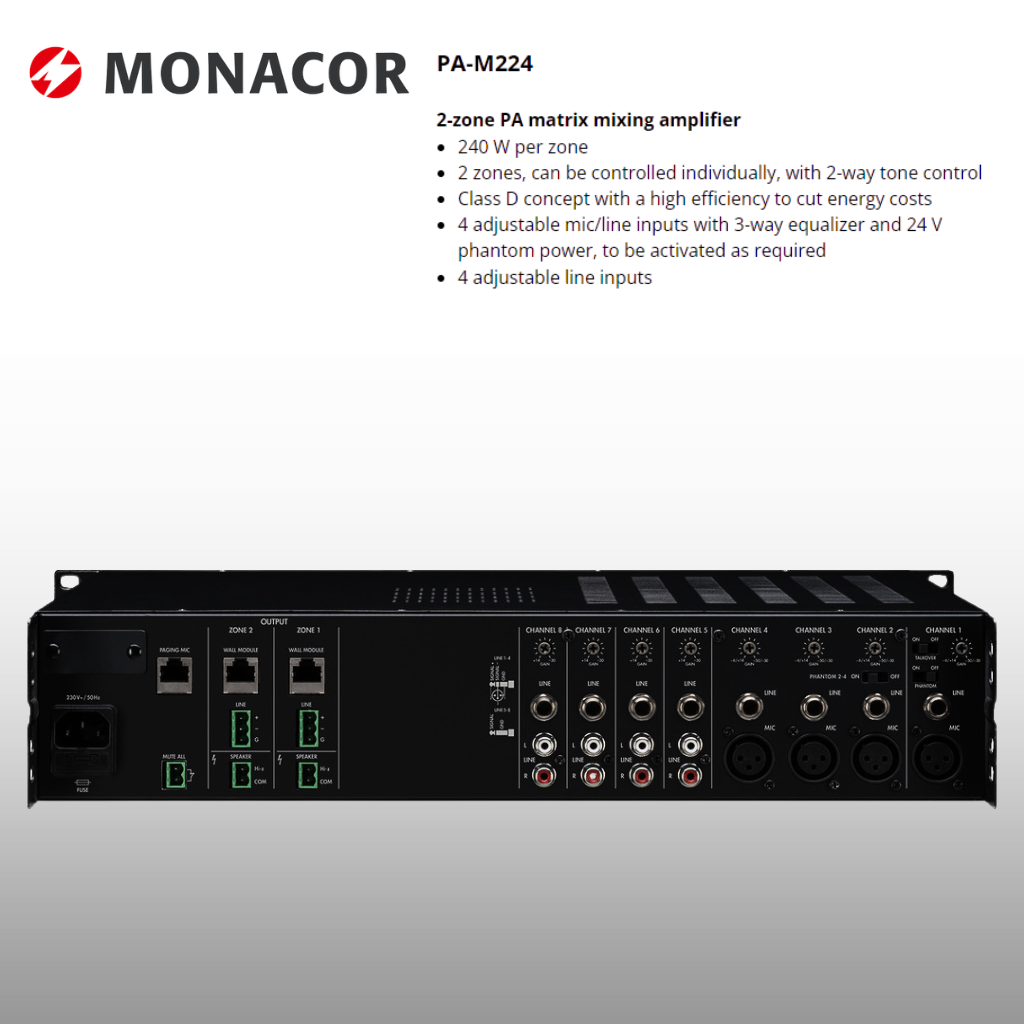

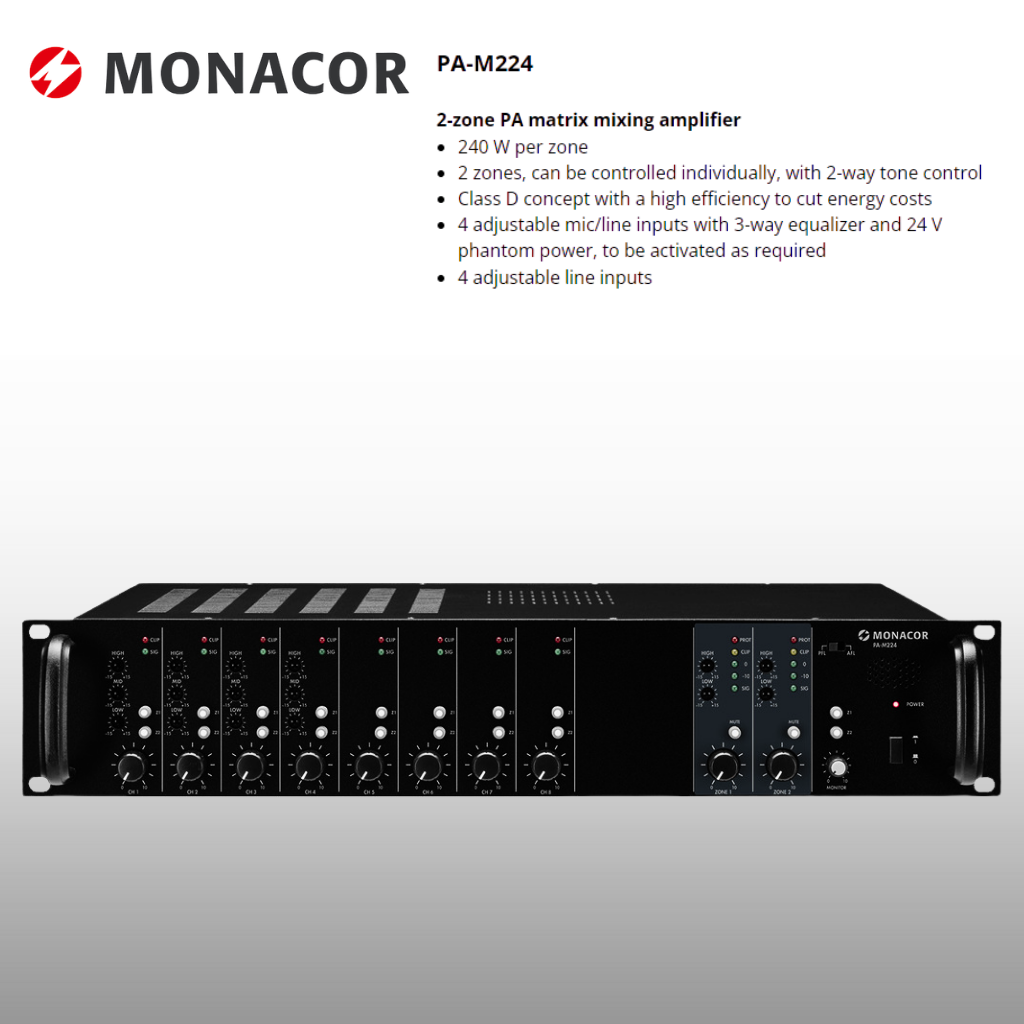

Monacor PA-M224 2-zone matrix amplifier

Peak output power2 x 290 WPower rating2 x 240 WChannels8Zones2Inputs2.5 mV/20 kΩ (mic),

2 V/20 kΩ (line)

Frequency range20-20,000 HzEqualizer bass±12 dB/80 Hz (channels 1-4)

±15 dB/80 Hz (zones 1-4)

Equalizer midrange±12 dB/2.5 kHz (channels 1-4)Equalizer treble±12 dB/12.5 kHz (channels 1-4)

±15 dB/12 kHz (zones 1-4)

S/N ratio> 70 dBTHD< 0.1%Phantom power24 VMains voltage~ 230 VMains frequency50 HzPower consumption, operation800 VAAdmiss. ambient temp.0-40 °CWidth482 mmHeight88 mmDepth320 mmRack units, RU2Weight5.7 kgConnections4 x XLR, bal. (mic 1-4),

4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8)

1 x RJ45 (push-to-talk microphone),

2 x RJ45 (remote in),

screw terminal (speakers)

Packing dimensions (W x H x L)0.54 x 0.17 x 0.41 mGross weight6.83 kgNet weight5.71 kg

Speaker Specification

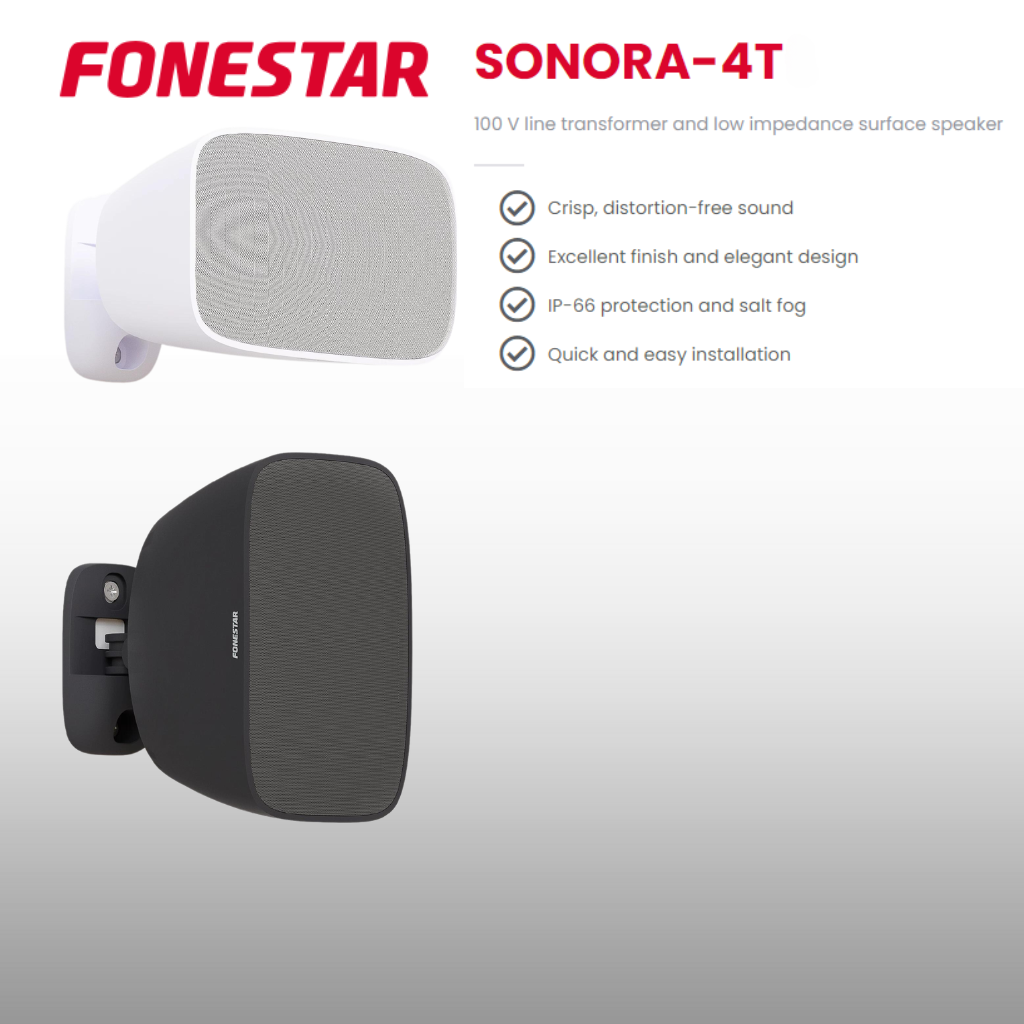

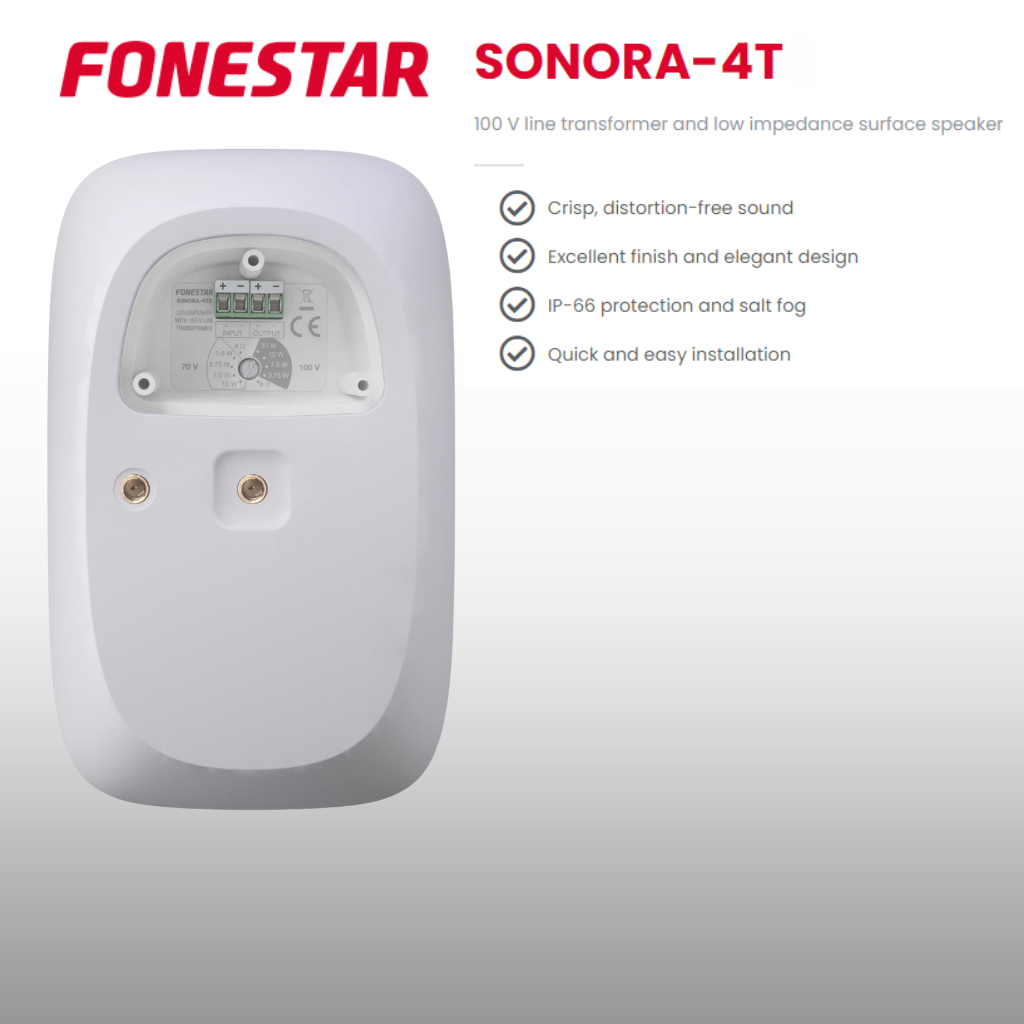

Fonestar SONORA-4T wall speakers (white or black)

FEATURES: Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
POWER: 60 W max., 30 W RMS
LOUDSPEAKERS: 1 x 4" polypropylene woofer
1 x 1” tweeter
RESPONSE: 120-20,000 Hz
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
SENSITIVITY: 83 dB @ 1 W/1 m

MAXIMUM SOUND PRESSURE: 96 dB @ max. W/1 m
COVERAGE ANGLE: H/V: 215º/225º @500Hz, 145º/130º@1kHz, 115º/120º@2kHz, 80º/110º@4kHz (-6 dB)
PROTECTION: IP-66 in compliance with EN 60529
IEC 60068-2-11 Environmental tests (Saline mist)
MATERIAL: ABS
Aluminium mesh grille
Mount with weatherproof treatment
Stainless steel screws
SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9005)
DIMENSIONS: Loudspeaker: 125 x 202 x 125 mm depth
Mount wall plate: 68 x 110 mm
Loudspeaker with mount: 193 mm depth
WEIGHT: 1.5 kg
ACCESSORIES: Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

Wall Panel Specification

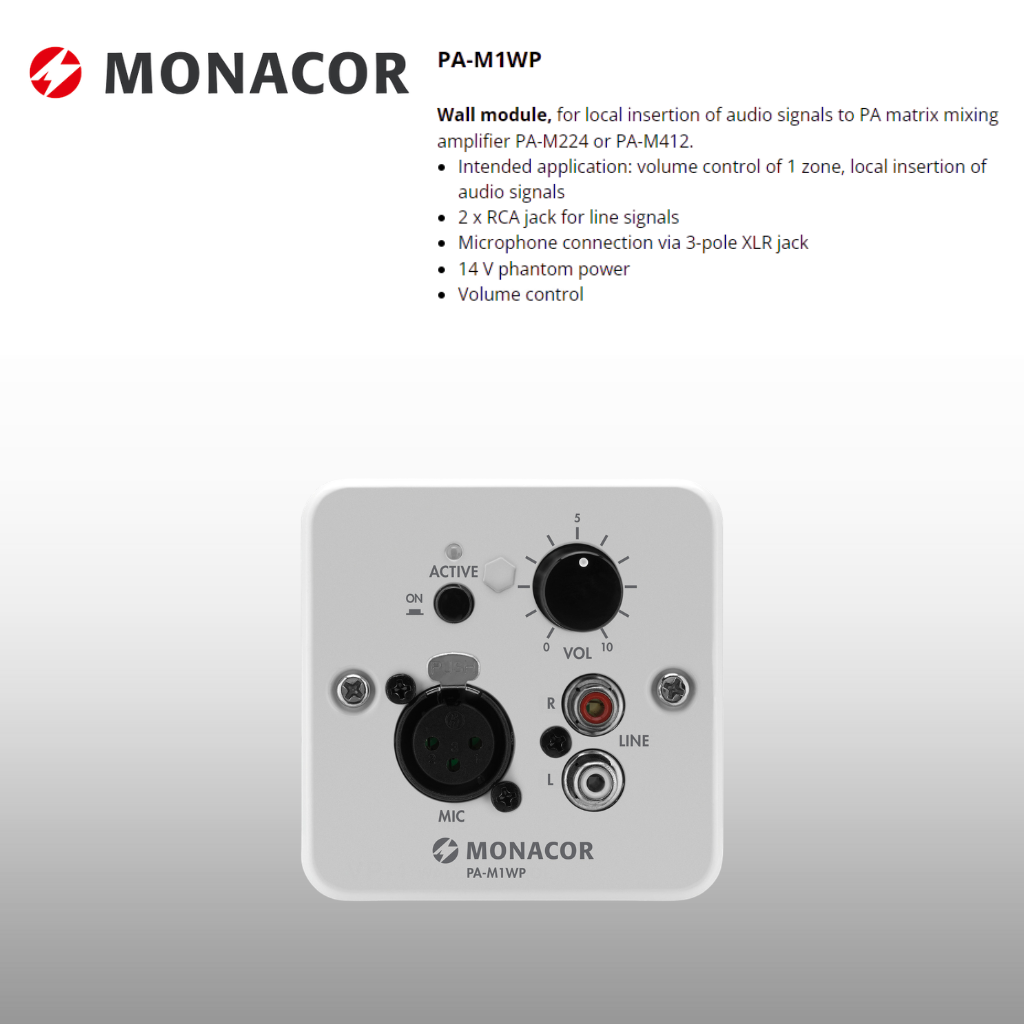

Monacor PA-M1WP wall panel

Description wall module
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Dimensions 80 x 80 x 50 mm
Weight 90 g
Connections 1 x XLR (microphone),
1 x RCA L/R (line),

1 x RJ45

Other features 14 V phantom power
Packing unit 1
Packing dimensions (W x H x L) 0.09 x 0.09 x 0.085 m
Gross weight 0.135 kg
Net weight 0.09 kg

Paging Microphone Specification

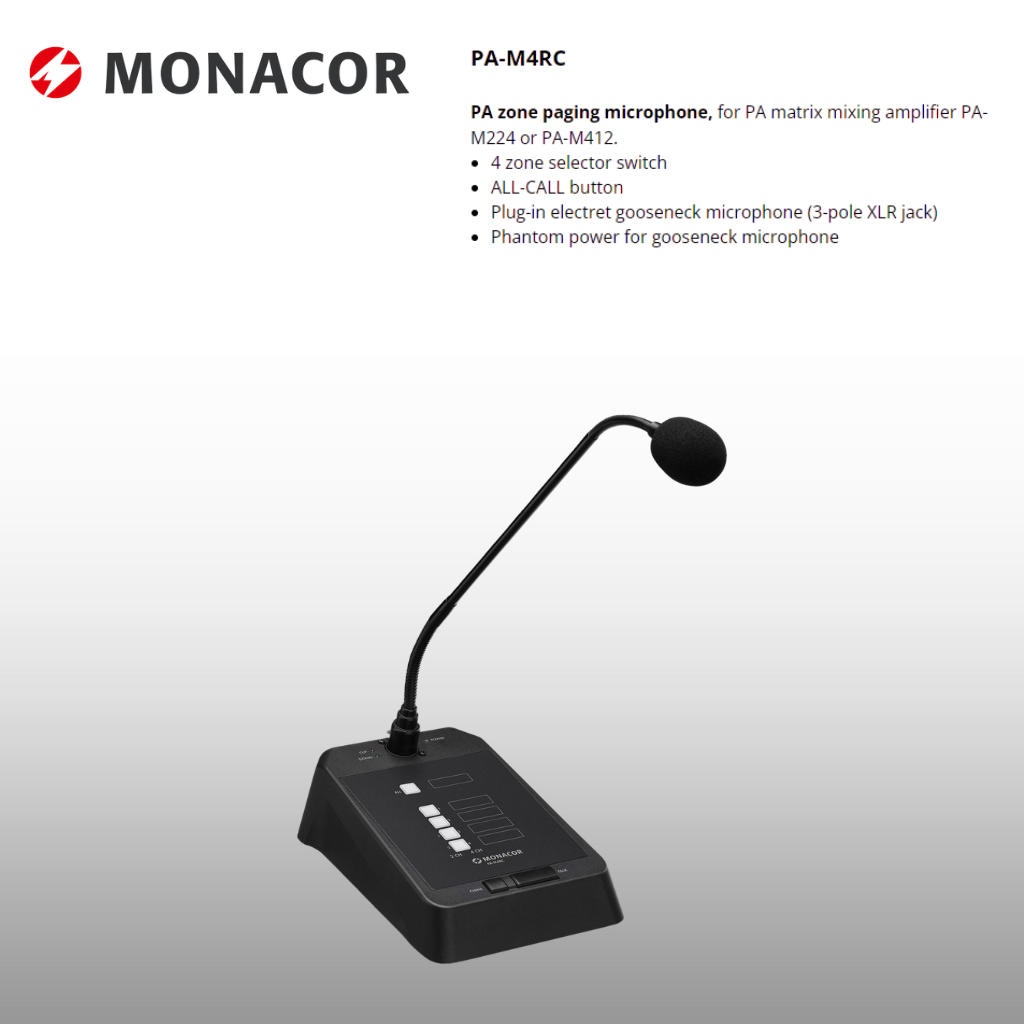

Monacor PA-M4RC paging microphone

Description PA zone paging microphone
Transmission method cable
System electret
Power supply via PA-M224, PA-M412
Audio frequency range 45-15,000 Hz
Sensitivity 1 mV/Pa
Gooseneck length 420 mm
Admiss. ambient temp. 0-40 °C
Dimensions 140 x 65 x 205 mm
Weight 860 g
Connection RJ45
Packing dimensions (W x H x L) 0.1 x 0.21 x 0.35 m
Gross weight 1.09 kg
Net weight 0.86 kg

Internet Media Player Specification

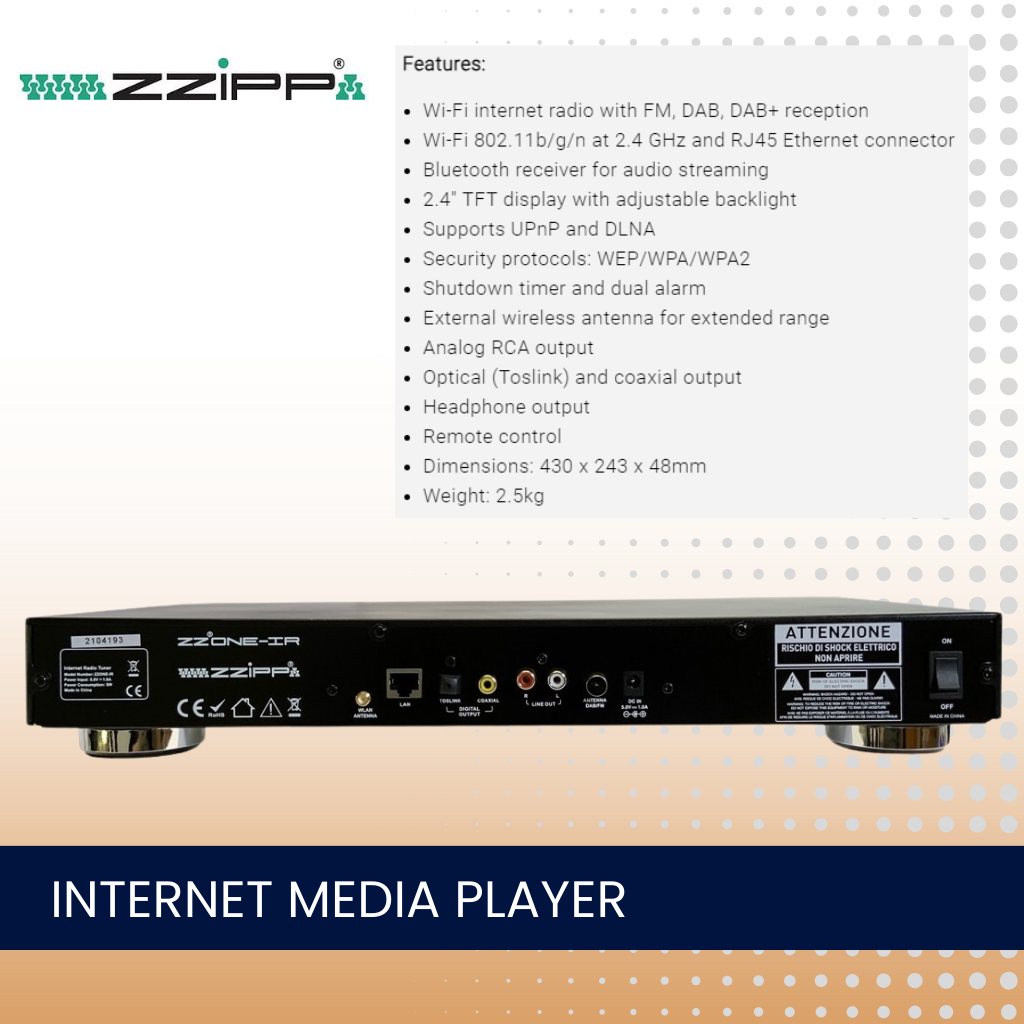

ZZiPP ZZONE-IR internet media player

Wi-Fi internet radio with FM, DAB, DAB+ reception
Wi-Fi 802.11b/g/n at 2.4 GHz and RJ45 Ethernet connector
Bluetooth receiver for audio streaming
2.4" TFT display with adjustable backlight
Supports UPnP and DLNA
Security protocols: WEP/WPA/WPA2
Shutdown timer and dual alarm
External wireless antenna for extended range
Analog RCA output
Optical (Toslink) and coaxial output
Headphone output
Remote control
Dimensions: 430 x 243 x 48mm
Weight: 2.5kg
