2-Zone Professional Matrix Amplifier Ceiling Speaker Package Up To 64 Speakers Background Music System

Name: 2-Zone Professional Matrix Amplifier Ceiling Speaker Package Up To 64 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 2Z4SP-MATRIXPRO
Price: 1149.0 GBP
Availability: InStock

2-Zone Professional Matrix Amplifier Ceiling Speaker Package Up To 64 Speakers Background Music System

SKU:2Z4SP-MATRIXPRO

£1,149.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White Black

Speakers 4 8 16 32 64

Optional Extras None Internet Media Player

Product variants

Quantity

Upgrade your space with our premium ceiling speaker background music system, designed to deliver exceptional sound quality without breaking the bank.

Our professional 2-zone matrix amplifier, which can be easily rack-mounted, offers straightforward operation with dedicated inputs for LINE and MIC sources.

Select from 4 to 64 high-quality flush-mount ceiling speakers, available in sleek white or black finishes. These speakers provide clear, crisp audio while seamlessly integrating with your environment.

Included in the package are 2 wall modules that enable local connections for LINE or MIC sources and allow for convenient zonal volume adjustments.

Additionally, we provide a paging mic for making important zonal announcements.

For a hassle-free installation, you'll also receive 100 meters of 0.75mm² pure copper low smoke zero halogen insulated speaker cable.

Want to expand your setup? Consider adding an optional internet media player to easily stream and connect via Bluetooth to your system.

Features

High quality professional background music system
Affordable price
Rack mountable 2-zone matrix amplifier
LINE and MIC inputs
Local source connection
Zonal volume control
Zonal announcements
High quality flush mount ceiling speakers
0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

Monacor PA-M224 2-zone matrix amplifier
4 to 64 Fonestar GAT-601 (white) or Omnitronic CS-6 (black) flush-mount speakers
2 Monacor PA-M1WP wall panels
Monacor PA-M4RC paging microphone

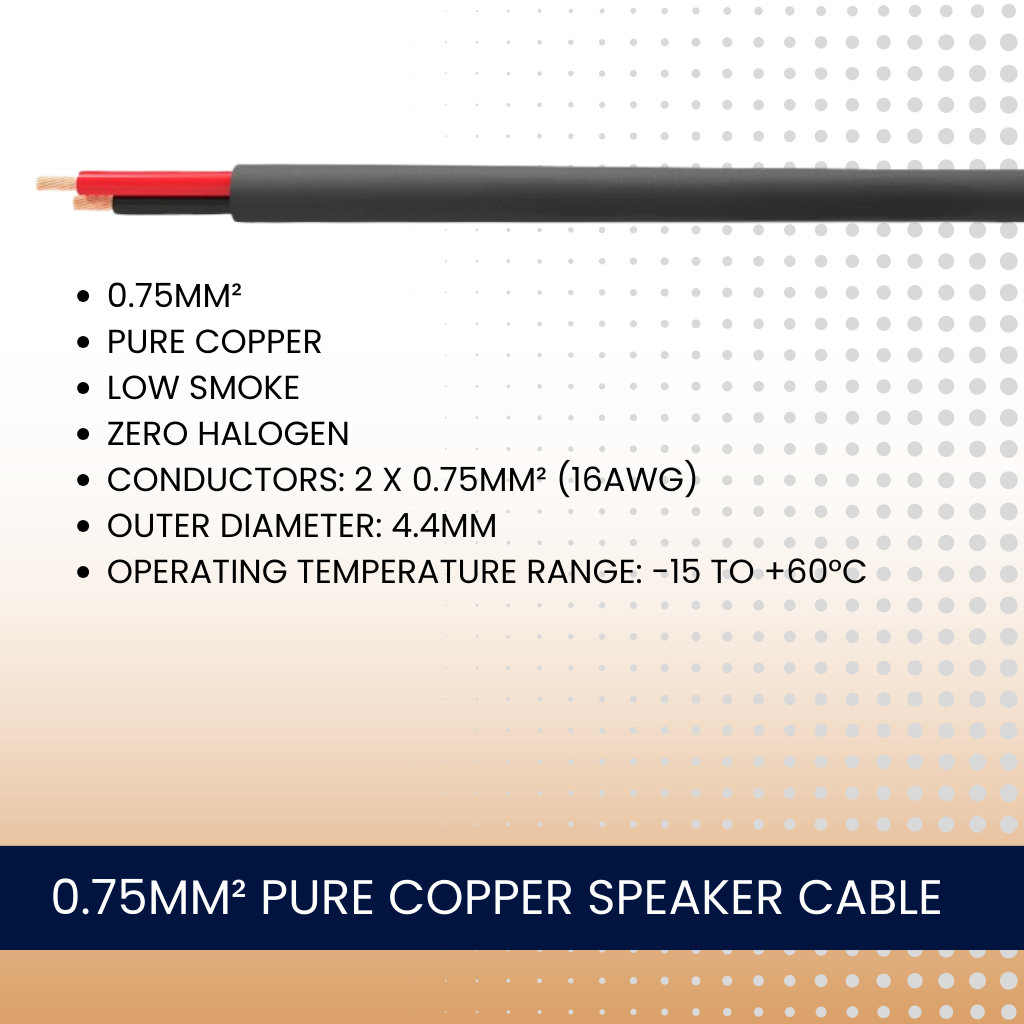

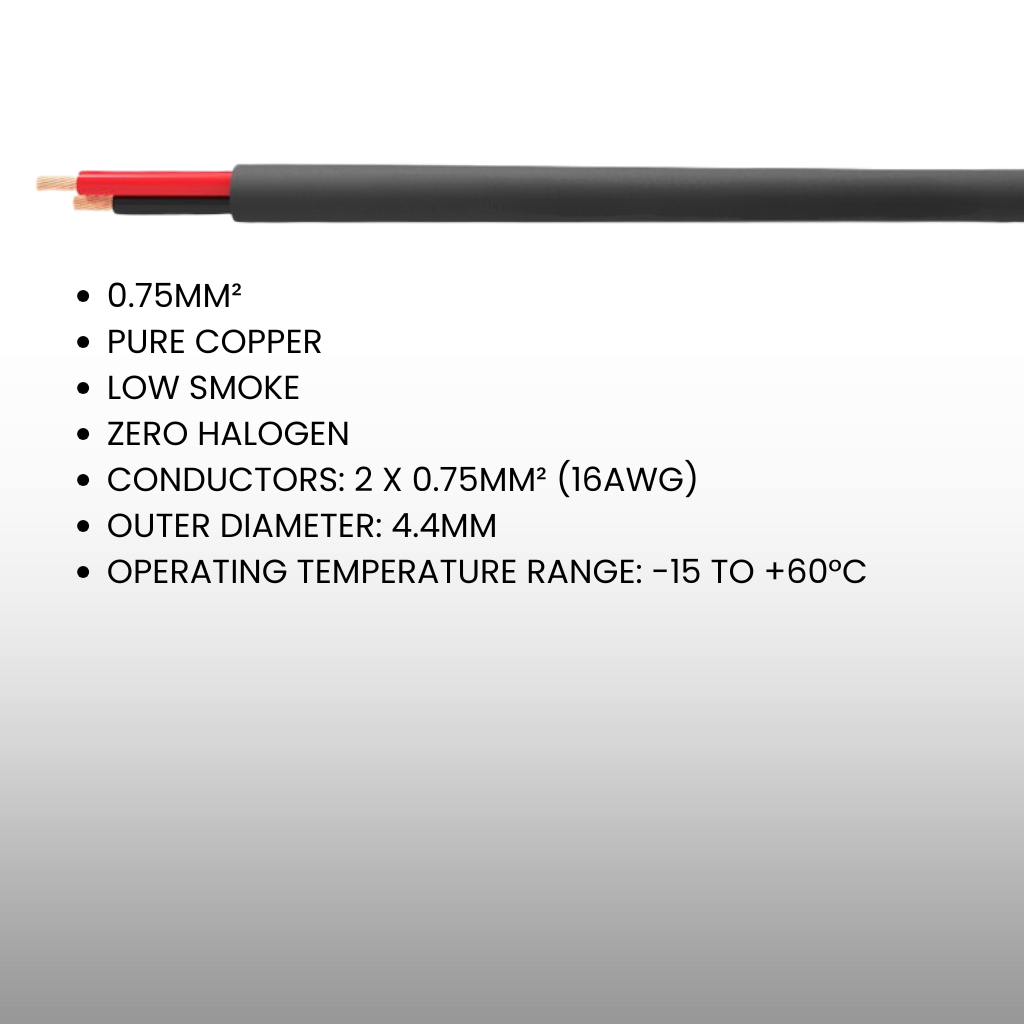

100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Optional Extras

Omnitronic TUNA-NET internet media player

Amplifier Specification

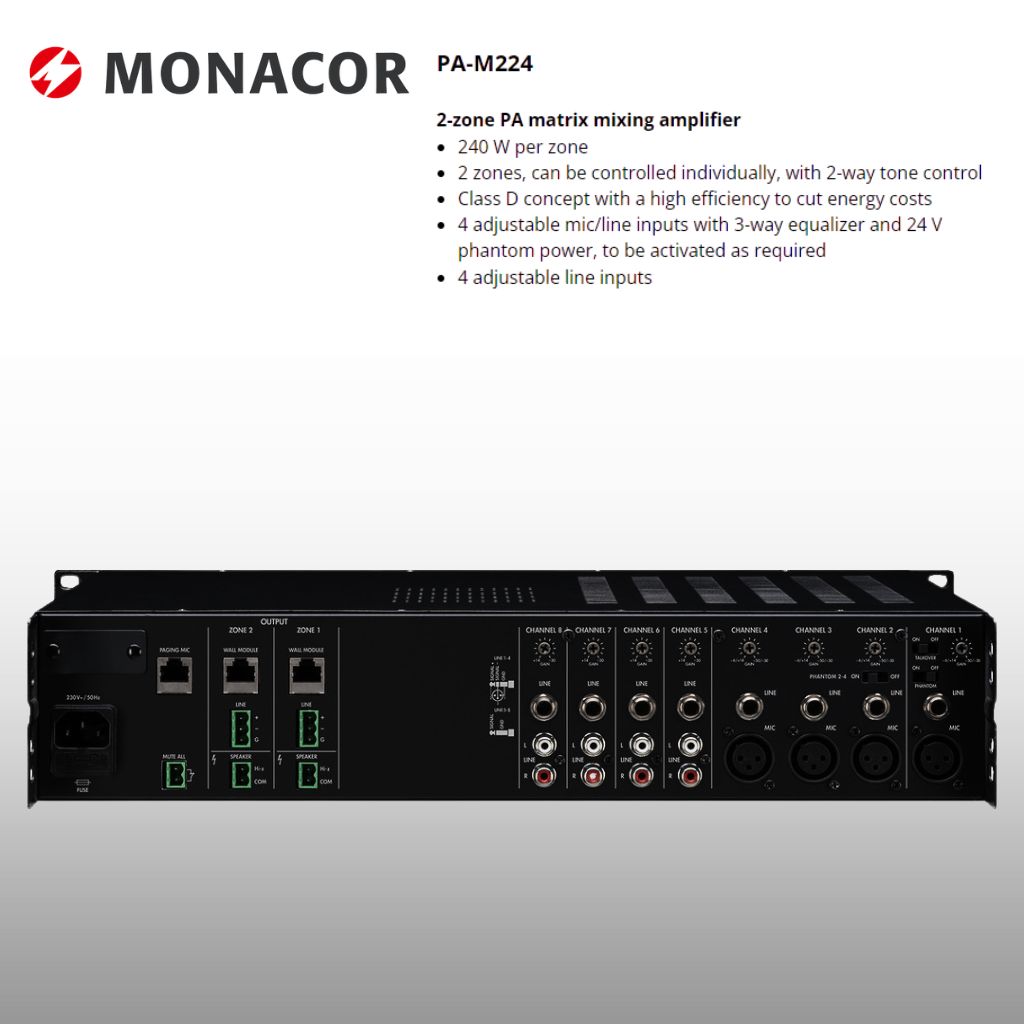

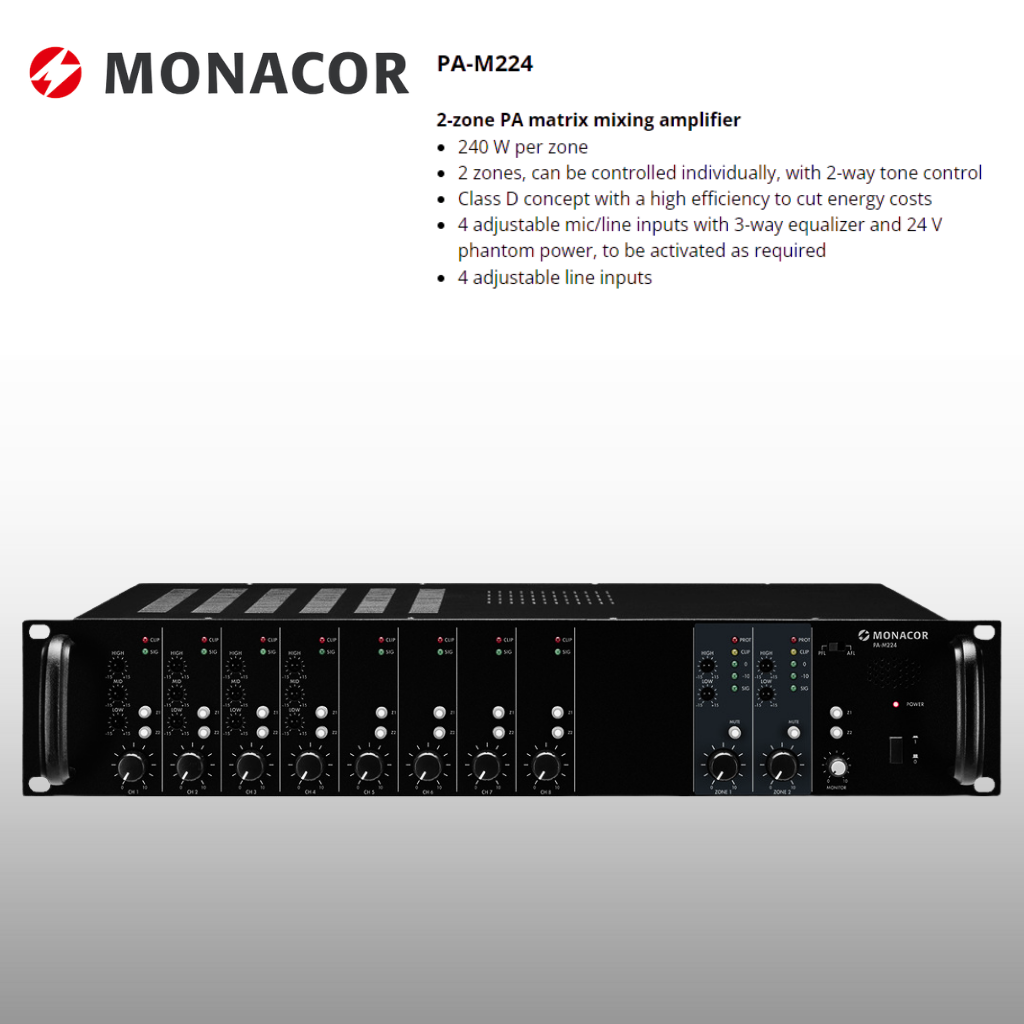

Monacor PA-M224 2-zone matrix amplifier

Peak output power2 x 290 WPower rating2 x 240 WChannels8Zones2Inputs2.5 mV/20 kΩ (mic),

2 V/20 kΩ (line)

Frequency range20-20,000 HzEqualizer bass±12 dB/80 Hz (channels 1-4)

±15 dB/80 Hz (zones 1-4)

Equalizer midrange±12 dB/2.5 kHz (channels 1-4)Equalizer treble±12 dB/12.5 kHz (channels 1-4)

±15 dB/12 kHz (zones 1-4)

S/N ratio> 70 dBTHD< 0.1%Phantom power24 VMains voltage~ 230 VMains frequency50 HzPower consumption, operation800 VAAdmiss. ambient temp.0-40 °CWidth482 mmHeight88 mmDepth320 mmRack units, RU2Weight5.7 kgConnections4 x XLR, bal. (mic 1-4),

4 x 6.3 mm jack (line 1-4),

4 x 6.3 mm jack (line 5-8),

4 x RCA L/R (line 5-8)

1 x RJ45 (push-to-talk microphone),

2 x RJ45 (remote in),

screw terminal (speakers)

Packing dimensions (W x H x L)0.54 x 0.17 x 0.41 mGross weight6.83 kgNet weight5.71 kg

Speaker Specification

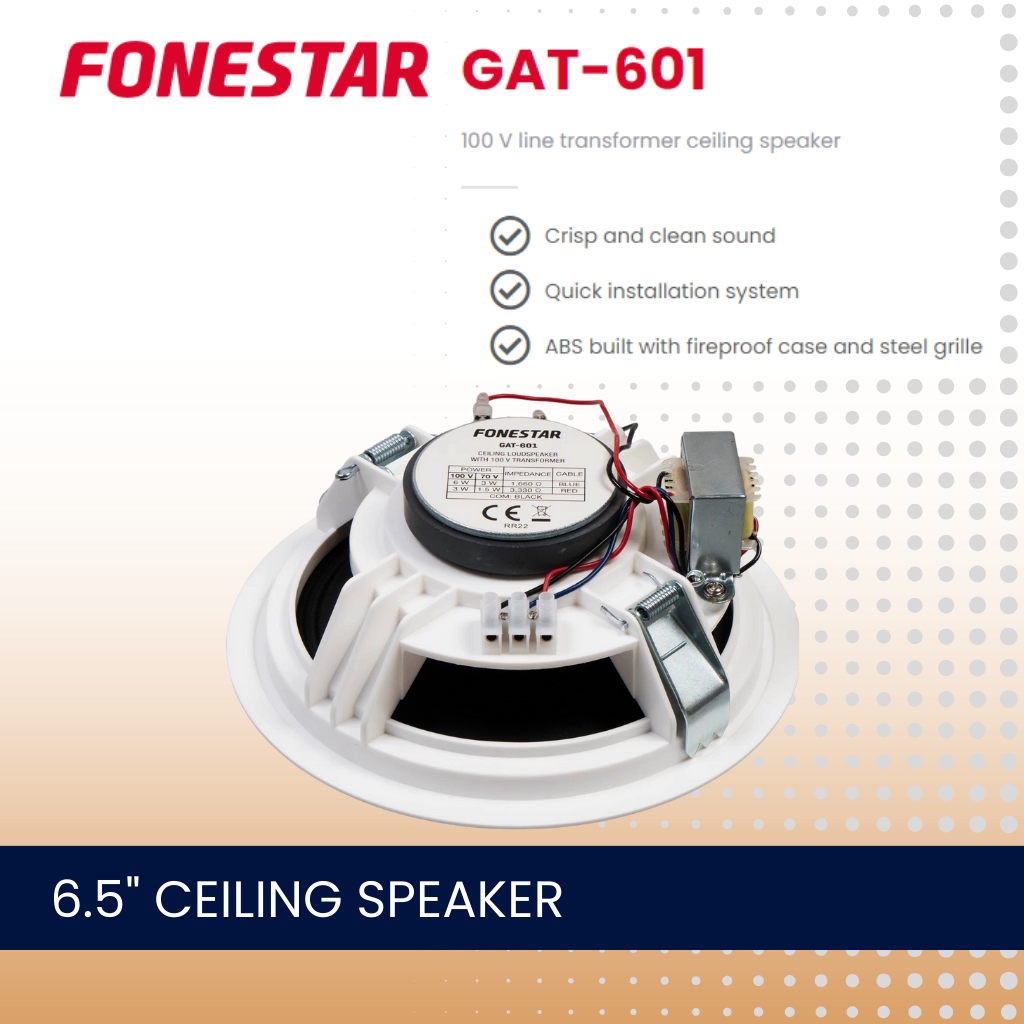

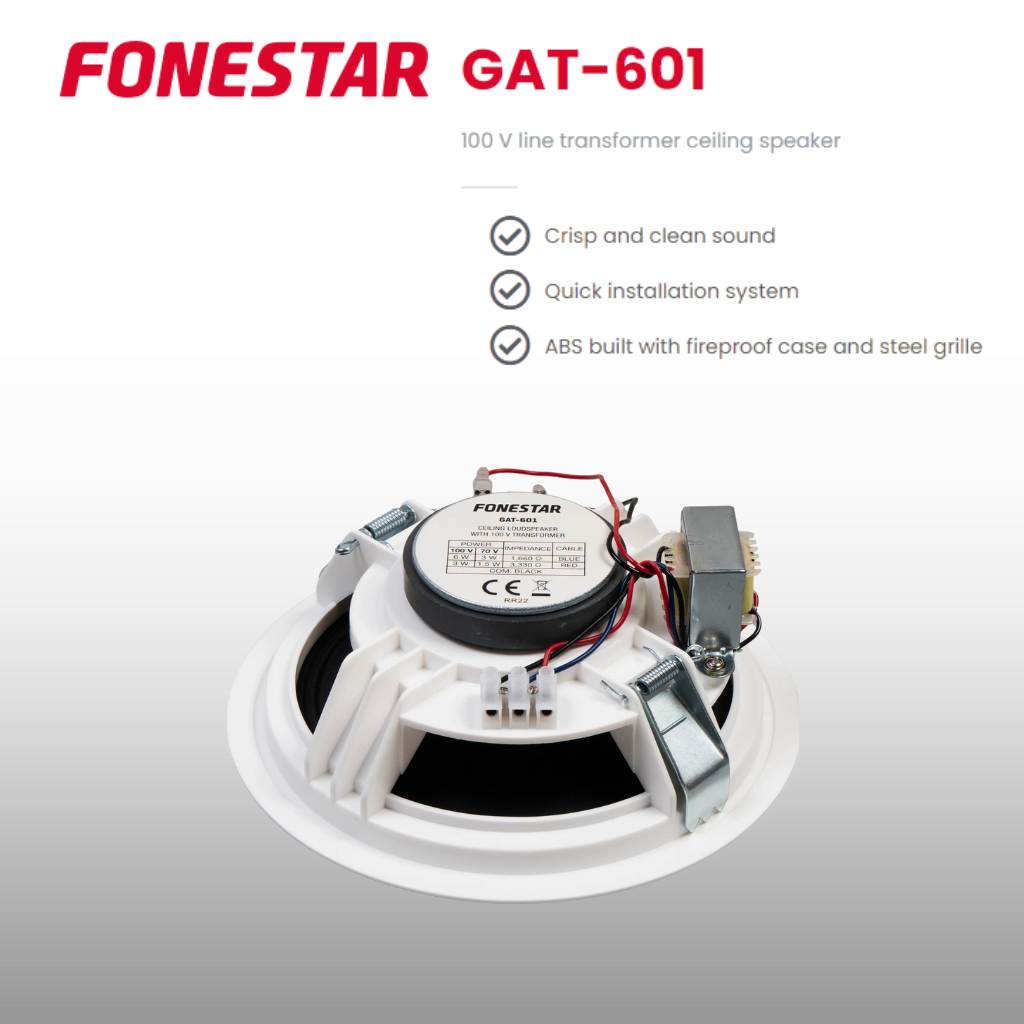

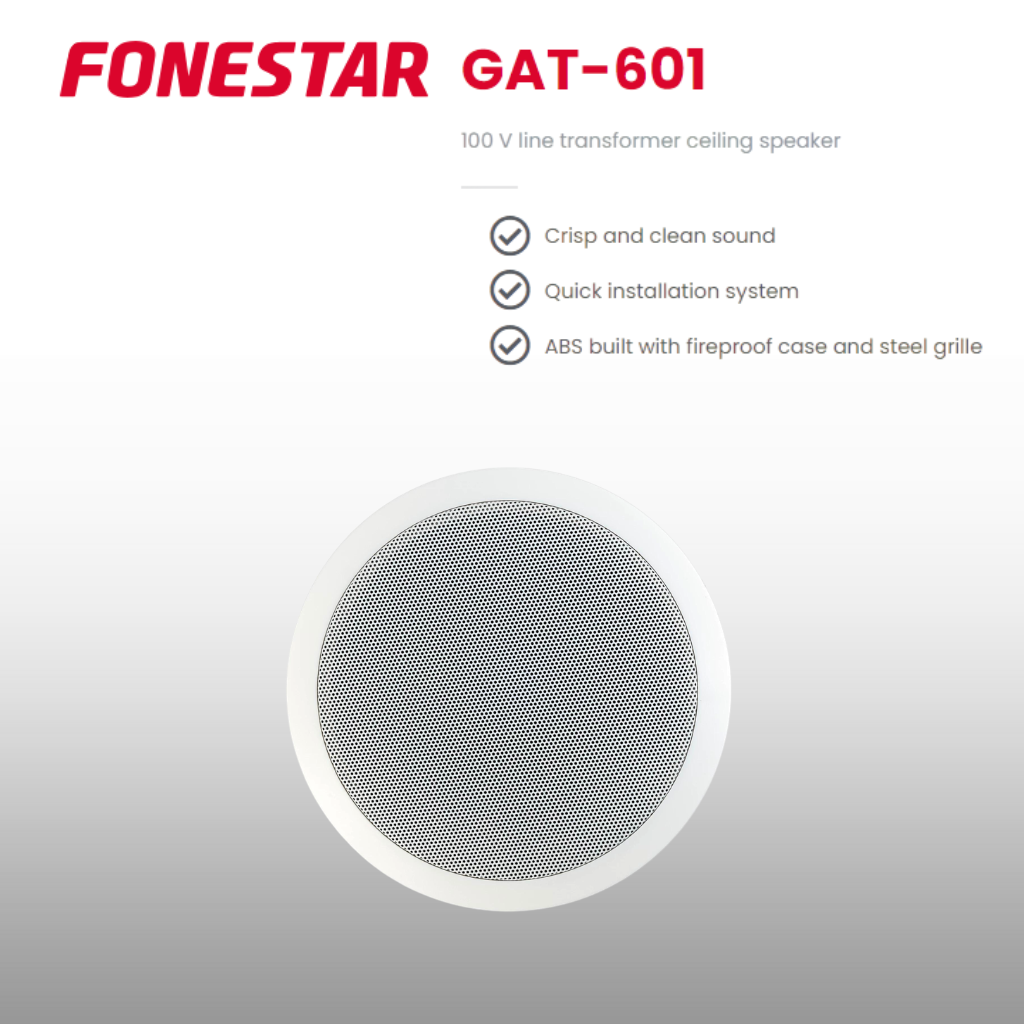

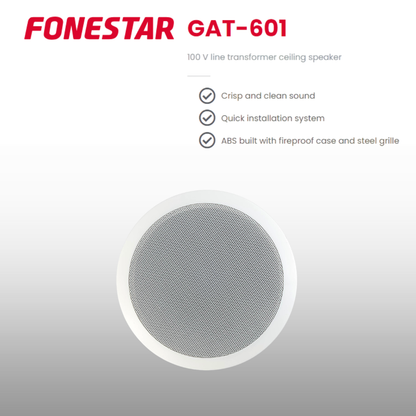

Fonestar GAT-601 flush-mount speakers (white)

FEATURES: Ceiling loudspeaker with 100 V line transformer and round grille.
POWER: 10 W maximum, 6 W RMS
LOUDSPEAKERS: 6 ½" double cone
RESPONSE: 140-20,000 Hz
IMPEDANCE: 6 W RMS@100V (1,660 Ω)
3 W RMS@100V (3,330 Ω)
SENSITIVITY: 92 dB ±3 dB at 1 W/1 m
MATERIAL: ABS and steel grille
COLOUR: White (RAL 9003)
DIMENSIONS: 188 mm Ø x 80 mm depth
HOLE: 168 mm Ø
WEIGHT: 0.6 kg
: Rapid installation system

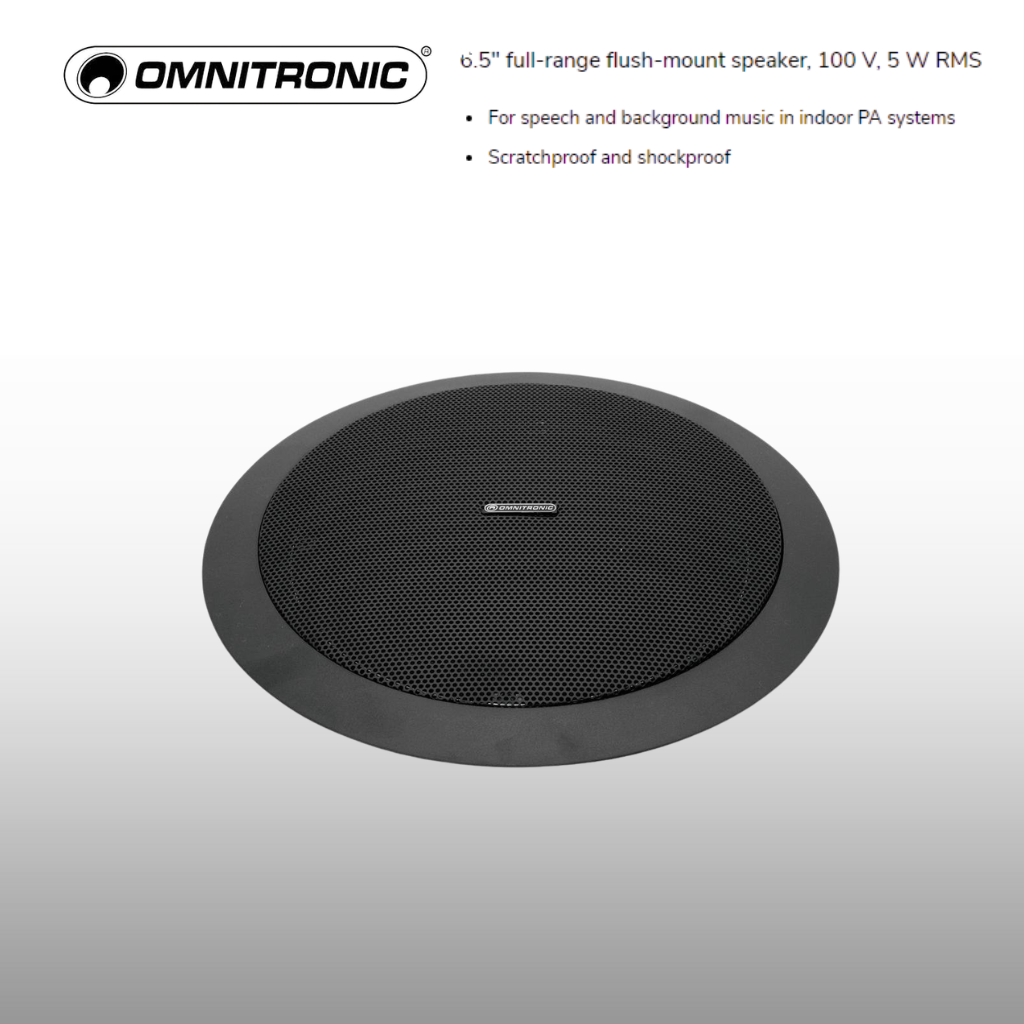

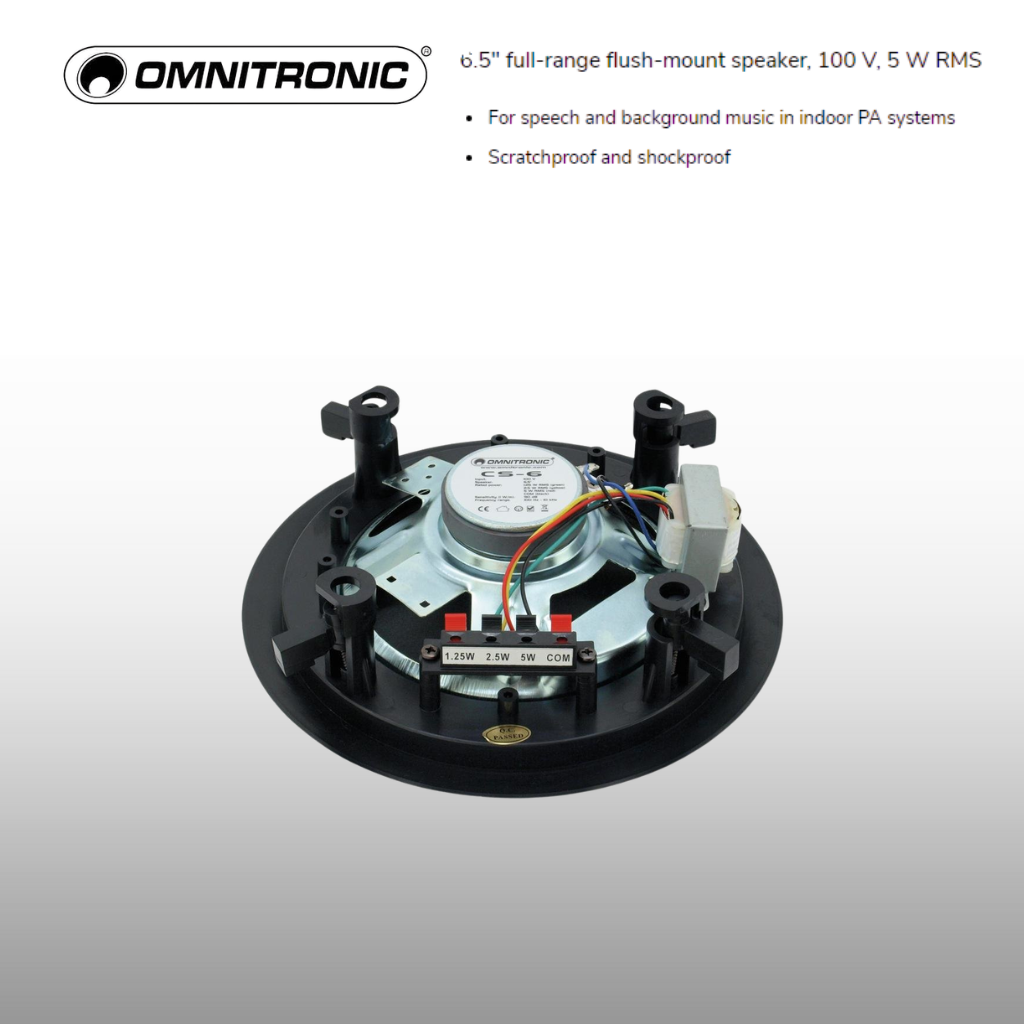

Omnitronic CS-6 ceiling speakers (black)

Power: Program: 10W
Rated: 5W RMS
Frequency range: 100 - 10000 Hz
Sensitivity: 90 dB (1W/1m)
Impedance: Public address systems 100V
Power tapping: 1,25W; 2,5W; 5W RMS via Spring terminal switchable
Speaker: 1 x woofer (6.5") approx. 17 cm
Type of speaker: Flush-mount speaker
Material: ABS Acrylonitrile butadiene styrene
Color: White, scratchproof and shockproof
Mounting dimensions: Ø 19,5 cm
Dimensions: Depth: 7 cm
Diameter: Ø 23 cm
Weight: 890 g

Wall Panel Specification

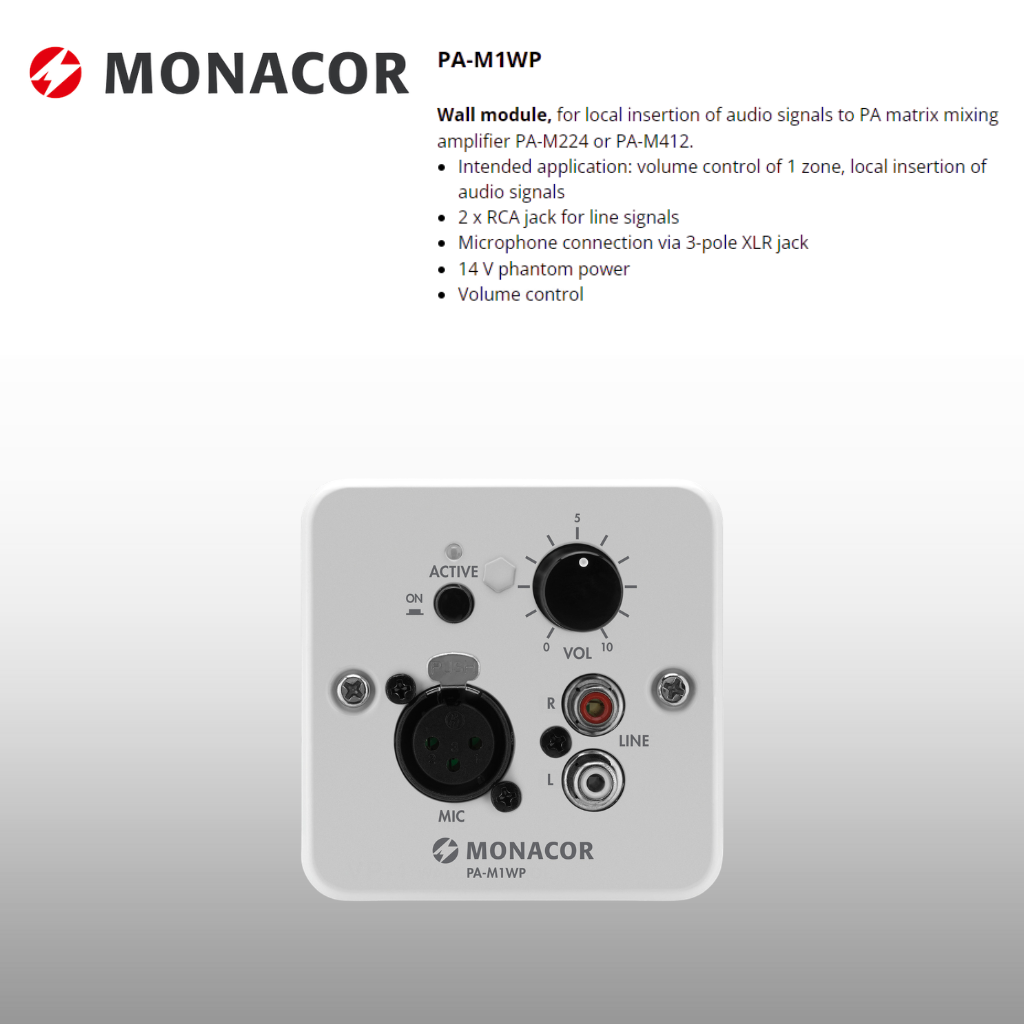

Monacor PA-M1WP wall panel

Description wall module
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Dimensions 80 x 80 x 50 mm
Weight 90 g
Connections 1 x XLR (microphone),
1 x RCA L/R (line),

1 x RJ45

Other features 14 V phantom power
Packing unit 1
Packing dimensions (W x H x L) 0.09 x 0.09 x 0.085 m
Gross weight 0.135 kg
Net weight 0.09 kg

Paging Microphone Specification

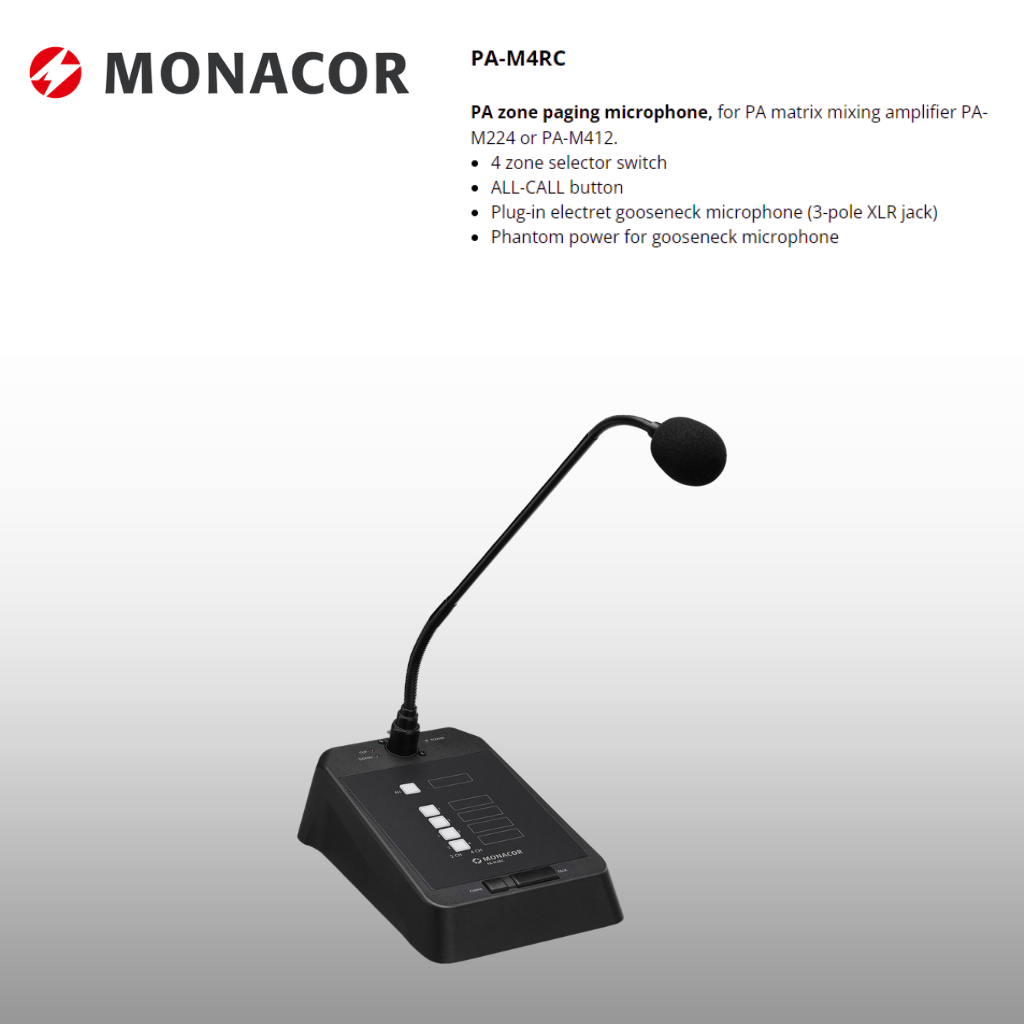

Monacor PA-M4RC paging microphone

Description PA zone paging microphone
Transmission method cable
System electret
Power supply via PA-M224, PA-M412
Audio frequency range 45-15,000 Hz
Sensitivity 1 mV/Pa
Gooseneck length 420 mm
Admiss. ambient temp. 0-40 °C
Dimensions 140 x 65 x 205 mm
Weight 860 g
Connection RJ45
Packing dimensions (W x H x L) 0.1 x 0.21 x 0.35 m
Gross weight 1.09 kg
Net weight 0.86 kg

Internet Media Player Specification

Omnitronic TUNA-NET internet media player

Power supply: 100-240 V AC, 50/60 Hz
5V DC 1000 mA
Power consumption: 5 W
Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Wi-Fi: Standard: IEEE 802.11 b/g/n
Security protocol: WEP/WPA/WPA2
Network connection: Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version, 10/100 Mbit/s
Control: IR remote control; Bluetooth
Bluetooth: Version: 4,2 + BR/EDR
Audio player: FM-tuner + Internet radio + BT + DAB+
Range: Bluetooth: range up to 20m
Frequency band: 2.4 GHz
Display type: Multicolor TFT display
Tuner frequency range: FM 87-108 MHz, DAB(+) 174,928-239,200 MHz
Control elements: Power switch, menu, encoder, navigation keys
Connections: Input: antenna via 1 x SMA (M)
Input: antenna via 1 x Belling-Lee (M)
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: line via 1 x stereo RCA
Output: coaxial (S/PDIF) via 1 x RCA (F) mounting version
Output: optical via 1 x toslink
Equalizer: Tone control
Music format: MP3, AAC/AAC+; FLAC
Material: Metal
Color: Black
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions: Width: 43 cm
Depth: 27 cm
Height: 4,485 cm
Weight: 2,47 kg
