4 Channel Wireless Microphone System With 2 Handheld & 2 Headset Microphones

Name: 4 Channel Wireless Microphone System With 2 Handheld & 2 Headset Microphones
Brand: Commerical Audio Outlet
Price: 419.0 GBP
Availability: InStock

4 Channel Wireless Microphone System With 2 Handheld & 2 Headset Microphones

SKU:

£419.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Omnitronic UHF-604 4-Channel Wireless Microphone System (823–832 / 863–865 MHz)

Need to mic up an entire panel, a small theater cast, or a multi-vocal live band without overcrowding your gear rack? The Omnitronic UHF-604 is a professional 4-channel true diversity wireless microphone system that packs four independent channels into a single, compact 1U rack-mount receiver.

Engineered for rock-solid stability and pro-tier acoustic performance, this all-in-one system eliminates dropout anxiety and simplifies multi-mic cable clutter.

Key Features & Benefits

Four Channels, One Rack Unit: Efficiently run 4 separate handheld wireless microphones simultaneously while occupying just 1U of your standard 19-inch rack space.
True Diversity Signal Lock: Each channel utilizes high-quality true diversity reception. By housing dual antennas and constantly switching to the strongest signal path, the receiver effectively isolates your audio from dropouts and dead zones up to a 60-meter line-of-sight range.
Color-Coded TFT Ecosystem: Stay completely organized during hectic live events. The receiver features 5 vibrant, multicolor TFT displays that allow you to color-code channels for immediate tracking of frequency, group, mute status, RF signal level, and audio behavior.
Intelligent Auto-Scan & ID Sync: Avoid frequency overlaps. The system automatically scans for the cleanest frequencies across the UHF 823–832 MHz and 863–865 MHz bands (both license-free across most of Europe). Built-in ID transmitter verification ensures that external interference can't hijack your signal.
Onboard 7-Band Graphic EQ: Shape the vocal character of your performers right from the hardware menu. The integrated 7-band equalizer gives you instant control over room acoustics and vocal clarity without needing external processing gear.

Technical Specifications

Feature	Specification
System Type	4-channel Multifrequency Wireless Microphone Set
Range & Latency	Up to 60m (line-of-sight) \| Ultra-low latency less than 3 ms
Frequency Bandwidth	UHF 823 - 832 MHz & UHF 863 - 865 MHz (11 MHz switching bandwidth)
Parallel Capabilities	Max. 24 transmitters can operate simultaneously across both bands
Microphone Capsule	Dynamic capsule with a tight, feedback-resistant Cardioid polar pattern
Audio Processing	Integrated 7-band graphic equalizer \| THD less than 0.5% at 1 kHz
Receiver Outputs	4 x Balanced 3-pin XLR (M) individual outputs \| 1 x Unbalanced 6.3 mm mixed output
Receiver Chassis	Robust metal build, (19") 48.3 cm rack installation 1 U (21 cm depth)
Microphone Power	2 x AA Mignon batteries per microphone (not included)

What's Included in the Box?

1 x Omnitronic UHF-604 4-Channel Receiver
2 x Handheld Wireless Microphones with built-in LCD displays
2 x Dynamic Headset Microphone (Cardioid Pattern)
2 x Wireless Bodypack Transmitter
2 x Detachable BNC Antennas
1 x AC Power Supply Adapter
1 x User Manual

Receiver Specification

OMNITRONIC UHF-304 4-Channel Wireless Receiver

4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LEDs for carrier and audio signal
4 separate channels with volume controls
Balanced XLR output per channel
Detachable BNC antennas
4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 60m with line-of-sight
LCD display
Desktop console housing
(19") 48.3 cm rack installation possible 1 U

Power supply: 100-240 V AC, 50/60 Hz
12 V DC 500 mA
Power consumption: 6 W
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels: 4
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
THD: <0,5 % at 1 kHz
Display type: LCD display
Display: Chanal , frequency , goup
Control elements: Power switch, level control, encoder
Status LED: Power, signal, level meter
Connections: Input: antenna via 2 x BNC (F)
Output: line via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 4 x 3-pin XLR
Material: Metal
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions: Width: 41 cm
Depth: 23,5 cm
Height: 4,7 cm

Handheld Microphone Specification

OMNITRONIC UHF-300 Handheld Microphone

Hand-held microphone with UHF PLL technology, matching receivers with the same carrier frequency
Polar pattern: Cardioid
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe

Type: Hand-held transmitter
Power supply: 3 V DC
Power connection: Battery/battery pack
Capsule type: Dynamic
Polar pattern: Cardioid
Battery: 2 x Mignon (AA) (not included)
Range: Range up to 60m with line-of-sight
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
RF power output: 10 mW
Frequency selection: Switchable frequencies
Switch: On/off switch
Material: Plastic
Color: Black
Dimensions: Length: 25 cm
Diameter: Ø 5,2 cm
Weight: 240 g

Headset Microphone Specification

OMNITRONIC UHF-300 Headset Microphone

Low weight
With gooseneck-microphone boom for exact positioning of the microphone capsule
Provides high-quality voice pickup for applications requiring hands-free operation, such as aerobics or percussion
Polar pattern: Cardioid
For application areas such as: Clubs/dancing school; sports centres/gyms

Type: Headset microphone
Power supply: 1,5-10 V DC
Power connection: Mains input via Mini XLR (F) 3-pin
Cable length: 1,00 m
Capsule type: Condenser
Polar pattern: Cardioid
Frequency range: 20 - 20000 Hz
Sensitivity: -53 dB
Impedance: 680 Ohm
Connector type: Mini XLR (F) 3-pin
Material: Metal
Color: Black
Weight: 30 g

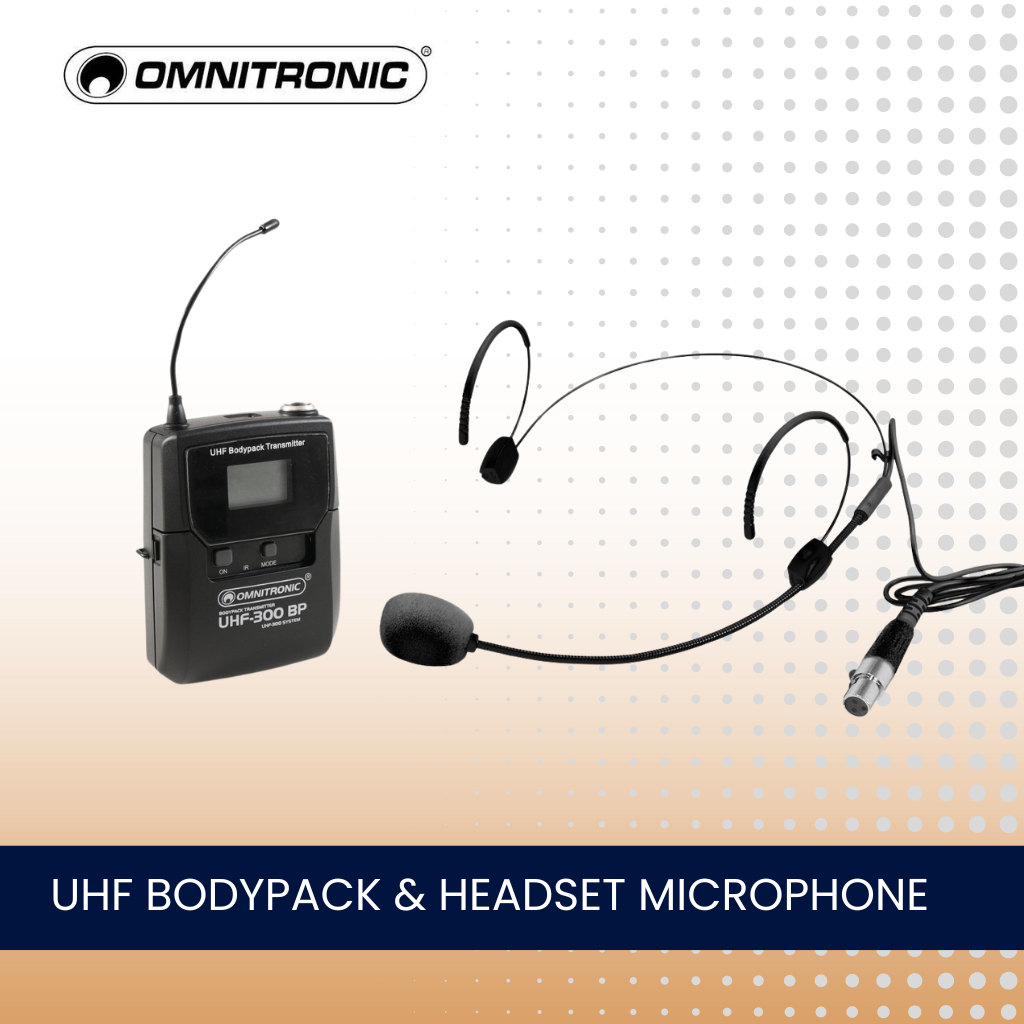

Bodypack Transmitter Specification

OMNITRONIC UHF-300 Bodypack Transmitter

Easy and error-free synchronization between receiver and transmitter via infrared signal
Gain level adjustable in 4 steps
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
LCD display
Charge status indicator

Type: Pocket transmitter
Power supply: 3 V DC
Power connection: Battery/battery pack
Battery: 2 x Mignon (AA) (not included)
Range: Range up to 60m with line-of-sight
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
RF power output: 10 mW
Frequency selection: Switchable frequencies
Connector type: Mini XLR (M) 3-pin mounting version
Display type: LCD display
Display: Charge status indicator , frequency
Switch: On/off switch; Mute control
Material: Plastic
Color: Black
Dimensions: Width: 6 cm
Depth: 2,3 cm
Height: 8,5 cm
Weight: 70 g
