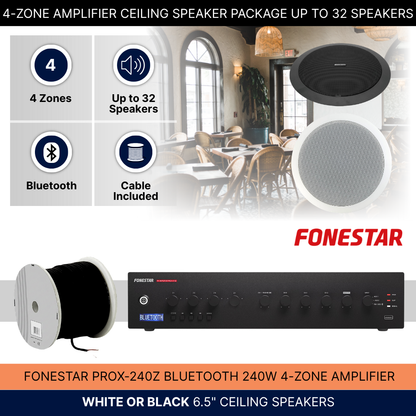

4-Zone Amplifier Ceiling Speaker Package Up To 32 Speakers Background Music System

Name: 4-Zone Amplifier Ceiling Speaker Package Up To 32 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 4Z4SP-CPROXW
Price: 489.0 GBP
Availability: InStock

4-Zone Amplifier Ceiling Speaker Package Up To 32 Speakers Background Music System

£489.00

Sale Sold out

Tax included. Shipping calculated at checkout.

SKU:4Z4SP-CPROXW

Speaker Colour White Black

Speakers 4 8 16 32

Optional Extras None Desktop Microphone

Product variants

Quantity

Transform your space with this premium ceiling speaker background music system, designed to deliver high-quality sound at a budget-friendly price.

This professional 4-zone amplifier comes equipped with an integrated media player and Bluetooth connectivity, along with a built-in FM tuner for added versatility.

Select from 4 to 32 sleek flush-mount ceiling speakers available in white or black, ensuring that they blend seamlessly into your environment while delivering clear, crisp audio.

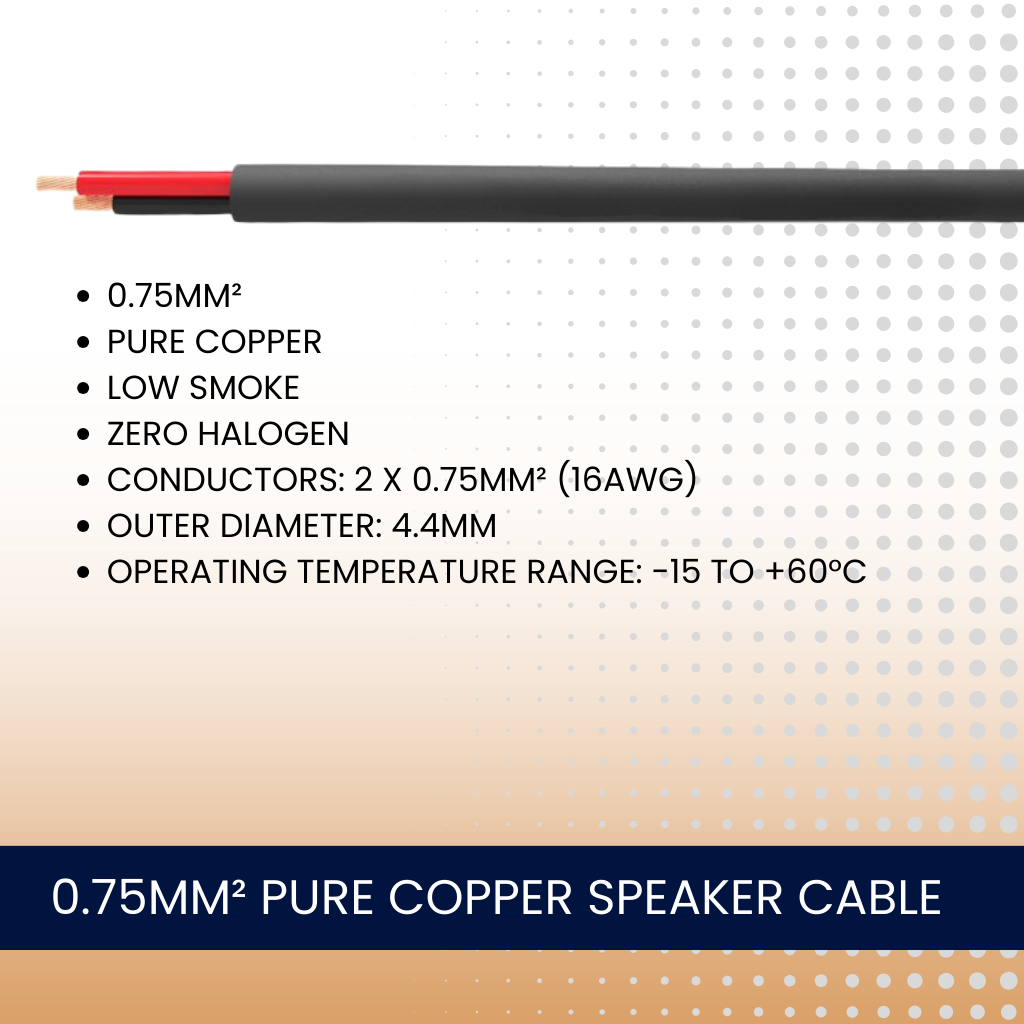

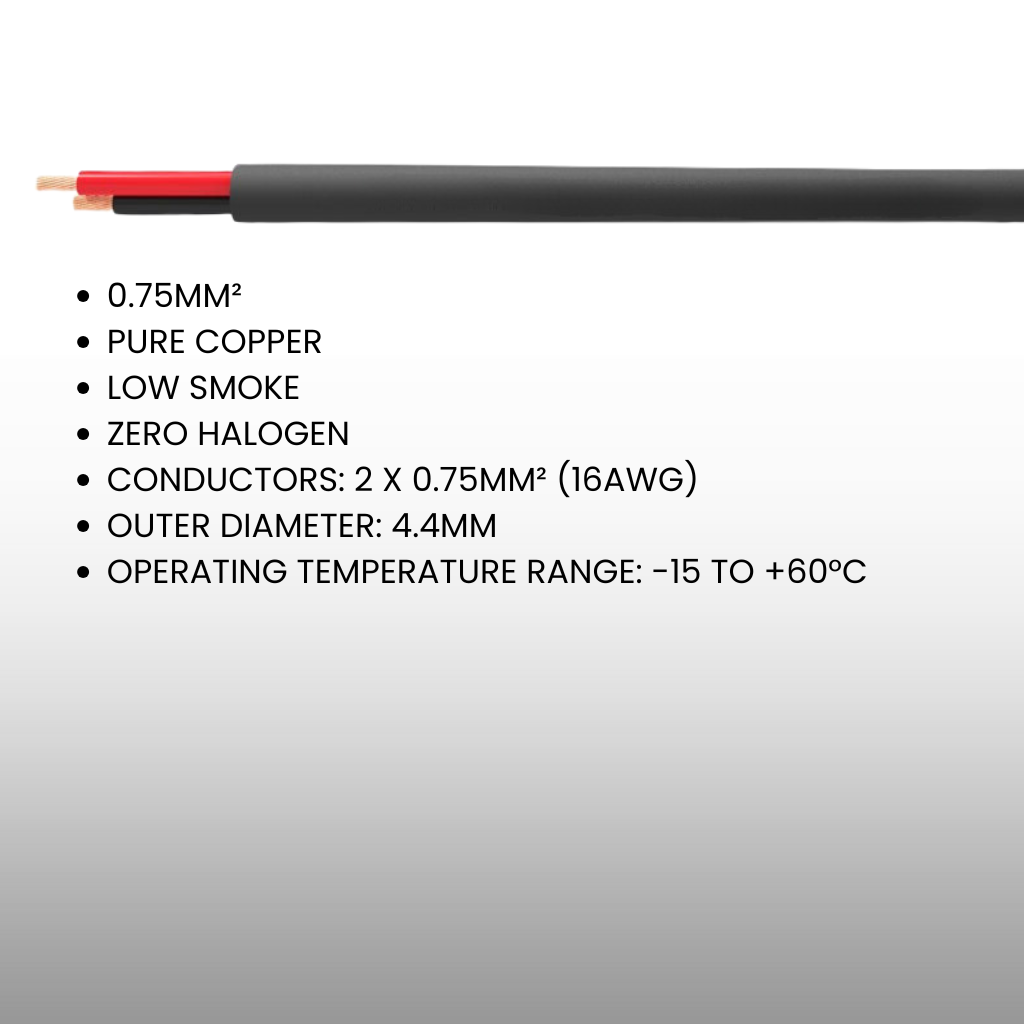

You’ll also receive 20, 50, or 100 meters of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable for straightforward installation, depending on the package you choose.

Enhance your setup further with the option to add a desktop microphone for making announcements.

Features

High quality professional background music system
Affordable price
4-zone amplifier with integrated media player
Bluetooth connectivity
High quality flush mount ceiling speakers
0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

Fonestar PROX-240Z 4-zone amplifier
4 to 32 Fonestar GAT-601 (white) or Omnitronic CS-6 (black) flush-mount speakers
20 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 speaker packages)
50 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (8 speaker packages)
100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (16 - 32 speaker packages)

Optional Extras

Monacor PDM-300 desktop microphone

Amplifier Specification

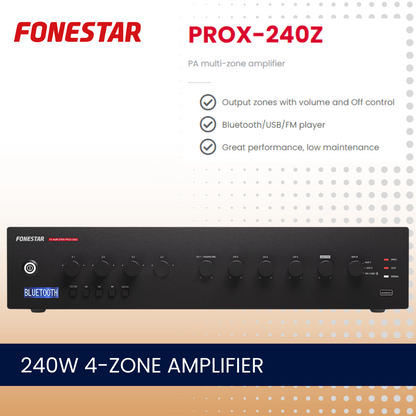

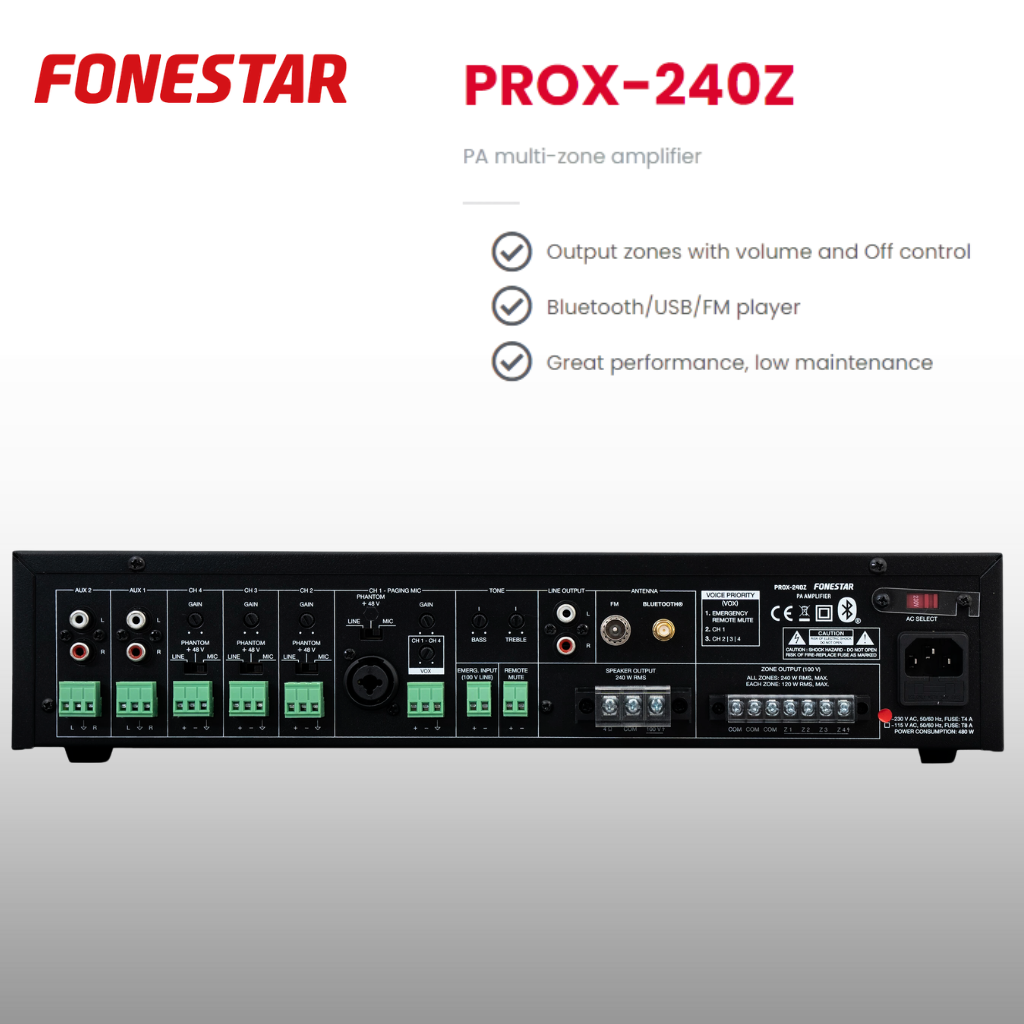

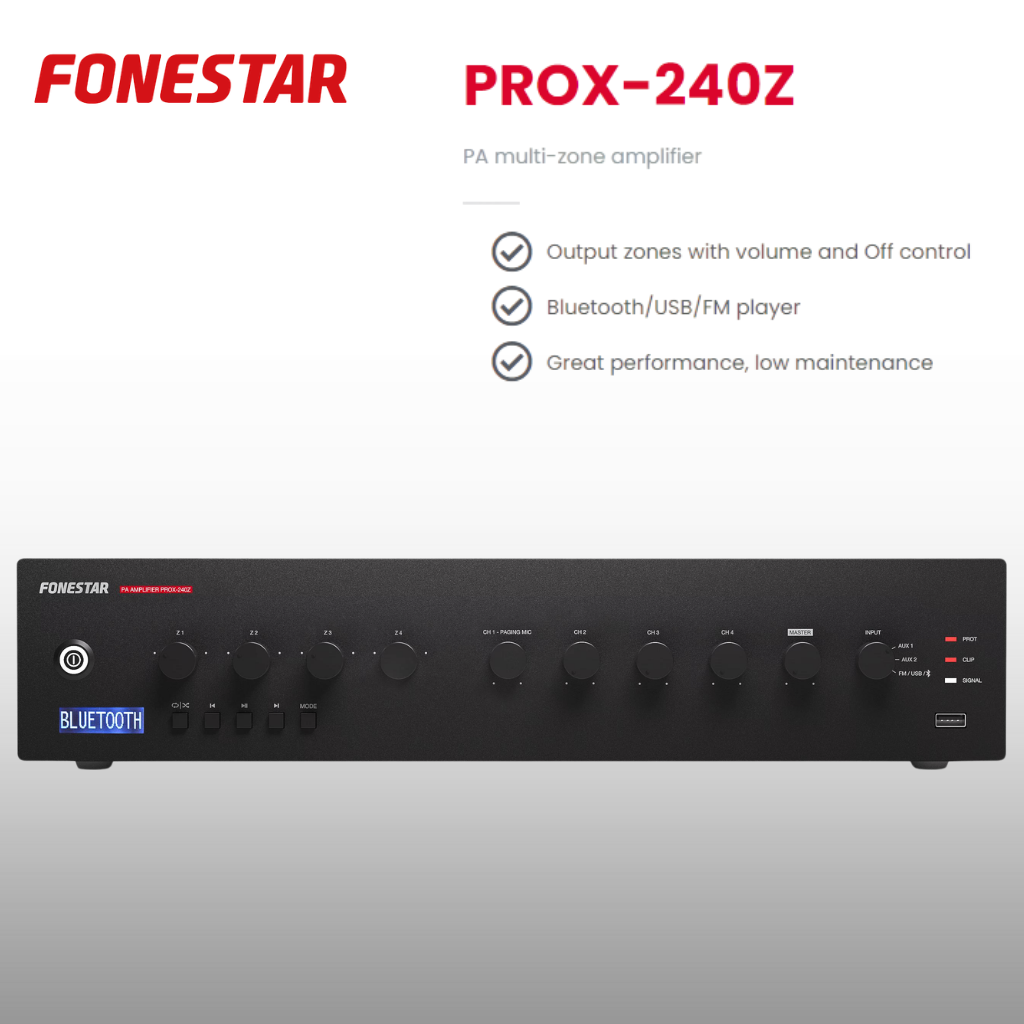

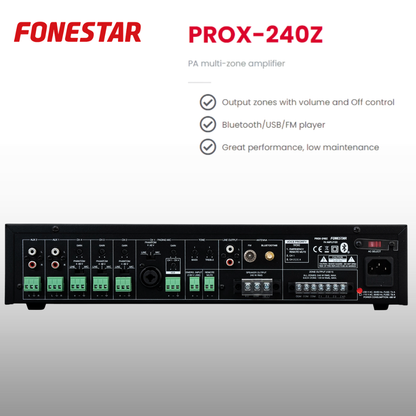

Fonestar PROX-240Z 4-zone amplifier

FEATURES: Public address amplifier
Bluetooth/USB/FM player.
Microphone input with mix, gain and priority level control.
Input priorities by signal level.
Tone controls.
100 V and 4 Ω outputs.
4 outputs zones with volume control and Off.
POWER: 240 W RMS
RESPONSE: 40-20,000 Hz (-10 dB)
DISTORTION: THD+N: < 1% @ 1 kHz
S/N RATIO: >77 dB
PROTECTIONS: Overcurrent, DC and short-circuit at the output
INPUTS: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.
CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector.
Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
1 Mute (Emergency Priority) by contact closure. Euroblock connector
OUTPUTS: 1 line, 2 x RCA connectors, 1.25 V RMS (+2 dBV) signal level
100 V or 4 Ω speaker output, or 4 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals
IMPEDANCE: 4 Ω and 100 V line (42Ω)
FUNCTIONS: Input priority (voice over VOX inputs):
100V Emergency input with highest priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100V Emergency input.
Channel 1 with priority over all other inputs, level selectable.
Channel 2, 3 and 4 with priority over auxiliary inputs and player, level selectable.
Other functions:
Power on, protection, signal peak and output signal indicator lights
Temperature-controlled forced ventilation cooling
PLAYER: Bluetooth/USB/FM player for background music playback
MP3 and WAV files supported
Maximum USB memory capacity 64 GB
Autoplay, starts playback automatically on power on
Memory of playback mode (random, repeat)
CONTROLS: Microphone volume
Mic/line/phantom selector
Master volume
Aux input or player selector
Zone volume
Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
Microphone gain
Priority activation signal level (VOX)
OPERATING TEMPERATURE: Operation: 0º ~ 40ºC
MAXIMUM HUMIDITY: 95%
POWER SUPPLY: 230/115 V AC 50-60 Hz, 480 W
Fuse AC 230 V 4 A / 115 V 8 A
DIMENSIONS: 433 x 89 x 360 mm depth. 2 U 19” rack
WEIGHT: 11.5 kg
ACCESSORIES: FM Antenna
Bluetooth antenna
Power cable
Rack mounts

Speaker Specification

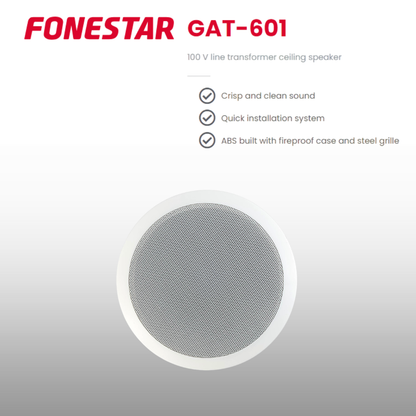

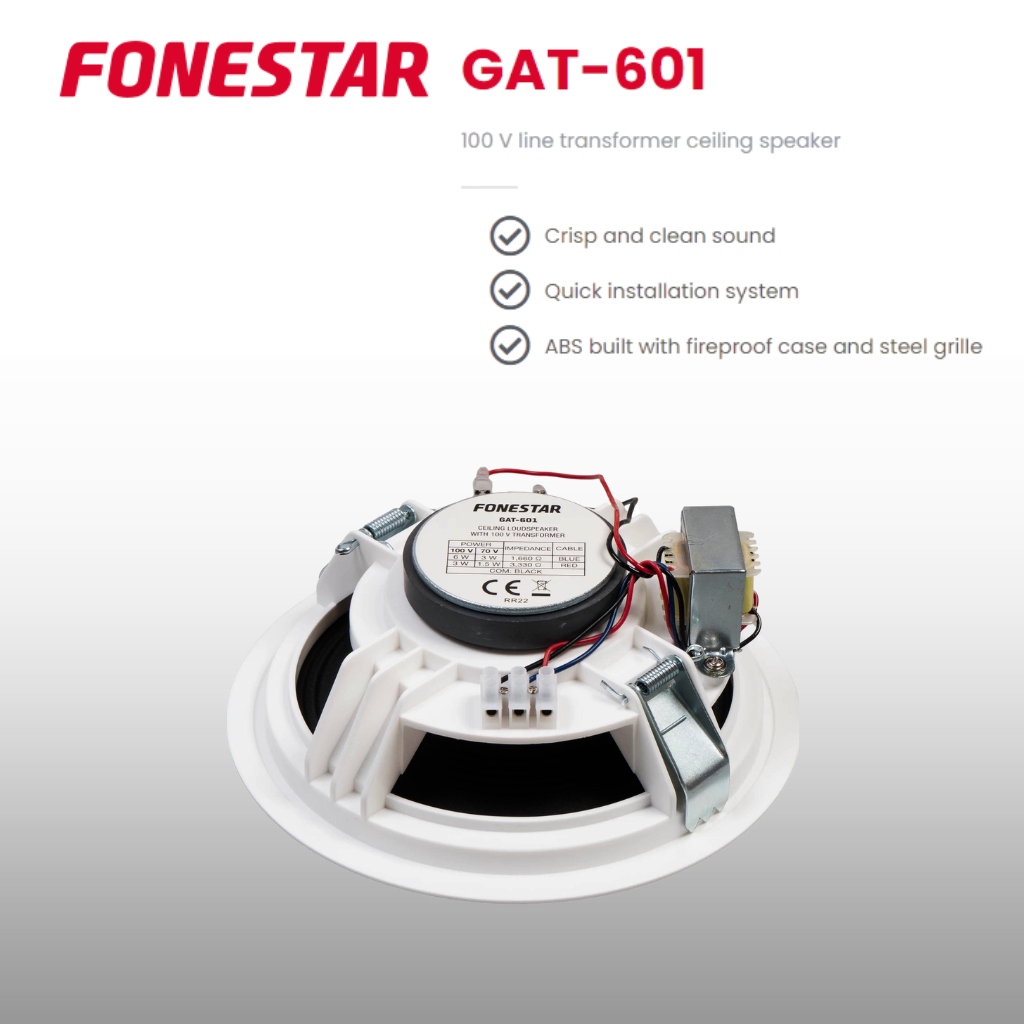

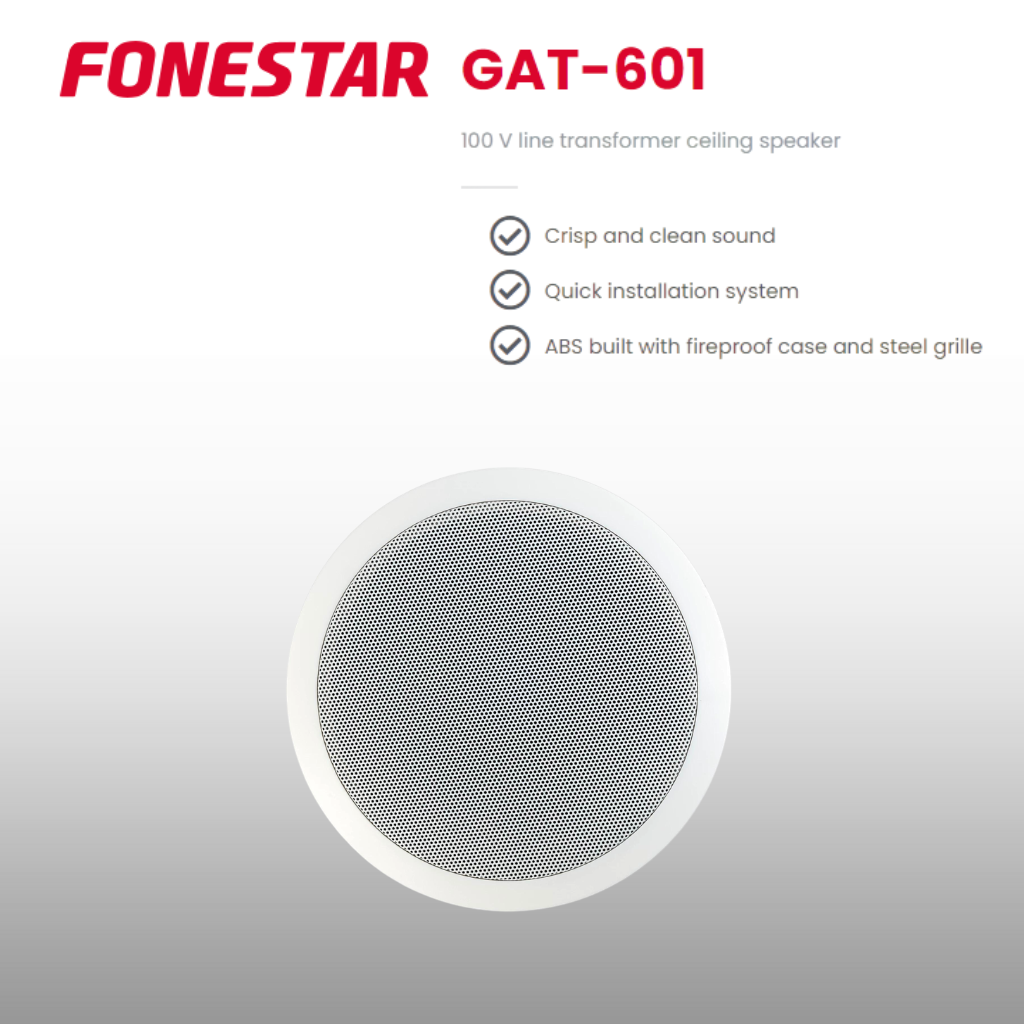

Fonestar GAT-601 flush-mount speakers (white)

FEATURES: Ceiling loudspeaker with 100 V line transformer and round grille.
POWER: 10 W maximum, 6 W RMS
LOUDSPEAKERS: 6 ½" double cone
RESPONSE: 140-20,000 Hz
IMPEDANCE: 6 W RMS@100V (1,660 Ω)
3 W RMS@100V (3,330 Ω)
SENSITIVITY: 92 dB ±3 dB at 1 W/1 m
MATERIAL: ABS and steel grille
COLOUR: White (RAL 9003)
DIMENSIONS: 188 mm Ø x 80 mm depth
HOLE: 168 mm Ø
WEIGHT: 0.6 kg
: Rapid installation system

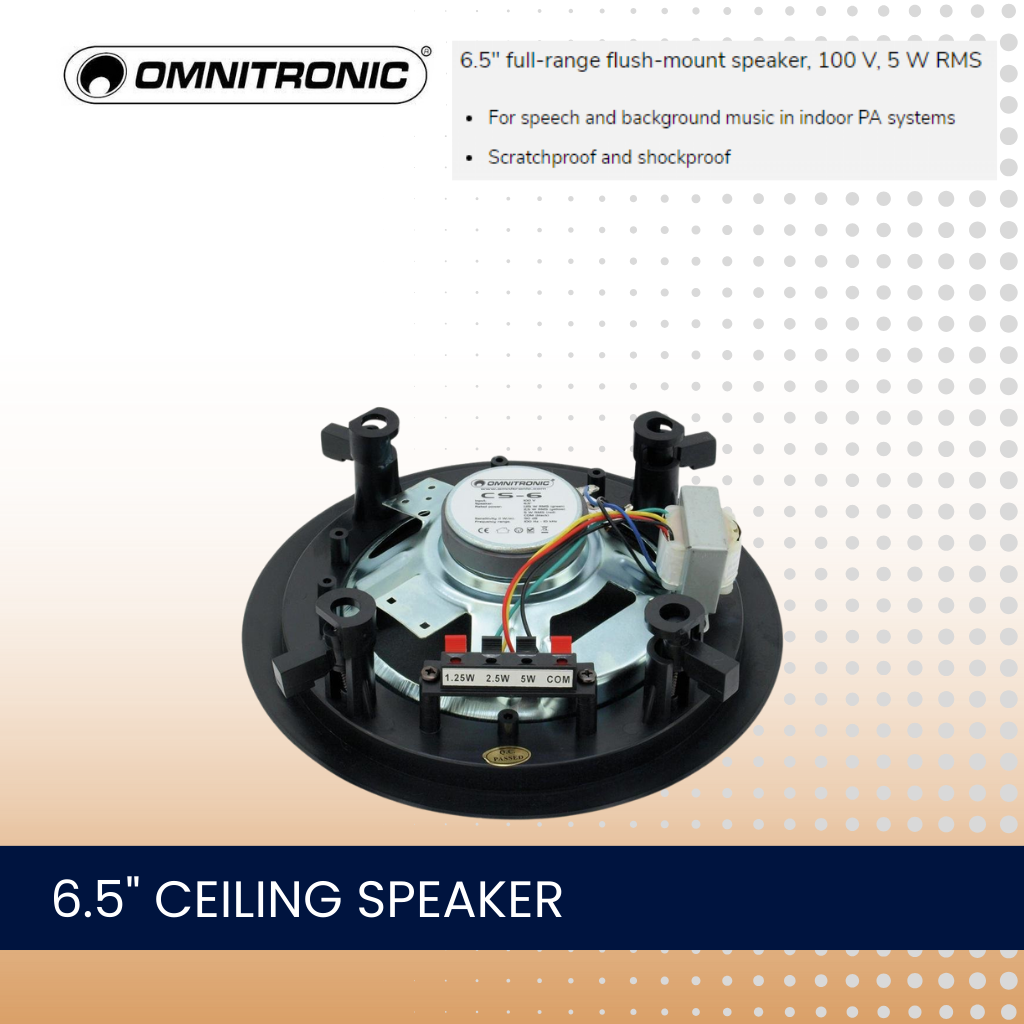

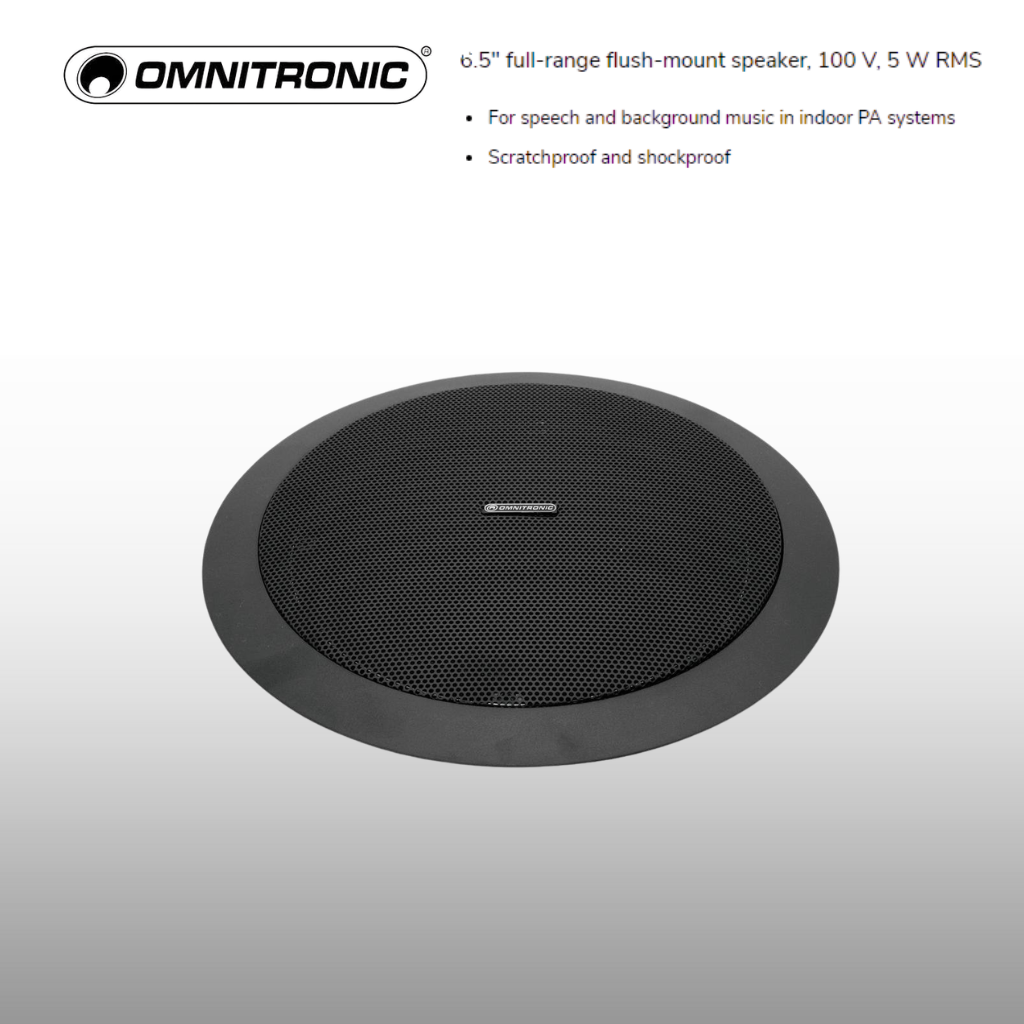

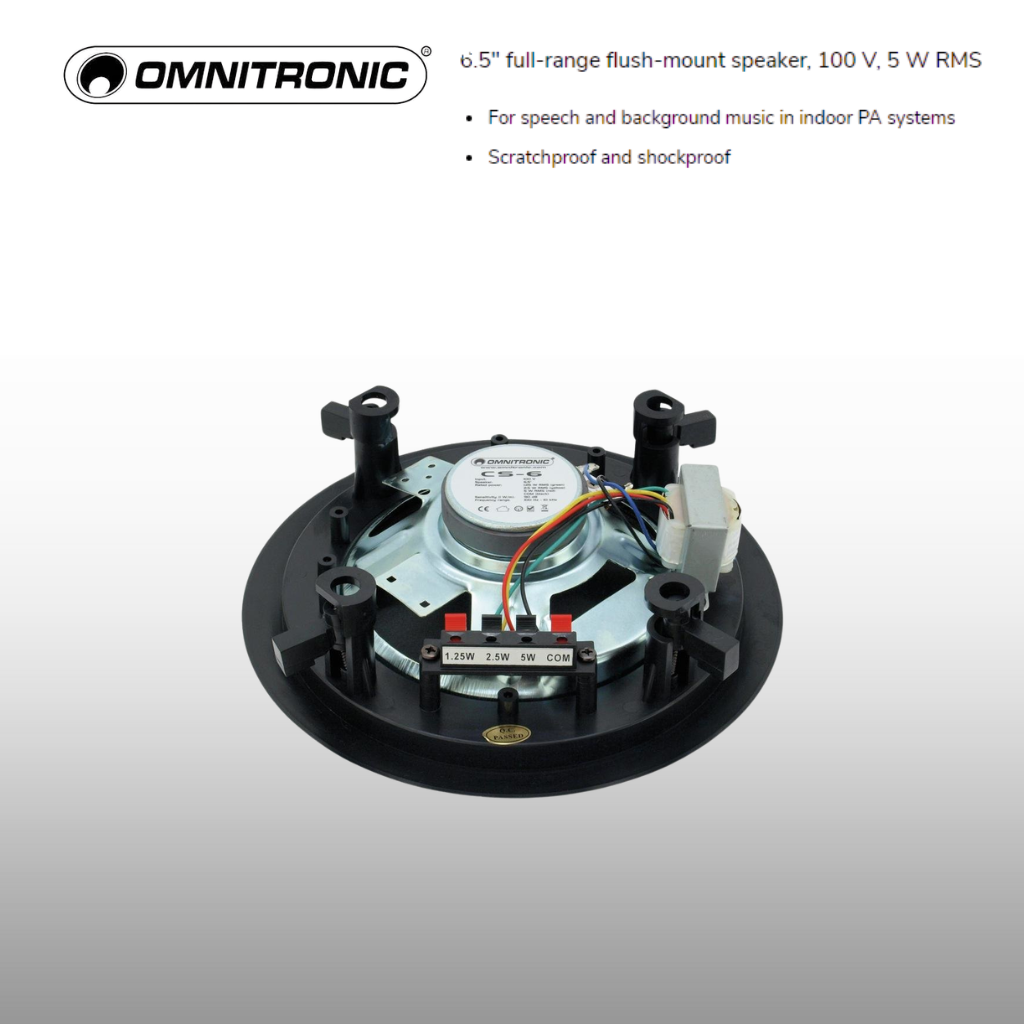

Omnitronic CS-6 ceiling speakers (black)

Power: Program: 10W
Rated: 5W RMS
Frequency range: 100 - 10000 Hz
Sensitivity: 90 dB (1W/1m)
Impedance: Public address systems 100V
Power tapping: 1,25W; 2,5W; 5W RMS via Spring terminal switchable
Speaker: 1 x woofer (6.5") approx. 17 cm
Type of speaker: Flush-mount speaker
Material: ABS Acrylonitrile butadiene styrene
Color: White, scratchproof and shockproof
Mounting dimensions: Ø 19,5 cm
Dimensions: Depth: 7 cm
Diameter: Ø 23 cm
Weight: 890 g

Desktop Microphone Specification

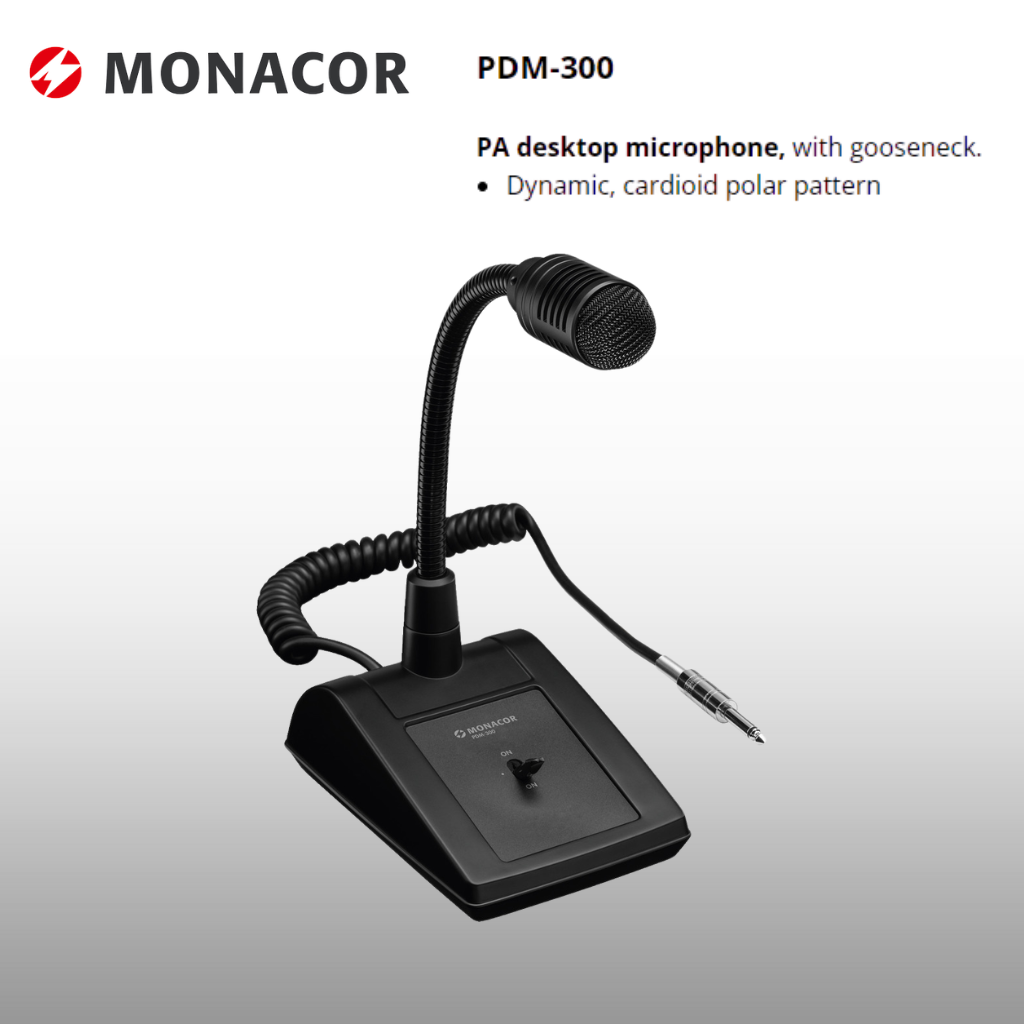

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)
