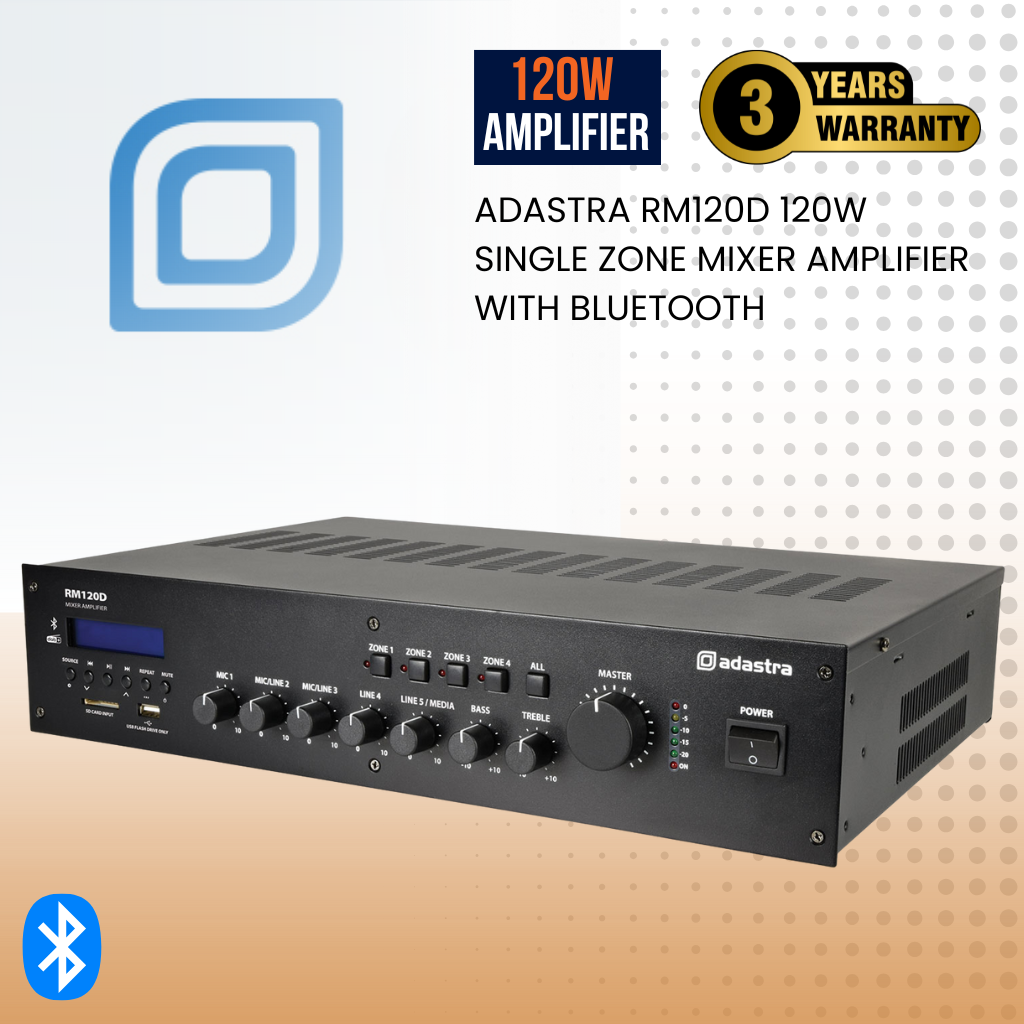

Adastra RM120D 120W single zone mixer amplifier With Bluetooth

Adastra RM120D 120W single zone mixer amplifier With Bluetooth

£289.00
£289.00
Sale Sold out
Tax included. Shipping calculated at checkout.

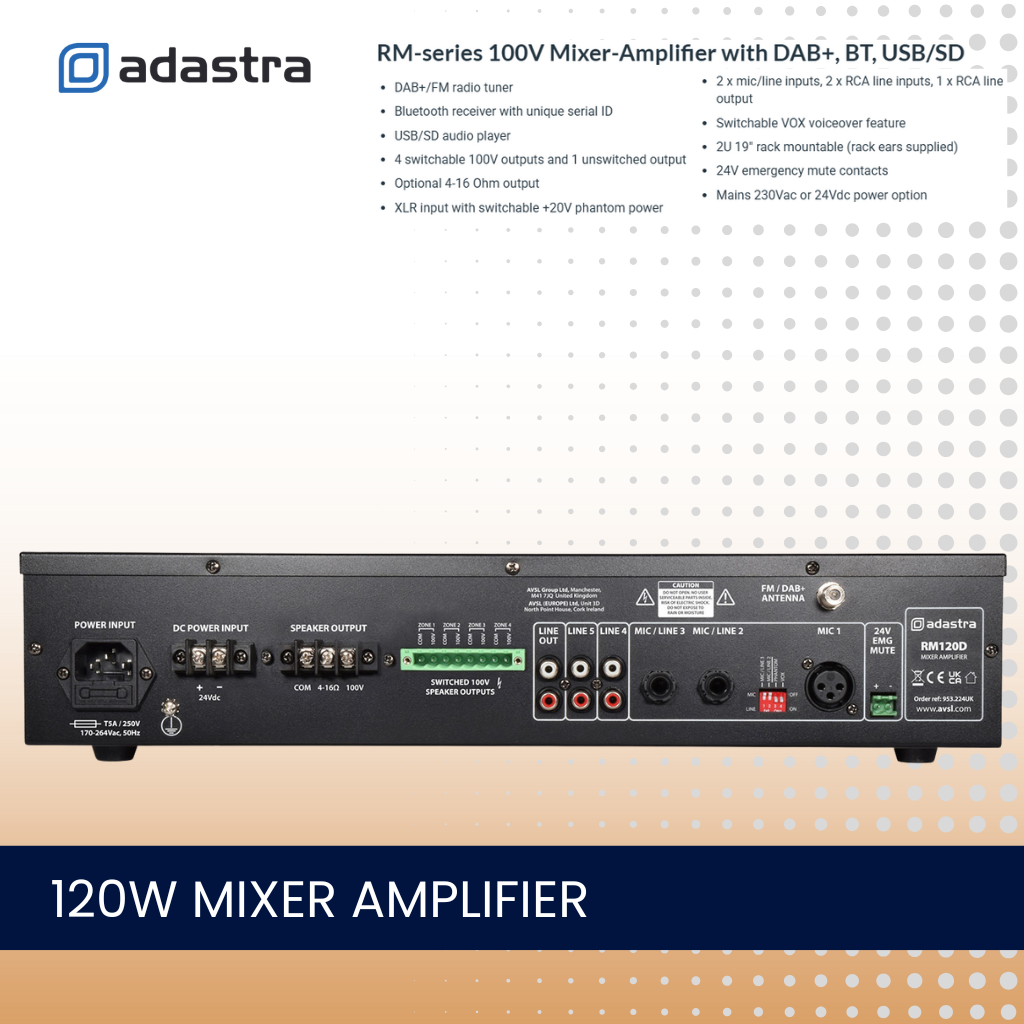

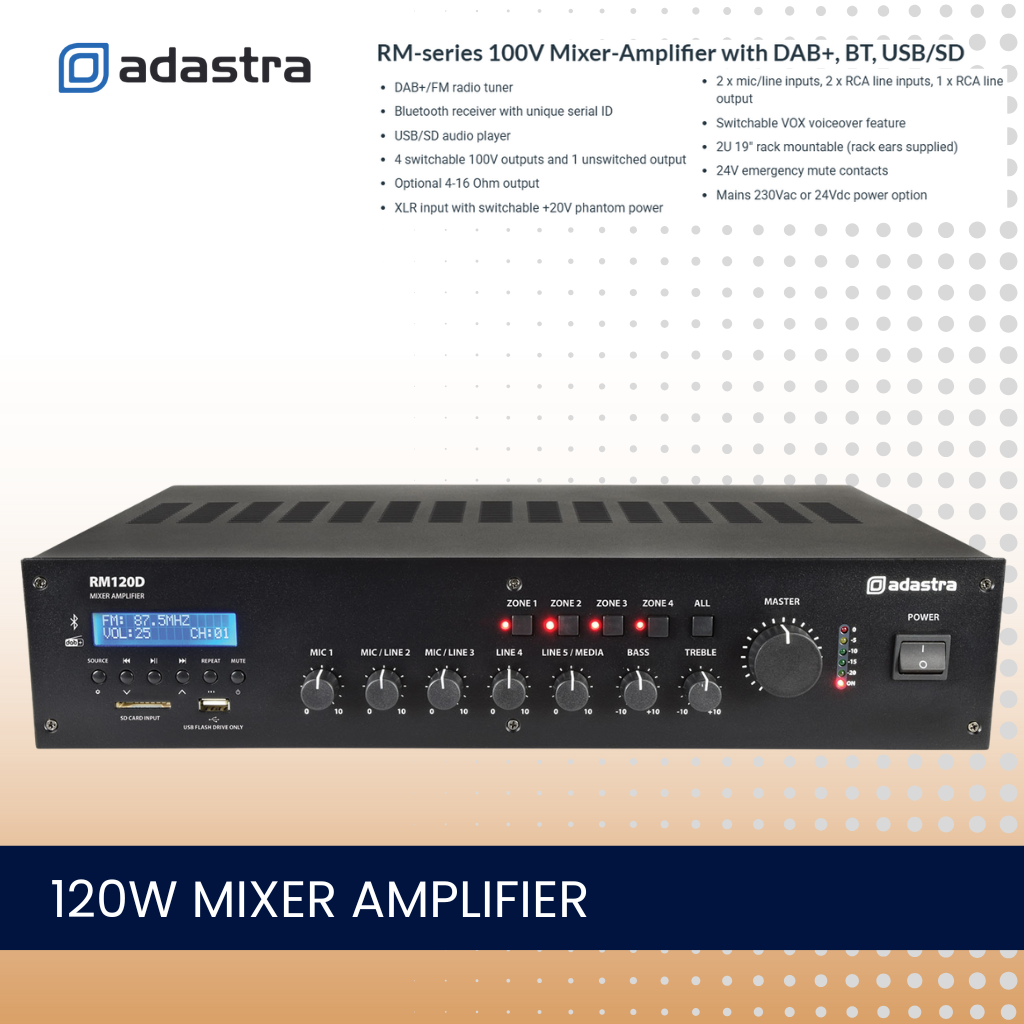

RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.

  • DAB+/FM radio tuner
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • 4 switchable 100V outputs and 1 unswitched output
  • Optional 4-16 Ohm output
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • 2U 19" rack mountable (rack ears supplied)
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option

    Amplifier Specification

    Adastra RM120D mixer amplifier

    Weight
    6.36kg
    Dimensions
    433 x 320 x 88mm
    Fuse
    T3.15A
    Output power : rms
    120W
    Power supply
    170-264Vac, 50Hz (IEC)
    DC power
    24Vdc (screw terminals)
    Inputs
    Mic XLR, 2 x mic/line jack, 2 x RCA line
    Input sensitivity : mic 1 (balanced)
    -53dBV
    Input impedance : mic 1
    5k Ohms
    Input sensitivity : line (unbalanced)
    -15dBV (-18.5dBV line 5)
    Input impedance : inputs 2-5
    1k Ohms
    Line output
    RCA
    Speaker outputs
    4 switched + 1 non-switched 100V / 4-16 Ohms / COM
    Bluetooth version
    5.0
    Controls
    Mic1, mic/line2+3, line4+5, bass, treble, master volume
    Equaliser : bass
    100Hz ±10dB
    Equaliser : treble
    10kHz ±10dB
    Rear panel switches
    Phantom, Vox, Mic/Line (2 + 3)
    Phantom power
    +20V (mic 1 XLR, switchable)
    Audio source
    DAB+/FM tuner, USB/SD player, Bluetooth receiver
    Emergency control
    24V contacts - mute all except Mic.1 when triggered
    THD
    <1.0%
