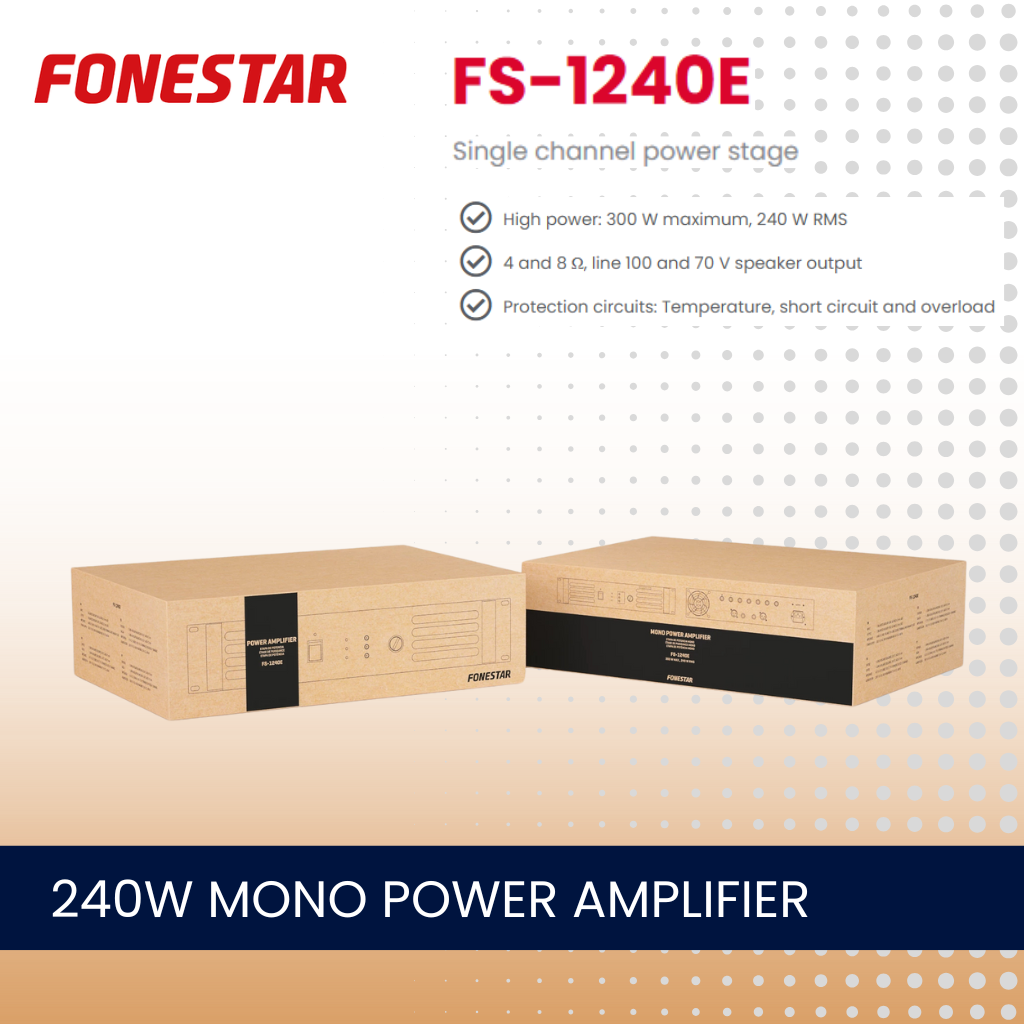

Fonestar FS-1240E 240W mono power amplifier
FEATURES: Mono power amplifier
POWER : 300 W maximum, 240 W RMS
RESPONSE: 50-22,000 Hz ±3 dB
DISTORTION: Harmonic: < 0.5%
INPUTS: 1 balanced auxiliary line, XLR and 6.3 mm jack 20,000 Ω, 1 V
OUTPUTS: 1 balanced auxiliary line, XLR and 6.3 mm jack
FUNCTIONS: Forced ventilation with variable speed according to the temperature
Automatic compression of the input signal
LED for protection, signal peak and output signal indicators
PROTECTION: 3 circuits: temperature, short circuit and overload
CONTROLS: Tone: bass, mids and trebles ±12 dB
General volume
IMPEDANCE: 4 and 8 Ω and 100 and 70 V lines, screw terminals and banana plugs
TEMPERATURE: Operation: -20ºC ~ 50ºC
MAXIMUM HUMIDITY: 95%
POWER SUPPLY: 230/115 V AC, 600 W maximum and 24 V DC, 480 W
DIMENSIONS: 483 x 89 x 329 mm depth. 2 U 19" rack
WEIGHT: 11.8 kg
