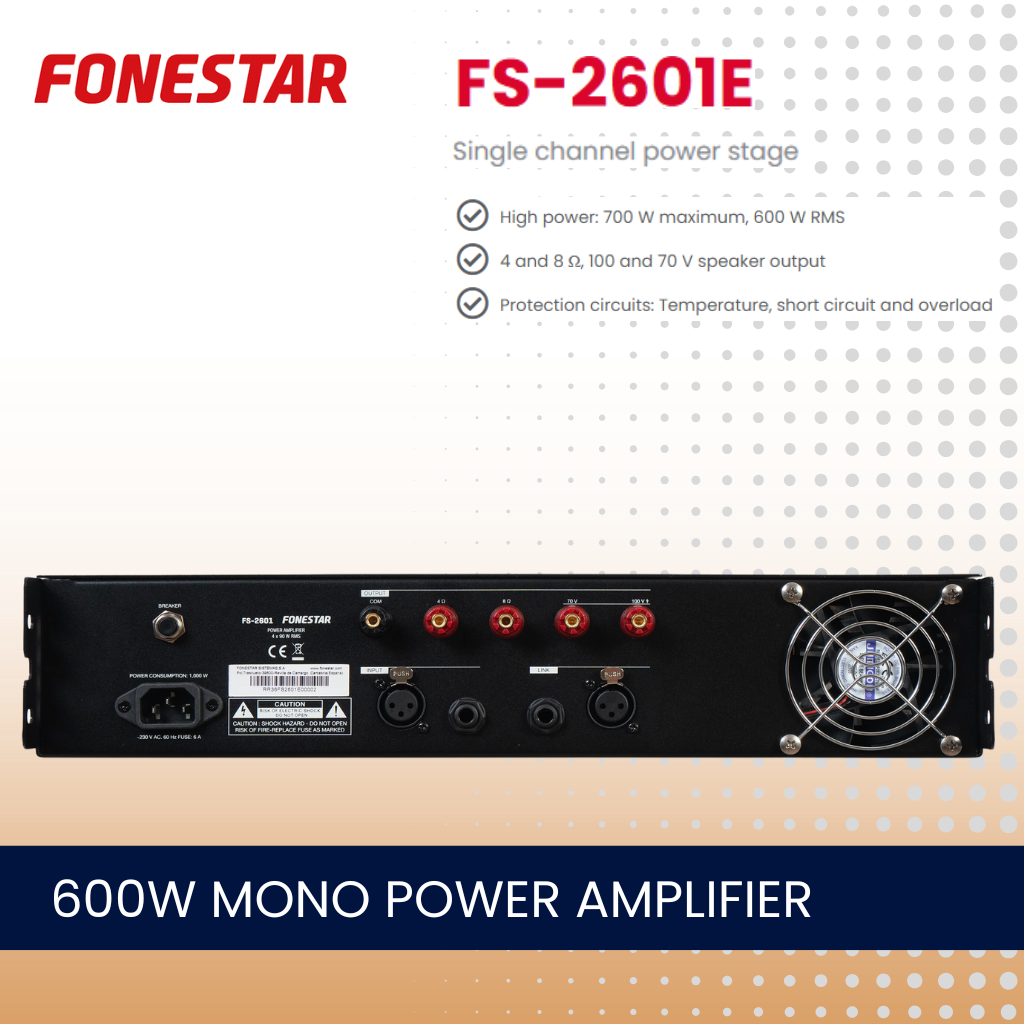

Fonestar FS-2601E 600W mono power amplifier
FEATURES: Mono power amplifier.
POWER: 700 W maximum, 600 W RMS
RESPONSE: 50-22,000 Hz ±3 dB
DISTORTION: Harmonic: < 0.5%
INPUTS: 1 balanced aux line, XLR and 6.3 mm jack 20,000 Ω, 1 V RMS
OUTPUTS: 1 balanced aux line, XLR and 6.3 mm jack
FUNCTIONS: Forced ventilation with variable speed according to the temperature
Automatic compression of the input signal
LED for temperature, protection, signal peak and output signal indicators
PROTECTION: 3 circuits: temperature, short circuit and overload
Switches on smoothly.
RF filter 500 kHz - 80 MHz
CONTROLS: Tone: bass, mid and treble ±12 dB
General volume
IMPEDANCE: 4 and 8 Ω and 100 and 70 V lines, screw terminals and banana plugs
TEMPERATURE: Operation: -20ºC ~ 50ºC
MAXIMUM HUMIDITY: 95%
POWER SUPPLY: 230 V AC, 1,000 W maximum
Resettable 6 A fuse
DIMENSIONS: 483 x 89 x 435 mm depth. 2 U 19" rack
WEIGHT: 17 kg
