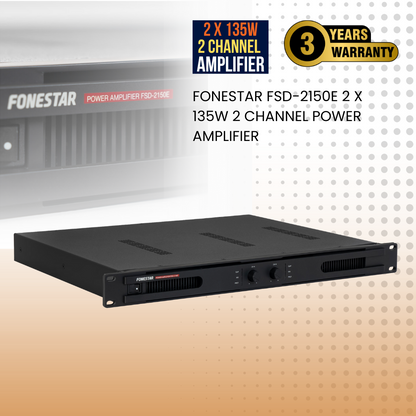

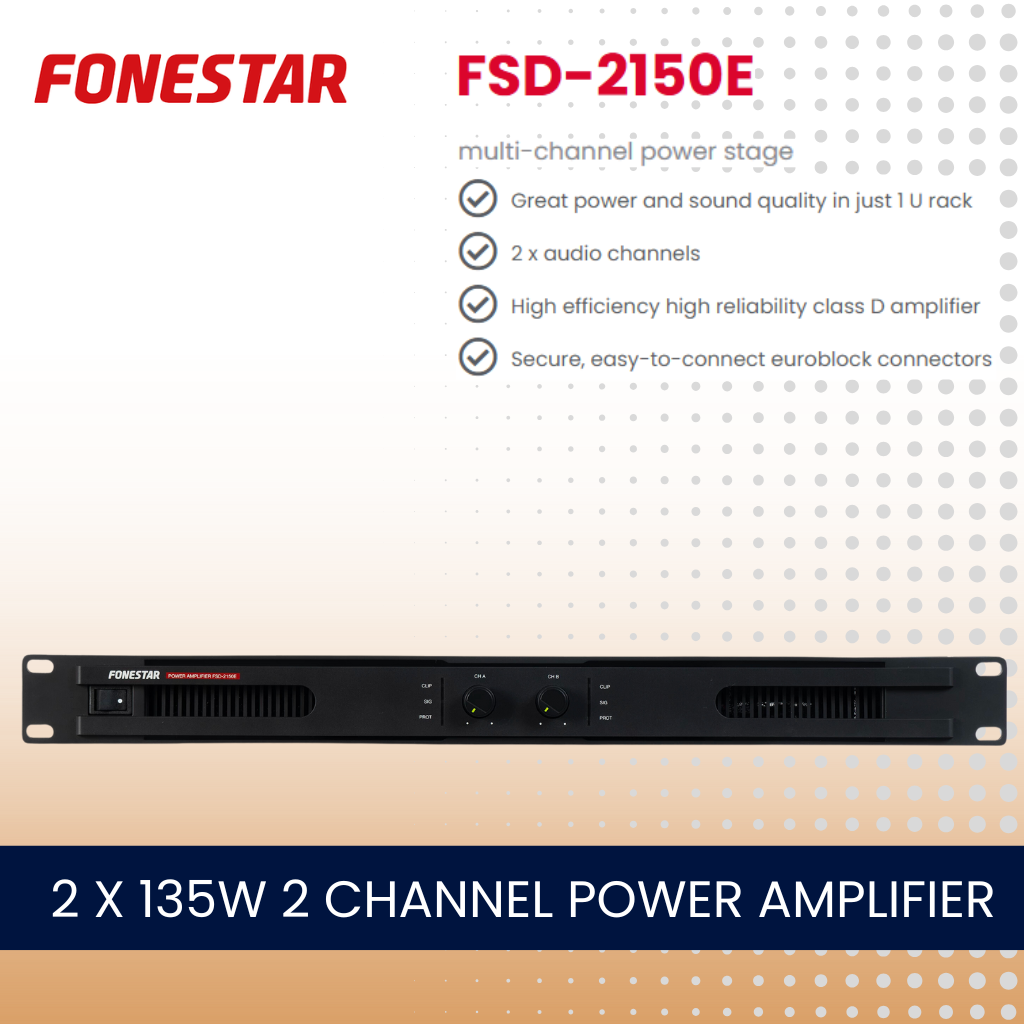

Fonestar FSD-2150E 2 x 135W 2 channel power amplifier
FEATURES: 2-channel PA power amplifier.
100 V or 70 V output for PA installations.
Highly efficient and reliable class D amplifier thanks to low-maintenance protection circuits.
Safe and easily connectable euroblock connectors.
Excellent sound quality and little noise.
POWER: 2 x 540 W Peak (2 channels), 1 x 600 W Peak (1 channel)
2 x 135 W RMS (2 channels), 1 x 150 W RMS (1 channel)
RESPONSE: 20-20.000 Hz
GAIN: 40 dB
DISTORSION: THD+N: <0.04% (1 kHz)
S/N RATIO: >95 dB
CROSSTALK: >85 dB
DYNAMIC RANGE: >105 dBA
DAMPING FACTOR: >200 (1 kHz, 8 Ω)
INPUTS: 2 balanced/unbalanced aux lines, euroblock, 20,000 Ω/10,000 Ω, 0.9-1.1 V RMS
1 emergency/test, euroblock, 1 V RMS (0 dBV)
OUTPUTS: 1 GPIO fault indicator output, 5 V DC, euroblock
FUNCTIONS: Forced ventilation with variable speed according to the temperature
LED power, protection, priority and peak signal indicators
Emergency input priority/contact closure test, euroblock
Disabling/mute via contact closure, euroblock
PROTECTION: Overload, short circuit, open circuit, temperature, ultrasound and radio frequency
CONTROLS: Volume for each channel
100/70 V switch on rear panel
IMPEDANCE: 100 and 70 V lines, euroblock
TEMPERATURE RANGE: Operation: 0ºC ~ 50ºC
POWER SUPPLY: 230 V AC, 400 W maximum
115 V AC on demand
INSTALLATION: Modular frame type in 1U Rack
DIMENSIONS: 483 x 44 x 380 mm depth. 1 U 19" rack
WEIGHT: 4.75 kg
OPTIONAL: FSD-22D: DANTE expansion module
ACCESSORIES: Anti-slip adhesive pads
