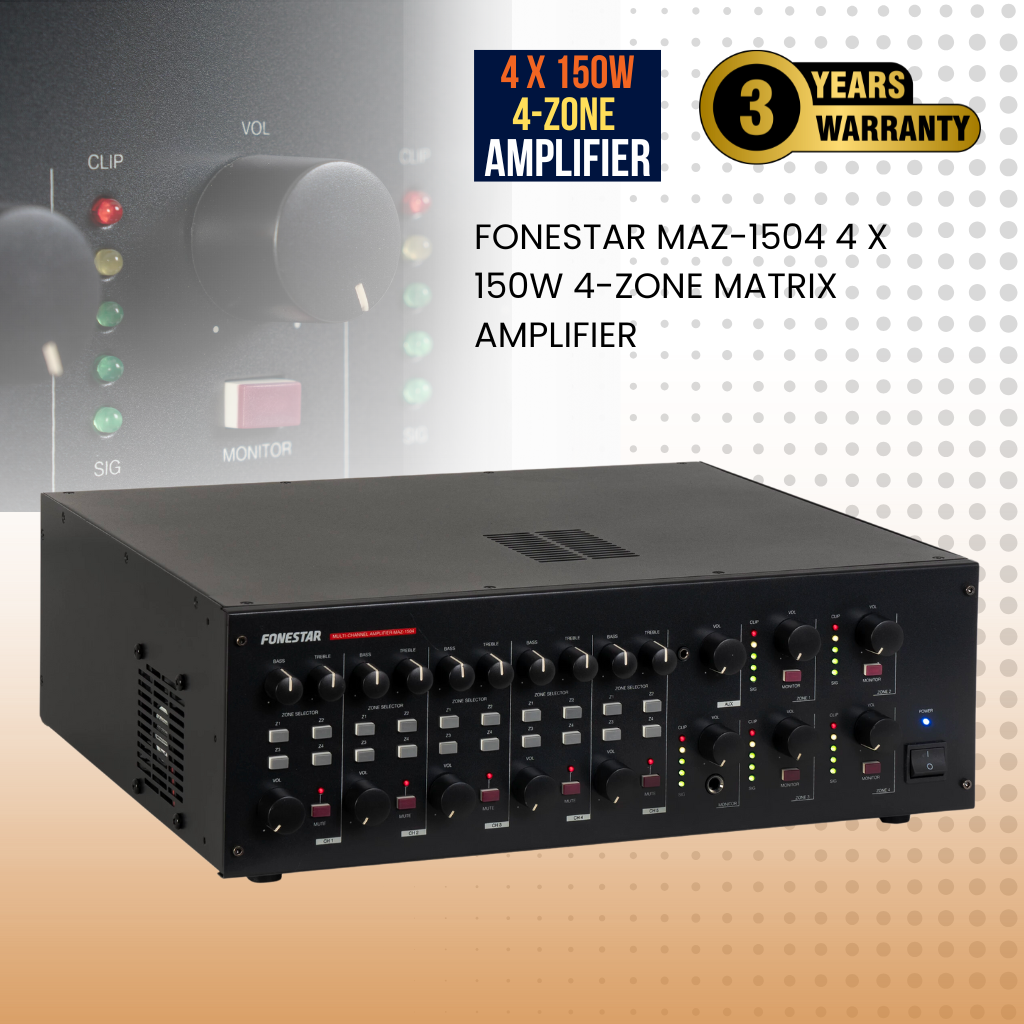

Fonestar MAZ-1504 4 x 150W 4-zone matrix amplifier

Name: Fonestar MAZ-1504 4 x 150W 4-zone matrix amplifier
Brand: Commerical Audio Outlet
Price: 1049.0 GBP
Availability: InStock

SKU:

£1,049.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

**Matrix Multi-Channel Amplifier Overview**

This versatile amplifier is perfect for installations that require distinct loudspeaker zones. It allows different music to be played in each zone while routing inputs to various outputs, enabling a custom audio experience tailored to each area.

Offering exceptional flexibility, the amplifier features a matrix function with four independent amplifier output channels. Users can easily assign inputs to outputs through clearly marked buttons for each channel, making setup intuitive and straightforward.

Each output zone can enjoy its own music program with independent volume control. The amplifier includes speaker outputs and line-level signals to accommodate additional amplification needs, ensuring every zone has access to its preferred audio content.

With low impedance and 100V line outputs, this amplifier is ideal for public address (PA) systems requiring multiple loudspeakers. It also includes priority microphone inputs that automatically lower music volume during important announcements, ensuring clear communication. Additionally, there is a telephone switchboard line output with similar functionality.

This amplifier is designed for maximum reliability, easy installation, and minimal maintenance. Built-in protections against overload, short circuits, and temperature ensure safe operation, along with temperature-controlled variable cooling for efficient performance.

Perfect for varied environments like schools, offices, industrial sites, retail spaces, and leisure areas, this amplifier makes it easy to share announcements or provide tailored music to enhance the atmosphere in each zone.

Amplifier Specification

Fonestar MAZ-1504 4 x 150W 4-zone matrix amplifier

FEATURES: Matrix and multi-channel amplifier.
Allocation matrix of 5 input channels to 4 output zones
4 zones with loudspeaker and line output.
Zones with independent volume control.
Priority paging by signal level and contact closure.
POWER: 4 x 150 W RMS
RESPONSE: 50-20,000 Hz (-3 dB)
DISTORTION: THD+N: < 1%
S/N RATIO: Mic >60 dB, Aux/Line >75 dB
PROTECTIONS: Over-current, overload, overload, temperature and short circuit
Temperature-controlled ventilation cooling
INPUTS: CH 1, 2 and 3 balanced mic/line with 15V Phantom. Combo connector (XLR + jack 6.3 mm)
Microphone signal level: 2.8 mV RMS (-50 dBV) / 600 Ω
Line signal level: 280 mV RMS (-15 dBV) / 15.000 Ω
CH 4 a 5 auxiliary. 2 x RCA connector. Signal level: 110 mV RMS (-18 dBV) / 50.000 Ω
Auxiliary AUX. 3.5 mm jack connector 25 mV RMS (-24 dBV) signal level
Tel. paging. Connector screw Terminals 316 mV RMS (-30 dBV) / 600 Ω signal level
OUTPUTS: 4 x balanced lines zones 1 to 4. Connector screw Terminals 1 V RMS signal level
1 x headphone monitor. Connector: 6.3 mm jack 1 x monitor on rear panel. Connector: screw terminals. 900 mV RMS / 600 Ω signal level and 1 W / 8 Ω for loudspeaker
IMPEDANCE: 4 zones: 4 and 8 Ω and 100, 70 and 25 V lines, screw terminals
CONTROLS: CH 1 to 5: gain, bass, treble, volume and zone assignment
Tel. paging: volume and zone selector
Zones 1 to 4: volume and monitor selector
Monitor: volume
Auxiliary: volume
FUNCTIONS: Input priority:
CH 1 input and Tel. paging with priority over all other inputs by signal level
Inputs CH 1, 2, 3 and Tel. paging with priority over auxiliary inputs by contact closure
TEMPERATURE: Operation: -20º ~ 45ºC
Storage: -20º ~ 40ºC
MAXIMUM HUMIDITY: 0.7
POWER SUPPLY: 230/115 V AC 50/60 Hz
Power consumption: 950 W
Fuse 230 V AC 8 A / 115 V 16 A
DIMENSIONS: 420 x 133 x 375 mm depth. 3 U 19" rack
WEIGHT: 17.6 kg
ACCESSORIES: Rack mounts
