Fonestar MAZ-6600RU 6 x 100W 6-zone matrix amplifier

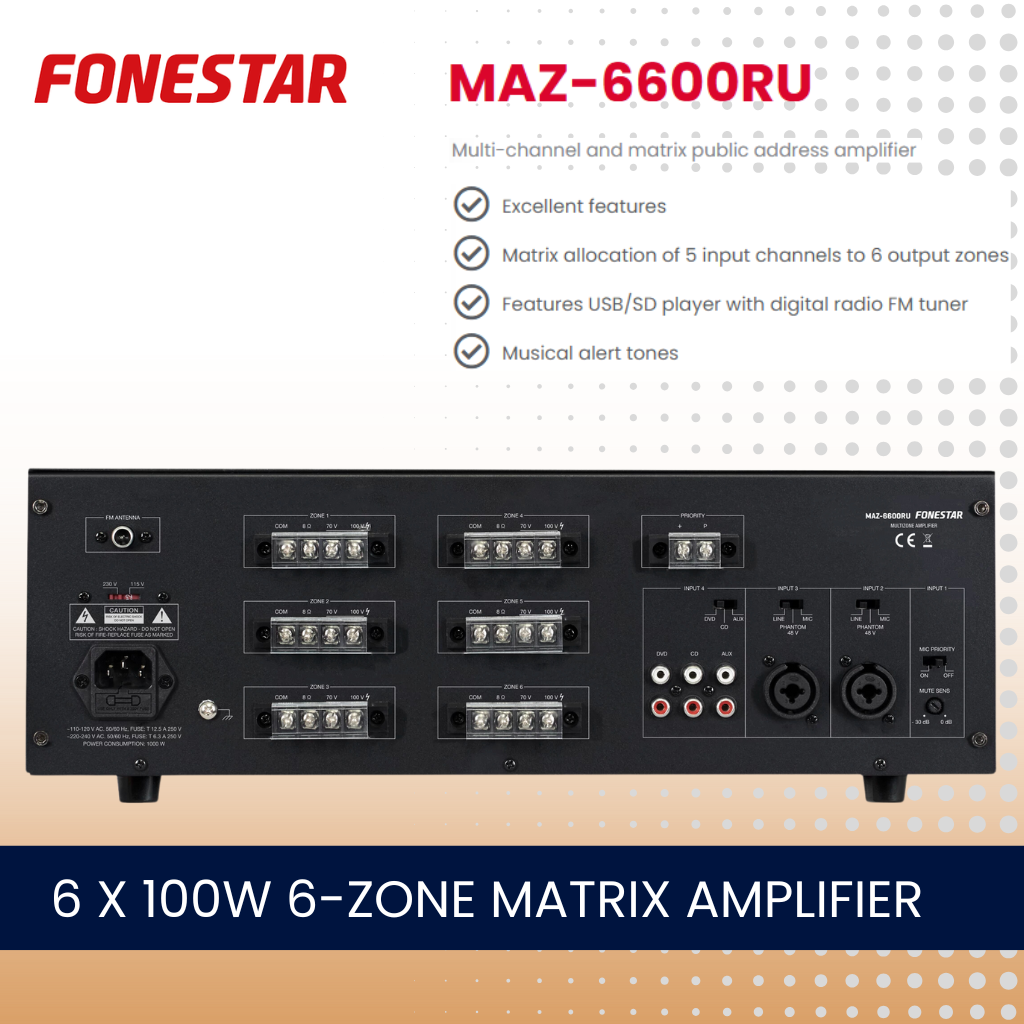

Name: Fonestar MAZ-6600RU 6 x 100W 6-zone matrix amplifier
Brand: Commerical Audio Outlet
Price: 1149.0 GBP
Availability: InStock

SKU:

£1,149.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Matrix and Multi-Channel Amplifier

This versatile amplifier features 5 input channels, each of which can be assigned to any of the 6 output zones, complete with independent volume control for customized sound levels. It includes a USB/SD player and an FM digital tuner, allowing for easy access to your favorite stations and presets with an auto-search function.

For professional audio requirements, phantom power (48 V) is available on microphones 2 and 3. Additionally, microphone 1 can prioritize message broadcasting either by signal level or through a contact closure, giving you flexible control over your audio inputs. The unit accepts standard audio connectors including XLR, jack, and RCA, ensuring compatibility with various devices.

Speaker connections are secure and user-friendly, featuring easy-to-connect screw terminals. Built with high reliability in mind, it includes protective circuits for temperature, overload, and short-circuit situations.

This amplifier is designed for public address systems using 100 V line speakers, but it can also accommodate low impedance speakers in mono setups, making it ideal for installations that require distinct audio in each zone. Its intuitive design simplifies both usage and installation.

Amplifier Specification

Fonestar MAZ-6600RU 6 x 100W 6-zone matrix amplifier

FEATURES: Matrix and multi-channel amplifier.
Matrix allocation of 5 input channels to 6 output zones.
USB/SD player.
Digital FM tuner.
6 zones with independent volume control.
Phantom power supply.
Musical alert tones.
Priority paging.
Includes remote control for USB/SD/FM player.
POWER: 6 x 100 W RMS
RESPONSE: 80-18,000 Hz ±3 dB
DISTORTION: Harmonic: < 0.5%
S/N RATIO: Microphones: > 65 dB
Aux: > 75 dB
INPUTS: 1 unbalanced mic., 6.3 mm jack, 4 mV RMS
2 balanced mics/lines, combo (XLR and 6.3 mm jack) 4 mV RMS / 400 mV RMS, switchable
1 DVD/CD/AUX stereo aux, 2 x RCA 220 mV RMS, 160 mV RMS, 110 mV RMS, selectable
1 stereo aux, 3.5 mm jack, 200 mV RMS
OUTPUTS: 1 stereo monitor, 6.3 mm jack
CONTROLS: 6 zone buttons 1 to 6 for each of input channels 2 to 5 and USB/SD/FM player
Channels 1 to 4: volume, bass and treble control
Zones 1 to 6: volume control, monitor selector switch
Monitor volume
PLAYER: USB/SD player and digital FM tuner with preset channels and auto scan
PHANTOM: 48 V in mics 2 and 3, selectable
PRIORITY: Mic. 1 through signal level or contact closure, selectable
IMPEDANCE: 6 zones: 8 Ω and 100 and 70 V lines, screw terminals
POWER SUPPLY: 230/115 V AC, 1,000 W maximum
DIMENSIONS: 420 x 133 x 376 mm depth. 3 U 19" rack
WEIGHT: 17.5 kg
ACCESSORIES: FM antenna
Mounts for assembling in 19" rack
