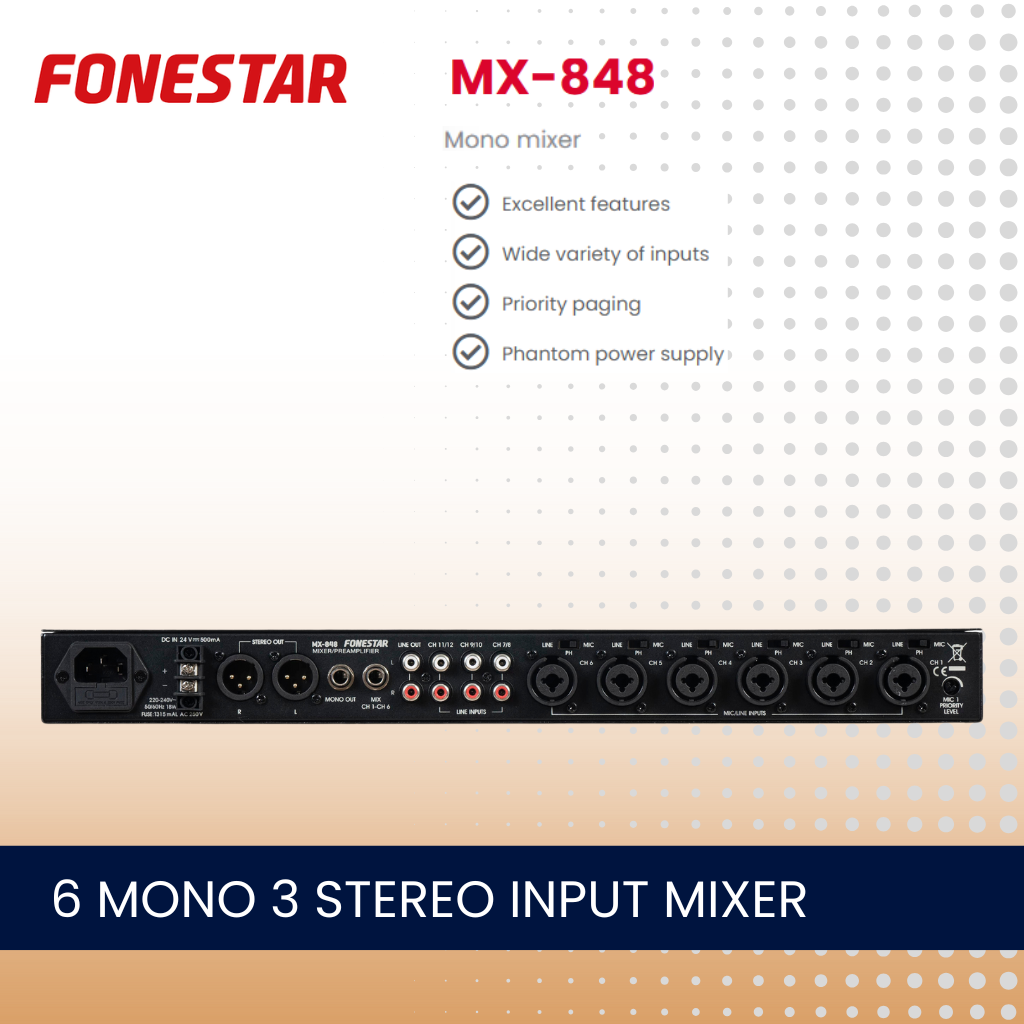

Fonestar MX-848 6 mono 3 stereo input mixer
FEATURES: Mixer/preamplifier.
Microphone input with paging priority.
Phantom power supply.
LED output level indicators.
INPUTS: 6 balanced mics./lines, combo (XLR and 6.3 mm jack), 1,500 Ω 7.7 mV y 10,000 Ω 775 mV switchable
3 stereo aux, 2 x RCA, 10,000 Ω 2.4 V RMS
OUTPUTS: 1 balanced stereo master, XLR 120 Ω 775 mV RMS
1 balanced mono master, 6.3 mm jack, 120 Ω 775 mV RMS
1 balanced mono mix out, 6.3 mm jack 120 Ω 775 mV RMS
1 line out, 2 x RCA 120 Ω 775 mV RMS
CONTROLS: Tone: master output bass, mid and treble
Volume: inputs 1 to 12 and general volume (stereo and mono master)
RESPONSE: 20-22,000 Hz
DISTORTION: Harmonic: < 0.05% at 1 kHz
S/N RATIO: Microphones > 103 dB
Aux/Line > 103 dB
PHANTOM: 18 V in mics. 1 to 6, selectable
PRIORITY: Mic. 1 depending on signal level, selectable
POWER SUPPLY: 230 V AC, 18 W and 24 V DC, 500 mA
115 v AC on request
DIMENSIONS: 483 x 44 x 220 mm depth. 1 U 19" rack
WEIGHT: 3 kg
