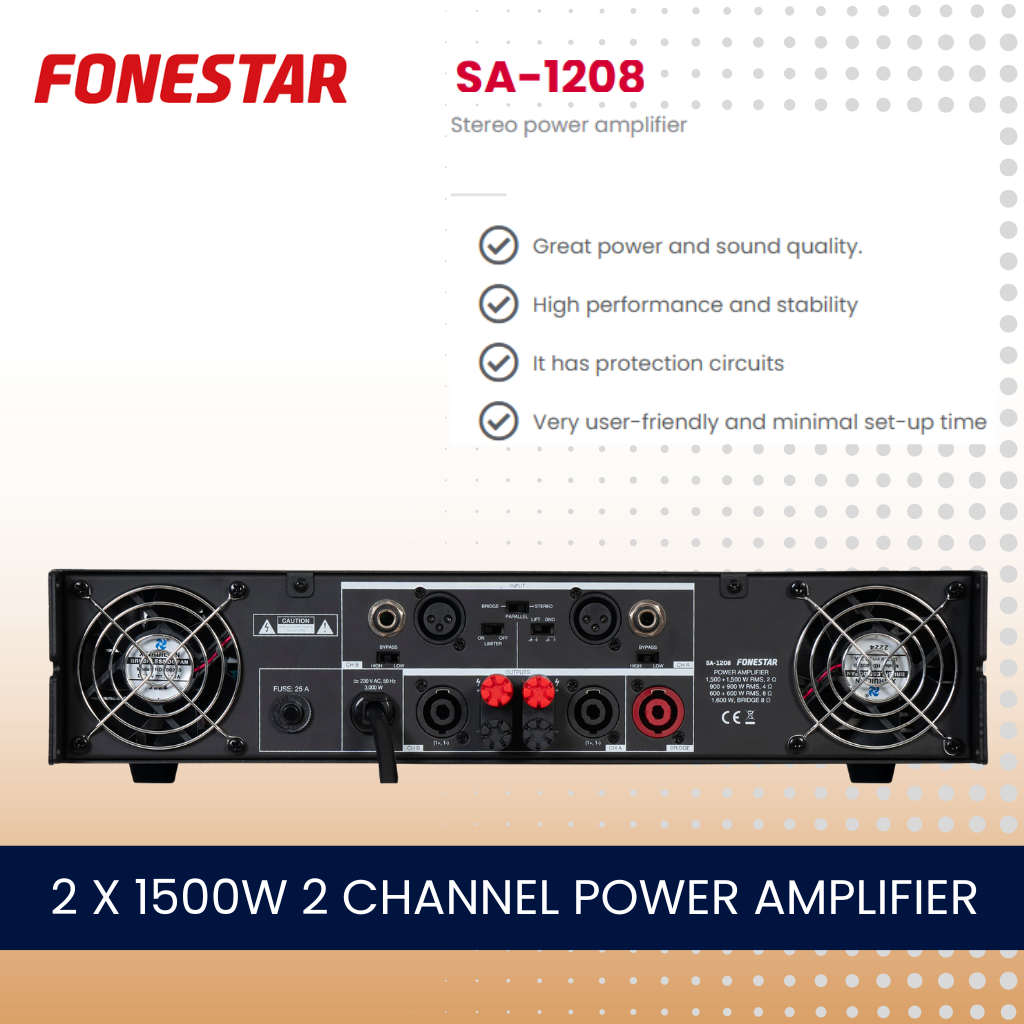

Fonestar SA-1208 low impedance power amplifier
FEATURES: Professional stereo power amplifier.
POWER: Stereo and parallel mode:
1,500 + 1,500 W RMS@2 Ω
900 + 900 W RMS@4 Ω
600 + 600 W RMS@8 Ω
Bridge mode: 1,600 W RMS@8 Ω
PROTECTION: Soft start, temperature, short circuit, overload, DC and AC
Variable speed forced ventilation
CONTROLS: Volume per channel
Parallel/stereo/bridge operating mode selector
Input limiter and filter
GND lift earth disconnection
INPUTS: CHA and CH B balanced auxiliary line XLR and jack 6.3 mm, 20,000 Ω, 0.9 V RMS @ 2 Ohm, 1.1 V RMS @ 4 Ohm, 1.3 V RMS @ 8 Ohm
VOLTAGE GAIN: 40 dB
RESPONSE: 10-50,000 Hz, -1.5 dB
DISTORTION: Harmonic: <0.03%
DAMPING FACTOR: > 500
S/N RATIO: > 103 dB
CROSSTALK: > 105 dB
SLEW RATE: 70 V / µs
OUTPUTS: Speakers: 2-8 Ω stereo, screw terminals and banana plugs or speaker connector
8 Ω bridge mono, speaker connector
POWER SUPPLY: 230 V AC, 3,000 W maximum
DIMENSIONS: 483 x 89 x 480 mm depth
2 U 19" rack
WEIGHT: 17.6 kg
