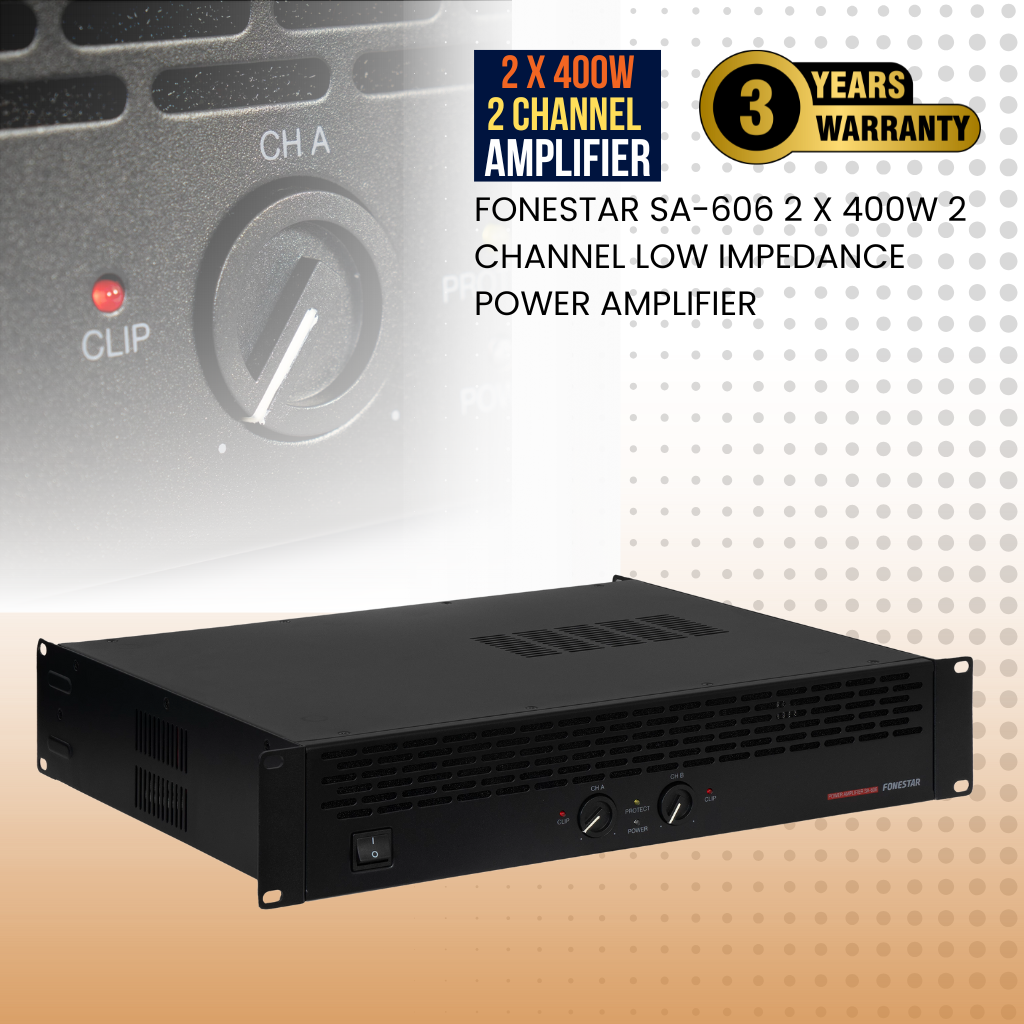

Fonestar SA-606 low impedance power amplifier
FEATURES: Professional stereo power amplifier
STEREO POWER: Stereo and parallel mode:
400 + 400 W RMS at 4 Ω
300 + 300 W RMS at 8 Ω
Bridge mode: 700 W RMS at 8 Ω
FUNCTIONS: Forced ventilation
LED power, protection and signal peak indicators
PROTECTION: 3 circuits: temperature, short circuit and overload
CONTROLS: Volume per channel
GND lift earth disconnection
Parallel/stereo/bridge operating mode selector
INPUTS: CH A AND CH B UNBALANCED AUXILIARY LINE, XLR, 20.000 Ω, 2 V RMS @ 4 Ω, 2'5 V RMS @ 8 Ω
And unbalanced auxiliary line, RCA, 10.000 Ω, 1 V RMS @ 4 Ω, 1'23 V RMS @ 8 Ω
GAIN VOLTAGE: 32 dB
RESPONSE: 10-50,000 Hz
DISTORTION: Harmonic: < 0.05 %
DAMPING FACTOR: > 150
S/N RATIO: > 90 dB
CROSSTALK: > 70 dB
SLEW RATE: 30 V/µs
POWER SUPPLY: 230/115 V AC, 1,000 W maximum
DIMENSIONS: 483 x 89 x 350 mm depth
2 U 19" rack
WEIGHT: 11 kg

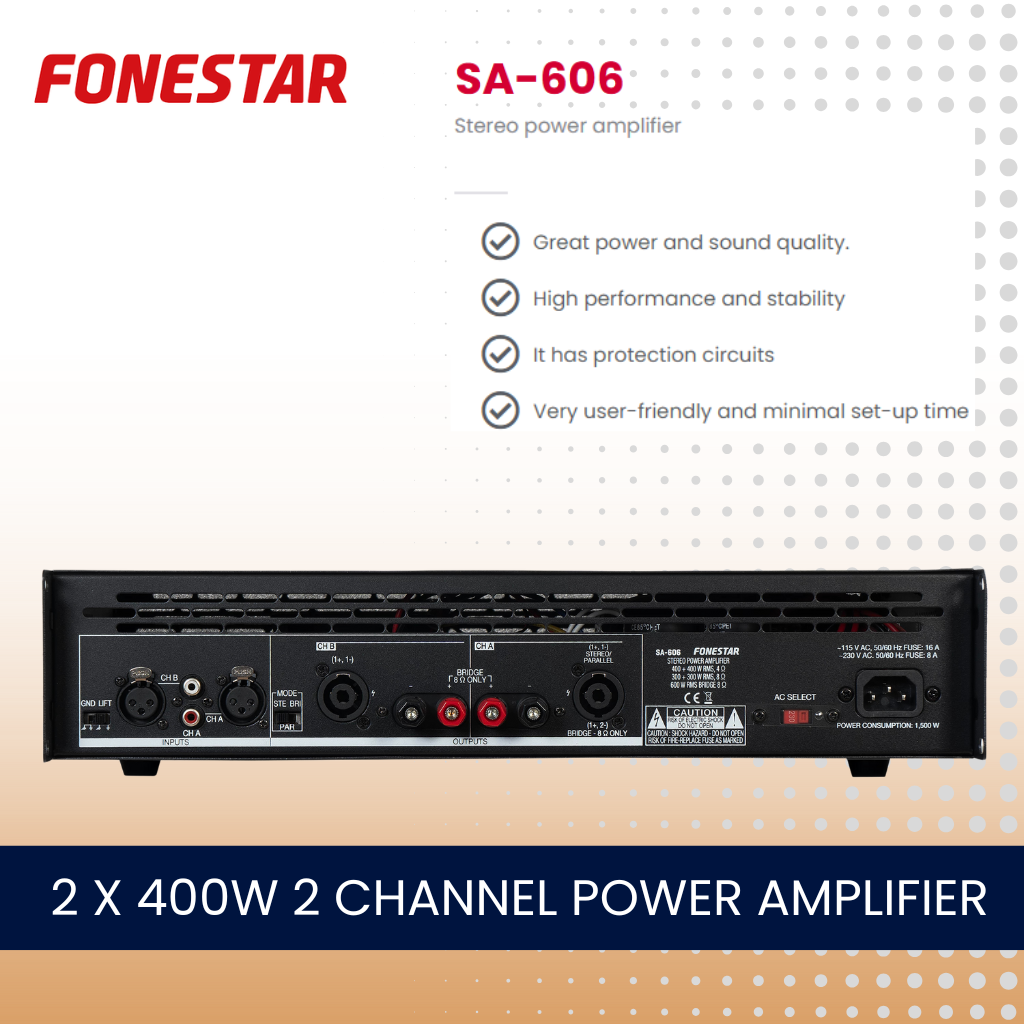

OUTPUTS: Loudspeakers: 4-8 Ω stereo, 6.3 mm mono jack, screw terminals and banana plugs or loudspeaker connector
8 Ω mono bridge, screw terminals and banana plugs
