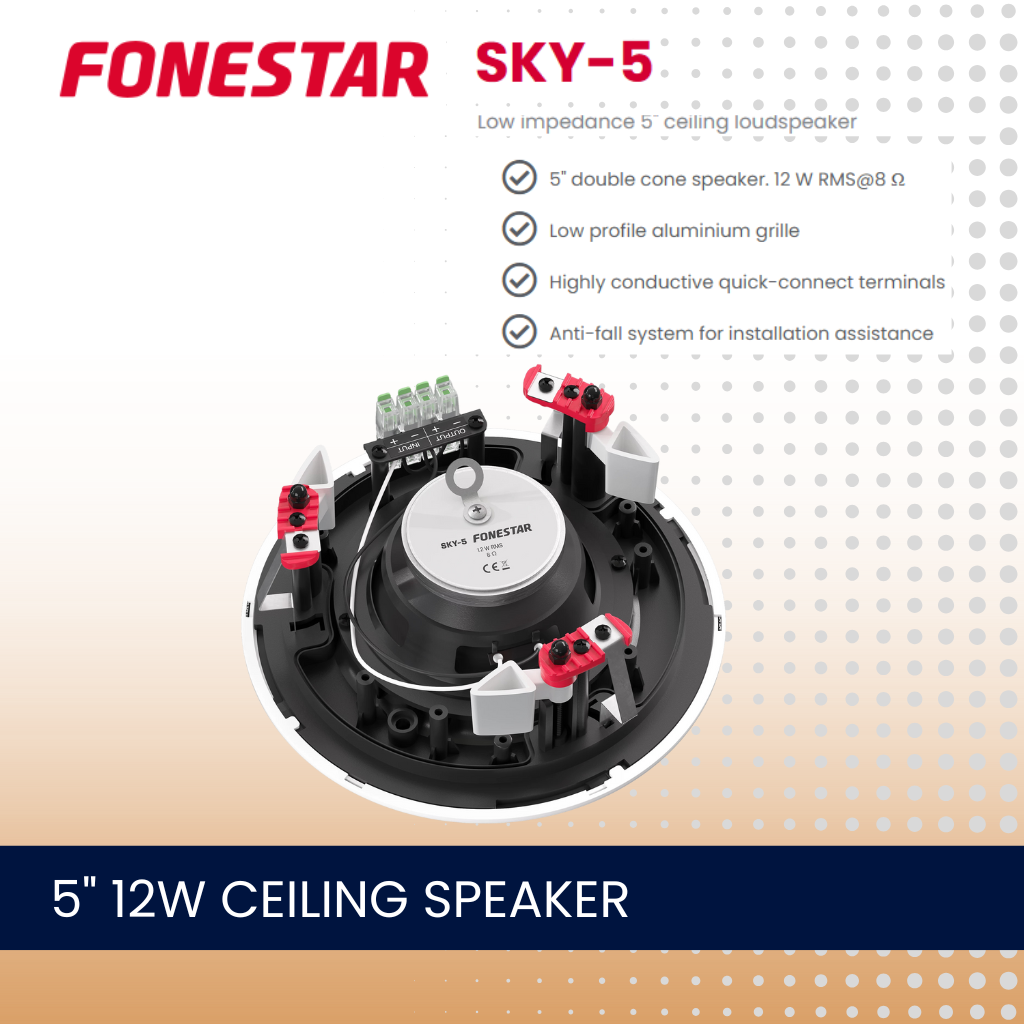

Fonestar SKY-5 ceiling speaker
FEATURES: Low impedance ceiling loudspeaker.

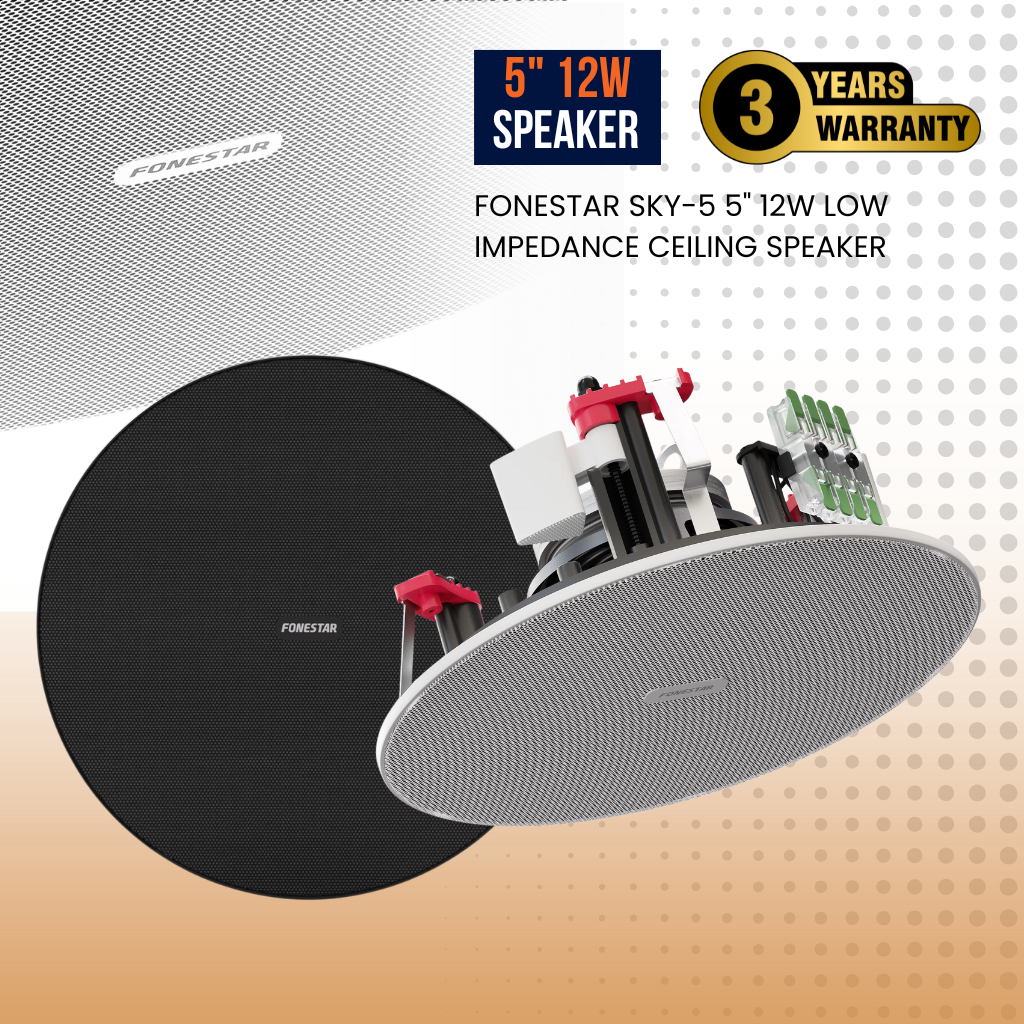

Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable. The logo can be removed and the speaker can be painted.
Fast connection terminals and high conductivity.
Anti-fall system for installation assistance.
Hook for safety cable.
Stable, worm-gear ceiling brackets.
Protection against dust and water.
POWER: 12 W RMS
16 W MAX.
SPEAKER: 5'' polypropylene double cone diaphragm
RESPONSE: 55-20.000 Hz @ -10 dB
70-20.000 Hz @ -10 dB
IMPEDANCE: 8 Ω
SENSITIVITY: 85 dB @ 1 W/1 m
SOUND PRESSURE: 97 dB @ max. W/1m Continuos
98 dB @ max. W/1m Peak
COVERAGE ANGLE: H/V (-6 dB): 60º@500Hz, 90º@1kHz, 60º@2kHz, 90º@4kHz
PROTECTIONS: IP-44 in compliance with IEC 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid paint aluminium grille
CONNECTORS: Highly conductive quick-connect terminals
For 0.4 ~ 4 mm² cross section cable
OPERATION TEMPERATURE: -20ºC ~ 70°C (48 h)
STORAGE TEMPERATURE: 10ºC ~ 40°C
MAXIMUM HUMIDITY: 95%
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 214 mm Ø x 85 mm height
Grille section: 5 mm
Recessed height: 80 mm
Installation hole: 180 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 0.5 kg
ACCESSORIES: Installation template
