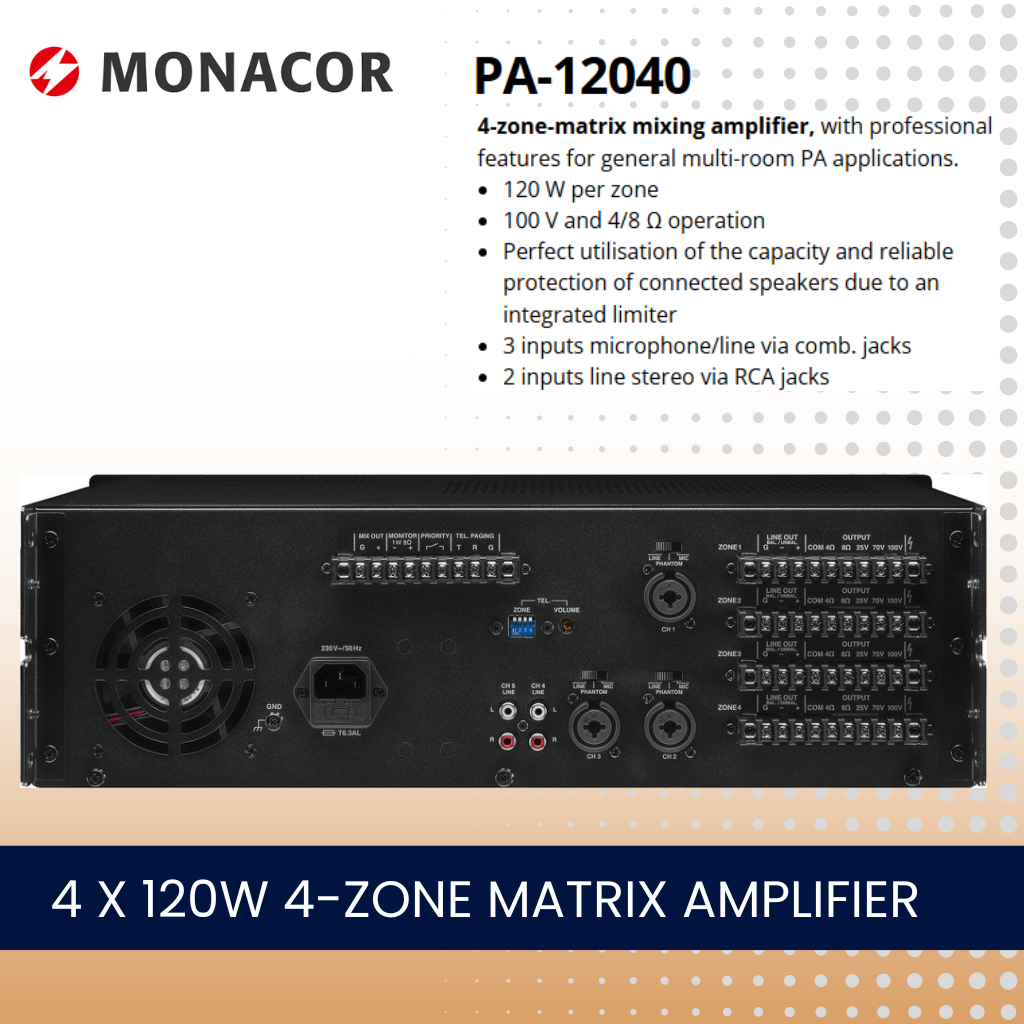

Monacor PA-12040 4 x 120W 4-zone matrix amplifier

Name: Monacor PA-12040 4 x 120W 4-zone matrix amplifier
Brand: Commerical Audio Outlet
Price: 799.0 GBP
Availability: InStock

SKU:

£799.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

**4-Zone Matrix Mixing Amplifier**

This amplifier is equipped with professional-grade features tailored for multi-room PA applications.

- **Power Output**: 120 W per zone
- **Operational Compatibility**: 100 V and 4/8 Ω
- **Speaker Protection**: Integrated limiter ensures optimal usage and reliable protection for connected speakers.
- **Input Options**:
- 3 microphone/line inputs via combo jacks
- 2 stereo line inputs via RCA jacks
- **Channel Control**: Each input channel comes with gain control, 2-way tone control, a mute switch, and a zone routing switch.
- **Microphone Features**: Phantom power (46 V) is available for microphone inputs, activated as needed.
- **Priority Feature**: Channel 1 has a switchable priority function.
- **Paging Capability**: An independent paging input can be routed to all zones.
- **Individual Zone Control**: The 4 zone outputs can be managed separately.
- **Output Options**: Zone and monitor line outputs are available for connecting additional amplifiers or recorders, along with a connection for monitor speakers.
- **Level Monitoring**: VU meters

Amplifier Specification

Monacor PA-12040 4 x 120W 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Power rating at 4 Ω 4 x 120 W
Power rating at 8 Ω 4 x 120 W
Power rating at 100 V 4 x 120 W
Power rating at 70 V 4 x 120 W
Power rating at 25 V 4 x 120 W
Channels 5
Zones 4
Inputs 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line)
100 mV/30 kΩ (line)

40 mV/5 kΩ (tel. paging)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB, mic
> 75 dB, line

THD < 1%
Phantom power 46 V
Power supply ˜ 230 V/50 Hz/1,200 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,200 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 410 mm
Rack units, RU 3
Weight 20.5 kg
Connections 3 x combo jack/XLR, bal. (mic/line inputs)

2 x RCA L/R (line inputs)

3.5 mm jack (headphones)

screw contacts (paging),
screw contacts (priority),

screw contacts (zone outputs),

screw contacts (line outputs),

screw contacts (speakers)

Packaging dimensions (W x H x L) 0.57 x 0.24 x 0.52 m
Gross weight 23.7 kg
Net weight 20.66 kg
