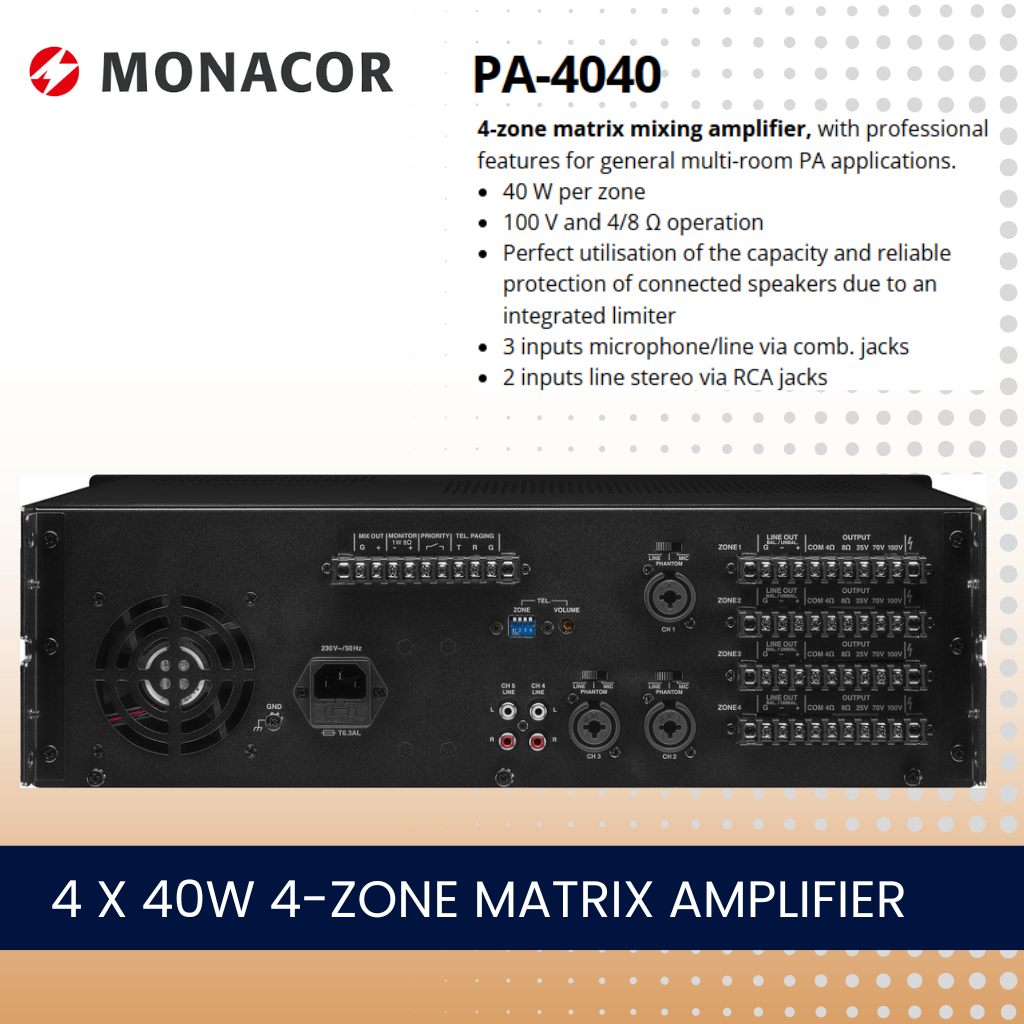

Monacor PA-4040 4 x 40W 4-zone matrix amplifier

Name: Monacor PA-4040 4 x 40W 4-zone matrix amplifier
Brand: Commerical Audio Outlet
Price: 549.0 GBP
Availability: InStock

SKU:

£549.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Introducing our powerful 4-zone matrix mixing amplifier, designed with professional features ideal for various multi-room PA applications.

- **Power Output:** 40 W per zone
- **Compatibility:** Suitable for both 100 V and 4/8 Ω operations
- **Speaker Protection:** Enjoy optimal use of capacity and reliable speaker safety with the integrated limiter
- **Input Options:**
- 3 microphone/line inputs via combined jacks
- 2 line stereo inputs through RCA jacks
- **Channel Features:** Each input channel has gain control, 2-way tone control, a channel mute switch, and a routing switch for different zones
- **Phantom Power:** Microphone inputs include +15 V phantom power, which can be activated as needed
- **Priority Function:** A switchable priority function is available for channel 1
- **Paging Input:** An independent paging input can be directed to all zones
- **Output Control:** 4 individual zone outputs
- **Additional Outputs:** Zone and monitor line outputs for connecting extra amplifiers or recorders
- **Monitor Speakers:** Connection available for monitor speakers
- **Level Monitoring:** Level control is facilitated by VU meters for both zone and monitor outputs
- **Headphone Output:** An adjustable headphone output for convenience
- **Cooling System:** Equipped with a temperature-controlled fan that is continuously adjustable
- **Power Supply:** Operates on 230 V mains power

This amplifier seamlessly integrates into your setup, making it a reliable and effective solution for your audio needs.

Amplifier Specification

Monacor PA-4040 4 x 40W 4-zone matrix amplifier

Peak output power 4 x 65 W
Power rating 4 x 40 W
Power rating at 4 Ω 4 x 40 W
Power rating at 8 Ω 4 x 40 W
Power rating at 100 V 4 x 40 W
Power rating at 70 V 4 x 40 W
Power rating at 25 V 4 x 40 W
Channels 5
Zones 4
Inputs 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line),
100 mV/30 kΩ (line)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB (mic),
> 75 dB (line)

THD < 1%
Phantom power 15 V
Power supply ˜ 230 V/50 Hz/450 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 450 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 310 mm
Rack units, RU 3
Weight 15 kg
Connections 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),

screw terminal (mix out),
screw contacts (paging),

screw contacts (priority),

3.5 mm stereo jack (headphones),

screw contacts (speaker zone),

screw contacts (monitor speakers)

Packaging dimensions (W x H x L) 0.43 x 0.23 x 0.56 m
Gross weight 18.46 kg
Net weight 15.92 kg
