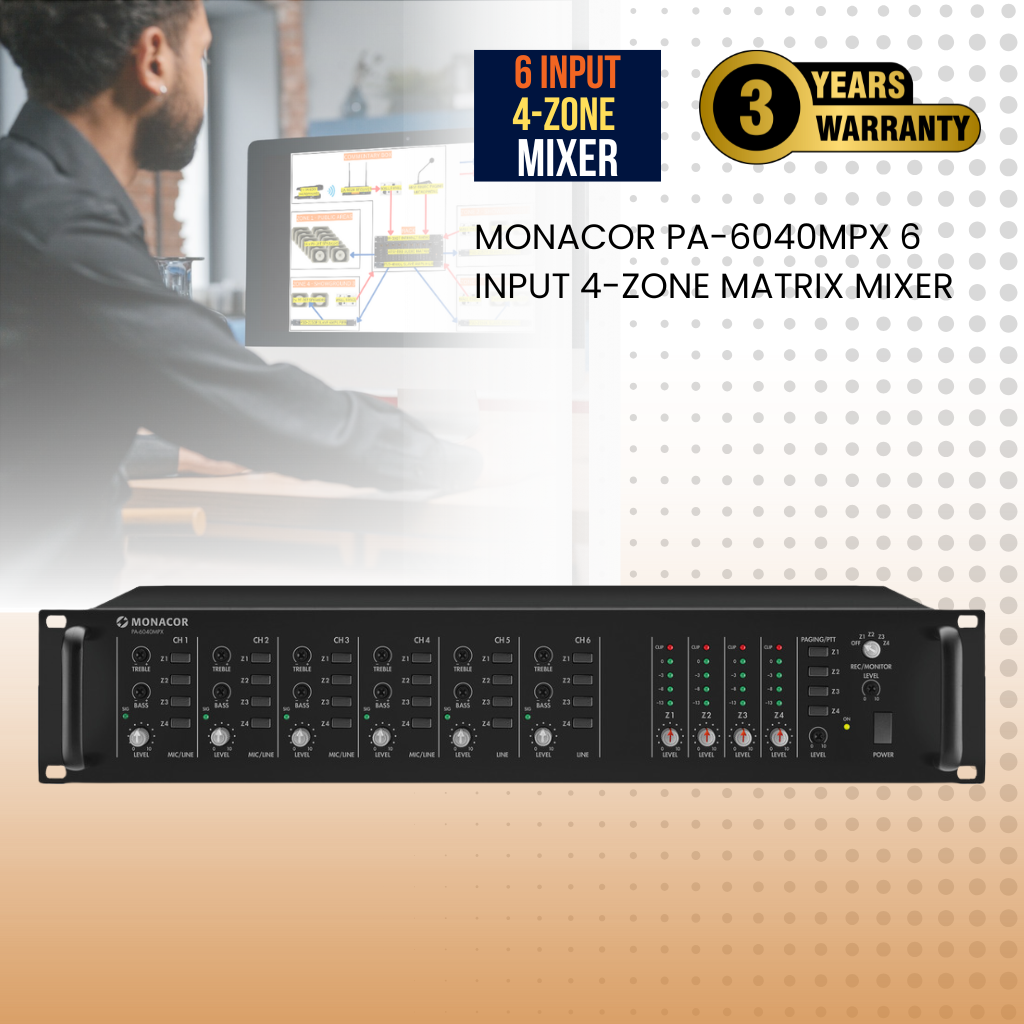

Monacor PA-6040MPX 6 input 4-zone matrix mixer

Name: Monacor PA-6040MPX 6 input 4-zone matrix mixer
Brand: Commerical Audio Outlet
Price: 499.0 GBP
Availability: InStock

SKU:

£499.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

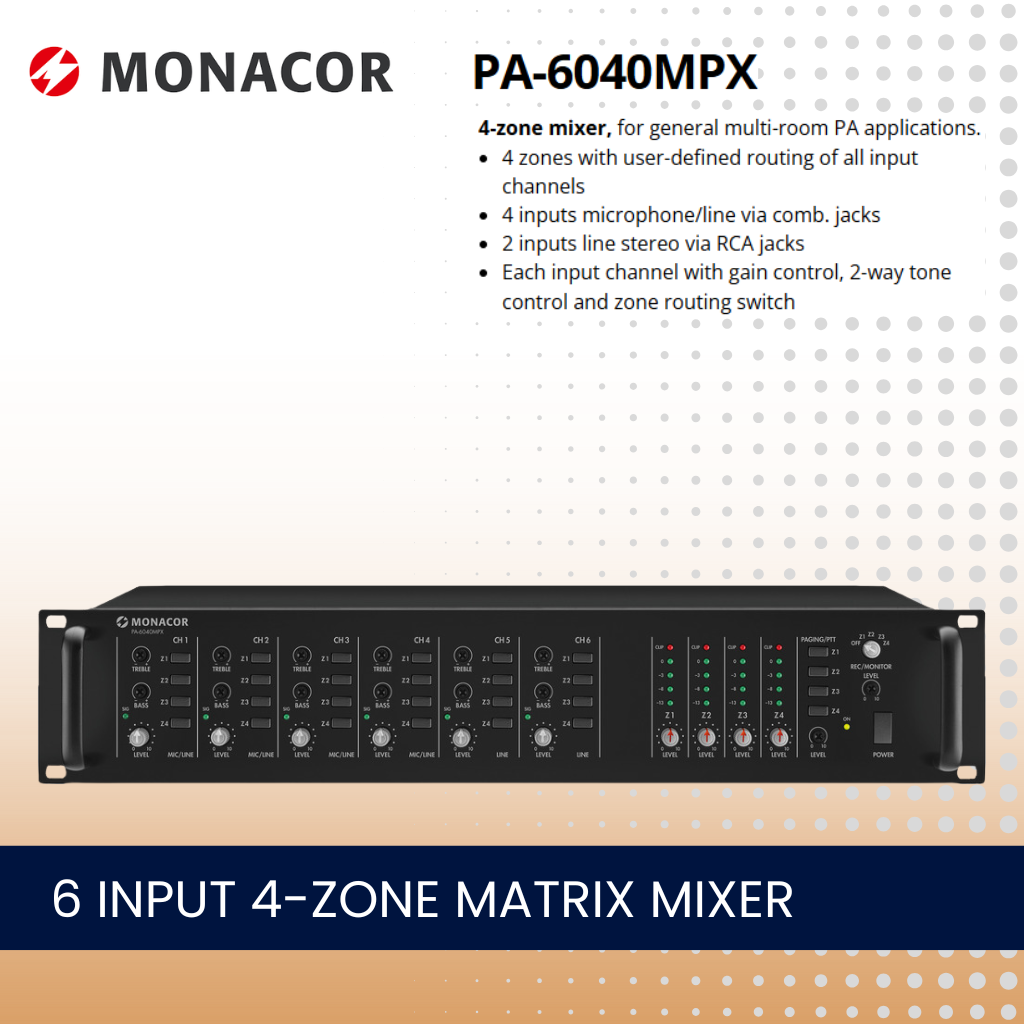

4-zone mixer designed for versatile multi-room public address applications.

This unit features four zones with customizable routing for all input channels. It includes four microphone/line inputs via combination jacks and two line stereo inputs through RCA jacks. Each input channel is equipped with gain control, a two-way tone control, and a zone routing switch. The microphone inputs provide 15 V phantom power, which can be activated as needed.

An independent paging input is available, allowing routing to any zone. The mixer offers four zone outputs, each of which can be adjusted independently. Additionally, there are monitor and record outputs. Each microphone/line input is compatible with an external chime button, allowing for a selectable 2-tone or 4-tone chime, or siren.

It also supports a connection for a push-to-talk microphone (PA-4000PTT) and can accommodate up to 32 zone paging microphones (PA-4000RC) as an optional feature. Level control is facilitated through a zone VU meter, and the unit can operate on mains power or 24 V emergency power.

Mixer Specification

Monacor PA-6040MPX 6 input 4-zone matrix mixer

Channels 6
Zones 4
Inputs 2.5 mV/5 kΩ, bal., 250 mV/15 kΩ, bal. (mic/line),
250 mV/15 kΩ (line),

250 mV/10 kΩ (telephone paging)

Frequency range 20-20,000 Hz
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB (mic),
> 87 dB (line)

THD < 1%
Phantom power 15 V
Power supply ˜ 230 V/50 Hz/15 VA,
DC 24 V/500 mA

Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 15 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 500 mA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 90 mm
Depth 305 mm
Rack units, RU 2
Weight 4.4 kg
Connections 4 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),

4 x 6.3 mm jack (zone inputs),

plug-in screw terminal (paging),

plug-in screw terminal (chime button),

1 x RJ45 (push-to-talk mic),

4 x XLR (zone outputs),

1 x 6.3 mm jack (monitor),

1 x RCA L/R (record)

Packaging dimensions (W x H x L) 0.395 x 0.17 x 0.55 m
Gross weight 5.77 kg
Net weight 4.47 kg
