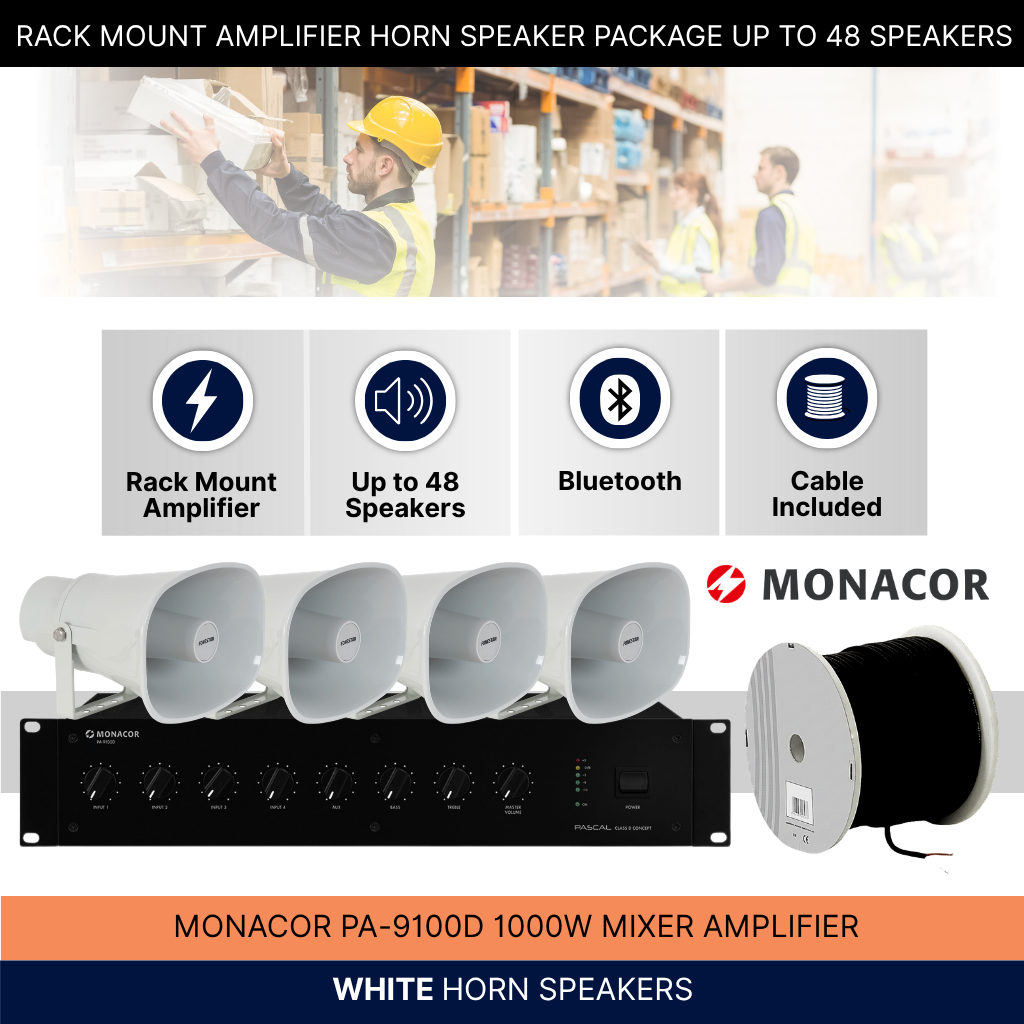

Rack Mount Amplifier Horn Speaker Package Up To 48 Speakers

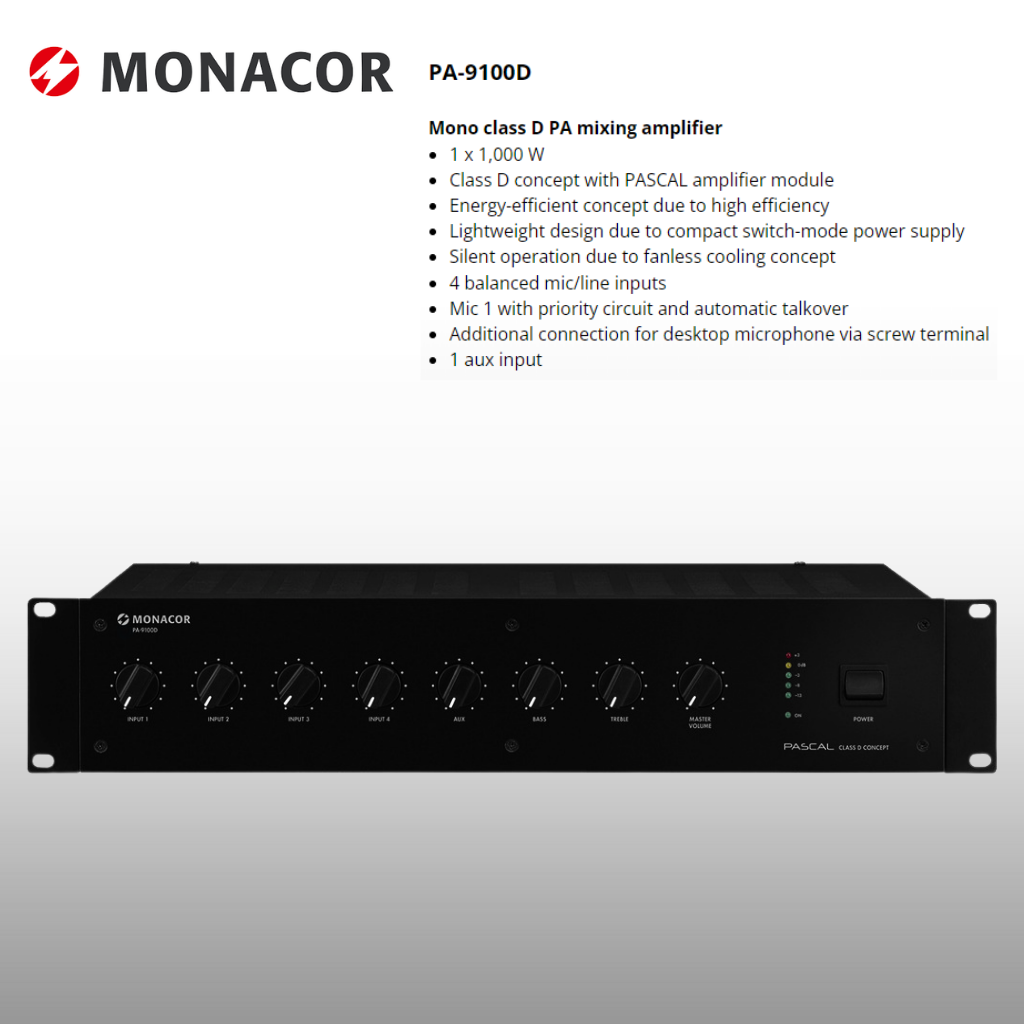

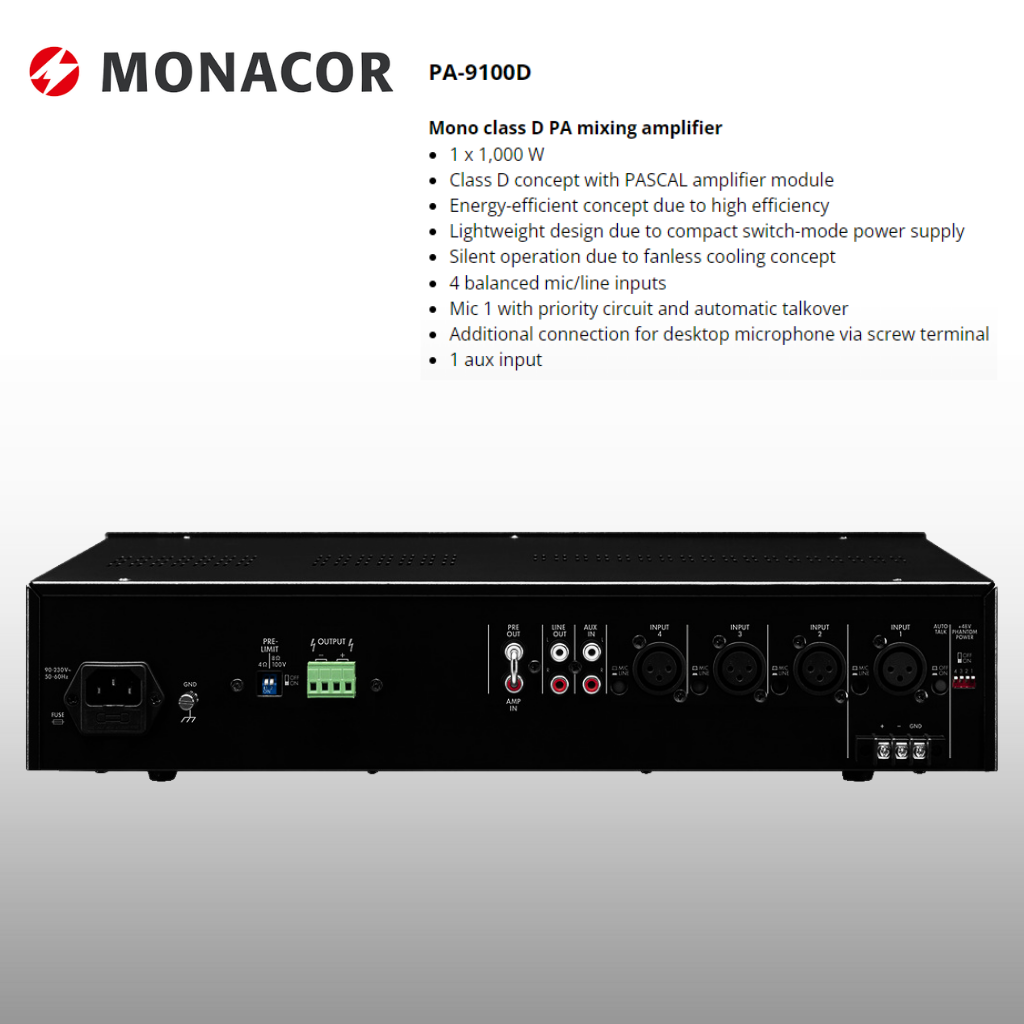

Monacor PA-9100D mixer amplifier

Power rating 1,000 W
Power rating at 4 Ω 900 W
Power rating at 8 Ω 1,000 W
Power rating at 100 V 1000 W/9.2 Ω
Output impedance 4-8 Ω
Channels 5
Inputs 3 mV (mic),
200 mV (line),

140 mV (aux)

Frequency range 20-20,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 80 dB
THD < 0.1%
Phantom power 48 V
Mains voltage ~ 90-230 V
Mains frequency 50-60 Hz
Power consumption, operation 1,030 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 275 mm
Rack units, RU 2
Weight 5.6 kg
Connections 4 x XLR (mic/line),
1 x RCA L/R (aux),

screw contacts (speakers)

Packing dimensions (W x H x L) 0.5 x 0.13 x 0.36 m
Gross weight 6.6 kg
Net weight 5.6 kg

Fonestar VULKAN-15T horn speakers (white)

FEATURES: 100 V line transformer horn loudspeaker.
Prepared for outdoor use with anti-corrosion materials.
Protection against water.
For long-range message playback.
POWER: 15 W RMS
LOUDSPEAKERS: 1 x compression driver
RESPONSE: 320-6,000 Hz (-10 dB)
IMPEDANCE: 15 W RMS@100 V (666 Ω)
7.5 W RMS@100 V (1.333 Ω)
SENSITIVITY: 105 dB @ 1 W/1 m
MAXIMUN SOUND PRESSURE: 116 dB @ at maximum power/1 m
DISPERSION: H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB)
PROTECTIONS: IP-66 in compliance with EN 60529
MATERIAL: ABS diffuser and rear cover
Aluminium mount
A2 stainless steel screws
CONNECTION: 30 cm cable with stripped ends
TEMPERATURE RANGE: Operation: -25ºC ~ +55ºC
Storage: -40ºC ~ +70ºC
HUMIDITY: <95%
COLOUR: White (RAL 7035)
DIMENSIONS: 222 x 162 x 232 mm depth
WEIGHT: 1.36 kg

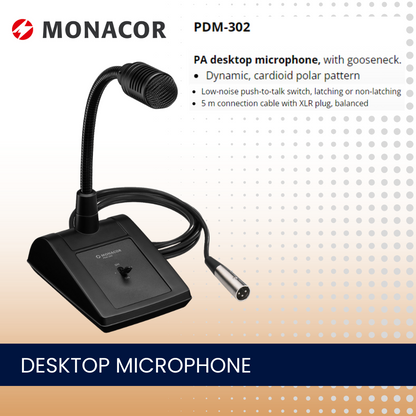

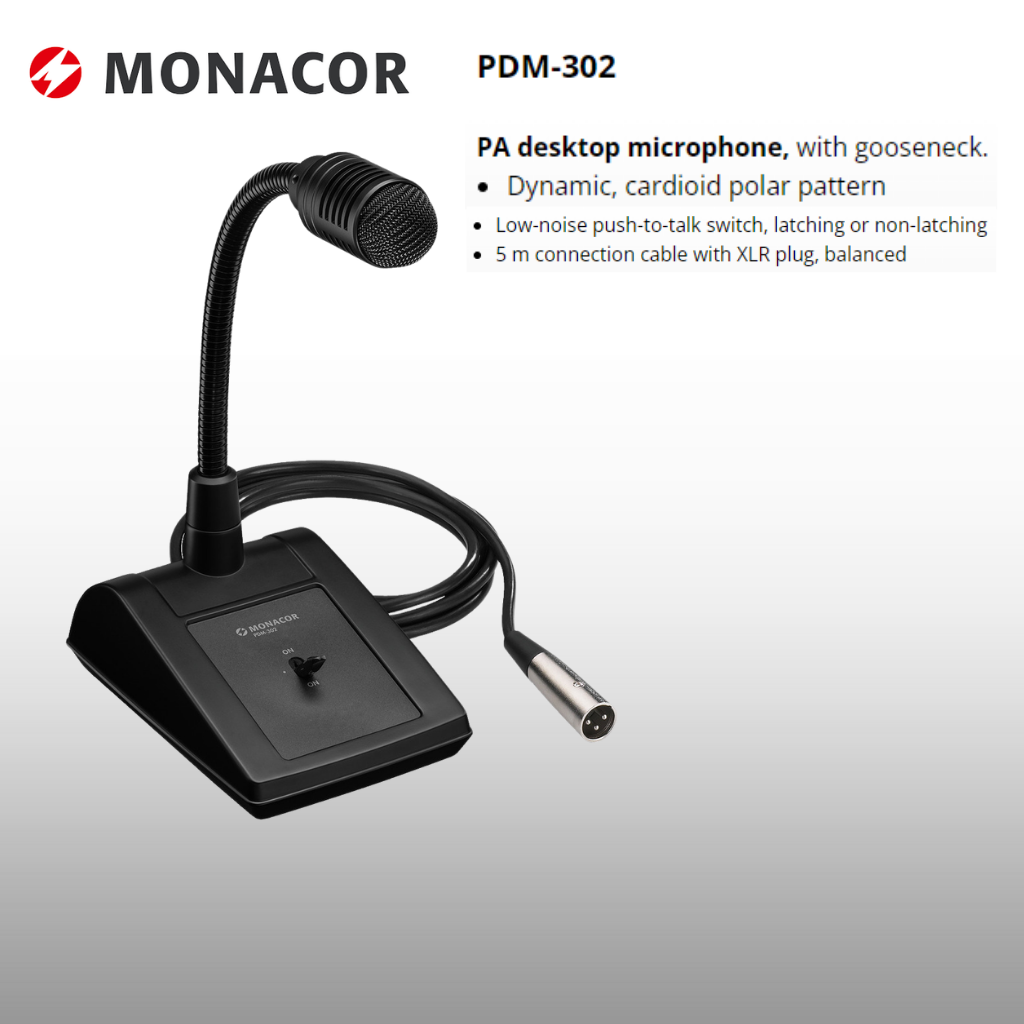

Monacor PDM-302 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Gooseneck length 310 mm
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
Weight 1 kg
Cable 5 m
Connection XLR, bal.
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.185 kg
Net weight 1 kg
