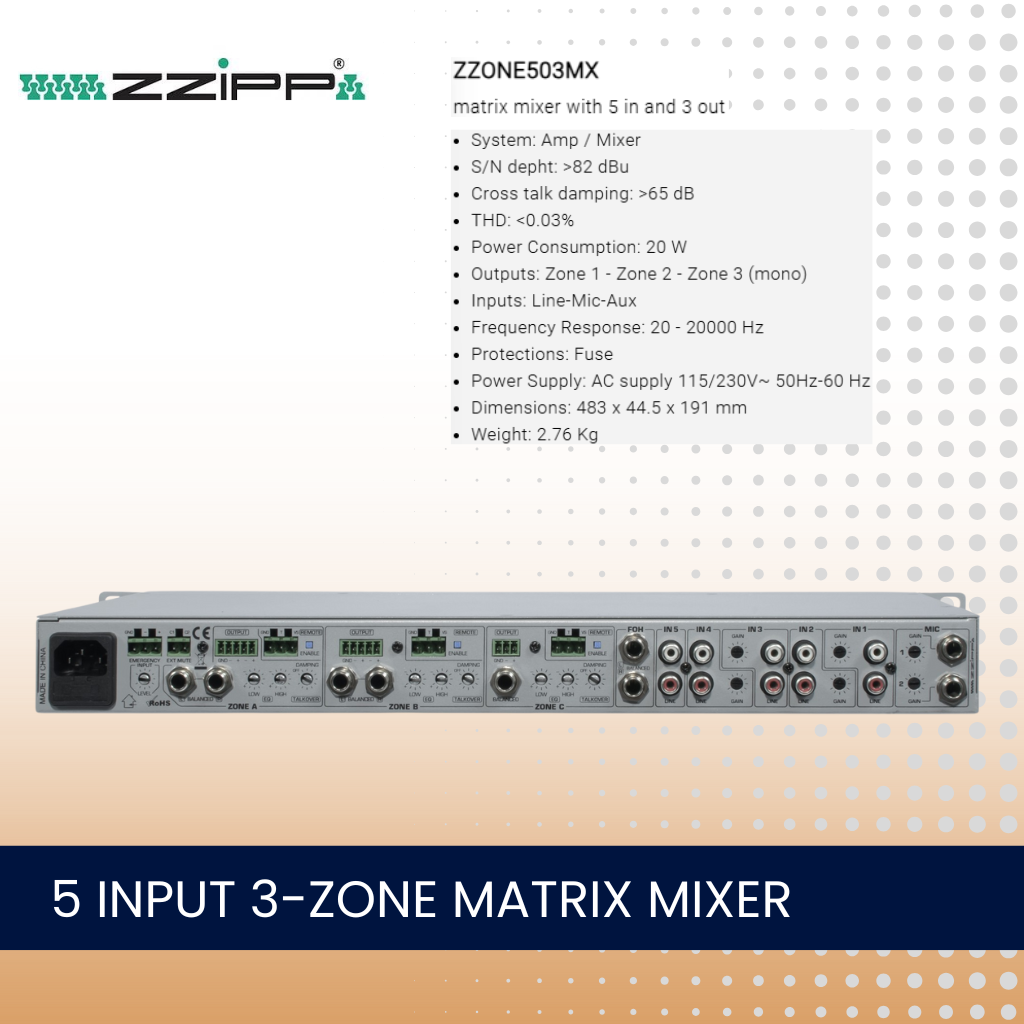

ZZiPP ZZONE503MX 5 input 3-zone matrix mixer

Name: ZZiPP ZZONE503MX 5 input 3-zone matrix mixer
Brand: Commerical Audio Outlet
Price: 249.0 GBP
Availability: InStock

SKU:

£249.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

MATRIX MIXER WITH 5 INPUTS AND 3 OUTPUTS

The latest ZZONE amplifier series has been developed to cater to the requirements of meticulous installers who prioritize versatility, comprehensiveness, and user-friendliness. The ZZONE503MX model functions as a mixer tailored for three distinct zones, offering two stereo outputs alongside one mono output. Each zone can receive its source signal from four different inputs, which includes a dual front input designed for the convenient connection of portable devices. Furthermore, the two microphone inputs feature selectable priority and can be either included or excluded from each output zone. The ZZONE503MX mixer presents a thorough and adaptable solution for sound management in multi-zone settings.

Mixer Specification

ZZiPP ZZONE503MX 5 input 3-zone matrix mixer

System: Amp / Mixer
S/N depht: >82 dBu
Cross talk damping: >65 dB
THD: <0.03%
Power Consumption: 20 W
Outputs: Zone 1 - Zone 2 - Zone 3 (mono)
Inputs: Line-Mic-Aux
Frequency Response: 20 - 20000 Hz
Protections: Fuse
Power Supply: AC supply 115/230V~ 50Hz-60 Hz
Dimensions: 483 x 44.5 x 191 mm
Weight: 2.76 Kg
