4-Zone Amplifier Horn Speaker Package Up To 16 Speakers
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- Outputs: 4 Ω and 100 V line (42Ω)
- 240 W RMS
- 40-20,000 Hz
- Inputs: CH 1 balanced mic/line…
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.

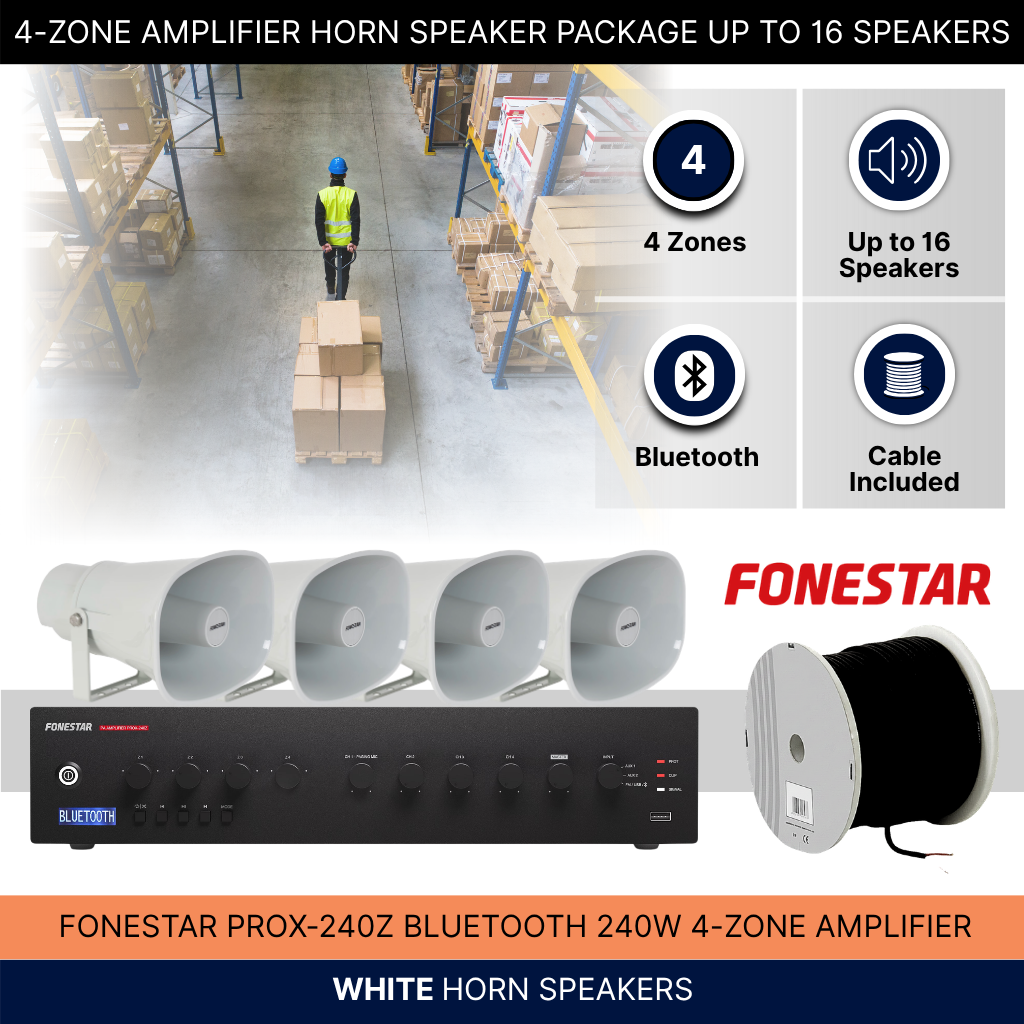

Upgrade your communication with this premium horn speaker public address system, all at a budget-friendly price.
This professional-grade 4-zone amplifier comes equipped with a built-in media player and Bluetooth capability, along with an FM tuner for added convenience.
You can opt for 4 to 16 sleek white horn speakers designed to clearly reproduce speech frequencies and effectively transmit messages over long distances.
For hassle-free installation, we include either 50 or 100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (package-dependent).
Looking to make your announcements even clearer? You can add an optional desktop microphone to enhance your setup.
Features
- High quality professional background music system
- Affordable price
- 4-zone amplifier with integrated media player
- Bluetooth connectivity
- High quality horn speakers

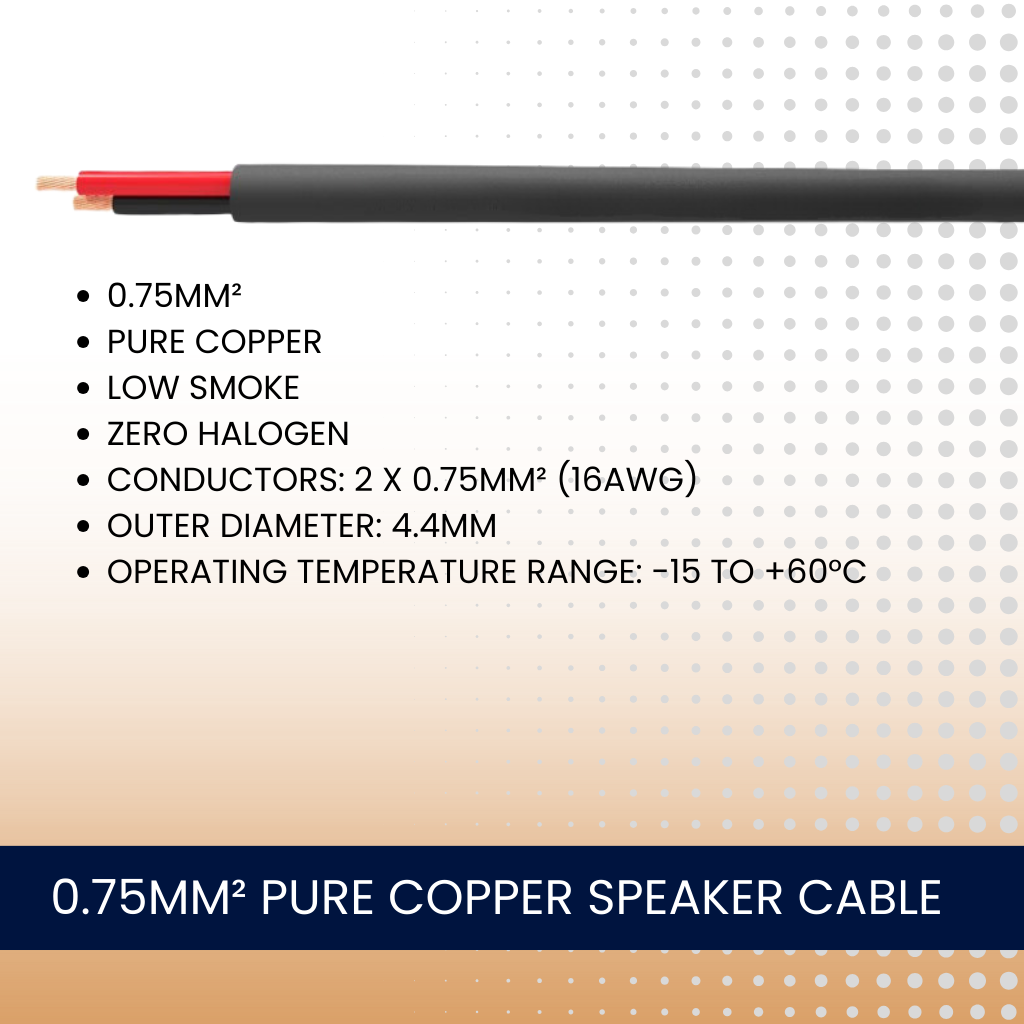

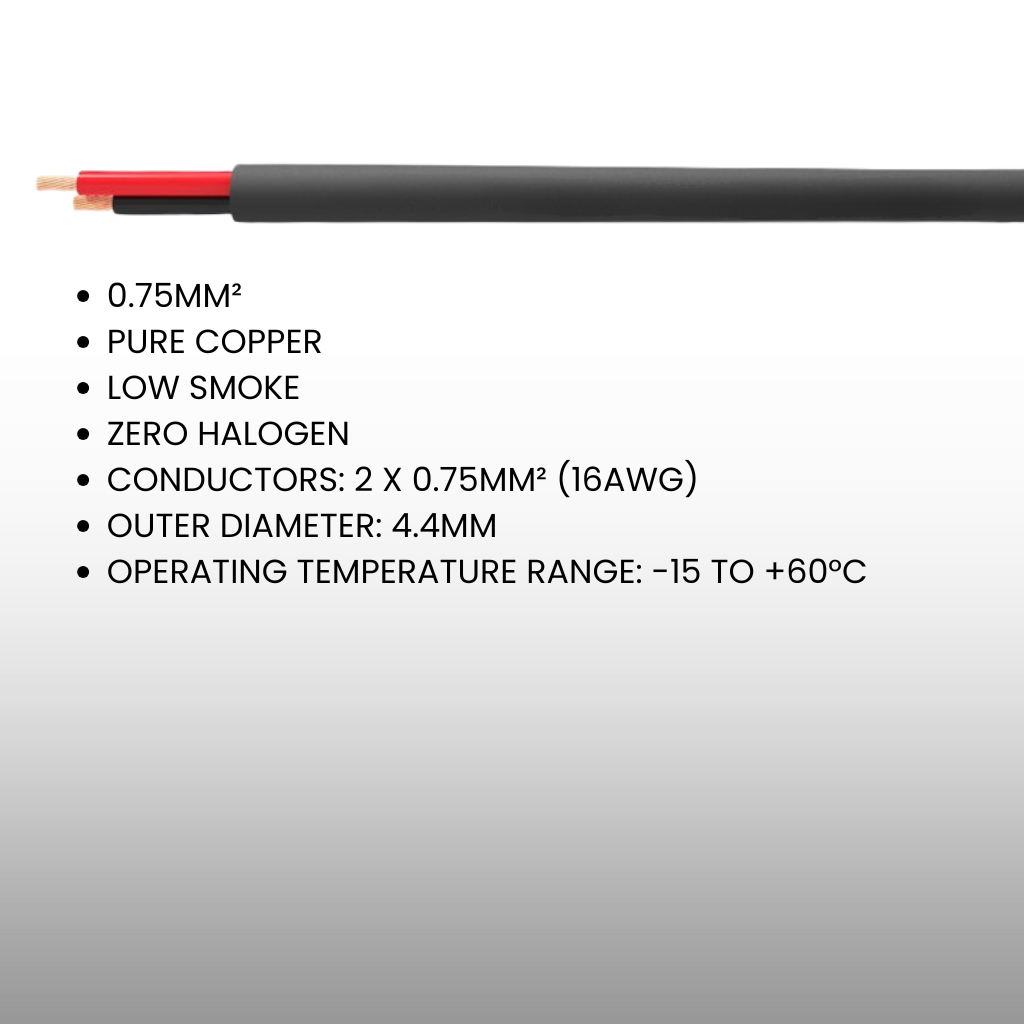

- 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable
Included

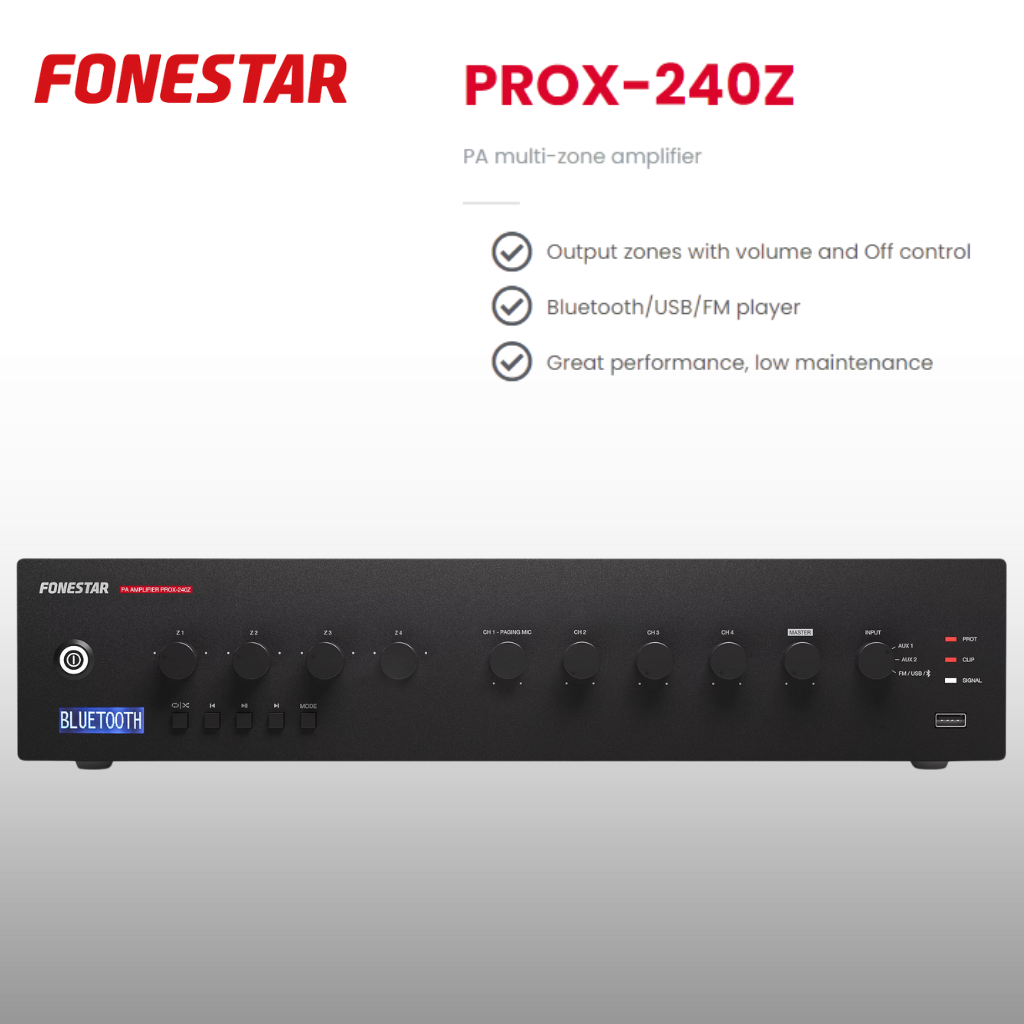

- Fonestar PROX-240Z 4-zone amplifier
- 4 to 16 Fonestar VULKAN-15T horn speakers (white)
- 50 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 - 8 speaker packages)
- 100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (12 - 16 speaker packages)
Optional Extras
- Monacor PDM-302 desktop microphone

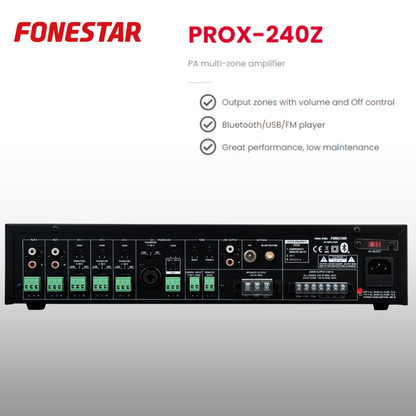

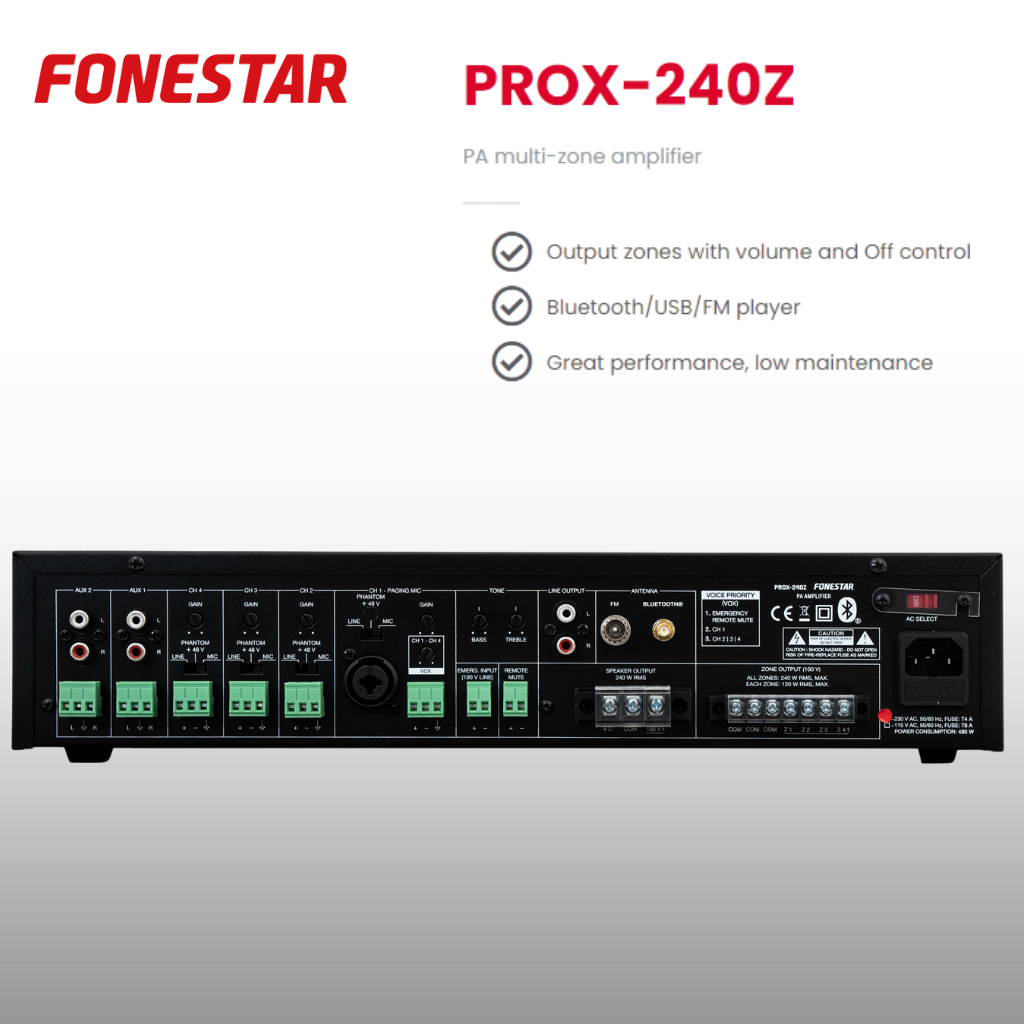

| Amplifier – Model | Fonestar PROX-240Z 4-zone amplifier |
|---|---|
| Amplifier – Features | Public address amplifier; Bluetooth/USB/FM player.; Microphone input with mix, gain and priority level control.; Input priorities by signal level.; Tone controls.; 100 V and 4 Ω outputs.; 4 outputs zones with volume control and Off. |
| Amplifier – Power | 240 W RMS |
| Amplifier – Response | 40-20,000 Hz (-10 dB) |
| Amplifier – Distortion | THD+N: < 1% @ 1 kHz |
| Amplifier – S/N ratio | >77 dB |
| Amplifier – Protections | Overcurrent, DC and short-circuit at the output |
| Amplifier – Inputs | CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.; CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector. |
| Amplifier – Mic signal level | 6 mV RMS (-44 dBV) / 600 Ω |
| Amplifier – Line signal level | 250 mV RMS (-12 dBV) / 100k Ω; 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω; 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V; 1 Mute (Emergency Priority) by contact closure. Euroblock connector |
| Amplifier – Outputs | 1 line, 2 x RCA connectors, 1.25 V RMS (+2 dBV) signal level; 100 V or 4 Ω speaker output, or 4 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals |
| Amplifier – Impedance | 4 Ω and 100 V line (42Ω) |
| Amplifier – Functions | Input priority (voice over VOX inputs):; 100V Emergency input with highest priority, attenuates all other inputs.; Mute by contact closure, attenuates all inputs except the 100V Emergency input.; Channel 1 with priority over all other inputs, level selectable.; Channel 2, 3 and 4 with priority over auxiliary inputs and player, level selectable. |
| Amplifier – Other functions | Power on, protection, signal peak and output signal indicator lights; Temperature-controlled forced ventilation cooling |
| Amplifier – Player | Bluetooth/USB/FM player for background music playback; MP3 and WAV files supported; Maximum USB memory capacity 64 GB; Autoplay, starts playback automatically on power on; Memory of playback mode (random, repeat) |
| Amplifier – Controls | Microphone volume; Mic/line/phantom selector; Master volume; Aux input or player selector; Zone volume |
| Amplifier – Tone | bass and treble (+/- 10 dB 100 Hz and 10k Hz); Microphone gain; Priority activation signal level (VOX) |
| Amplifier – Operating temperature | Operation: 0º ~ 40ºC |
| Amplifier – Maximum humidity | 95% |
| Amplifier – Power supply | 230/115 V AC 50-60 Hz, 480 W; Fuse AC 230 V 4 A / 115 V 8 A |
| Amplifier – Dimensions | 433 x 89 x 360 mm depth. 2 U 19” rack |
| Amplifier – Weight | 11.5 kg |
| Amplifier – Accessories | FM Antenna; Bluetooth antenna; Power cable; Rack mounts |

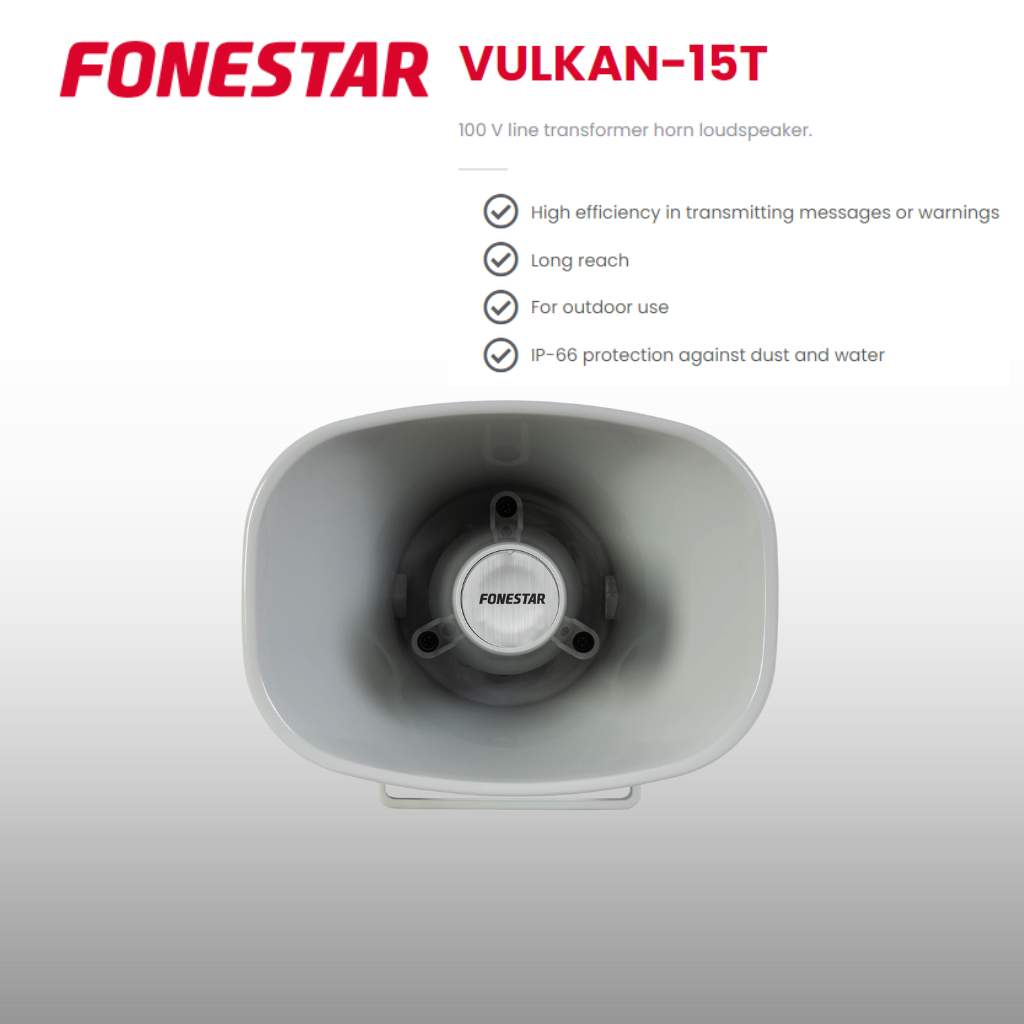

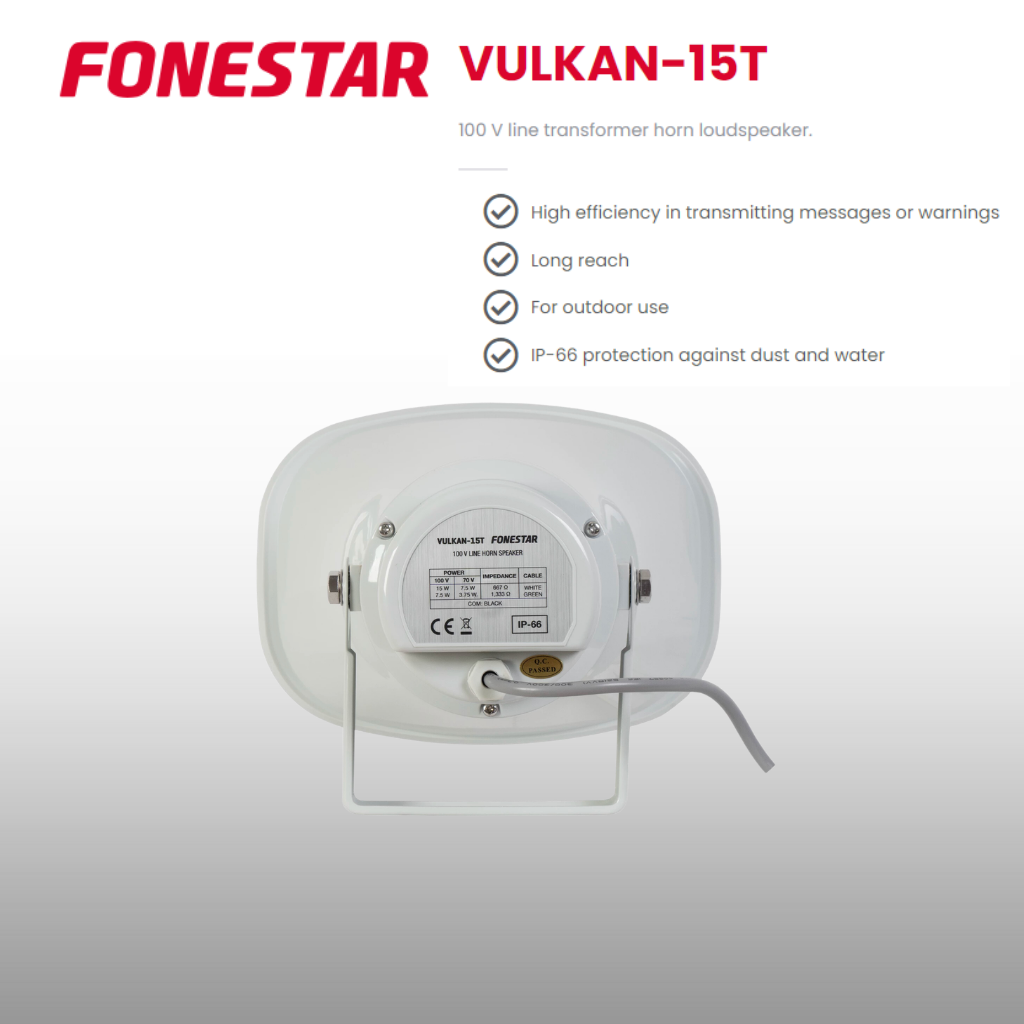

| Speaker – Model | Fonestar VULKAN-15T horn speakers (white) |
| Speaker – Features | 100 V line transformer horn loudspeaker.; Prepared for outdoor use with anti-corrosion materials.; Protection against water.; For long-range message playback. |
| Speaker – Power | 15 W RMS |
| Speaker – Loudspeakers | 1 x compression driver |
| Speaker – Response | 320-6,000 Hz (-10 dB) |
| Speaker – Impedance | 15 W RMS@100 V (666 Ω); 7.5 W RMS@100 V (1.333 Ω) |
| Speaker – Sensitivity | 105 dB @ 1 W/1 m |
| Speaker – Maximun sound pressure | 116 dB @ at maximum power/1 m |
| Speaker – Dispersion | H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB) |
| Speaker – Protections | IP-66 in compliance with EN 60529 |
| Speaker – Material | ABS diffuser and rear cover; Aluminium mount; A2 stainless steel screws |
| Speaker – Connection | 30 cm cable with stripped ends |
| Speaker – Temperature range | Operation: -25ºC ~ +55ºC |
| Speaker – Storage | -40ºC ~ +70ºC |
| Speaker – Humidity | <95% |
| Speaker – Colour | White (RAL 7035) |
| Speaker – Dimensions | 222 x 162 x 232 mm depth |
| Speaker – Weight | 1.36 kg |

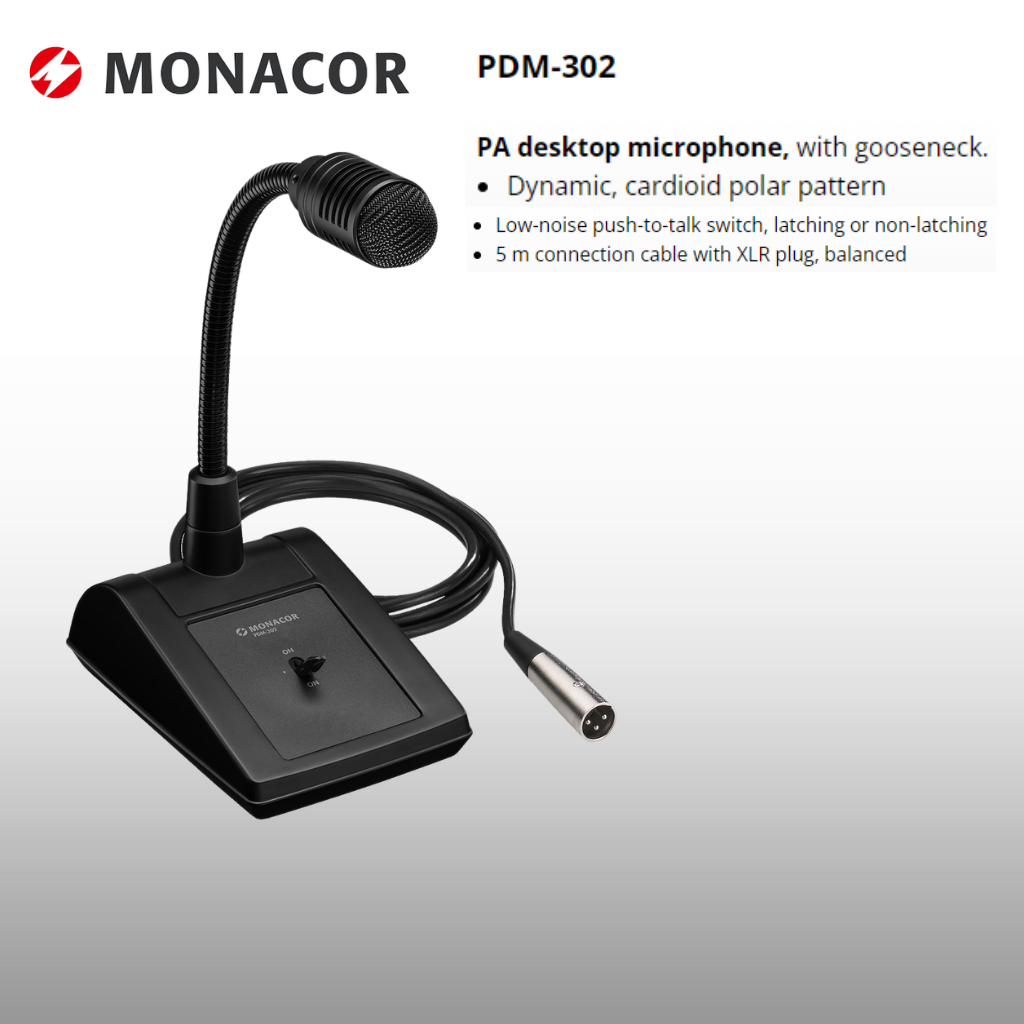

| Desktop Microphone – Model | Monacor PDM-302 desktop microphone |
| Desktop Microphone – Description | desktop microphone |
| Desktop Microphone – Transmission method | cable |
| Desktop Microphone – Polar pattern | cardioid |
| Desktop Microphone – System | dynamic |
| Desktop Microphone – Audio frequency range | 60-12,000 Hz |
| Desktop Microphone – Nominal impedance | 600 Ω |
| Desktop Microphone – Sensitivity | 3.2 mV/Pa |
| Desktop Microphone – Gooseneck length | 310 mm |
| Desktop Microphone – Admiss. ambient temp. | 0-40 °C |
| Desktop Microphone – Dimensions | 120 x 60 x 160 mm (console housing) |
| Desktop Microphone – Weight | 1 kg; Cable 5 m |
| Desktop Microphone – Connection | XLR, bal. |
| Desktop Microphone – Packing dimensions (W x H x L) | 0.18 x 0.27 x 0.13 m |
| Desktop Microphone – Gross weight | 1.185 kg |
| Desktop Microphone – Net weight | 1 kg |
