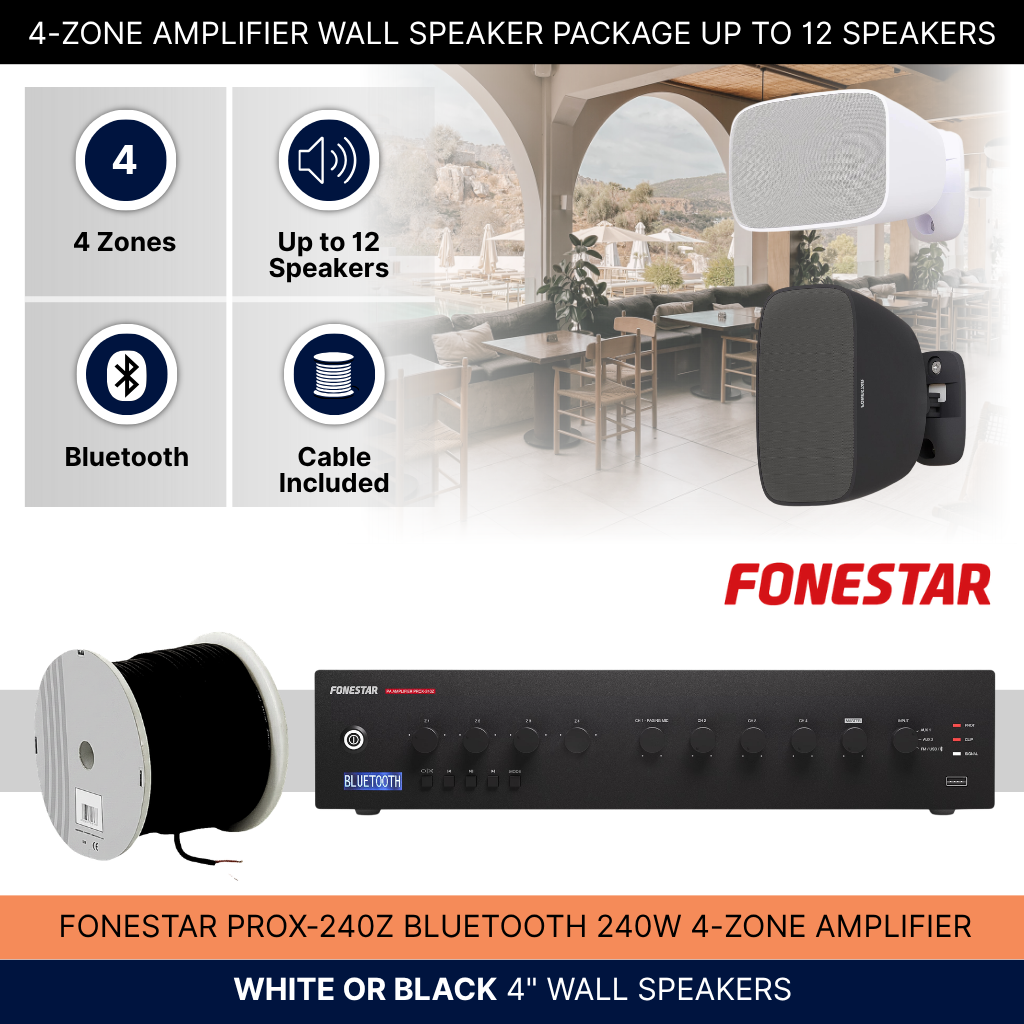

4-Zone Amplifier Wall Speaker Package Up To 12 Speakers Background Music System

Name: 4-Zone Amplifier Wall Speaker Package Up To 12 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 4Z4SP-PROXW
Price: 599.0 GBP
Availability: InStock

4-Zone Amplifier Wall Speaker Package Up To 12 Speakers Background Music System

SKU:4Z4SP-PROXW

£599.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White Black

Speakers 4 6 8 10 12

Optional Extras None Desktop Microphone

Product variants

Quantity

Elevate your space with our exceptional wall speaker background music system, designed to deliver premium sound quality without breaking the bank.

This advanced 4-zone amplifier features a built-in media player with Bluetooth capabilities and an FM tuner, ensuring versatile audio options for any environment.

Select from 4 to 12 stylish wall speakers available in classic white or black that provide crystal-clear, distortion-free sound.

For your convenience, we offer 20, 50, or 100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable, making installation a breeze (depending on your chosen package).

For added functionality, consider an optional desktop microphone for making announcements effortlessly.

Features

High quality professional background music system
Affordable price
4-zone amplifier with integrated media player
Bluetooth connectivity
High quality wall speakers

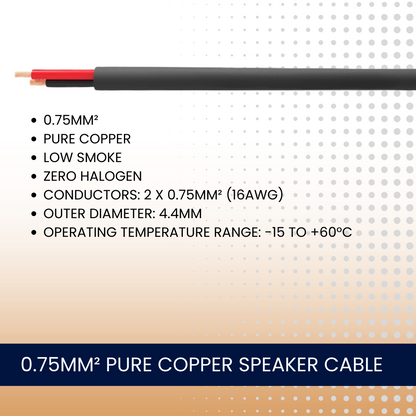

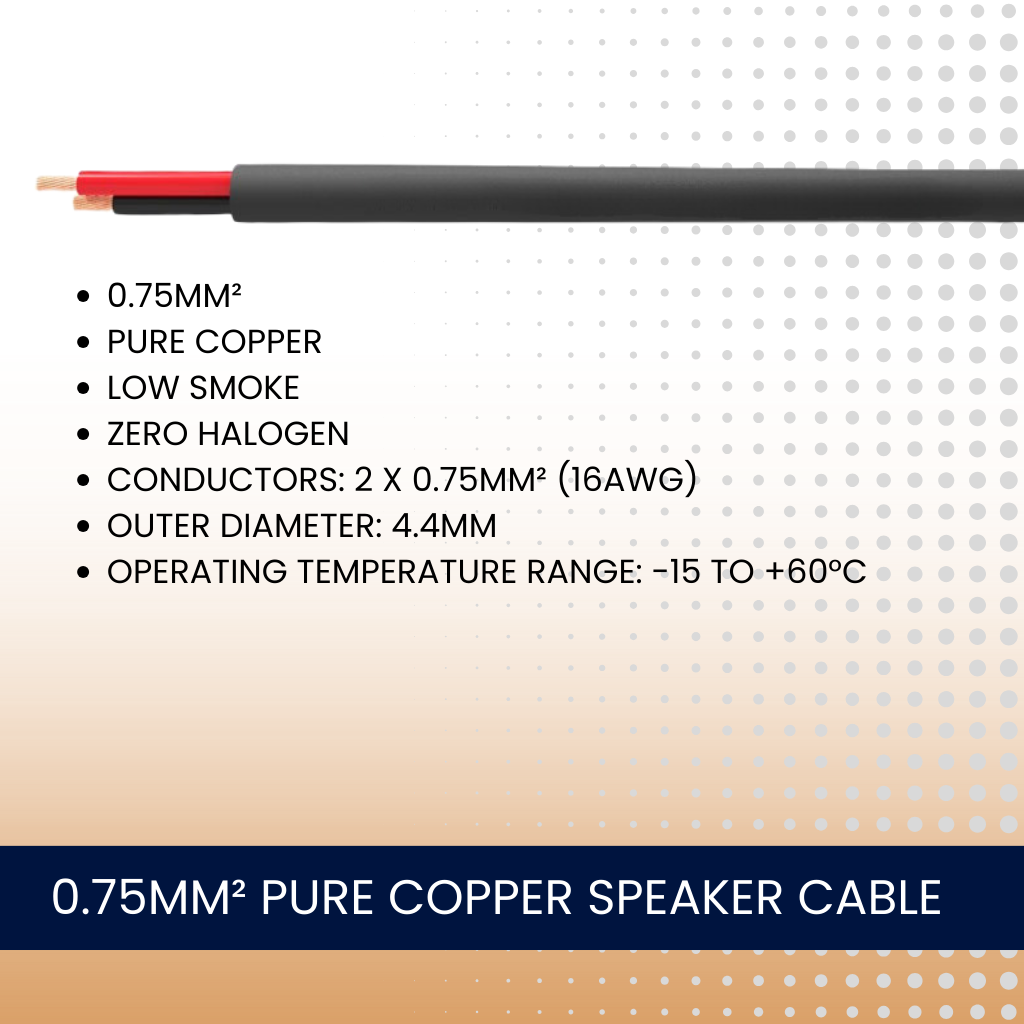

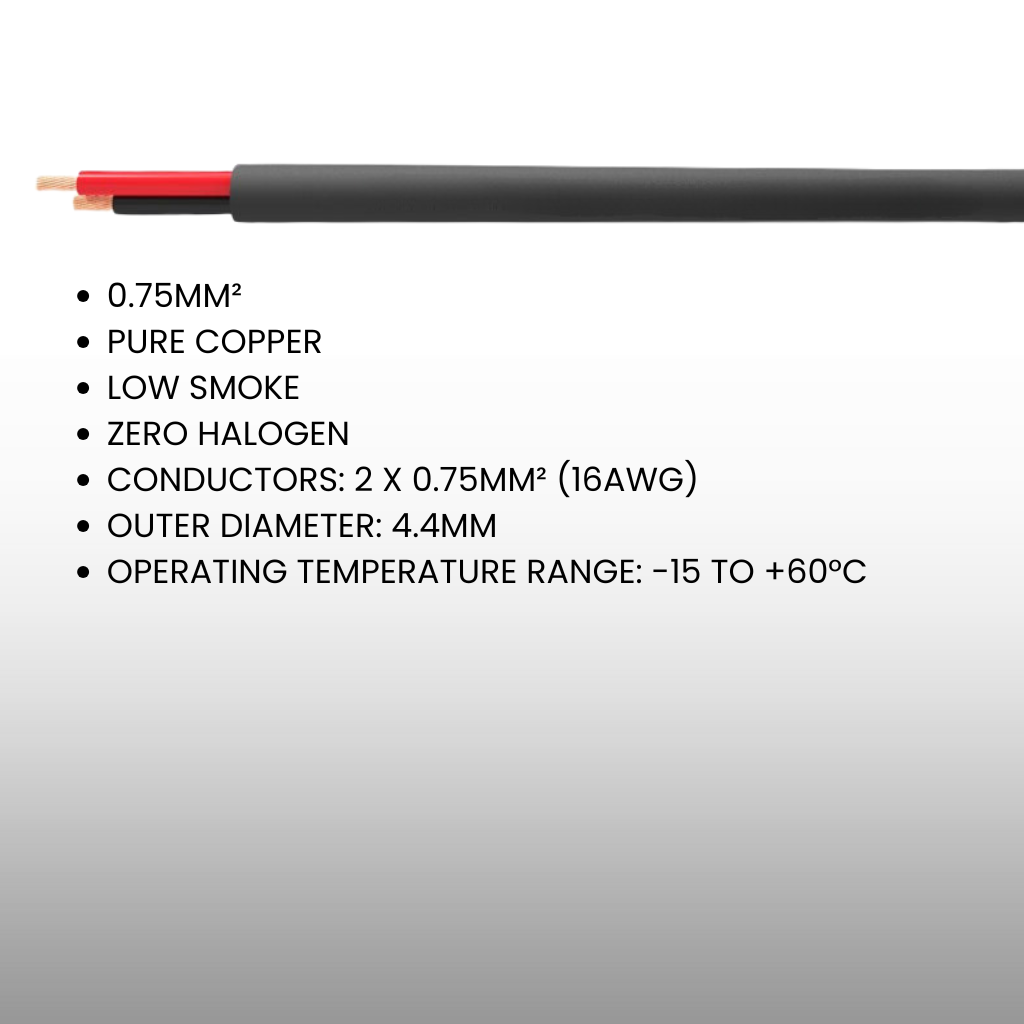

0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

Fonestar PROX-240Z 4-zone amplifier
4 to 12 Fonestar SONORA-4T wall speakers (white or black)
20 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 speaker packages)
50 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (6 speaker packages)
100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (8 - 12 speaker packages)

Optional Extras

Monacor PDM-300 desktop microphone

Amplifier Specification

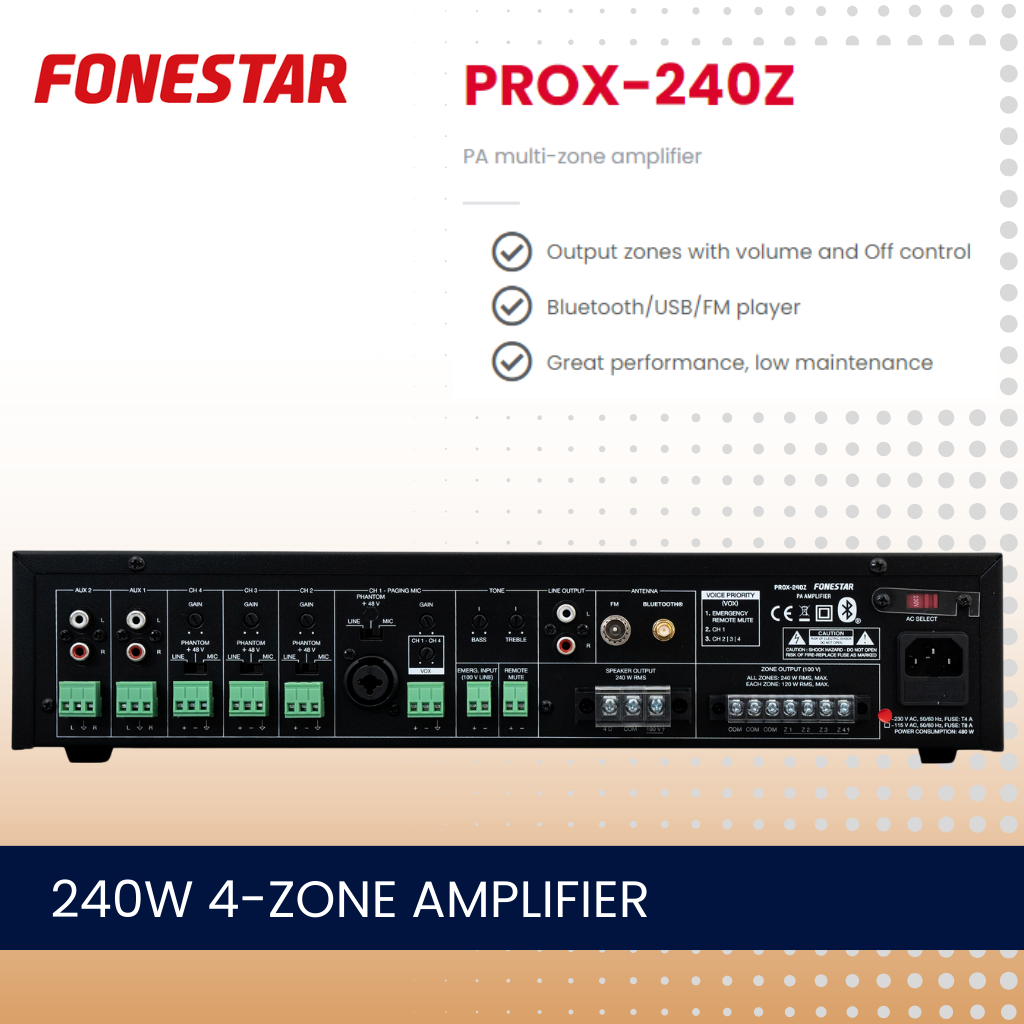

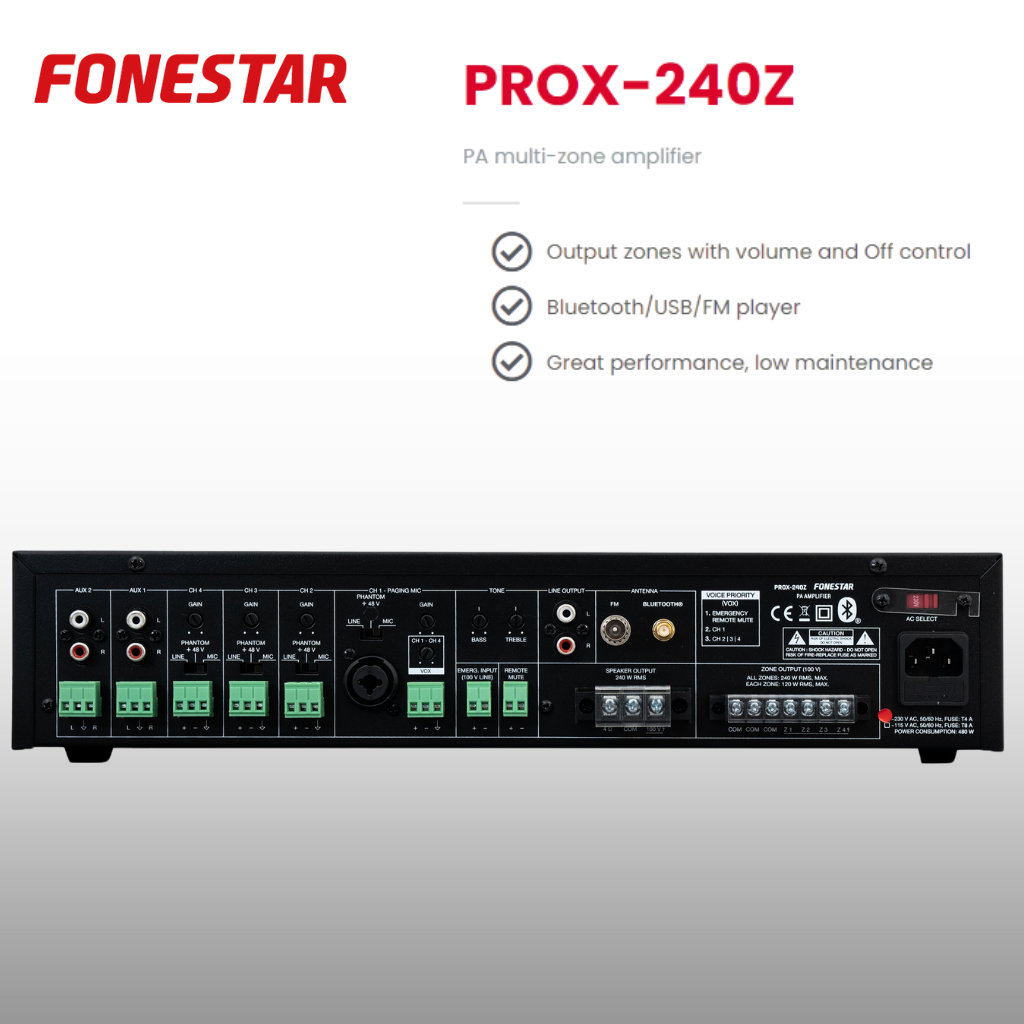

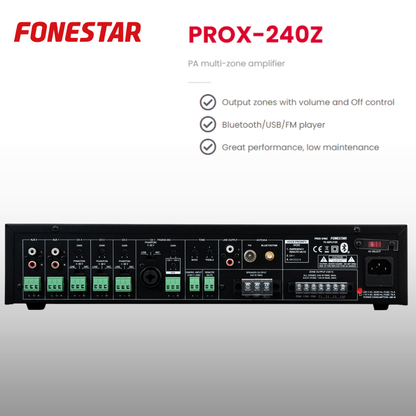

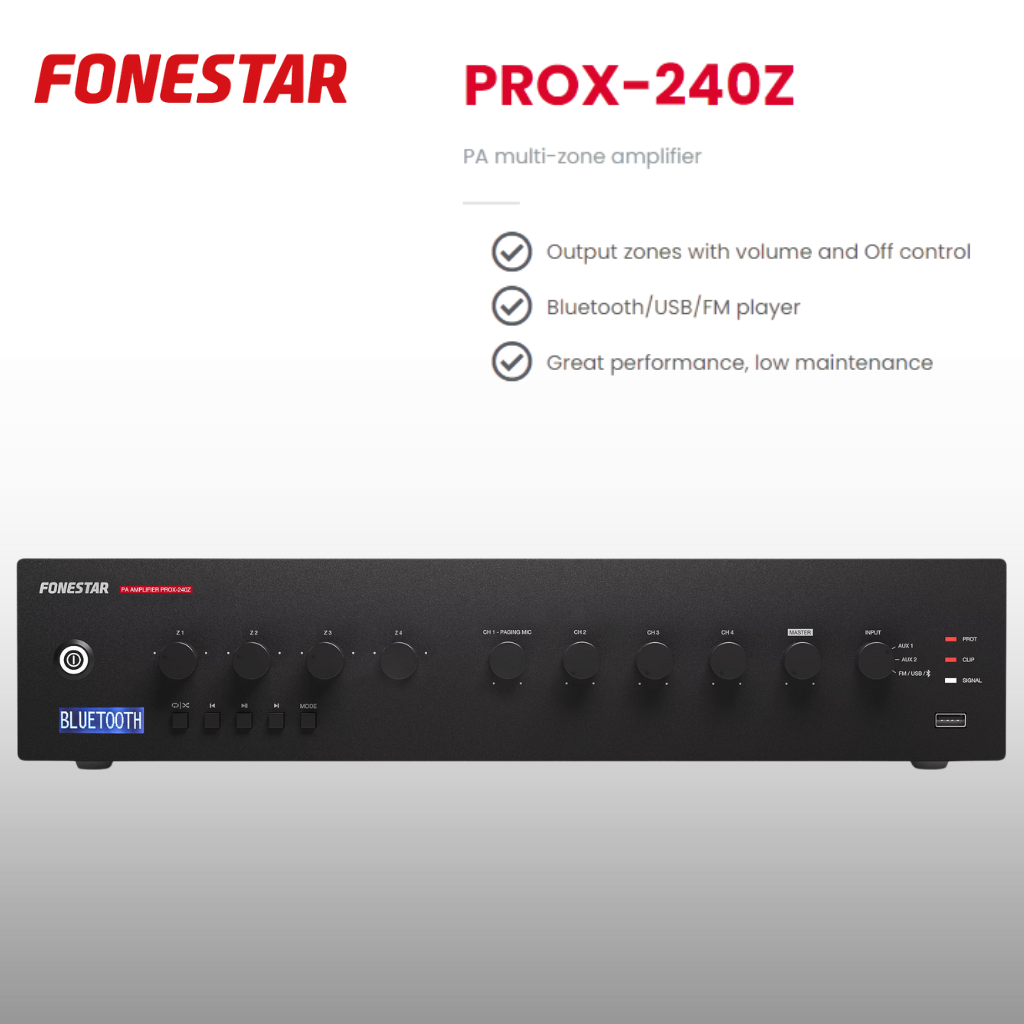

Fonestar PROX-240Z 4-zone amplifier

FEATURES: Public address amplifier
Bluetooth/USB/FM player.
Microphone input with mix, gain and priority level control.
Input priorities by signal level.
Tone controls.
100 V and 4 Ω outputs.
4 outputs zones with volume control and Off.
POWER: 240 W RMS
RESPONSE: 40-20,000 Hz (-10 dB)
DISTORTION: THD+N: < 1% @ 1 kHz
S/N RATIO: >77 dB
PROTECTIONS: Overcurrent, DC and short-circuit at the output
INPUTS: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.
CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector.
Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
1 Mute (Emergency Priority) by contact closure. Euroblock connector
OUTPUTS: 1 line, 2 x RCA connectors, 1.25 V RMS (+2 dBV) signal level
100 V or 4 Ω speaker output, or 4 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone). Connector screw terminals
IMPEDANCE: 4 Ω and 100 V line (42Ω)
FUNCTIONS: Input priority (voice over VOX inputs):
100V Emergency input with highest priority, attenuates all other inputs.
Mute by contact closure, attenuates all inputs except the 100V Emergency input.
Channel 1 with priority over all other inputs, level selectable.
Channel 2, 3 and 4 with priority over auxiliary inputs and player, level selectable.
Other functions:
Power on, protection, signal peak and output signal indicator lights
Temperature-controlled forced ventilation cooling
PLAYER: Bluetooth/USB/FM player for background music playback
MP3 and WAV files supported
Maximum USB memory capacity 64 GB
Autoplay, starts playback automatically on power on
Memory of playback mode (random, repeat)
CONTROLS: Microphone volume
Mic/line/phantom selector
Master volume
Aux input or player selector
Zone volume
Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
Microphone gain
Priority activation signal level (VOX)
OPERATING TEMPERATURE: Operation: 0º ~ 40ºC
MAXIMUM HUMIDITY: 95%
POWER SUPPLY: 230/115 V AC 50-60 Hz, 480 W
Fuse AC 230 V 4 A / 115 V 8 A
DIMENSIONS: 433 x 89 x 360 mm depth. 2 U 19” rack
WEIGHT: 11.5 kg
ACCESSORIES: FM Antenna
Bluetooth antenna
Power cable
Rack mounts

Speaker Specification

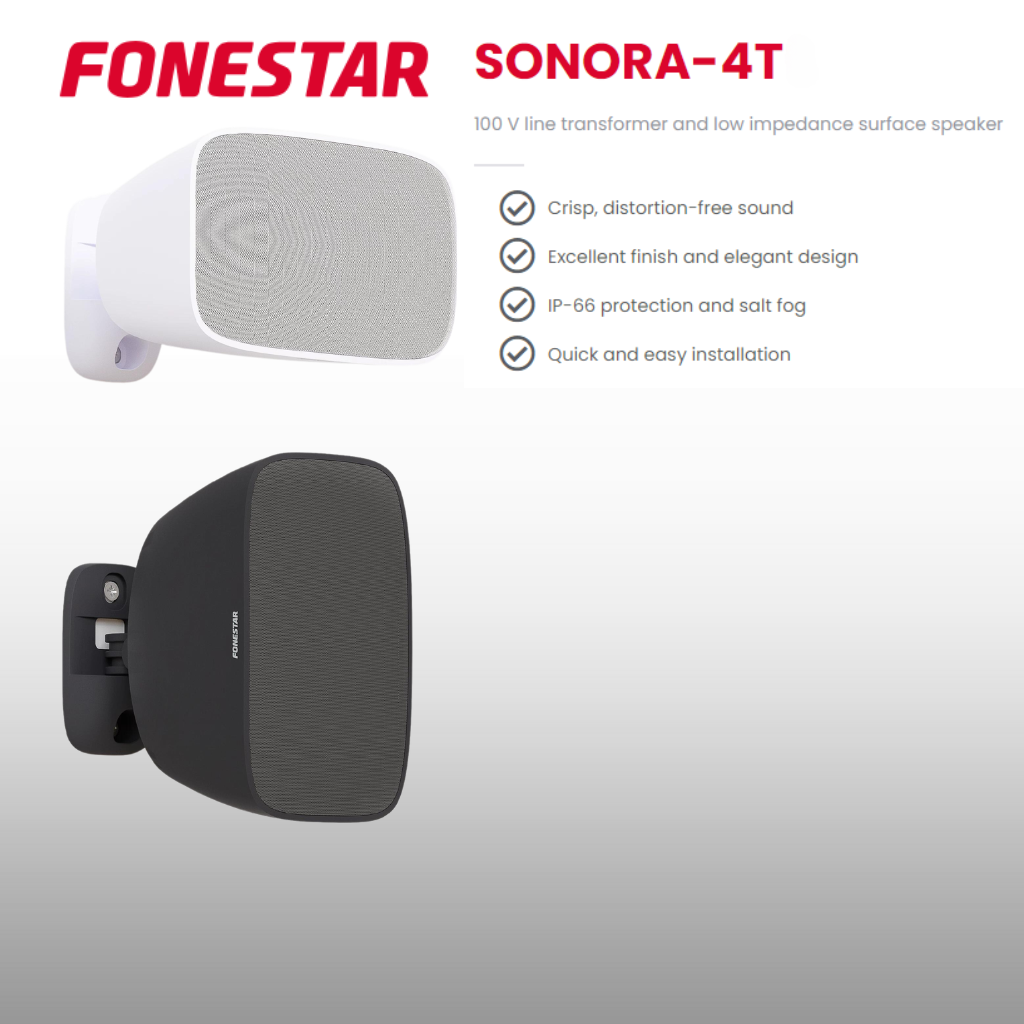

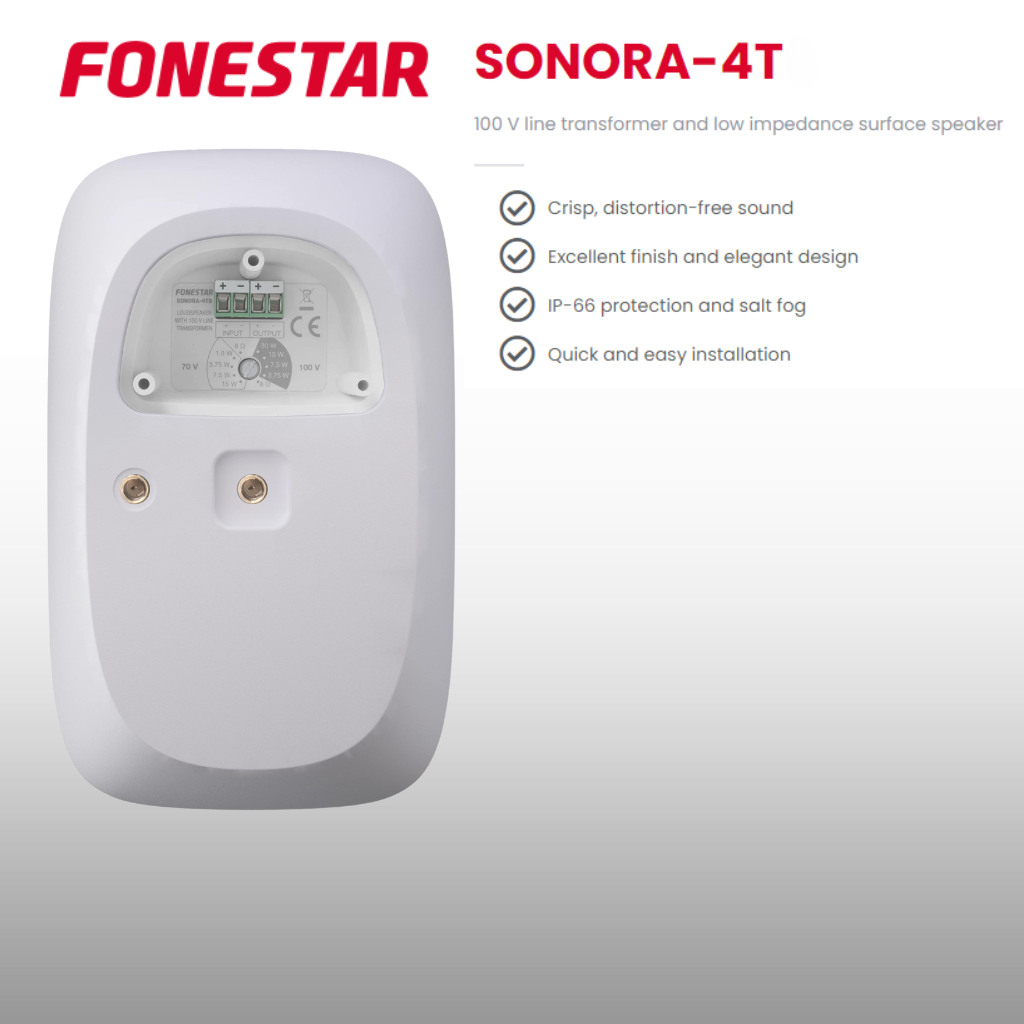

Fonestar SONORA-4T wall speakers (white or black)

FEATURES: Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
POWER: 60 W max., 30 W RMS
LOUDSPEAKERS: 1 x 4" polypropylene woofer
1 x 1” tweeter
RESPONSE: 120-20,000 Hz
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
SENSITIVITY: 83 dB @ 1 W/1 m

MAXIMUM SOUND PRESSURE: 96 dB @ max. W/1 m
COVERAGE ANGLE: H/V: 215º/225º @500Hz, 145º/130º@1kHz, 115º/120º@2kHz, 80º/110º@4kHz (-6 dB)
PROTECTION: IP-66 in compliance with EN 60529
IEC 60068-2-11 Environmental tests (Saline mist)
MATERIAL: ABS
Aluminium mesh grille
Mount with weatherproof treatment
Stainless steel screws
SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9005)
DIMENSIONS: Loudspeaker: 125 x 202 x 125 mm depth
Mount wall plate: 68 x 110 mm
Loudspeaker with mount: 193 mm depth
WEIGHT: 1.5 kg
ACCESSORIES: Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

Desktop Microphone Specification

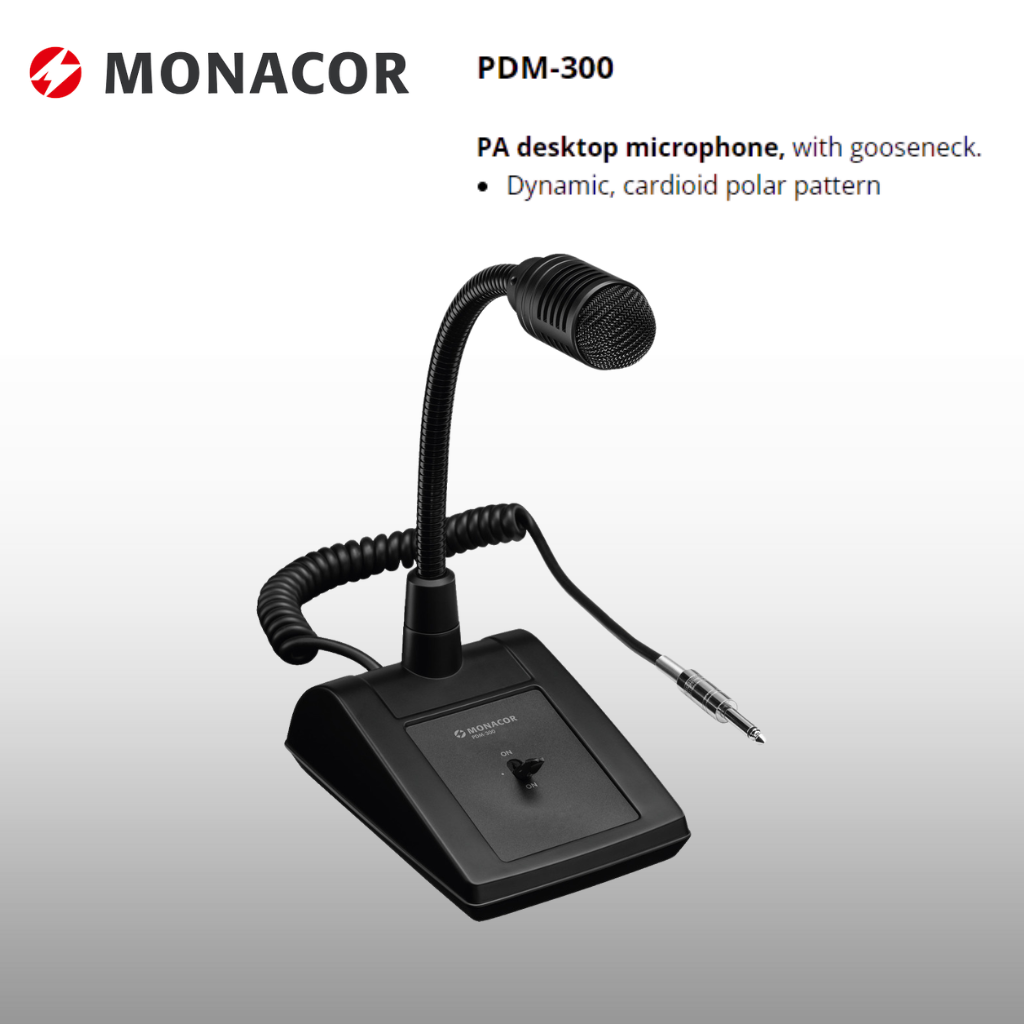

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)

Weight 810 g
Cable 1 m
Connection 6.3 mm plug
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.015 kg
Net weight 0.818 kg
