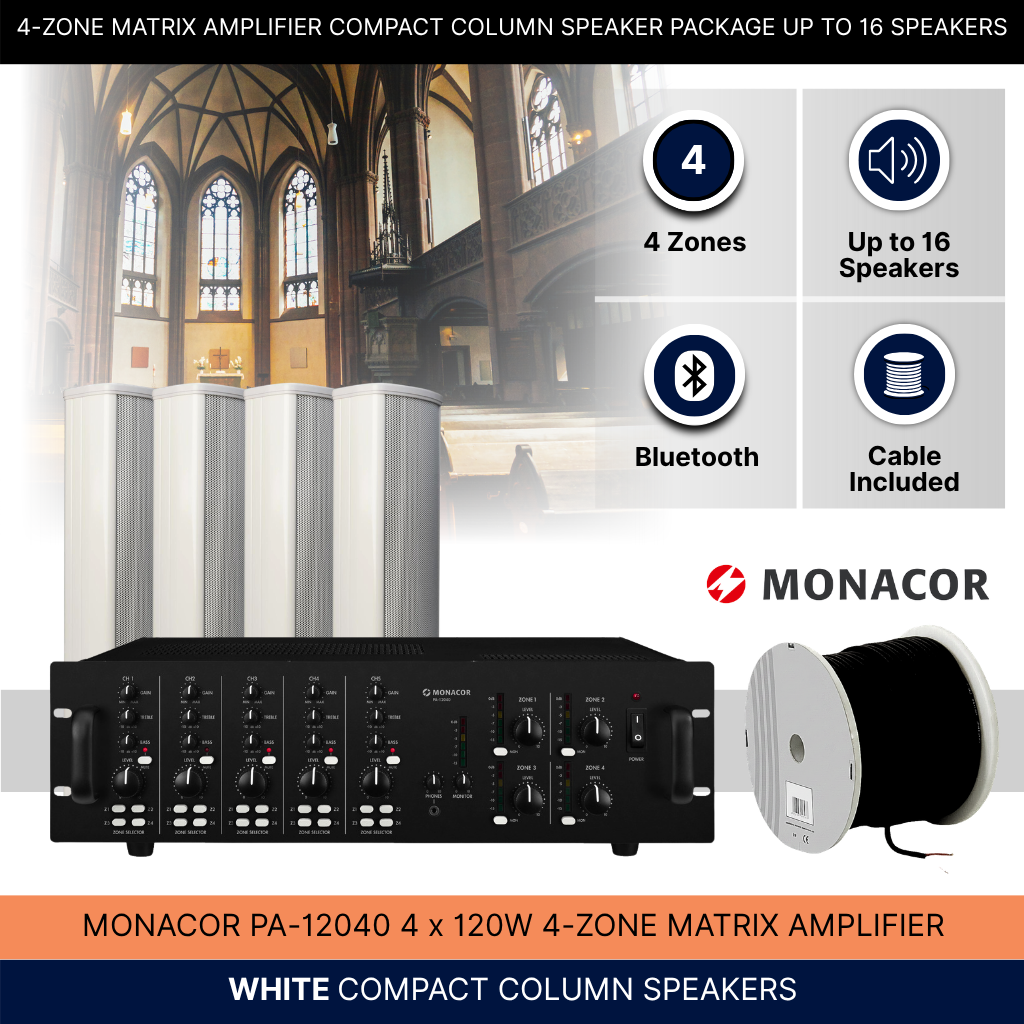

4-Zone Matrix Amplifier Compact Column Speaker Package Up To 16 Speakers Background Music System

Name: 4-Zone Matrix Amplifier Compact Column Speaker Package Up To 16 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 4Z4-COMPACT
Price: 949.0 GBP
Availability: InStock

4-Zone Matrix Amplifier Compact Column Speaker Package Up To 16 Speakers Background Music System

SKU:4Z4-COMPACT

£949.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White

Speakers 4 8 12 16

Optional Extras None Internet Media Player

Product variants

Quantity

Uncover an affordable yet high-quality background music solution! Our premium compact column speaker system delivers outstanding sound wrapped in a stylish design.

At the core of this system is a professional 4-zone matrix amplifier, ensuring ease of use with inputs for both LINE and MIC connections.

Choose from 4 to 16 elegantly crafted compact column speakers, available in classic white, which provide impressively clear audio while seamlessly fitting into any setting.

Your package includes either 50 or 100 meters of top-grade 0.75mm² pure copper low smoke zero halogen insulated speaker cable, making installation a breeze.

For added convenience, consider our optional internet media player, which allows you to effortlessly stream and enjoy Bluetooth music through your system.

Features

High quality professional background music system
Affordable price
Rack mountable 4-zone matrix amplifier
LINE and MIC inputs
High quality compact column speakers

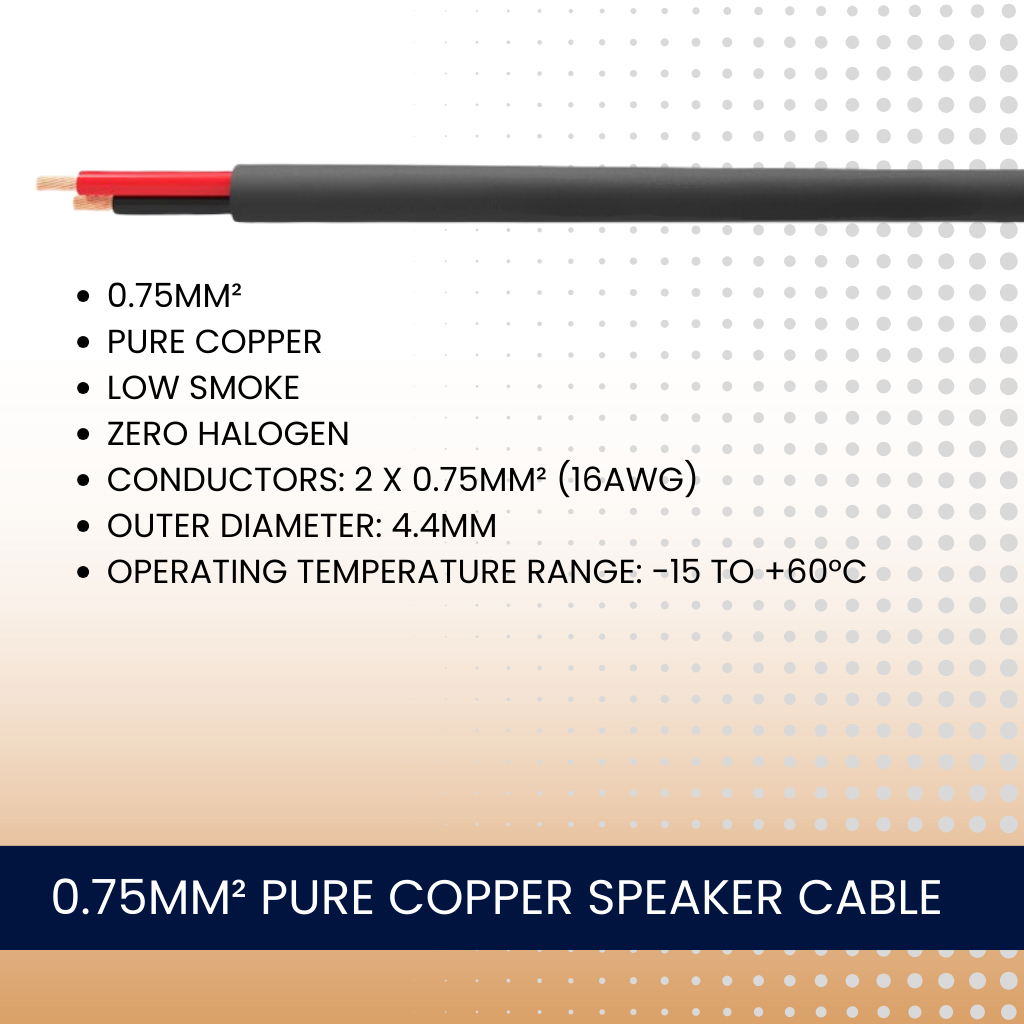

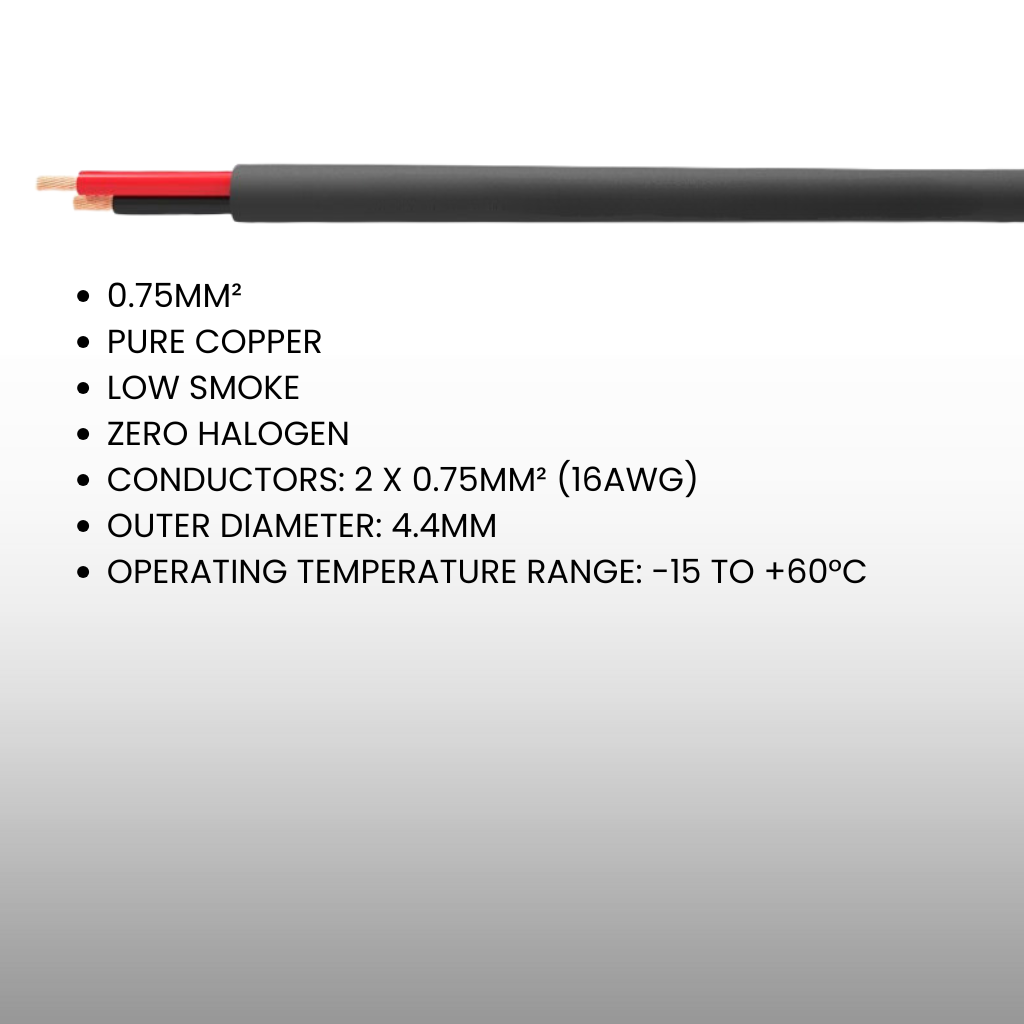

0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

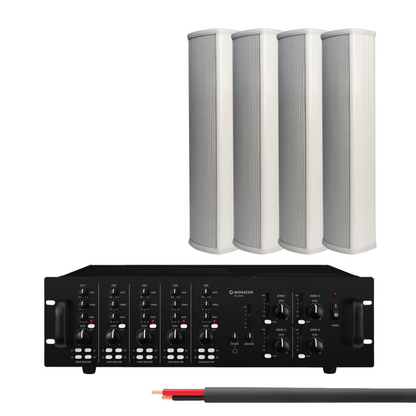

Monacor PA-12040 4-zone matrix amplifier
12 to 40 Fonestar TOWER-20TB (white) speakers
50 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 - 8 speaker packages)
100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (12 - 16 speaker packages)

Optional Extras

Omnitronic TUNA-NET internet media player

Amplifier Specification

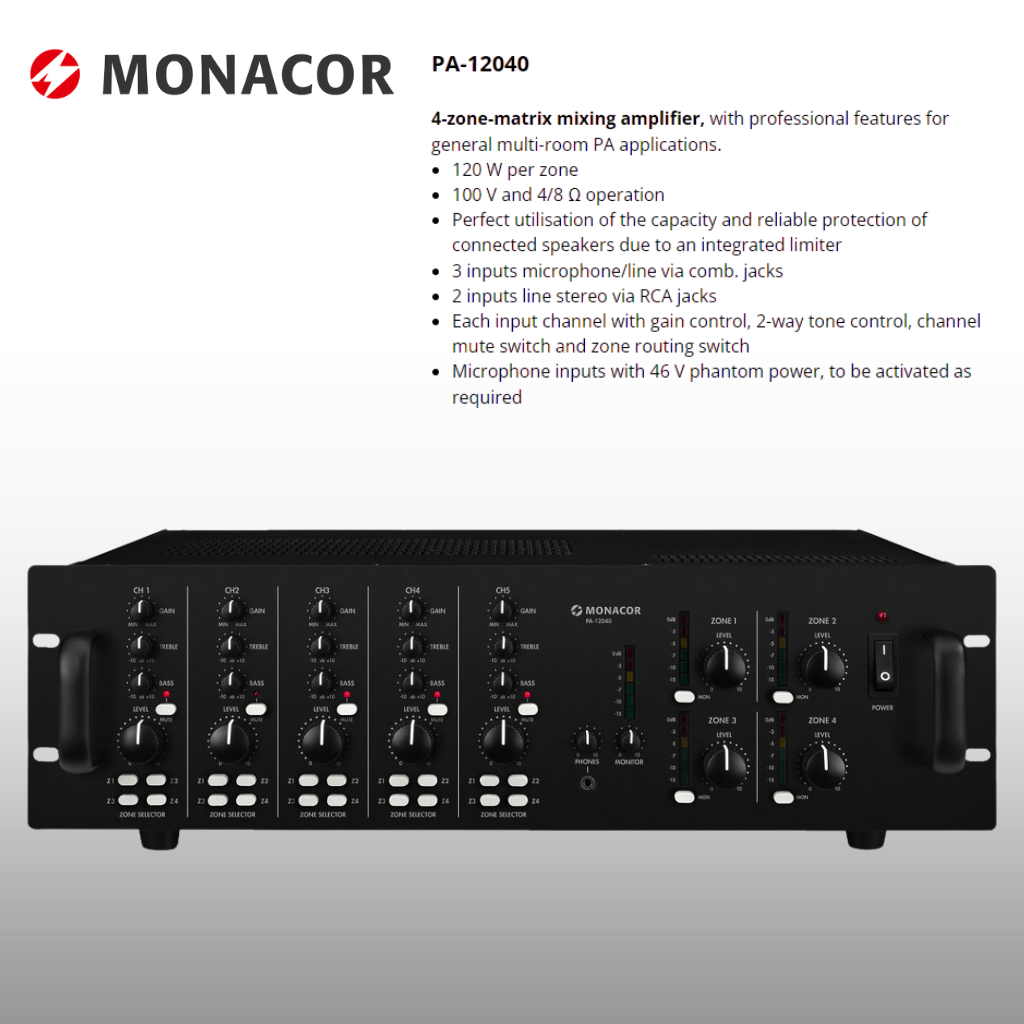

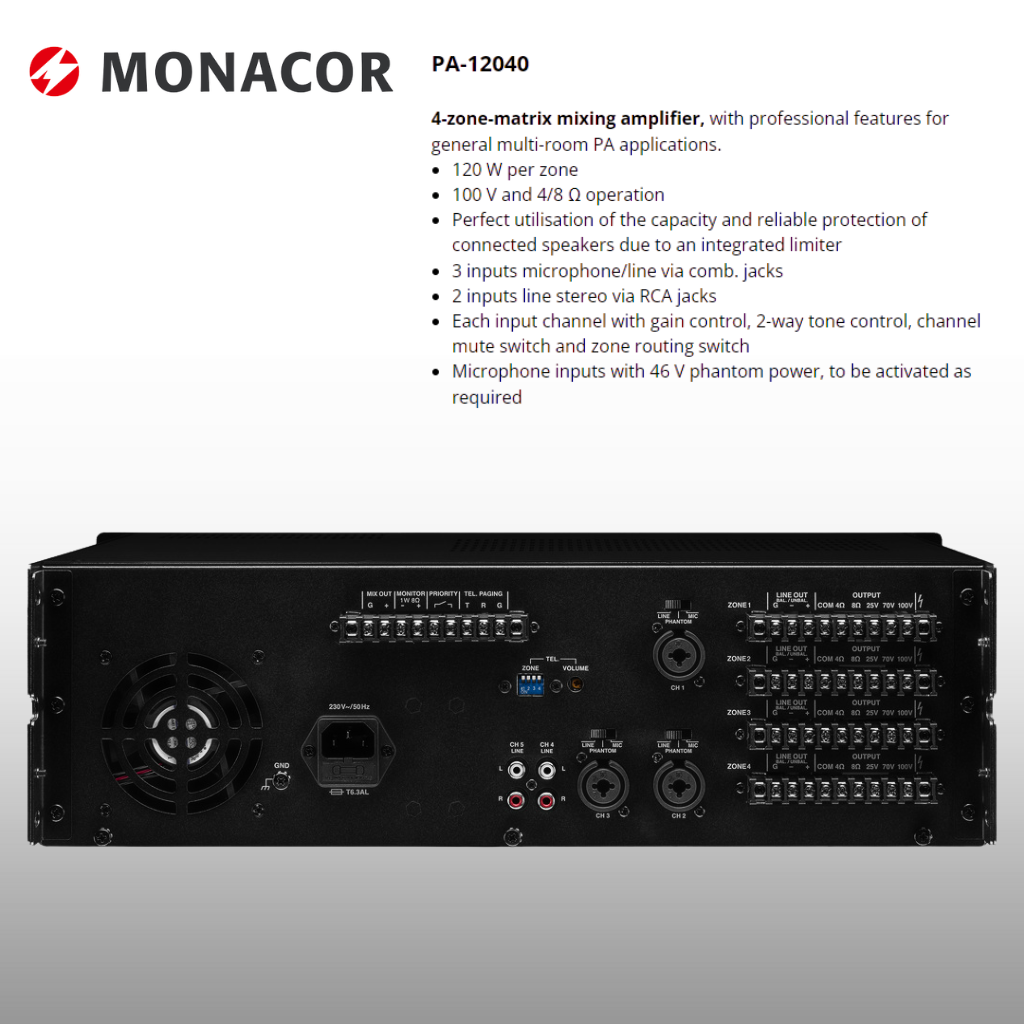

Monacor PA-12040 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 5
Zones 4
Inputs 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line)
100 mV/30 kΩ (line)

40 mV/5 kΩ (tel. paging)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB, mic
> 75 dB, line

THD < 1%
Phantom power 46 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,200 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 410 mm
Weight 20.5 kg
Connections 3 x combo jack/XLR, bal. (mic/line inputs)

2 x RCA L/R (line inputs)

3.5 mm jack (headphones)

screw contacts (paging),
screw contacts (priority),

screw contacts (zone outputs),

screw contacts (line outputs),

screw contacts (speakers)

Packing dimensions (W x H x L) 0.57 x 0.24 x 0.52 m
Gross weight 23.7 kg
Net weight 20.66 kg

Speaker Specification

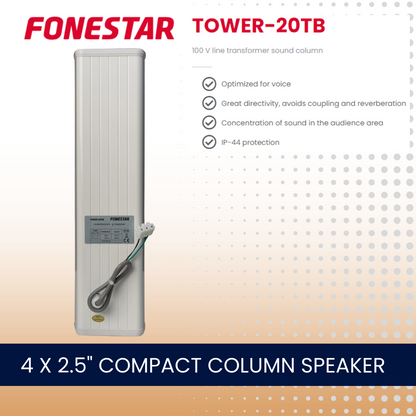

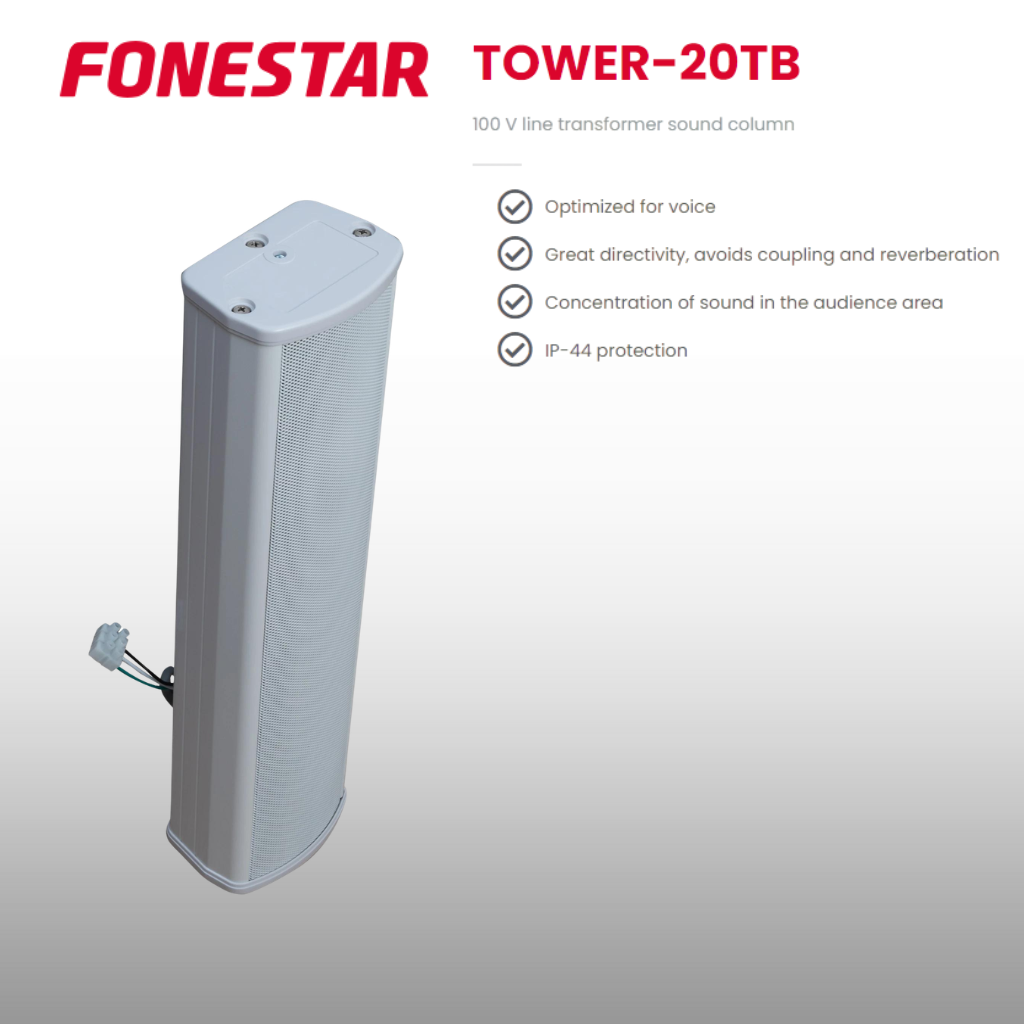

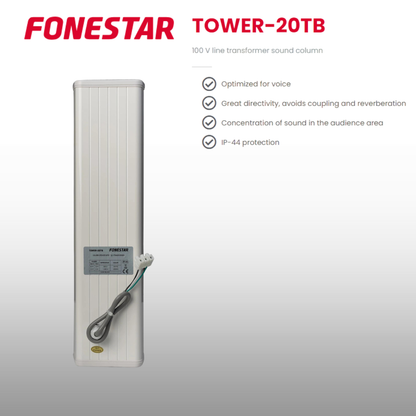

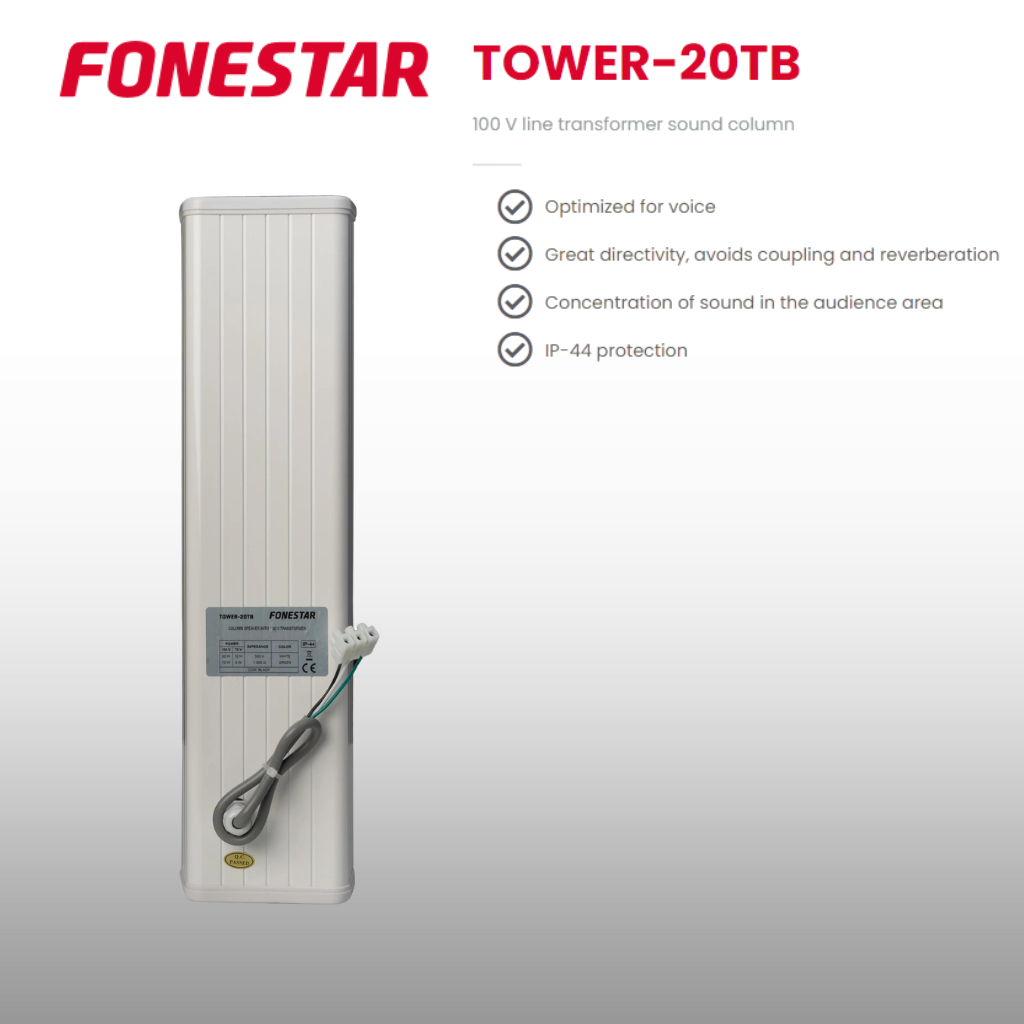

Fonestar TOWER-20TB compact column speakers (white)

FEATURES: Sound column with 100V line transformer
POWER SUPPLY: 30 W maximum, 20 W RMS
SPEAKERS: 4 x 2 ½” speakers
RESPONSE: 170-15,000 Hz
IMPEDANCE: 20 W RMS@100 V (500 Ω)
10 W RMS@100 V (1.000 Ω)
SENSITIVITY: 91 dB at 1 W/1 m
DISPERSION: 170° H x 95° V (1 kHz)
150º H x 75º V (4 kHz)
PROTECTION: IP-44
MATERIAL: Aluminium enclosure
Aluminium mesh
COLOUR: White (RAL 9016)
DIMENSIONS: 10.6 x 40.5 x 7.5 cm depth
WEIGHT: 2 kg
ACCESSORIES: Fixing mounts

Internet Media Player Specification

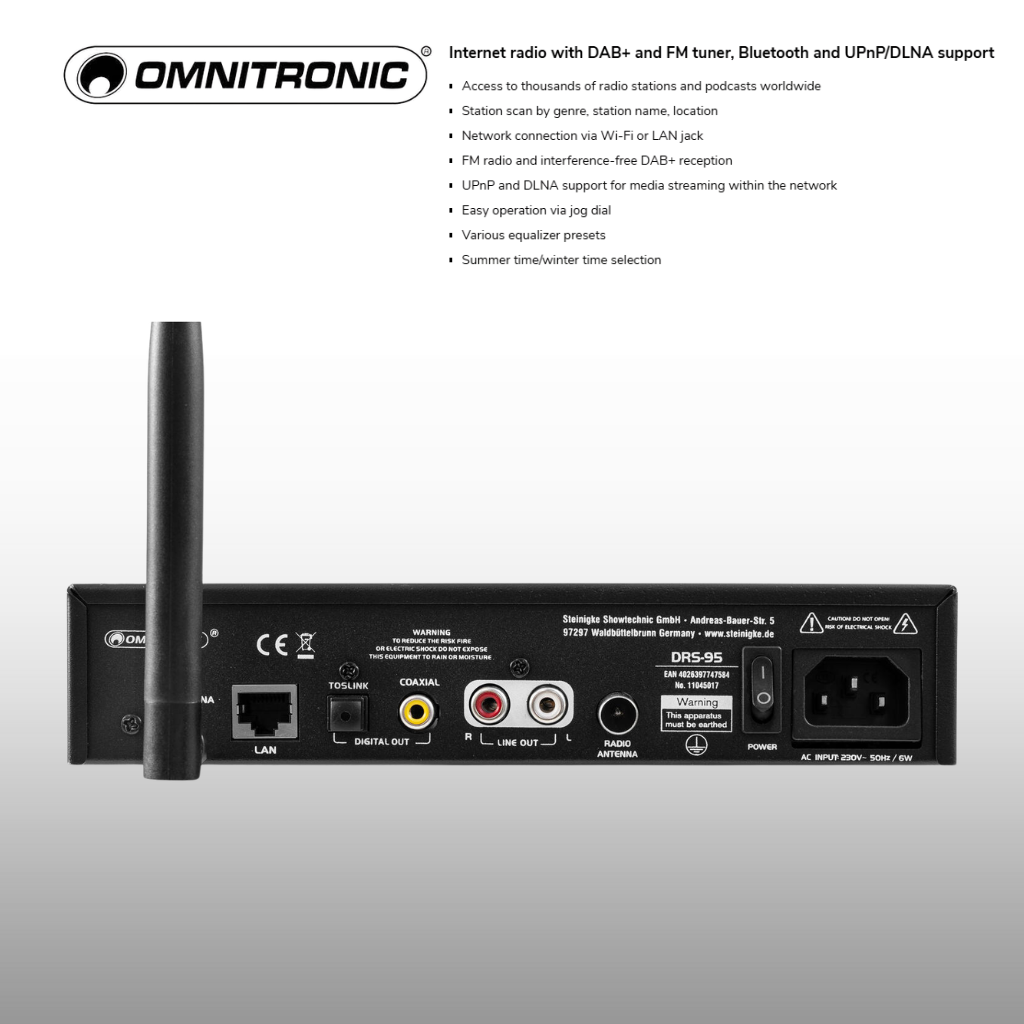

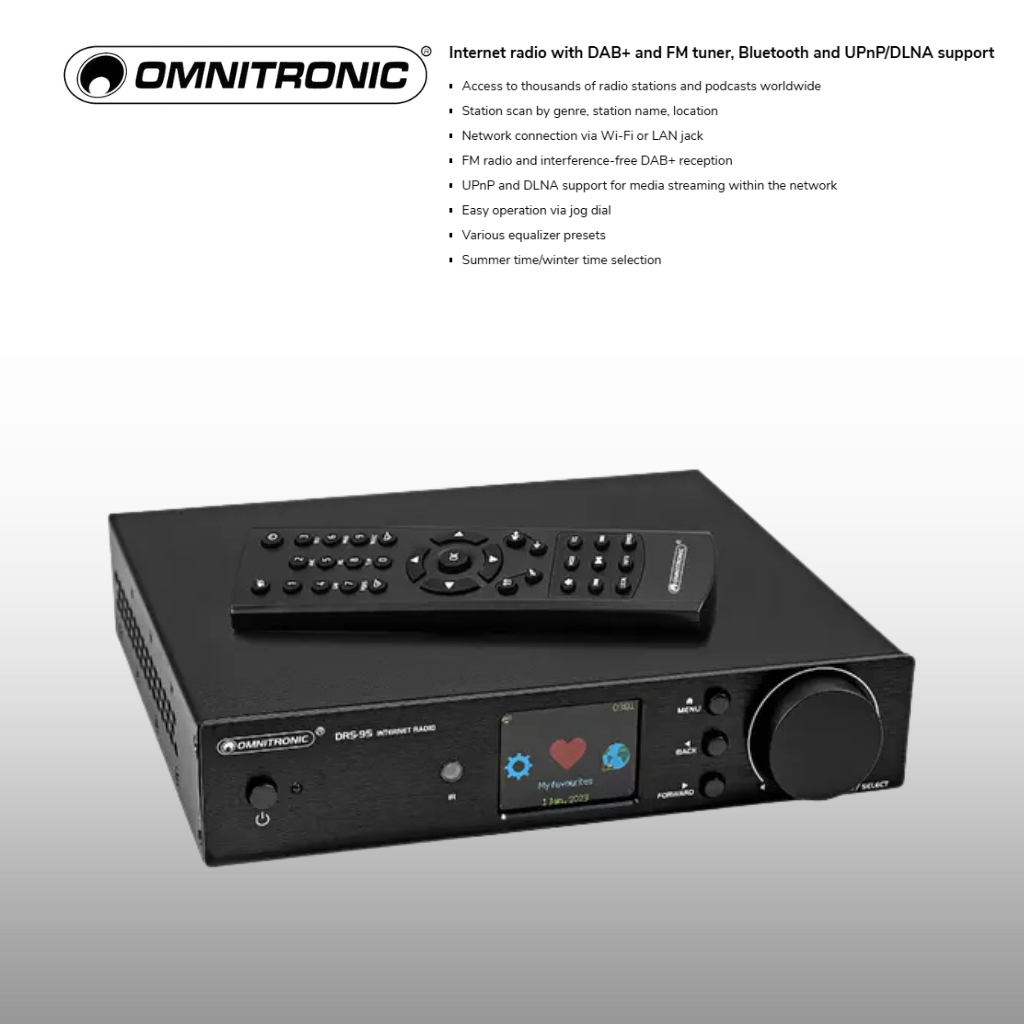

Omnitronic TUNA-NET internet media player

Power supply: 100-240 V AC, 50/60 Hz
5V DC 1000 mA
Power consumption: 5 W
Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Wi-Fi: Standard: IEEE 802.11 b/g/n
Security protocol: WEP/WPA/WPA2
Network connection: Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version, 10/100 Mbit/s
Control: IR remote control; Bluetooth
Bluetooth: Version: 4,2 + BR/EDR
Audio player: FM-tuner + Internet radio + BT + DAB+
Range: Bluetooth: range up to 20m
Frequency band: 2.4 GHz
Display type: Multicolor TFT display
Tuner frequency range: FM 87-108 MHz, DAB(+) 174,928-239,200 MHz
Control elements: Power switch, menu, encoder, navigation keys
Connections: Input: antenna via 1 x SMA (M)
Input: antenna via 1 x Belling-Lee (M)
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: line via 1 x stereo RCA
Output: coaxial (S/PDIF) via 1 x RCA (F) mounting version
Output: optical via 1 x toslink
Equalizer: Tone control
Music format: MP3, AAC/AAC+; FLAC
Material: Metal
Color: Black
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions: Width: 43 cm
Depth: 27 cm
Height: 4,485 cm
Weight: 2,47 kg
