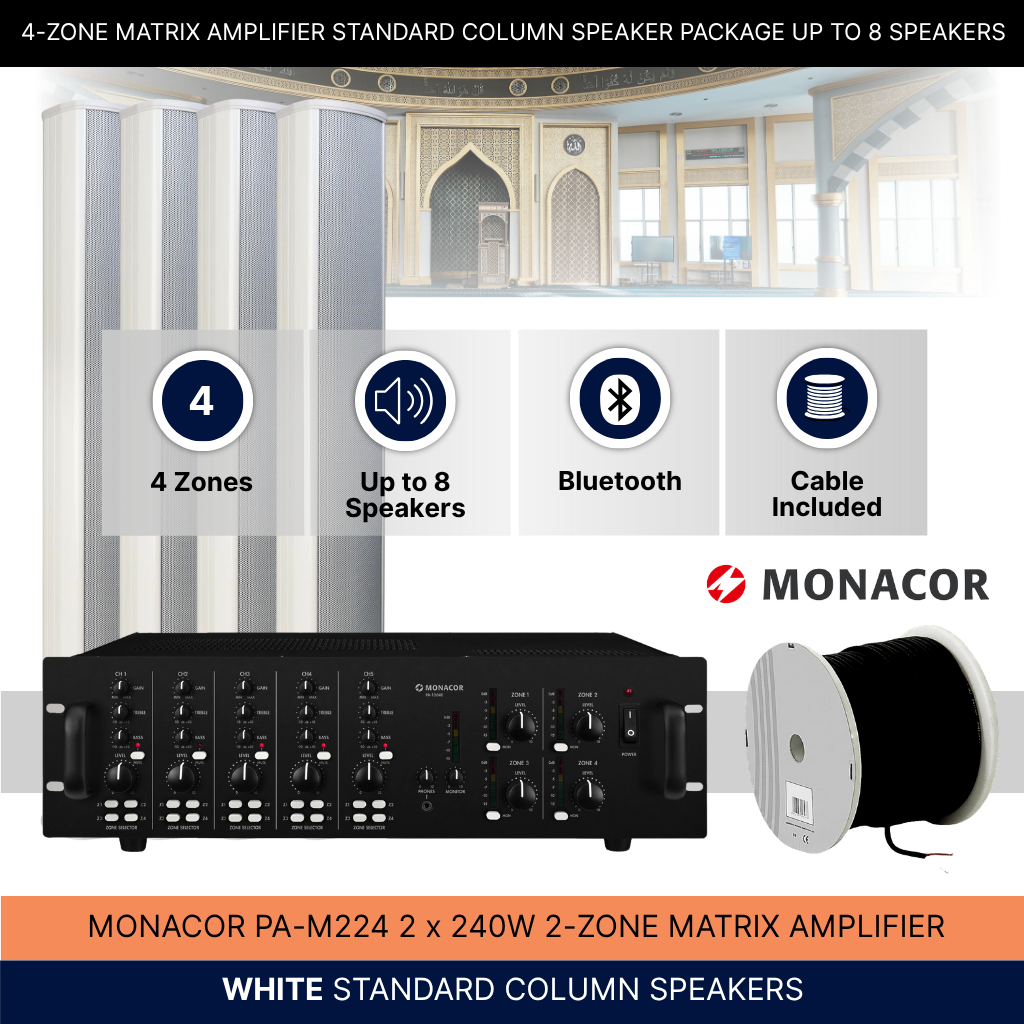

4-Zone Matrix Amplifier Standard Column Speaker Package Up To 8 Speakers Background Music System

Name: 4-Zone Matrix Amplifier Standard Column Speaker Package Up To 8 Speakers Background Music System
Brand: Commerical Audio Outlet
SKU: 4Z4-STANDARD
Price: 1099.0 GBP
Availability: InStock

4-Zone Matrix Amplifier Standard Column Speaker Package Up To 8 Speakers Background Music System

SKU:4Z4-STANDARD

£1,099.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White

Speakers 4 6 8

Optional Extras None Internet Media Player

Product variants

Quantity

Elevate your background music experience with our premium standard column speaker system, designed to deliver exceptional sound quality at a budget-friendly price.

Our professional rack-mounted 4-zone matrix amplifier is user-friendly and features inputs for both LINE and MIC sources, making it versatile for various applications.

Select from 4 to 8 elegant white standard column speakers that seamlessly blend into your environment while providing crisp, clear audio.

For straightforward installation, we include 50 or 100 meters of 1.5mm² pure copper low smoke zero halogen 2-core insulated speaker cable, depending on the package you choose.

Enhance your setup by adding an optional internet media player, allowing you to stream music and connect via Bluetooth effortlessly.

Features

High quality professional background music system
Affordable price
Rack mountable 4-zone matrix amplifier
LINE and MIC inputs
High quality compact column speakers

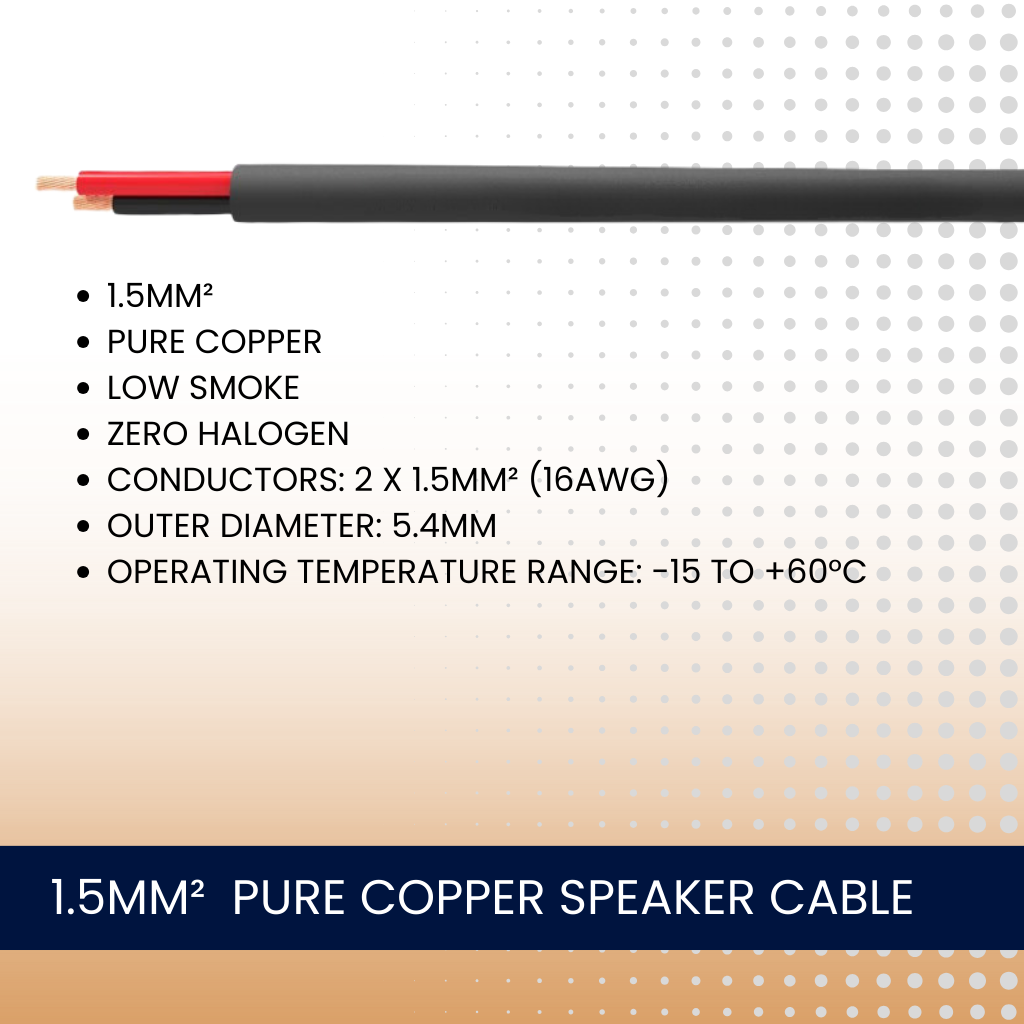

1.5mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

Monacor PA-12040 4-zone matrix amplifier
4 to 8 Fonestar TOWER-40TB (white) speakers
50 metres of 1.5mm² pure copper low smoke zero halogen 2 core insulated speaker cable (4 - 6 speaker packages)
100 metres of 1.5mm² pure copper low smoke zero halogen 2 core insulated speaker cable (8 speaker package)

Optional Extras

ZZiPP ZZONE-IR internet media player

Amplifier Specification

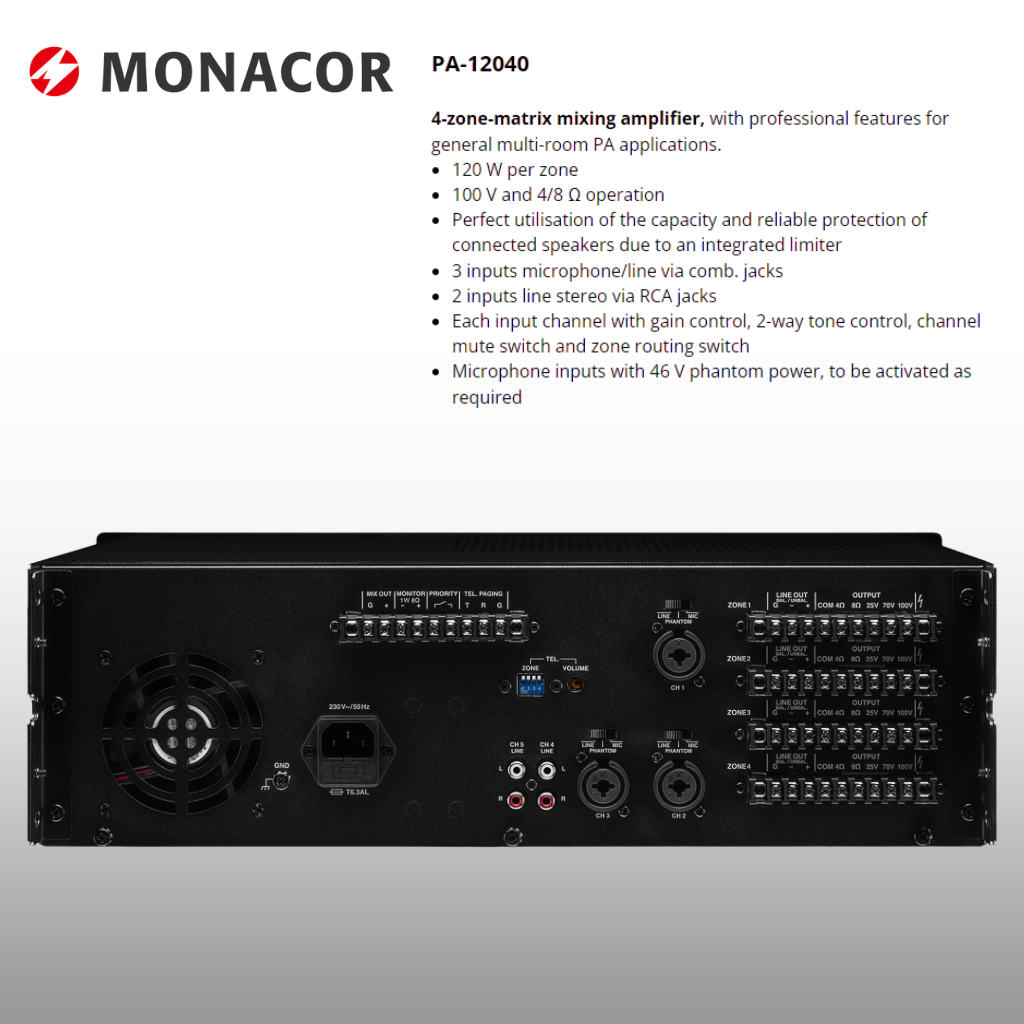

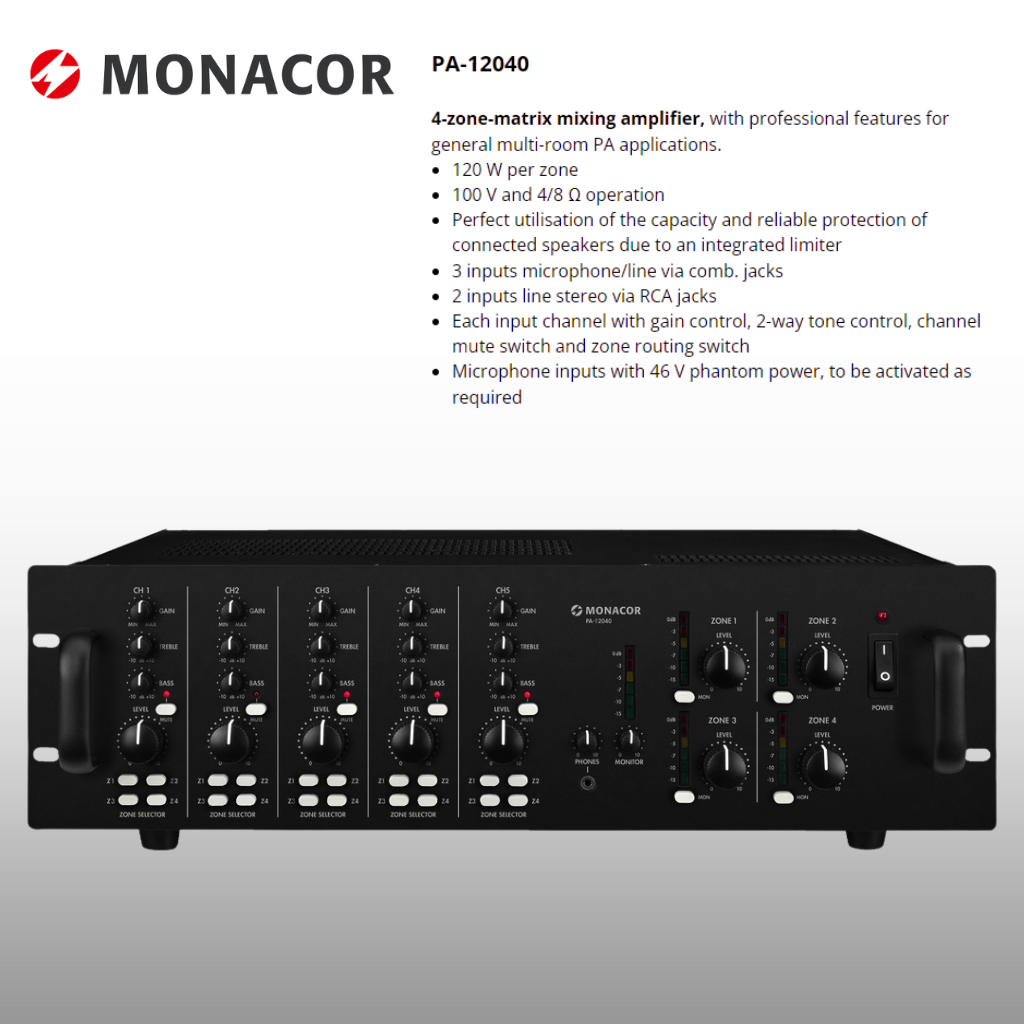

Monacor PA-12040 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 5
Zones 4
Inputs 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line)
100 mV/30 kΩ (line)

40 mV/5 kΩ (tel. paging)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB, mic
> 75 dB, line

THD < 1%
Phantom power 46 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,200 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 410 mm
Weight 20.5 kg
Connections 3 x combo jack/XLR, bal. (mic/line inputs)

2 x RCA L/R (line inputs)

3.5 mm jack (headphones)

screw contacts (paging),
screw contacts (priority),

screw contacts (zone outputs),

screw contacts (line outputs),

screw contacts (speakers)

Packing dimensions (W x H x L) 0.57 x 0.24 x 0.52 m
Gross weight 23.7 kg
Net weight 20.66 kg

Speaker Specification

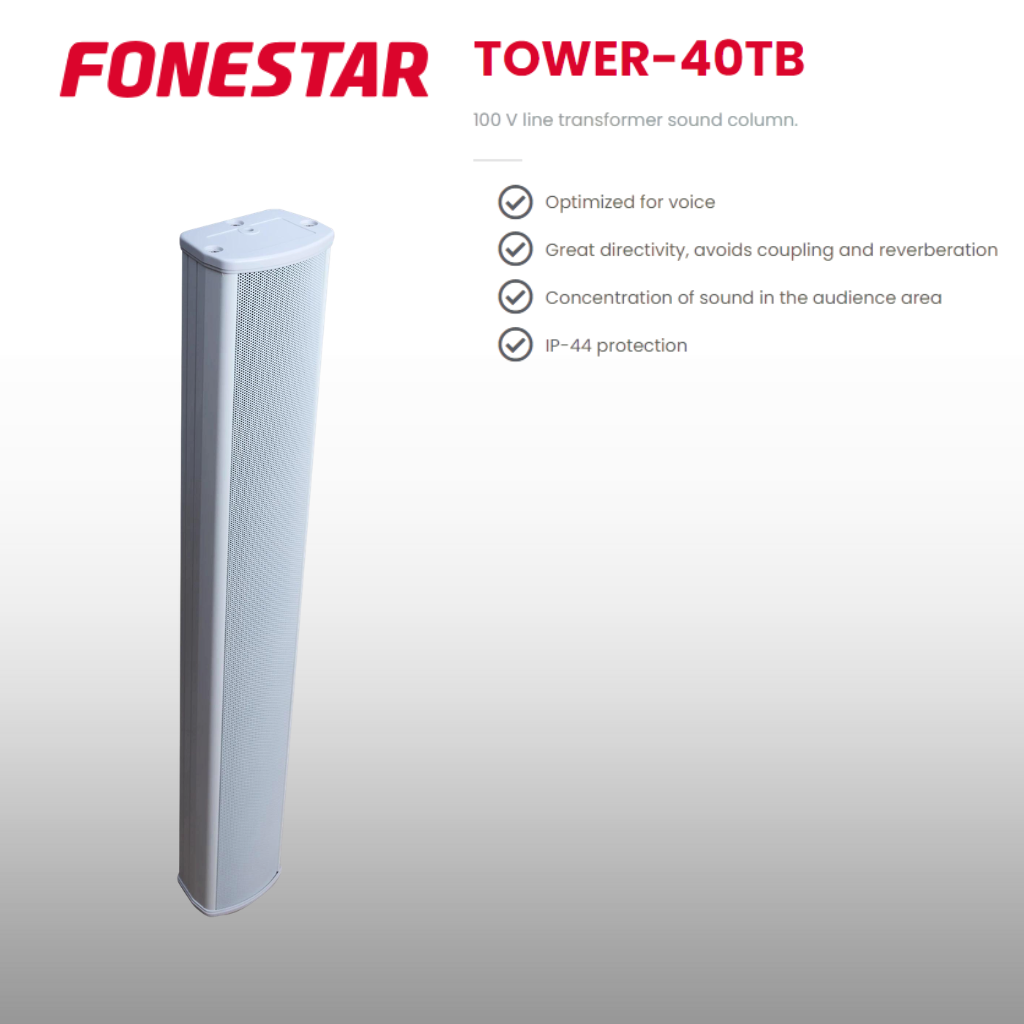

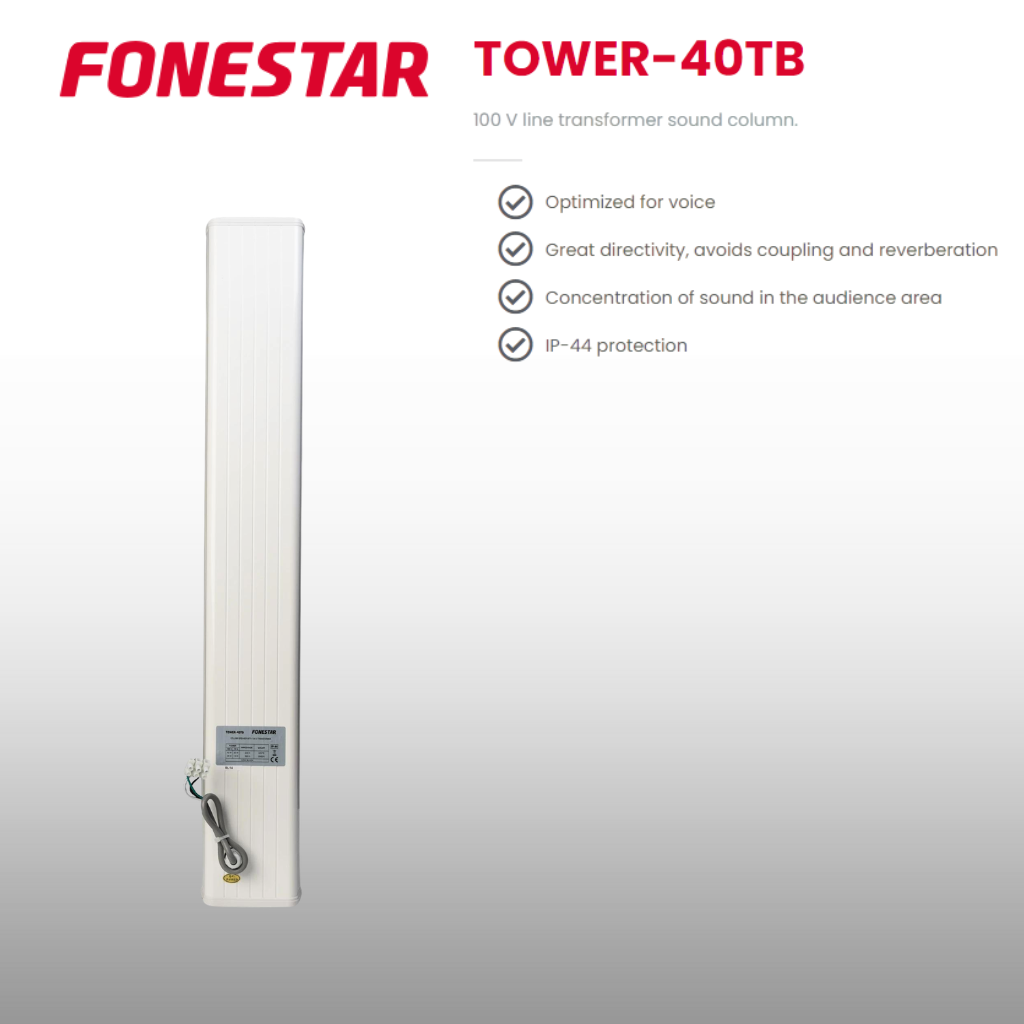

Fonestar TOWER-40TB standard column speakers (white)

FEATURES: Sound column with line transformer
POWER SUPPLY: 60 W maximum, 40 W RMS
SPEAKERS: 8 x 2 ½” speakers
RESPONSE: 170-15,000 Hz
IMPEDANCE: 40 W RMS@100 V (250 Ω)
20 W RMS@100 V (500 Ω)
SENSIBILITY: 93 dB at 1 W/1 m
DISPERSION: 155° H x 110° V (1 kHz)
180º H x 70º V (4 kHz)
PROTECTION: IP-44
MATERIAL: Aluminium enclosure
Aluminium mesh
COLOUR: White (RAL 9016)
DIMENSIONS: 10.6 x 69.5 x 7.5 cm depth
WEIGHT: 3.4 kg
ACCESSORIES: Fixing mounts

Internet Media Player Specification

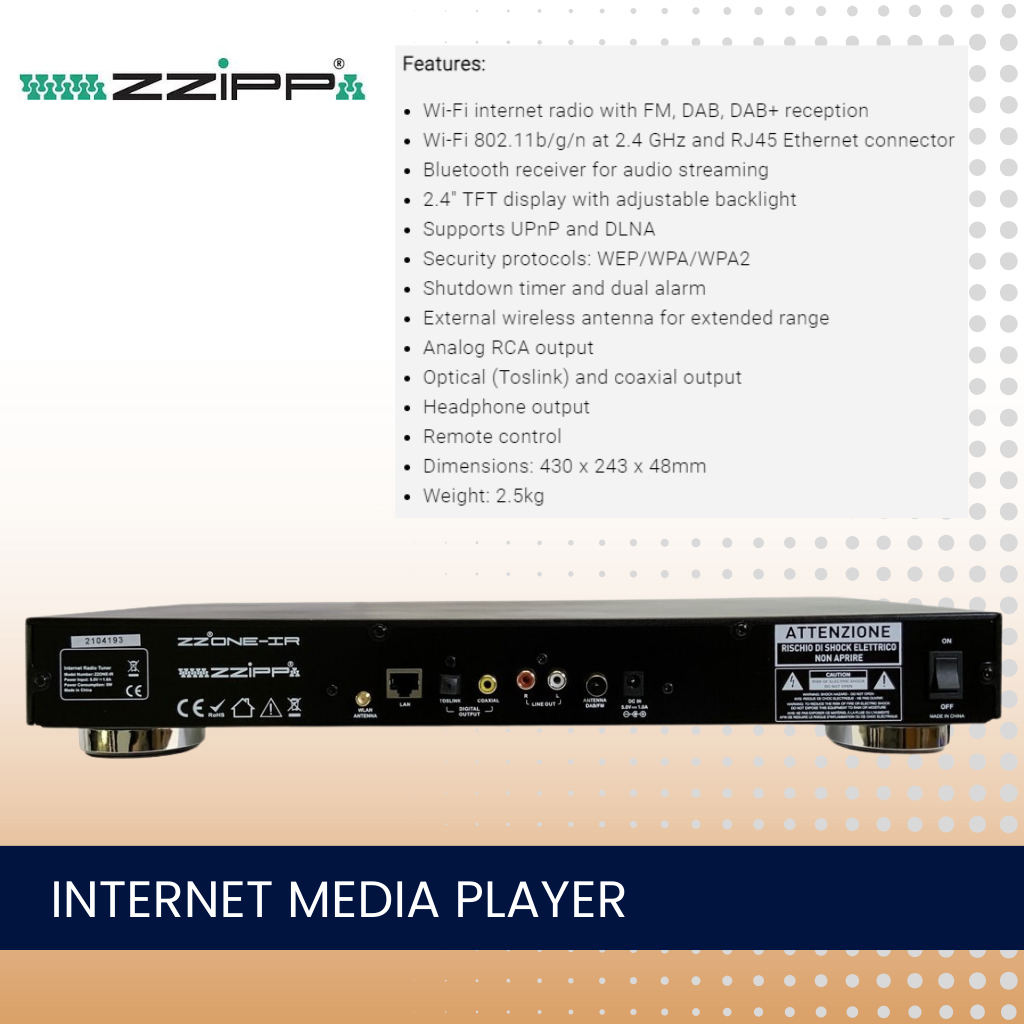

ZZiPP ZZONE-IR internet media player

Wi-Fi internet radio with FM, DAB, DAB+ reception
Wi-Fi 802.11b/g/n at 2.4 GHz and RJ45 Ethernet connector
Bluetooth receiver for audio streaming
2.4" TFT display with adjustable backlight
Supports UPnP and DLNA
Security protocols: WEP/WPA/WPA2
Shutdown timer and dual alarm
External wireless antenna for extended range
Analog RCA output
Optical (Toslink) and coaxial output
Headphone output
Remote control
Dimensions: 430 x 243 x 48mm
Weight: 2.5kg
