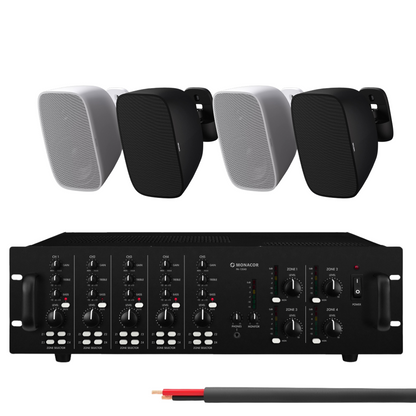

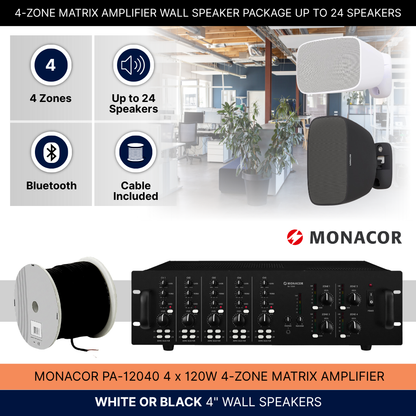

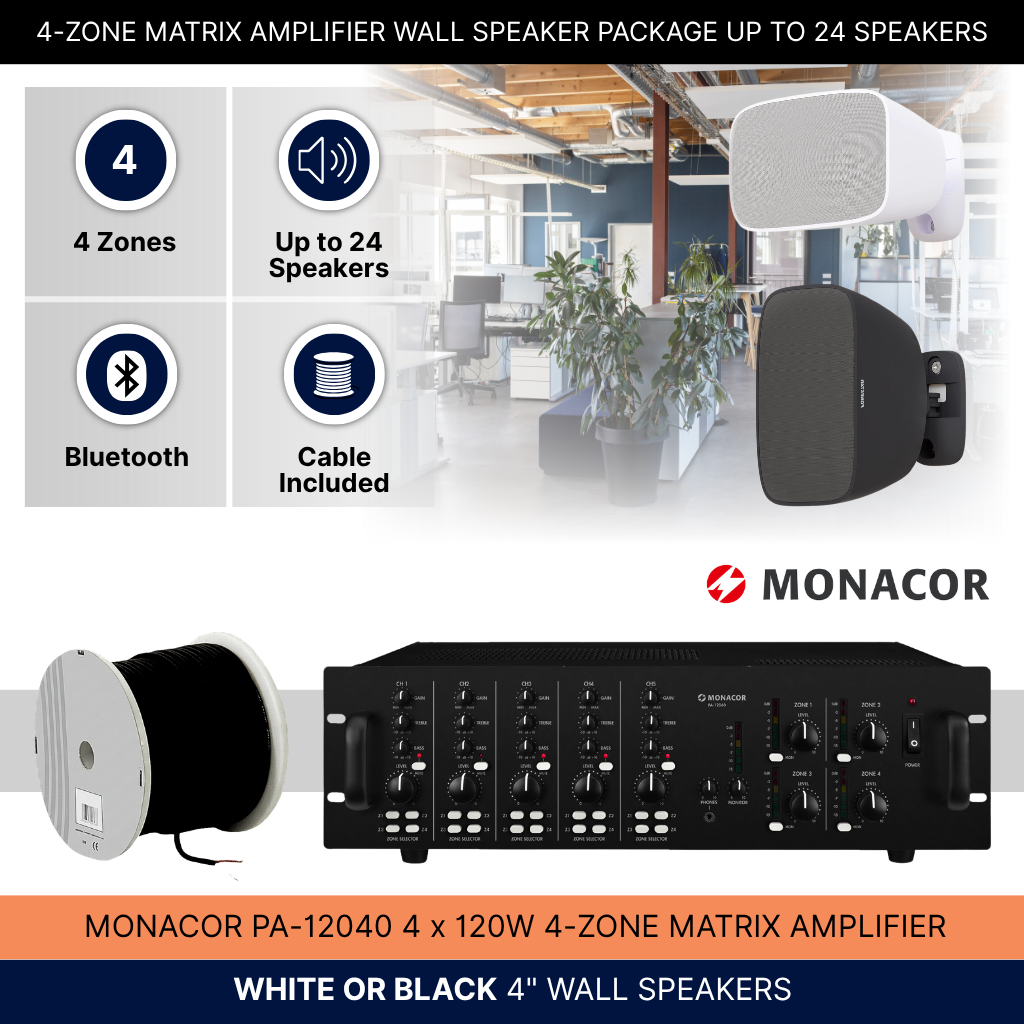

4-Zone Matrix Amplifier Wall Speaker Package Up To 24 Speakers Background Music System

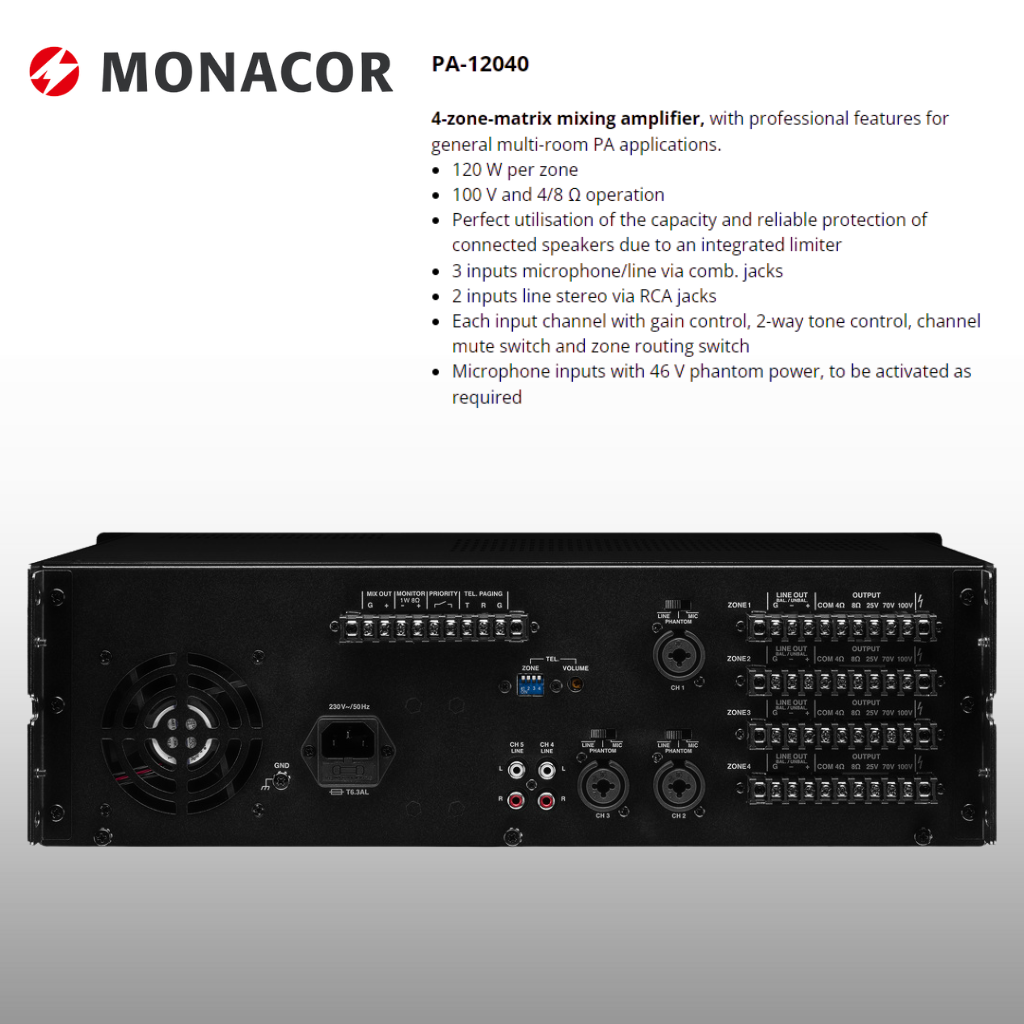

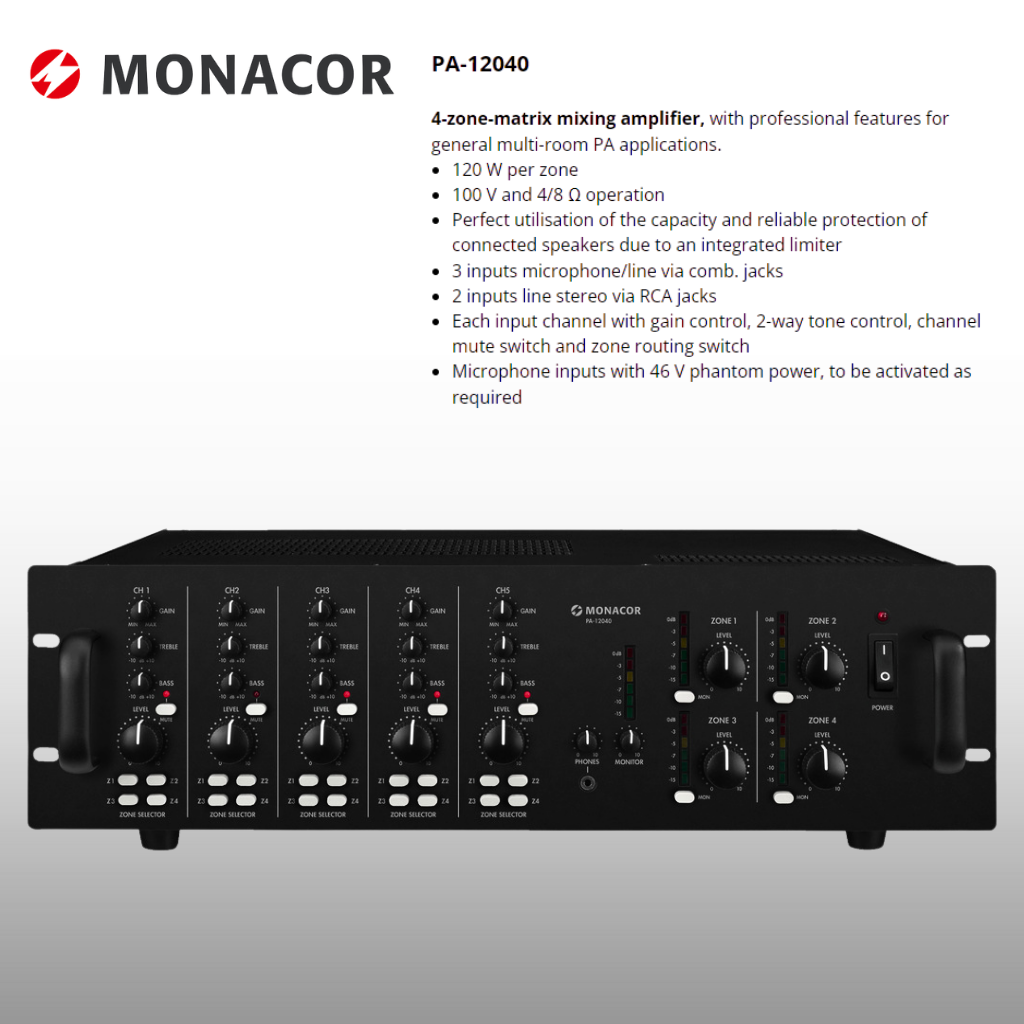

Monacor PA-12040 4-zone matrix amplifier

Peak output power 4 x 170 W
Power rating 4 x 120 W
Channels 5
Zones 4
Inputs 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line)
100 mV/30 kΩ (line)

40 mV/5 kΩ (tel. paging)

Frequency range 50-17,000 Hz
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB, mic
> 75 dB, line

THD < 1%
Phantom power 46 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,200 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 410 mm
Weight 20.5 kg
Connections 3 x combo jack/XLR, bal. (mic/line inputs)

2 x RCA L/R (line inputs)

3.5 mm jack (headphones)

screw contacts (paging),
screw contacts (priority),

screw contacts (zone outputs),

screw contacts (line outputs),

screw contacts (speakers)

Packing dimensions (W x H x L) 0.57 x 0.24 x 0.52 m
Gross weight 23.7 kg
Net weight 20.66 kg

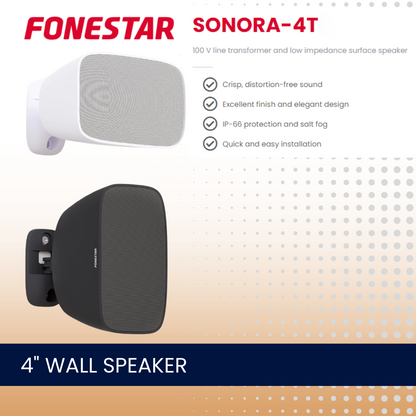

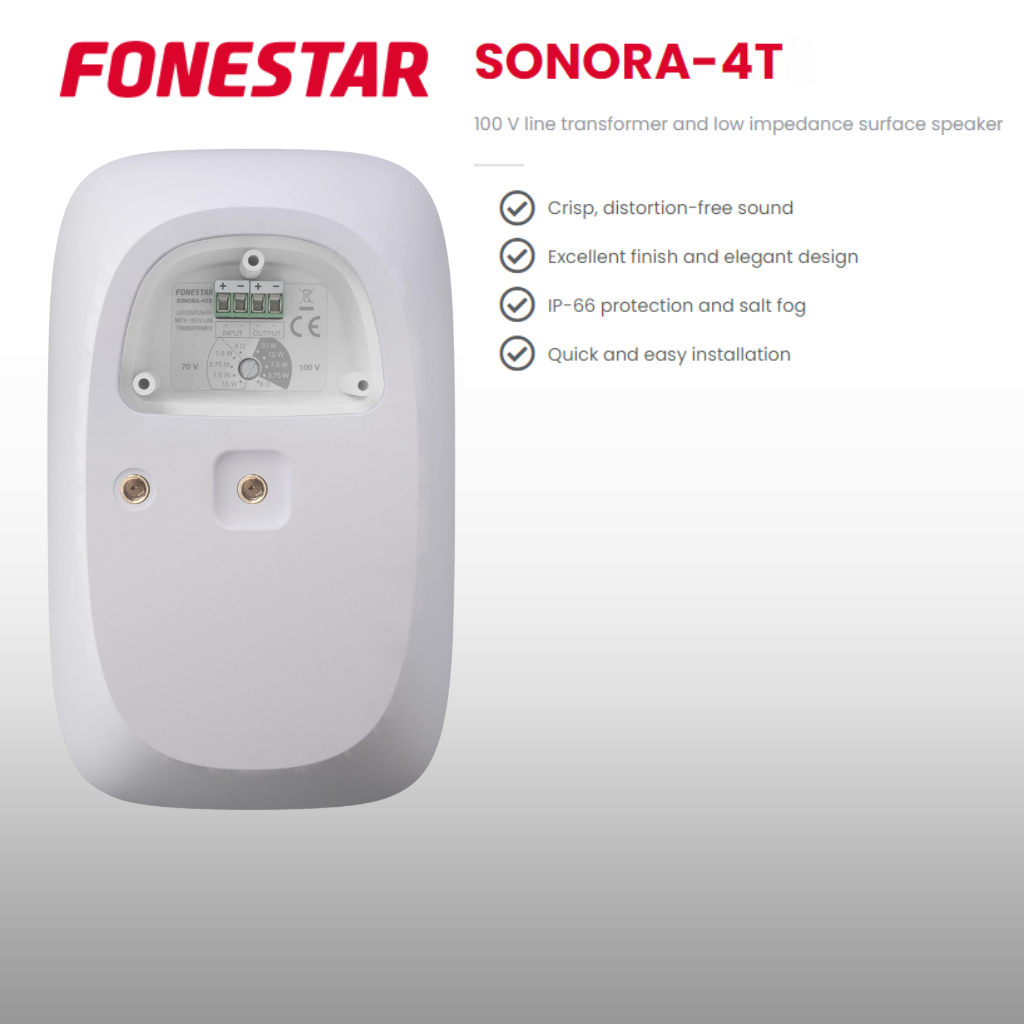

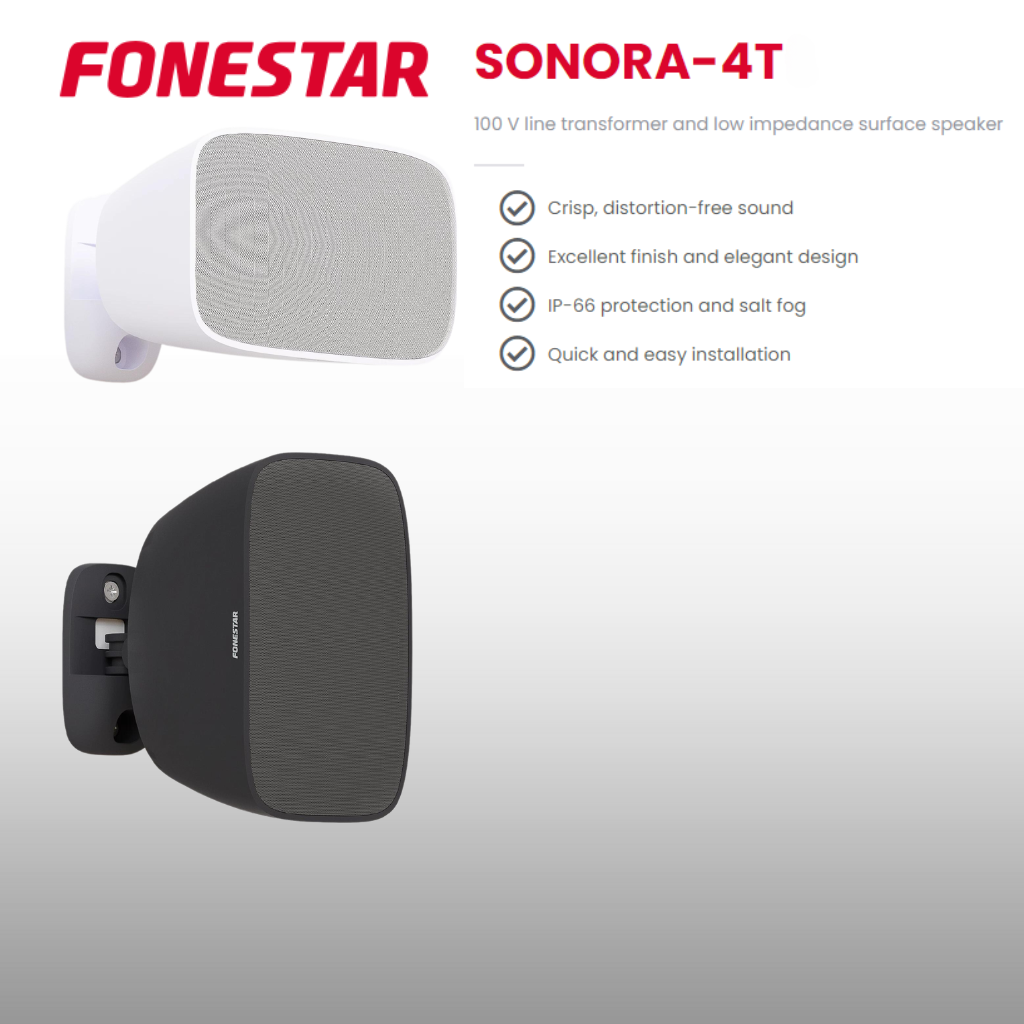

Fonestar SONORA-4T wall speakers (white or black)

FEATURES: Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
POWER: 60 W max., 30 W RMS
LOUDSPEAKERS: 1 x 4" polypropylene woofer
1 x 1” tweeter
RESPONSE: 120-20,000 Hz
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
SENSITIVITY: 83 dB @ 1 W/1 m

MAXIMUM SOUND PRESSURE: 96 dB @ max. W/1 m
COVERAGE ANGLE: H/V: 215º/225º @500Hz, 145º/130º@1kHz, 115º/120º@2kHz, 80º/110º@4kHz (-6 dB)
PROTECTION: IP-66 in compliance with EN 60529
IEC 60068-2-11 Environmental tests (Saline mist)
MATERIAL: ABS
Aluminium mesh grille
Mount with weatherproof treatment
Stainless steel screws
SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9005)
DIMENSIONS: Loudspeaker: 125 x 202 x 125 mm depth
Mount wall plate: 68 x 110 mm
Loudspeaker with mount: 193 mm depth
WEIGHT: 1.5 kg
ACCESSORIES: Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

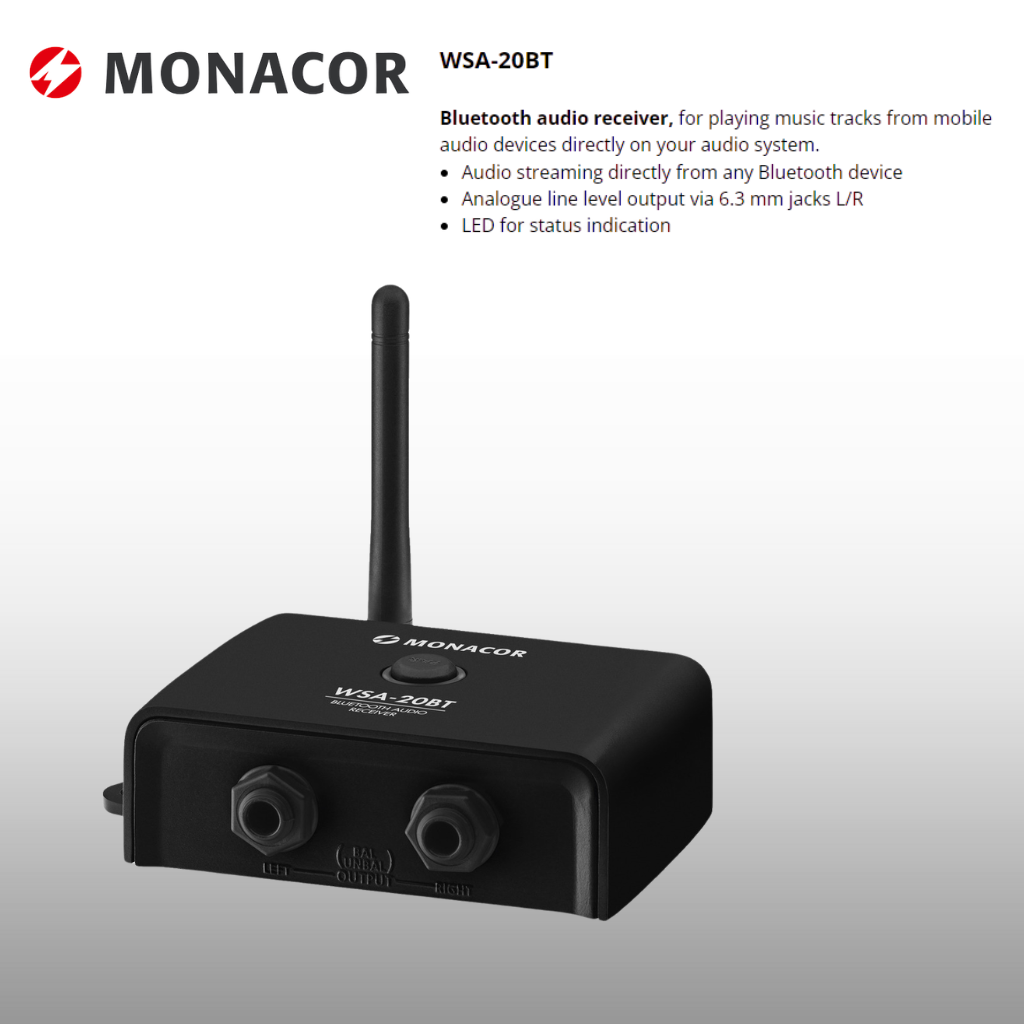

Monacor WSA-20BT Bluetooth receiver

Frequency range 20-20,000 Hz
THD ≤ 0.01%
Channel separation ≥ 75 dB
Bluetooth Bluetooth V4.0,
class 2

Operating range ≤ 10 m
Profiles HFP, HSP, A2DP, AVRCP, DI
Power supply via encl. power supply
Width 116 mm
Height 35 m
Depth 86 mm
Weight 117 g
Connections Outputs:
1 x 6.3 mm stereo jack L/R, analogue

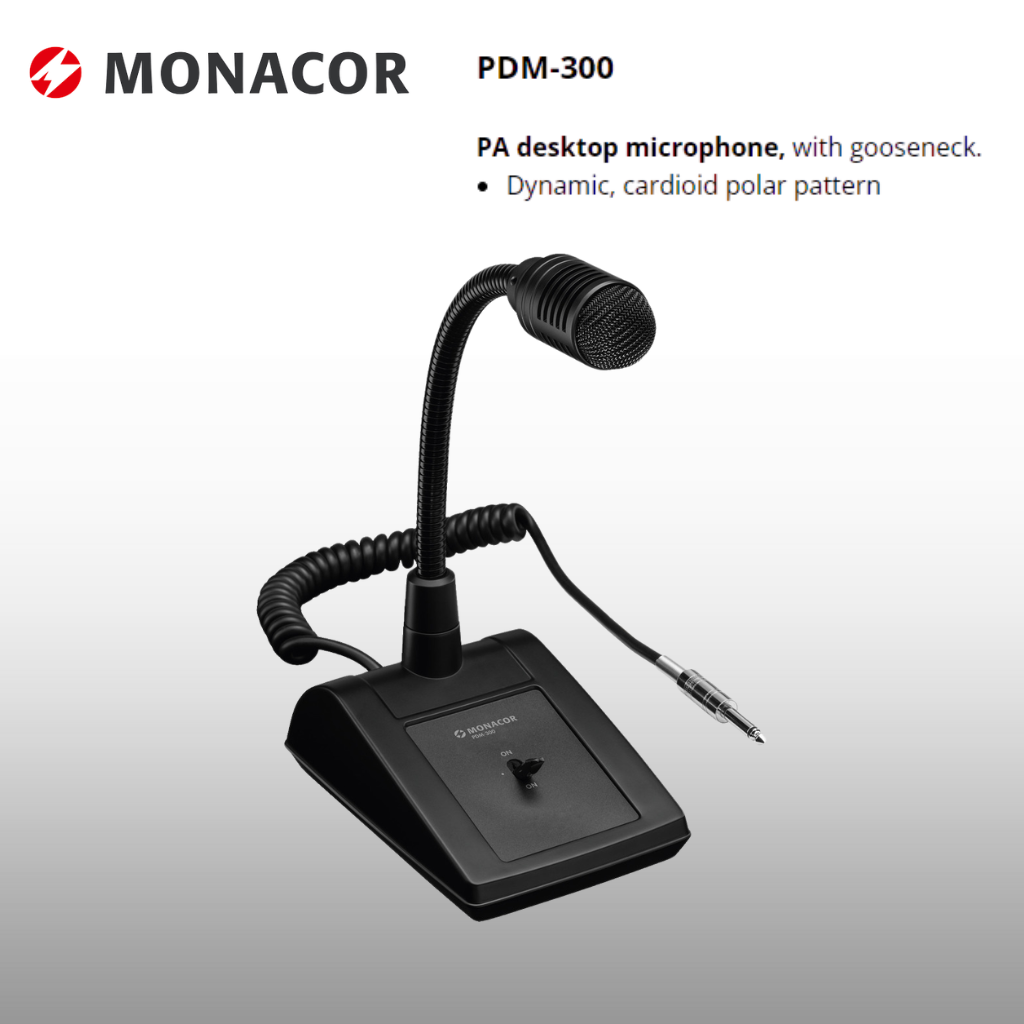

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)

Weight 810 g
Cable 1 m
Connection 6.3 mm plug
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.015 kg
Net weight 0.818 kg
