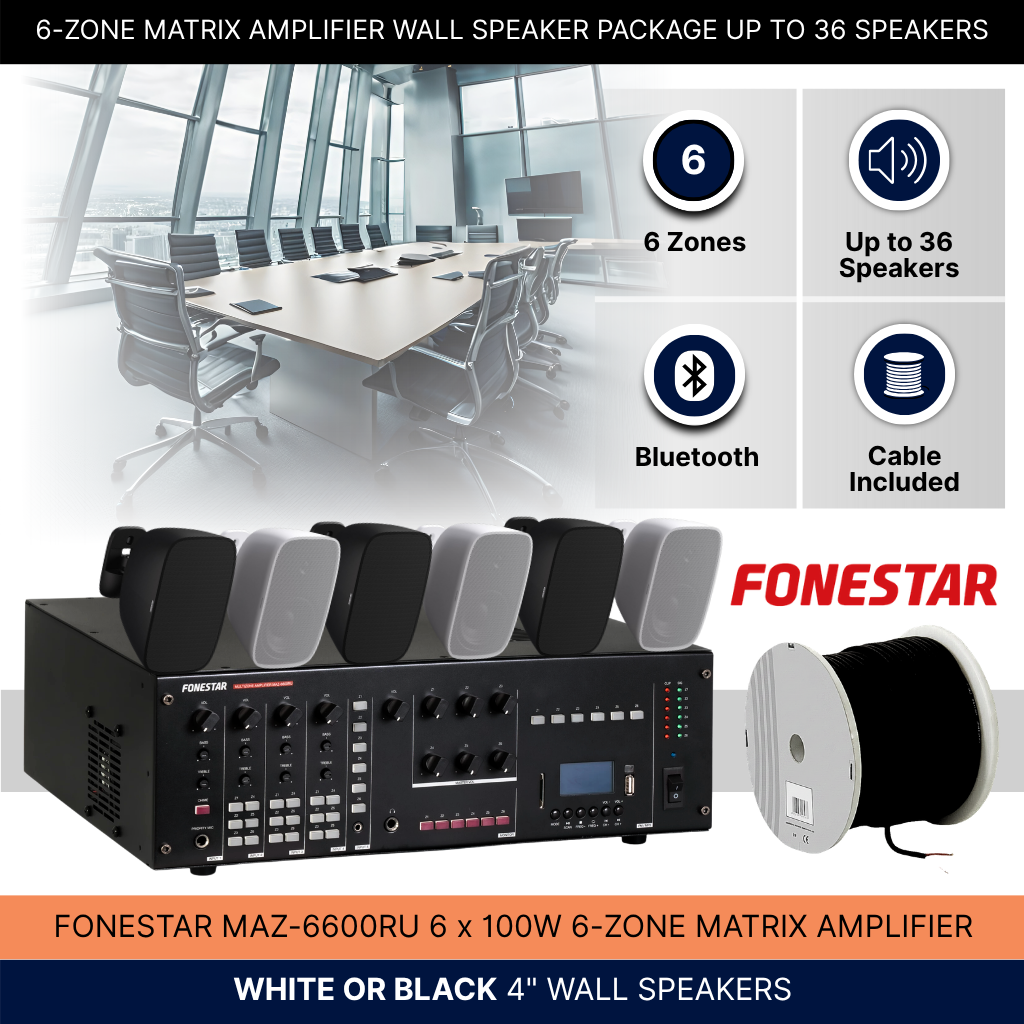

6-Zone Matrix Amplifier Wall Speaker Package Up To 36 Speakers Background Music System

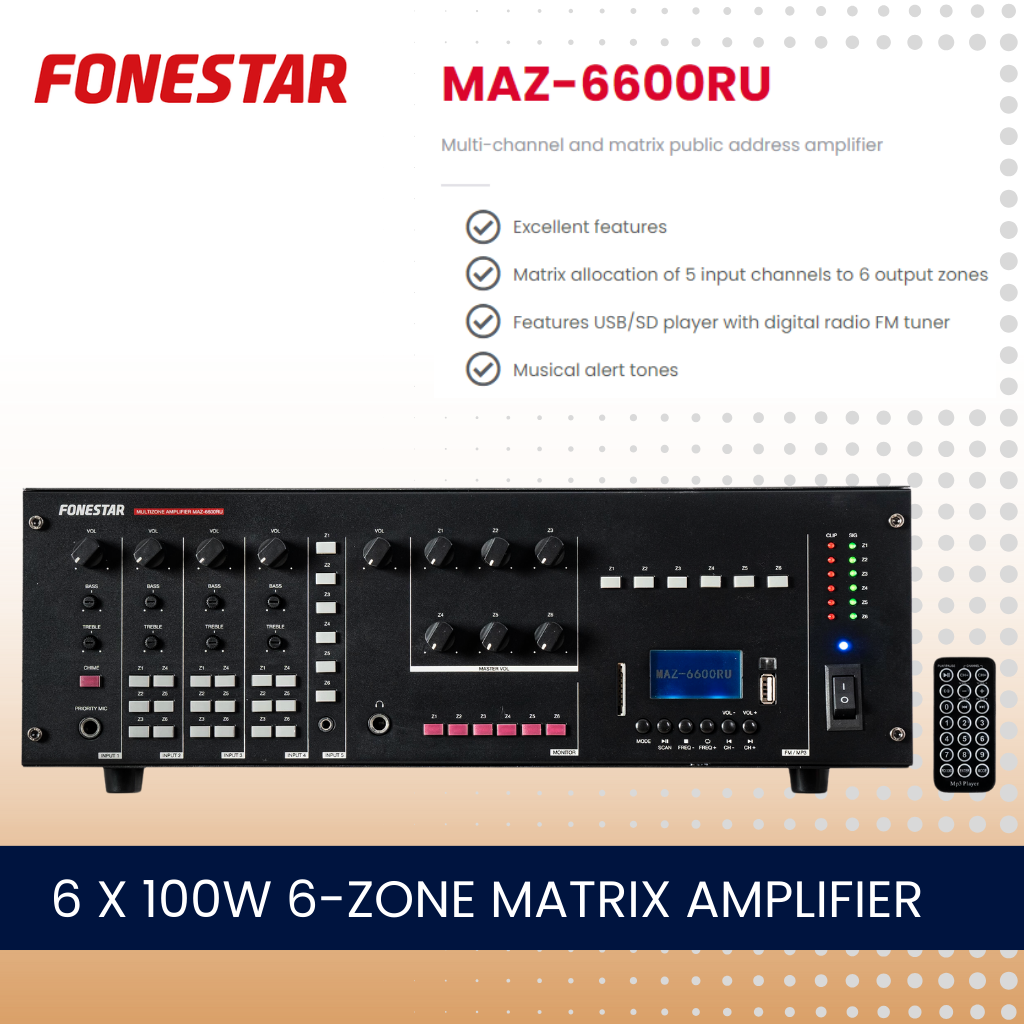

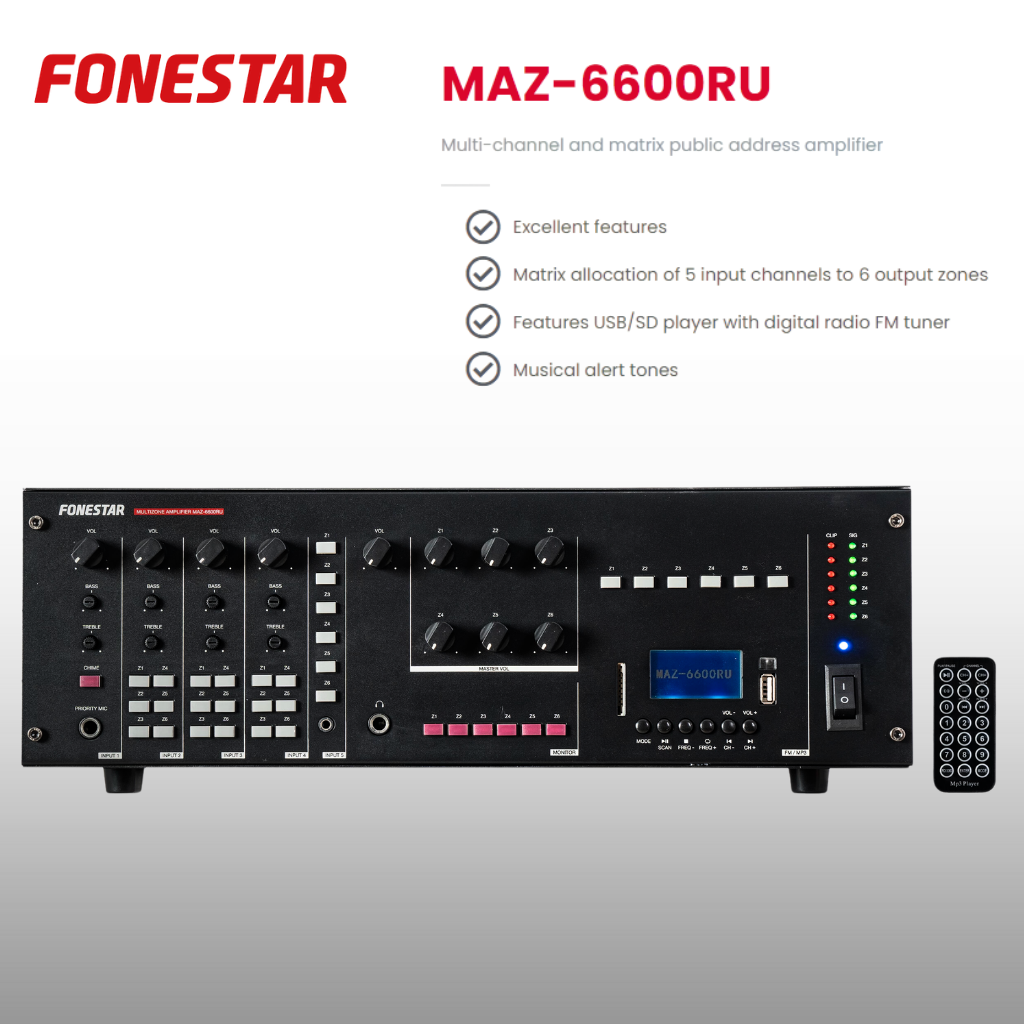

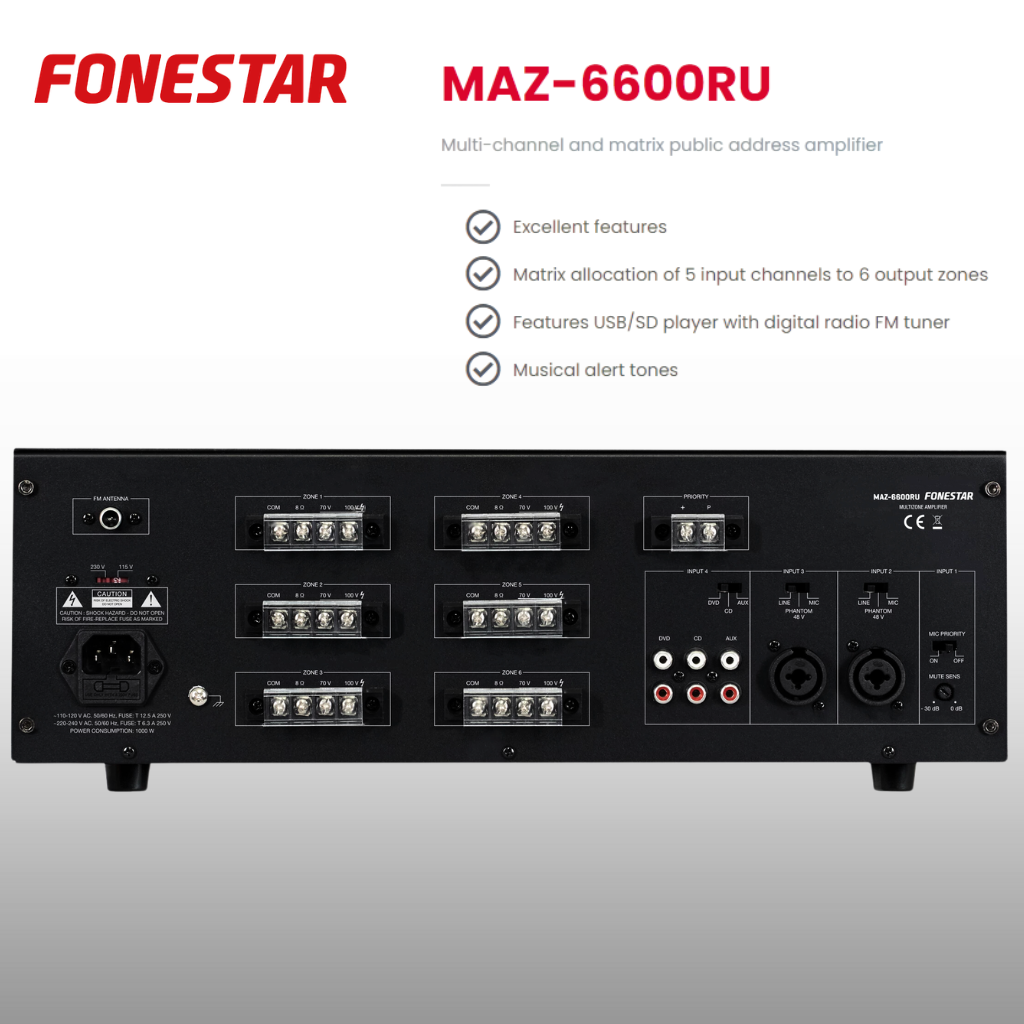

Fonestar MAZ-6600RU 6-zone matrix amplifier

FEATURES:Matrix and multi-channel amplifier.Matrix allocation of 5 input channels to 6 output zones.USB/SD player.Digital FM tuner.6 zones with independent volume control.Phantom power supply.Musical alert tones.Priority paging.Includes remote control for USB/SD/FM player.POWER:6 x 100 W RMSRESPONSE:80-18,000 Hz ±3 dBDISTORTION:Harmonic: < 0.5%S/N RATIO:Microphones: > 65 dBAux: > 75 dBINPUTS:1 unbalanced mic., 6.3 mm jack, 4 mV RMS2 balanced mics/lines, combo (XLR and 6.3 mm jack) 4 mV RMS / 400 mV RMS, switchable1 DVD/CD/AUX stereo aux, 2 x RCA 220 mV RMS, 160 mV RMS, 110 mV RMS, selectable1 stereo aux, 3.5 mm jack, 200 mV RMSOUTPUTS:1 stereo monitor, 6.3 mm jackCONTROLS:6 zone buttons 1 to 6 for each of input channels 2 to 5 and USB/SD/FM playerChannels 1 to 4: volume, bass and treble controlZones 1 to 6: volume control, monitor selector switchMonitor volumePLAYER:USB/SD player and digital FM tuner with preset channels and auto scanPHANTOM:48 V in mics 2 and 3, selectablePRIORITY:Mic. 1 through signal level or contact closure, selectableIMPEDANCE:6 zones: 8 Ω and 100 and 70 V lines, screw terminalsPOWER SUPPLY:230/115 V AC, 1,000 W maximumDIMENSIONS:420 x 133 x 376 mm depth. 3 U 19" rackWEIGHT:17.5 kgACCESSORIES:FM antennaMounts for assembling in 19" rack

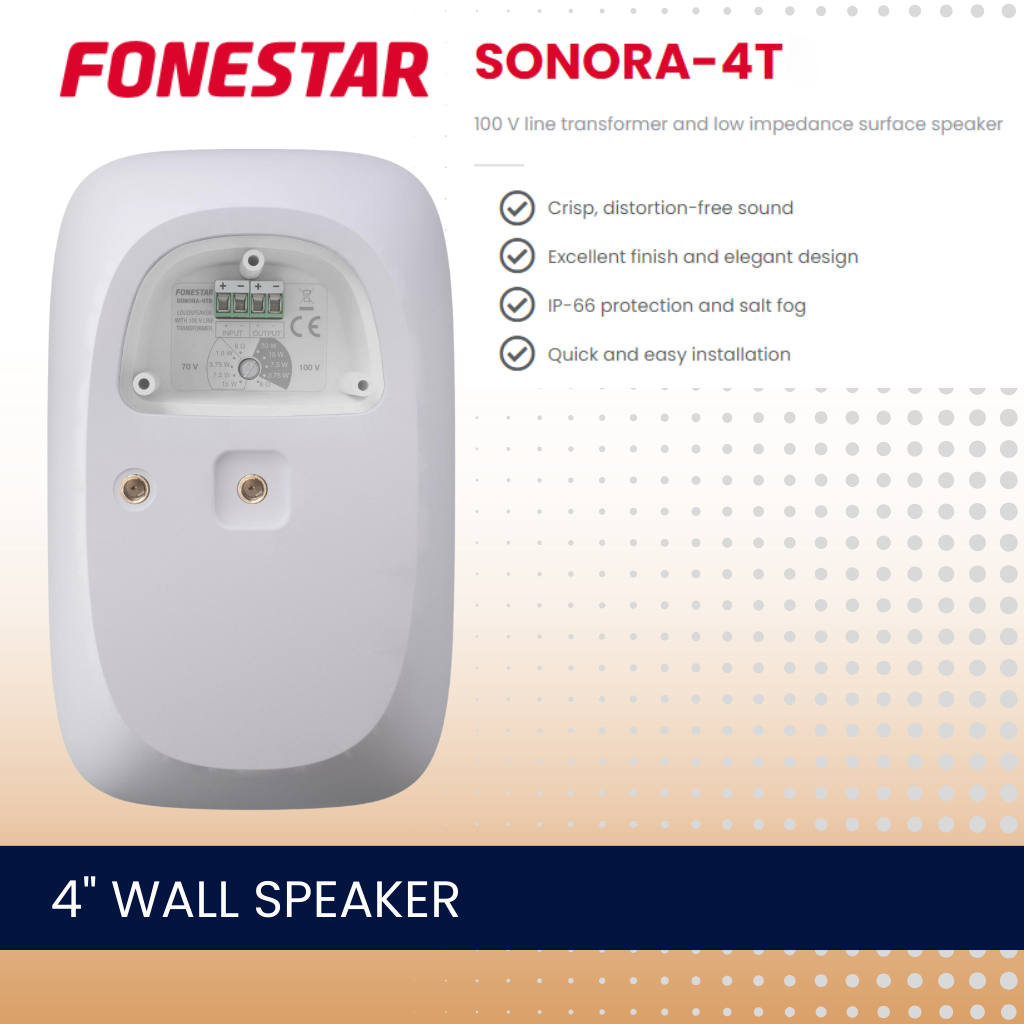

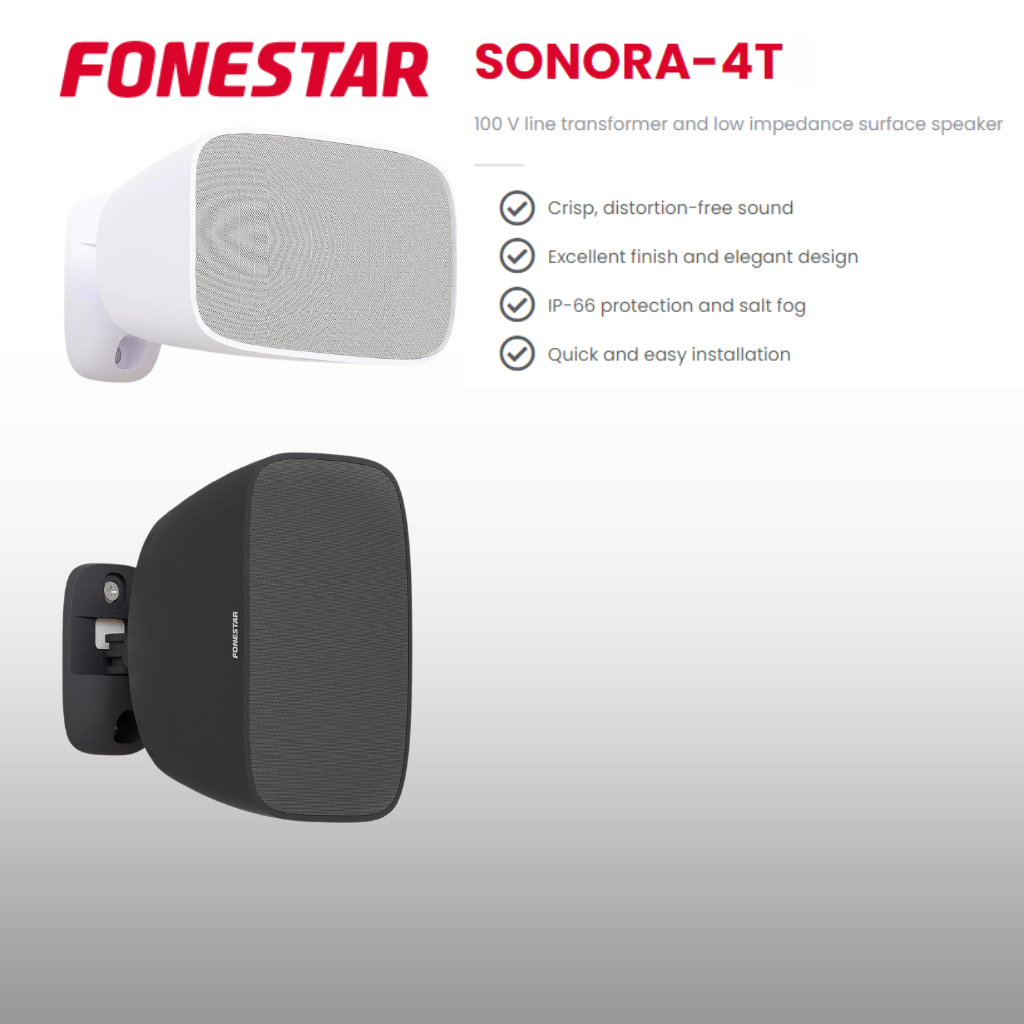

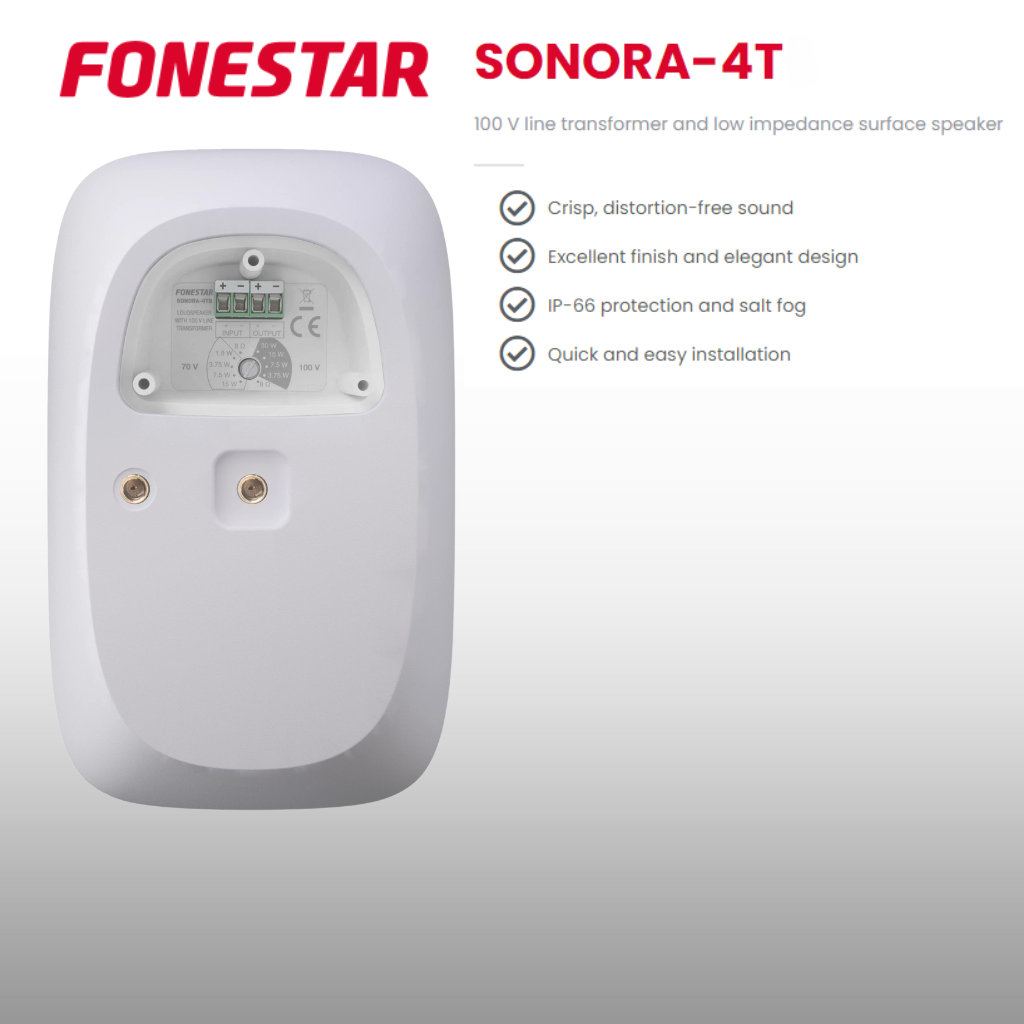

Fonestar SONORA-4T wall speakers (white or black)

FEATURES: Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
POWER: 60 W max., 30 W RMS
LOUDSPEAKERS: 1 x 4" polypropylene woofer
1 x 1” tweeter
RESPONSE: 120-20,000 Hz
IMPEDANCE: 30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω
SENSITIVITY: 83 dB @ 1 W/1 m

MAXIMUM SOUND PRESSURE: 96 dB @ max. W/1 m
COVERAGE ANGLE: H/V: 215º/225º @500Hz, 145º/130º@1kHz, 115º/120º@2kHz, 80º/110º@4kHz (-6 dB)
PROTECTION: IP-66 in compliance with EN 60529
IEC 60068-2-11 Environmental tests (Saline mist)
MATERIAL: ABS
Aluminium mesh grille
Mount with weatherproof treatment
Stainless steel screws
SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock in and out for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9005)
DIMENSIONS: Loudspeaker: 125 x 202 x 125 mm depth
Mount wall plate: 68 x 110 mm
Loudspeaker with mount: 193 mm depth
WEIGHT: 1.5 kg
ACCESSORIES: Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

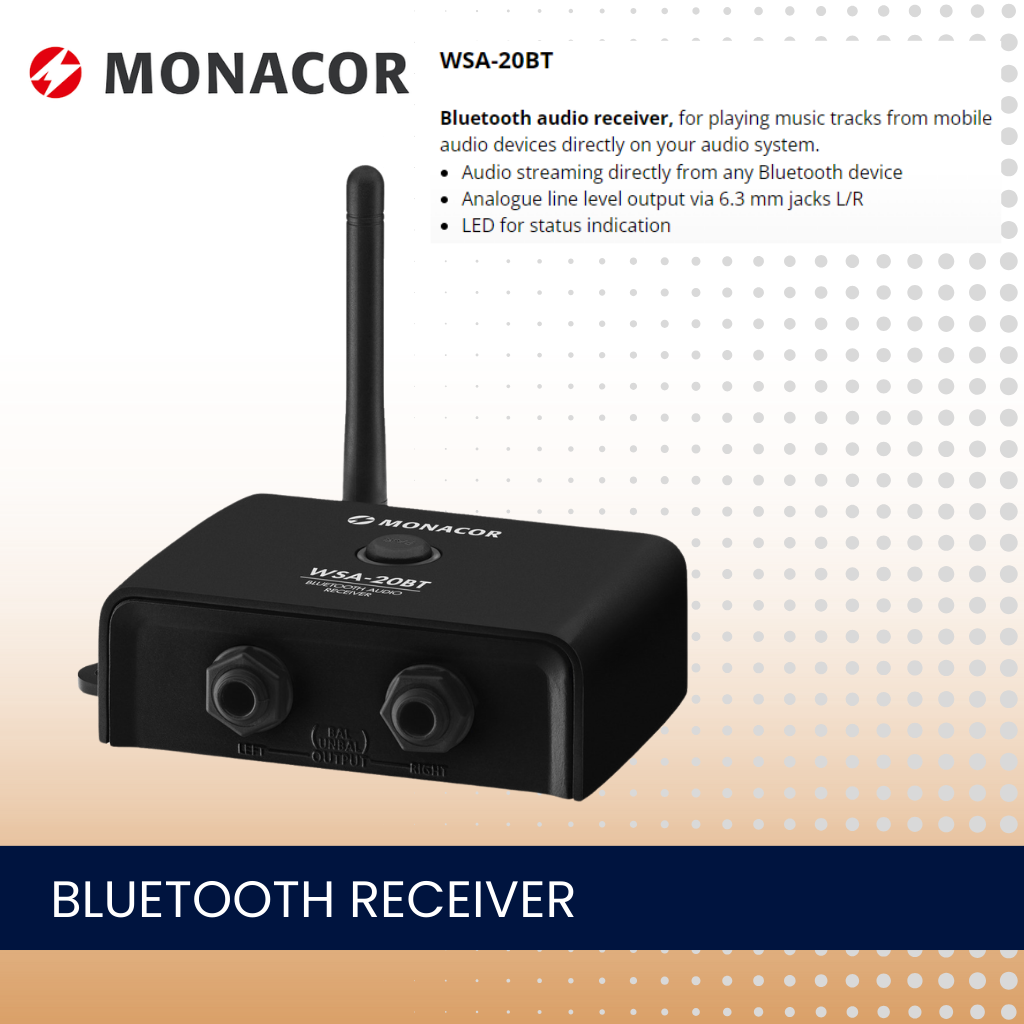

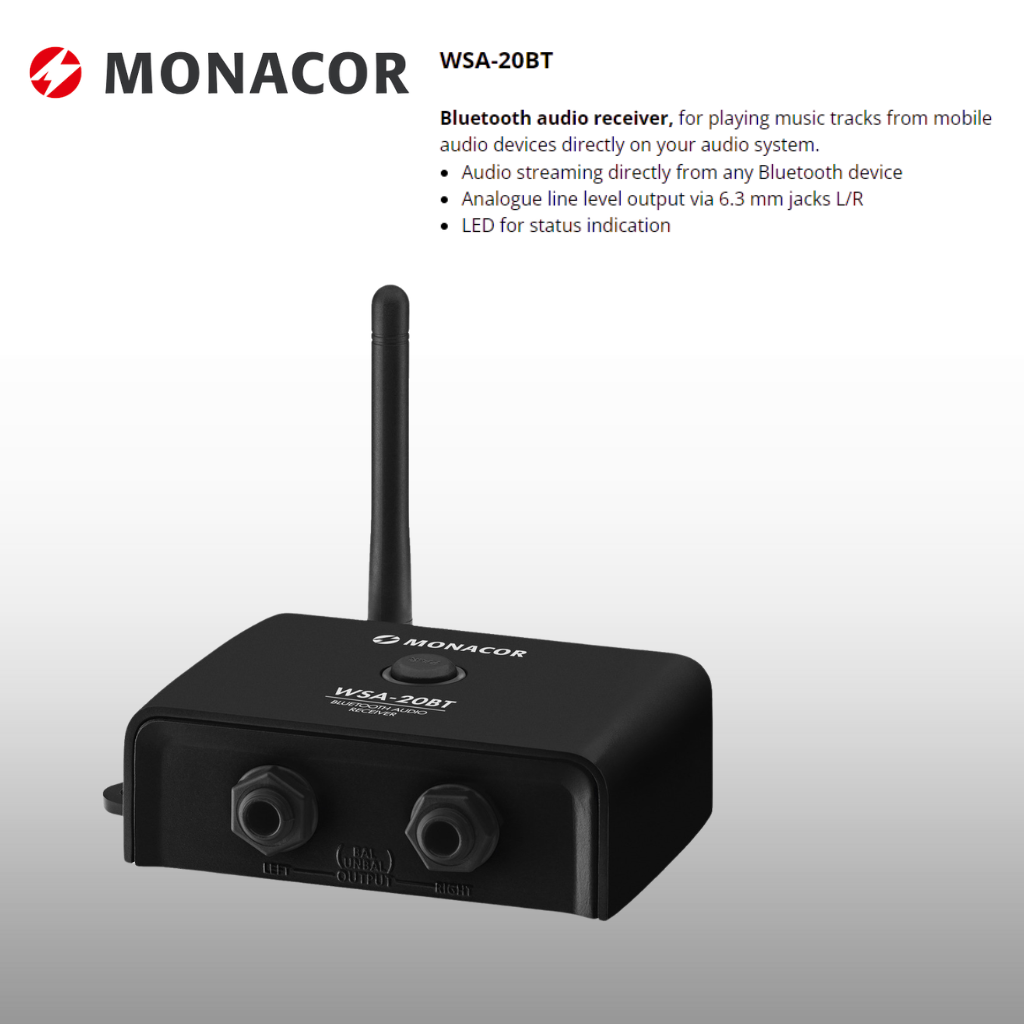

Monacor WSA-20BT Bluetooth receiver

Frequency range 20-20,000 Hz
THD ≤ 0.01%
Channel separation ≥ 75 dB
Bluetooth Bluetooth V4.0,
class 2

Operating range ≤ 10 m
Profiles HFP, HSP, A2DP, AVRCP, DI
Power supply via encl. power supply
Width 116 mm
Height 35 m
Depth 86 mm
Weight 117 g
Connections Outputs:
1 x 6.3 mm stereo jack L/R, analogue

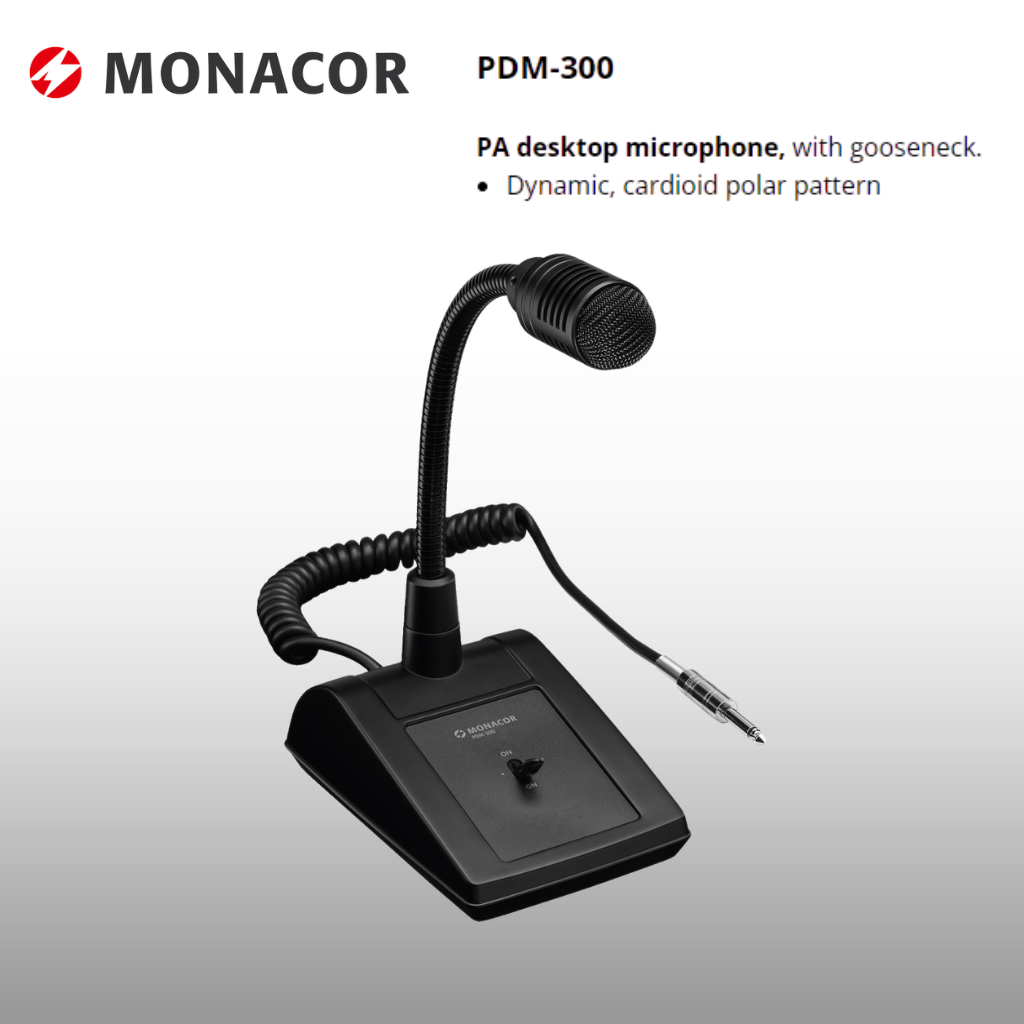

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)

Weight 810 g
Cable 1 m
Connection 6.3 mm plug
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.015 kg
Net weight 0.818 kg
