Citronic Dual Hand Held Wireless Mic System

Citronic Dual Hand Held Wireless Mic System

171.033UK

£199.00
£199.00
Sale Sold out
Tax included. Shipping calculated at checkout.

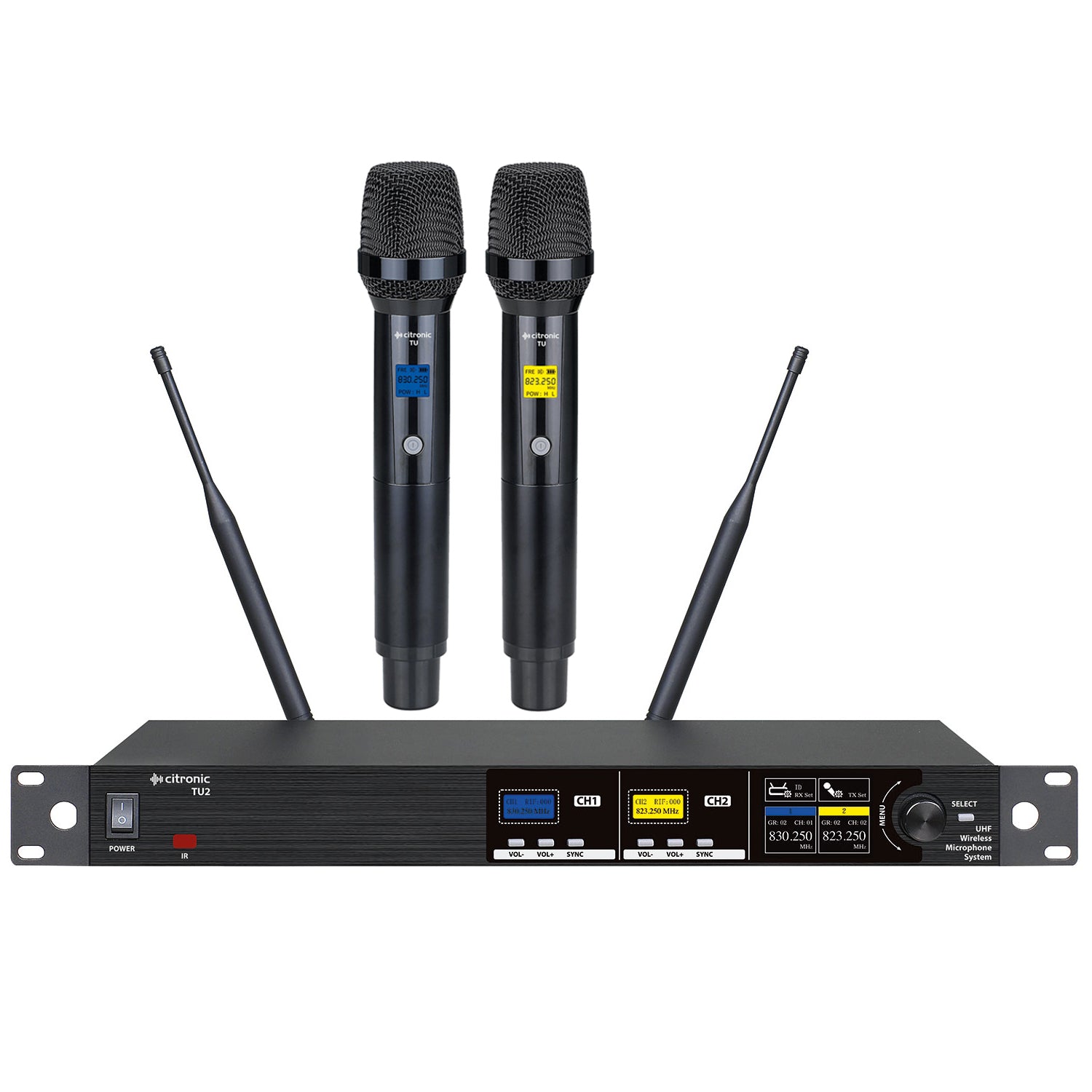

Citronic Dual Handheld UHF Wireless Microphone System – Licence Free

Overview

The Citronic Dual Handheld UHF Wireless Microphone System is a professional true diversity wireless system designed for stage performances, conferences, presentations, theatres and vocal applications. With two independently programmable channels, it provides reliable wireless operation with flexible frequency selection and simple IR transmitter synchronisation.

Each handheld transmitter features a rugged full-metal housing and high-quality dynamic capsule, while the 1U rackmount receiver includes auto frequency scanning, independent 7-band EQ and both individual XLR outputs and a mixed jack output.

Key Features

  • Dual-channel true diversity UHF wireless microphone system

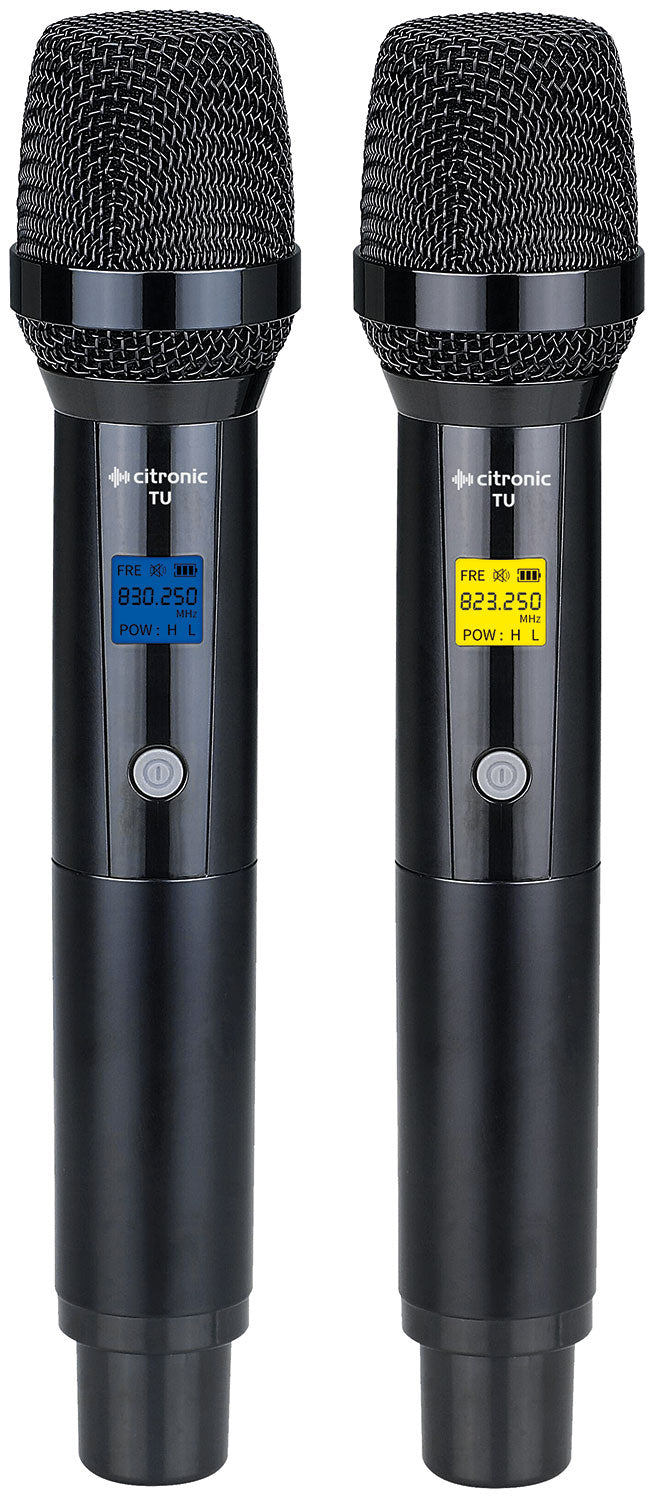

  • Two rugged handheld transmitters with dynamic capsules
  • Licence-free operation on both 863–865MHz (Channel 70) and 823–832MHz (Channel 65 Duplex Gap) in the UK
  • Auto frequency sweep function
  • IR synchronisation between receiver and transmitters
  • Independent 7-band EQ for each channel
  • Programmable carrier frequency, EQ, transmission power and display colour

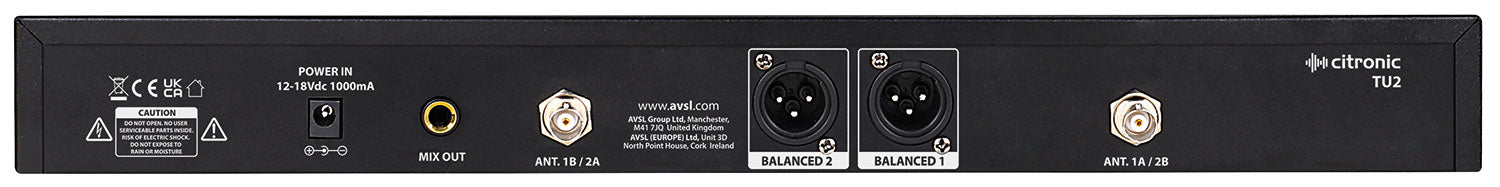

  • Individual balanced XLR outputs plus single mixed jack output
  • True diversity antennas with internal distribution

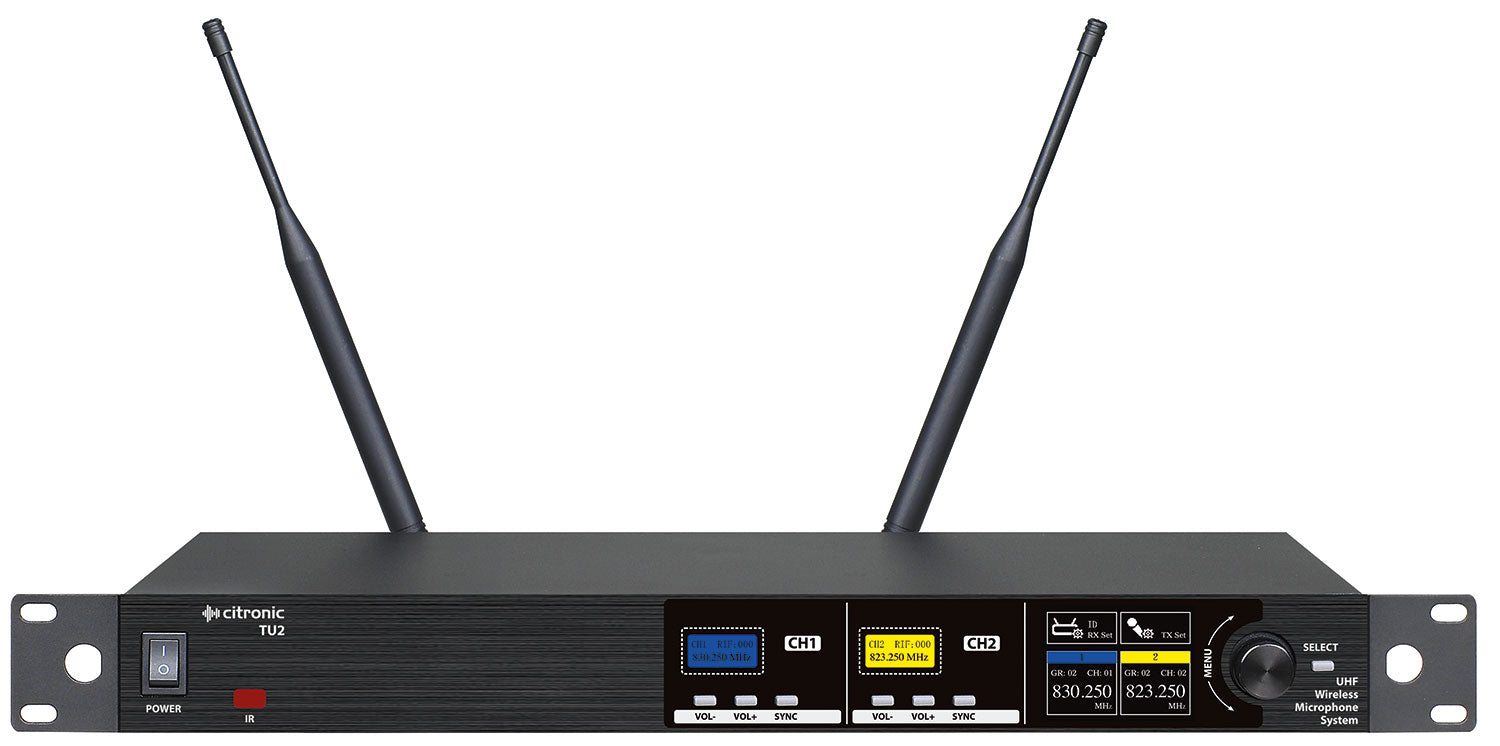

  • 1U 19-inch rackmount receiver with BNC antenna connections

Applications

Ideal for live vocals, conferences, schools, churches, theatres, event venues, presentations, public speaking and professional performance applications requiring two reliable handheld wireless microphones.

Technical Specifications

System Type Dual True Diversity UHF Wireless Microphone System
Microphones Included 2 x Handheld Wireless Transmitters
Carrier Frequencies 823–832MHz / 863–865MHz
Licence-Free Operation 823–832MHz (Channel 65 Duplex Gap) and 863–865MHz (Channel 70) in the UK
Wireless Range Up to 60 metres
Frequency Management Auto Frequency Sweep with IR Sync
Equaliser Independent 7-Band EQ Per Channel
Outputs Individual XLR Outputs & Mixed Jack Output
Antenna Connections 2 x BNC
Receiver Display Full Colour TFT
Power Supply 12–18V DC, 1000mA
Receiver Dimensions 482 x 185 x 44mm (1U)
Receiver Weight 1.5kg
Handheld Dimensions 258 x 47mm
Handheld Weight 354g (without batteries)
Battery Requirement 2 x AA Batteries per Transmitter

Frequently Asked Questions

Is this system licence free?

Yes. The system operates on both the 863–865MHz (Channel 70) and 823–832MHz (Channel 65 Duplex Gap) UHF bands, both of which are licence-free for use in the UK.

How many microphones are included?

This system includes two handheld wireless microphone transmitters for dual vocal or presentation use.

Can each channel be adjusted separately?

Yes. Each wireless channel has its own programmable settings, independent 7-band EQ and individual balanced XLR output.

Does the system scan for clear frequencies?

Yes. The receiver includes an auto frequency sweep function to help locate suitable operating frequencies quickly.

Can the receiver be rack mounted?

Yes. The receiver is a standard 1U 19-inch rackmount unit and supports front antenna mounting using the supplied BNC extension cables.

Amplifier Specification

Fonestar PROX-240Z 4-zone amplifier

FEATURES: Public address amplifier

  • Bluetooth/USB/FM player.
  • Microphone input with mix, gain and priority level control.
  • Input priorities by signal level.
  • Tone controls.
  • 100 V and 4 Ω outputs.
  • 4 outputs zones with volume control and Off.
  • POWER: 240 W RMS
  • RESPONSE: 40-20,000 Hz (-10 dB)
  • DISTORTION: THD+N: < 1% @ 1 kHz
    S/N RATIO: >77 dB
  • PROTECTIONS: Overcurrent, DC and short-circuit at the output
  • INPUTS: CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.
  • CH 2, 3 and 4 balanced mic/line with 48V Phantom. Euroblock connector.
  • Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω
  • Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
  • 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω
  • 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V
    1 Mute (Emergency Priority) by contact closure. Euroblock connector
  • OUTPUTS: 1 line, 2 x RCA connectors, 1.25 V RMS (+2 dBV) signal level
    100 V or 4 Ω speaker output, or 4 100 V speaker zones with 5-position volume selector and OFF (max. 120 W RMS per zone).
  • Connector screw terminals
  • IMPEDANCE: 4 Ω and 100 V line (42Ω)
  • FUNCTIONS: Input priority (voice over VOX inputs):
    100V Emergency input with highest priority, attenuates all other inputs.
  • Mute by contact closure, attenuates all inputs except the 100V Emergency input.
    Channel 1 with priority over all other inputs, level selectable.
  • Channel 2, 3 and 4 with priority over auxiliary inputs and player, level selectable.
  • Other functions:
    Power on, protection, signal peak and output signal indicator lights
  • Temperature-controlled forced ventilation cooling
  • PLAYER: Bluetooth/USB/FM player for background music playback
    MP3 and WAV files supported
    Maximum USB memory capacity 64 GB
  • Autoplay, starts playback automatically on power on
    Memory of playback mode (random, repeat)
  • CONTROLS: Microphone volume
  • Mic/line/phantom selector
  • Master volume
  • Aux input or player selector
    Zone volume
  • Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
  • Microphone gain
  • Priority activation signal level (VOX)
  • OPERATING TEMPERATURE: Operation: 0º ~ 40ºC
    MAXIMUM HUMIDITY: 95%
    POWER SUPPLY: 230/115 V AC 50-60 Hz, 480 W
    Fuse AC 230 V 4 A / 115 V 8 A
  • DIMENSIONS: 433 x 89 x 360 mm depth. 2 U 19” rack
    WEIGHT: 11.5 kg
  • ACCESSORIES: FM Antenna
    Bluetooth antenna
    Power cable
    Rack mounts

Speaker Specification

Fonestar VULKAN-15T horn speakers (white)

  • FEATURES: 100 V line transformer horn loudspeaker.
  • Prepared for outdoor use with anti-corrosion materials.
  • Protection against water.
    For long-range message playback.
  • POWER: 15 W RMS
  • LOUDSPEAKERS: 1 x compression driver
    RESPONSE: 320-6,000 Hz (-10 dB)
  • IMPEDANCE: 15 W RMS@100 V (666 Ω)
    7.5 W RMS@100 V (1.333 Ω)
    SENSITIVITY: 105 dB @ 1 W/1 m
  • MAXIMUN SOUND PRESSURE: 116 dB @ at maximum power/1 m
  • DISPERSION: H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB)
  • PROTECTIONS: IP-66 in compliance with EN 60529
    MATERIAL: ABS diffuser and rear cover
    Aluminium mount
    A2 stainless steel screws
  • CONNECTION: 30 cm cable with stripped ends
  • TEMPERATURE RANGE: Operation: -25ºC ~ +55ºC
    Storage: -40ºC ~ +70ºC
  • HUMIDITY: <95%
  • COLOUR: White (RAL 7035)
  • DIMENSIONS: 222 x 162 x 232 mm depth
  • WEIGHT: 1.36 kg

Desktop Microphone Specification

Monacor PDM-300 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
310 mm (length of gooseneck)
