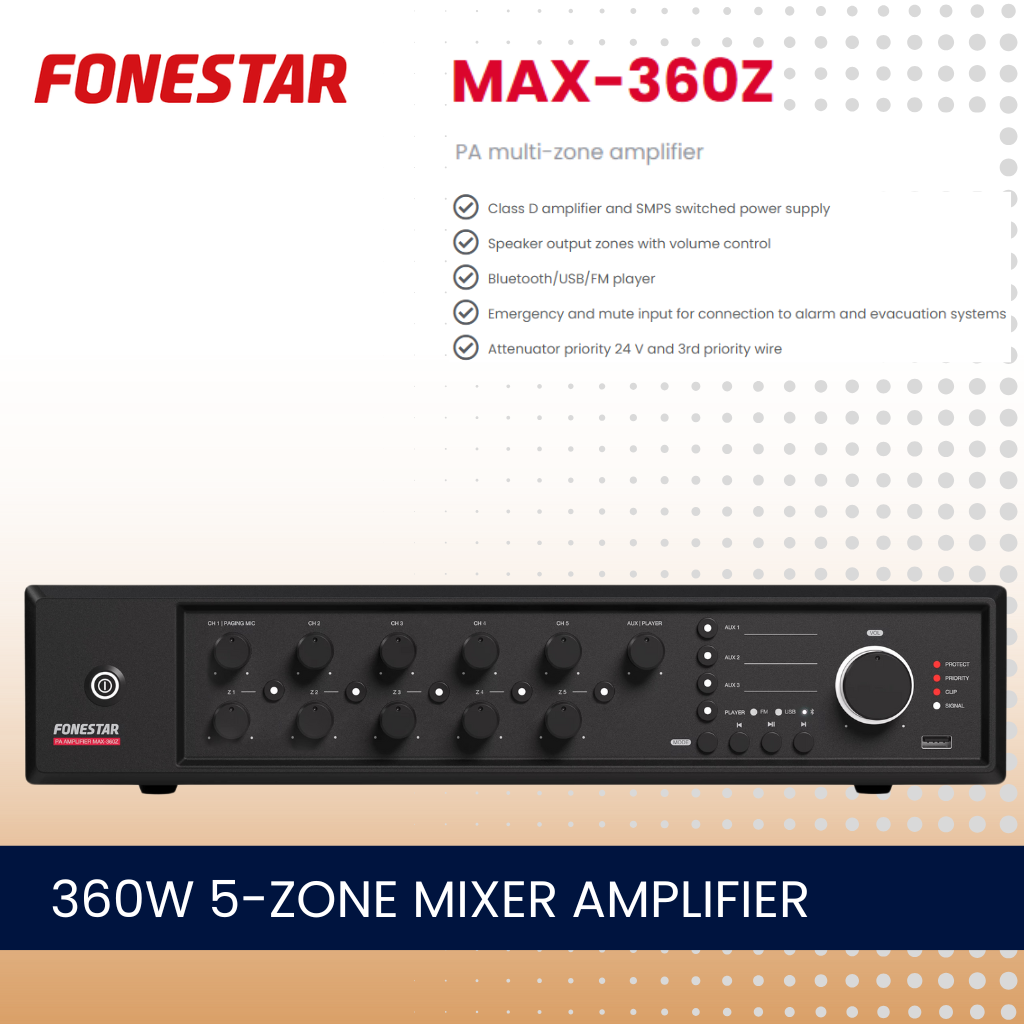

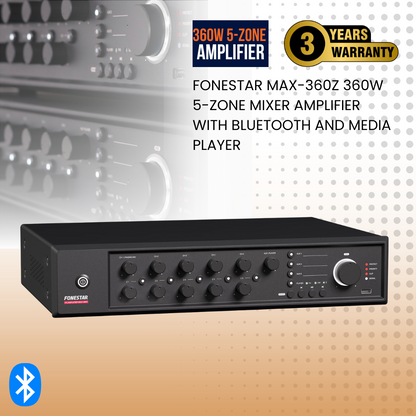

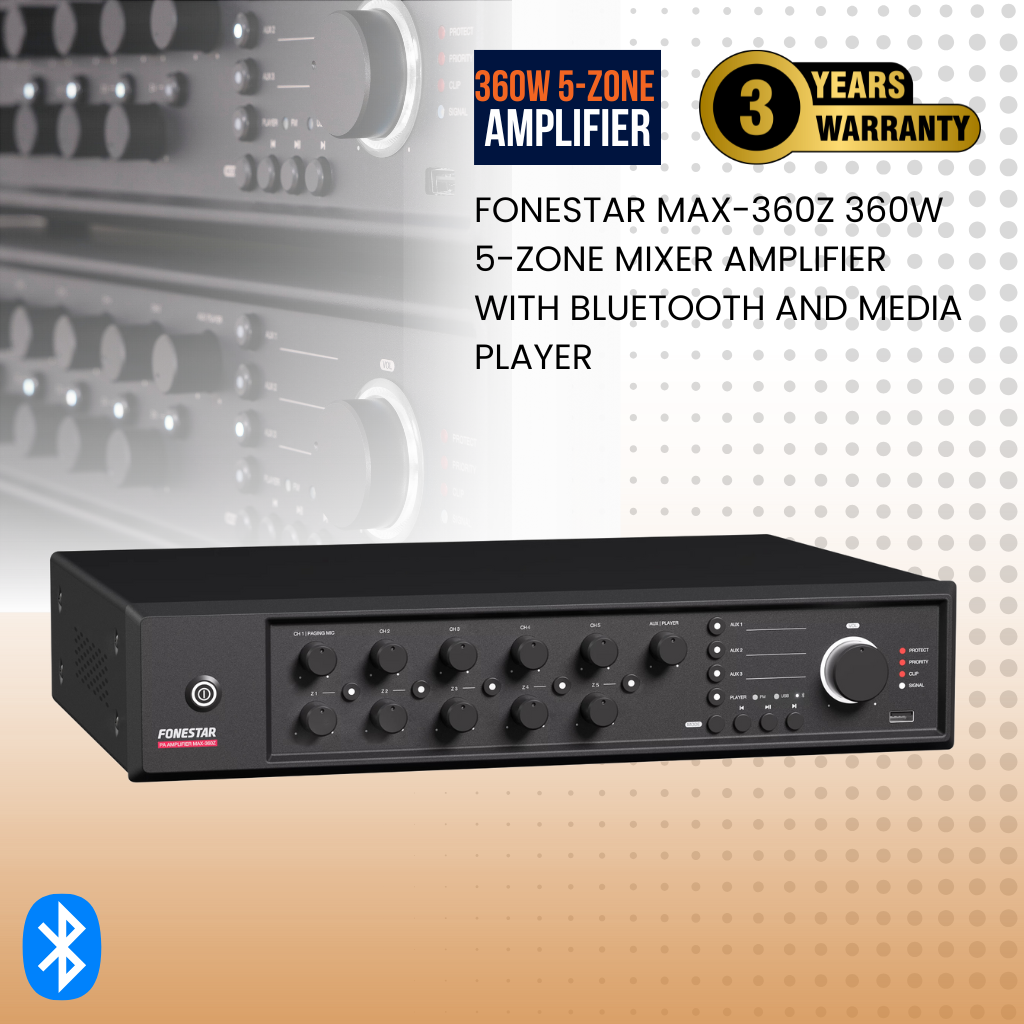

Fonestar MAX-360Z 360W 5-zone mixer amplifier with Bluetooth and media player
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- Outputs: 4 Ω, 100 V (27 Ω) and…
- 360 W RMS
- 45-22,000 Hz
- Inputs: ZONEMIC-6 zone…
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.
Introducing the PA amplifier equipped with Bluetooth®/USB/FM capabilities and a speaker zone selector, crafted with care by Fonestar. This innovative, elegant design showcases a modern class D amplifier, ensuring high efficiency and reliability for exceptional sound performance. It's the ideal choice to fill any space with quality audio, perfect for those long working days.
The amplifier allows for customized sound levels across different output zones, enabling you to tailor the audio experience in each area. Communicate effortlessly with the zone microphone to send messages directly to specific zones. It's the ultimate solution for PA and background music setups, especially when working with numerous 100 V line loudspeakers.
Its versatility extends to accommodating low impedance outputs for transformerless loudspeakers, featuring a built-in player for seamless background music. Microphone inputs facilitate clear ring tone announcements. The amplifier is designed with priority attenuating auxiliary inputs that activate priority for attenuators (24V) and offers a 3rd wire output with priority.
Enjoy secure, long-lasting connections with combo and euroblock connectors that require minimal maintenance. Operating this user-friendly amplifier is a breeze, as it can be conveniently used as either a desktop or rack-mounted unit. Whether for PA and piped music systems with 100 V or low impedance line loudspeakers, it’s perfect for a variety of settings – from commercial venues and educational institutions to monuments, exhibitions, bars, and restaurants.
| Features | Class D PA amplifier and SMPS switch-mode power supply.; Bluetooth/USB/FM player.; ZONEMIC-6 zone microphone input.; Input for remote wall panel.; Microphone input with mix, gain and priority level control.; Ringtone generator (Chime).; 3 auxiliary inputs.; Emergency input and mute for connection to alarm and evacuation systems.; 24 V attenuator priority.; 3rd wire output (100 V) with attenuator priority.; Tone controls.; 100 V, 70 V and 4 Ω outputs.; 4 outputs zones with volume control and Off. |
|---|---|
| Power | 360 W RMS |
| Response | 45-22,000 Hz (-10 dB) |
| Distortion | THD+N: <0.5% at 1 kHz |
| S/N ratio | Mic >75 dB, Line >83 dB, Aux >81 dB |
| Protections | Soft start, over-current, overload, over-temperature and short circuit |

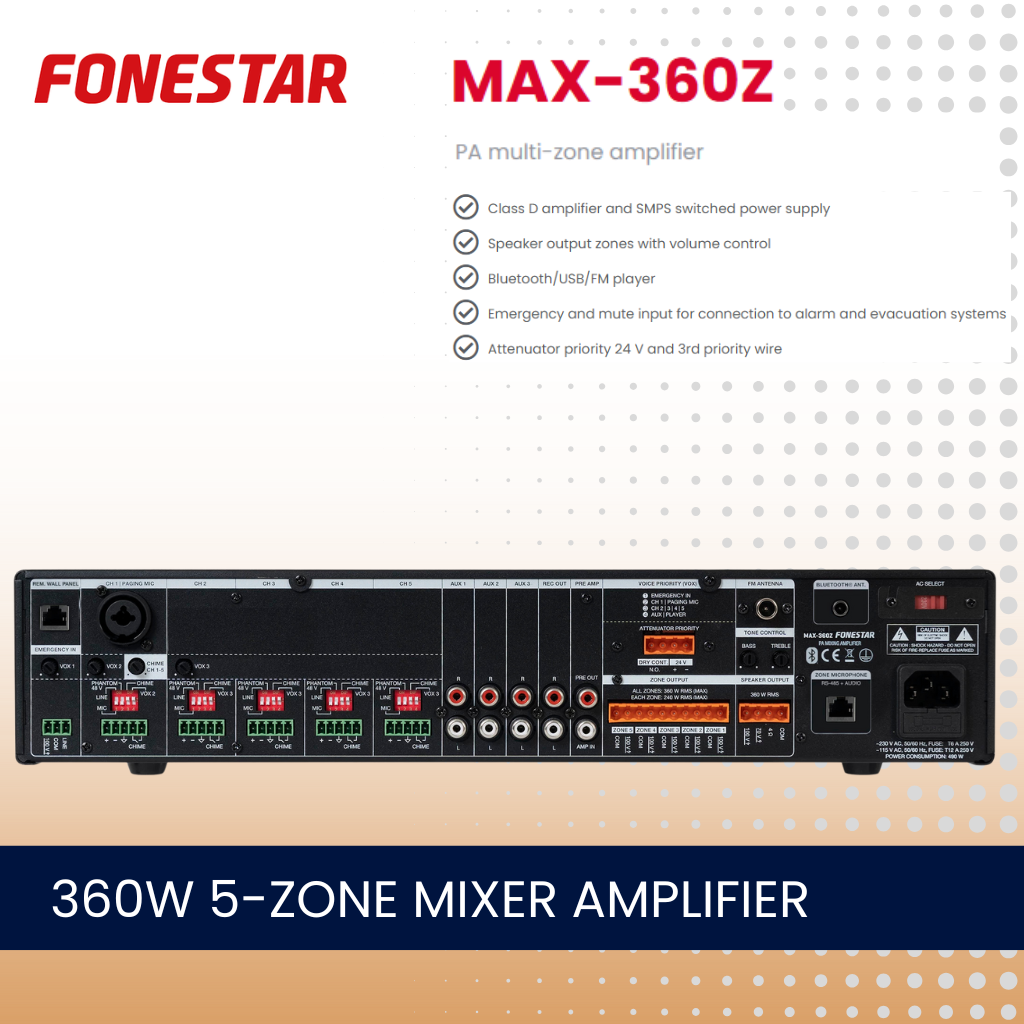

| Inputs | ZONEMIC-6 zone microphone, RJ45, up to 200 m cable length; Remote wall panel, RJ45, 250 mV RMS; CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock. Contact closure ring tones; CH 2, 3, 4 and 5 mic/line balanced with 48V phantom. Combo (XLR + 6.3 mm) and euroblock. Contact closure ring tones |
| Mic signal level | 5.6 mV RMS (-45 dBV) / 600 Ω |
| Line signal level | 250 mV RMS (-12 dBV) / 100k Ω; 3 x AUX. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω.; 1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or line 100 V; Mute (Emergency Priority) by contact closure. Euroblock connector; 1 Amp-in. RCA connector. Signal level 1.2 V RMS (+ 1.5 dBV) |
| Outputs | 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.; 1 Pre-out. RCA connector. Signal level 1.2 mV RMS (+1.5 dBV); 100 V, 70 V or 4 Ω speaker output, or 5 zones of 100 V loudspeakers with 7-position volume selector and OFF (max. 240 W per zone). Euroblock connector; 1 Attenuator priority, 24 V 100 mA and contact closure. Euroblock connector; 1 3rd priority wire for attenuators (100 V) |
| Impedance | 4 Ω, 100 V (27 Ω) and 70 V (13 Ω) line, euroblock |
| Functions | Input priority (voice over inputs (VOX)):; - 100 V Emergency input / line with maximum priority and MUTE by contact closure, attenuates all inputs except the 100 V Emergency input.; - ZONEMIC-6 zone microphone input; - Remote wall panel input; - Channel 1 with priority over all other inputs, level selectable; - Channel 2, 3 and 4 with priority over auxiliary and player inputs, level selectable; - AUX and player inputs |
| Ringing tones (chime) | at microphone inputs, by contact closure; Power ring light on volume control, AUX input, zone and player indicators. Power on, signal, clip, priority activation and protection; Induction cooling, fanless. Silent and maintenance-free |
| Player | Bluetooth/USB/FM player for ambient music playback; 5.3 Bluetooth.; Autoplay, starts playback automatically when switched on; Memory of the last selected mode; Playback mode memory (random, repeat). |
| Controls | Microphone volume; Master volume; Auxiliary input selector or player |
| Zones | with power on and 7 volume positions |
| Tone | bass and treble (±10 dB 100 Hz and 10k Hz).; Mic/line/phantom selector, ring tones and priority; Ringing tone level (chime); Priority activation signal level (VOX) |
| Temperature | Operation: -10º ~ 40ºC |
| Storage | -20º ~ 60ºC |
| Maximum humidity | 90% |
| Power supply | 230/115 V AC 50-60Hz |
| Power consumption | 600 W; AC fuse 230 V 8 A / 115 V 16 A |
| Dimensions | 430 x 89 x 320 mm depth. 2 U 19” rack |
| Weight | 9.8 kg |
| Accessories | FM antenna; Bluetooth antenna.; Power cable; Rack mounts |
| Optional | ZONEMIC-6: Zone microphone |
