Fonestar MIXPLAY-1 Bluetooth/USB/FM media player with recorder and mixer function

Name: Fonestar MIXPLAY-1 Bluetooth/USB/FM media player with recorder and mixer function
Brand: Commerical Audio Outlet
Price: 189.0 GBP
Availability: InStock

SKU:

£189.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

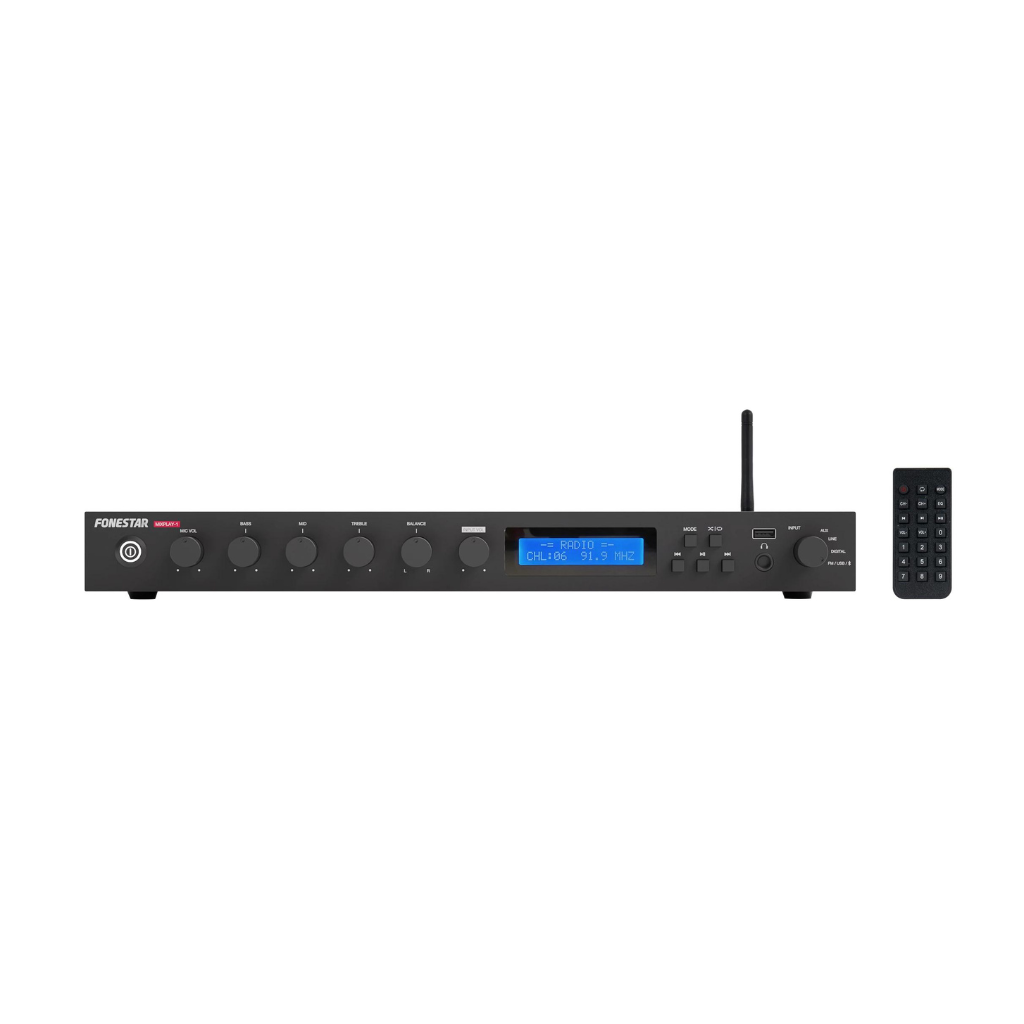

Introducing the MIXPLAY-1, a comprehensive audio solution that functions as a Bluetooth®, USB, SD, and FM player, capable of recording and mixing audio with remarkable ease. This all-in-one device provides everything necessary for an engaging sound experience, allowing for seamless playback, recording, and mixing of microphone inputs alongside music.

Equipped with a built-in microphone input featuring a priority function, the MIXPLAY-1 intelligently reduces music volume during voiceovers or announcements, ensuring smooth transitions without manual intervention. Users can effortlessly blend the microphone signal with various audio sources, including their preferred Bluetooth content.

Connectivity is straightforward with the MIXPLAY-1, which supports a variety of inputs. It includes digital options such as optical and coaxial connections, as well as auxiliary and line inputs. Whether streaming via Bluetooth, utilizing USB, or listening to the radio, this player provides a comprehensive array of audio sources. Additionally, the recording capability enables users to capture the microphone mix along with all other audio inputs.

The device offers three output options for connecting to audio amplifiers, which can be set up for either mono or stereo sound. A dedicated subwoofer output is also available, facilitating the connection of an active subwoofer to enhance bass performance.

Designed for compact efficiency, the MIXPLAY-1 fits conveniently into a 1U 19'' rack and comes with the necessary mounting hardware for installation in a rack cabinet.

Ideal for audio setups in small environments such as shops, restaurants, or gyms, the MIXPLAY-1 is a versatile and user-friendly choice. Experience clear sound and accurate music playback with minimal distortion.

Media Player Specification

Fonestar MIXPLAY-1 media player

FEATURES: Bluetooth/USB/FM player.
Recording function.
Microphone input mixer with auxiliary or player.
Microphone priority by signal level.
Optical or coaxial digital audio input.
Auxiliary inputs.
3 x master outputs.
Stereo/mono selector for outputs.
Output for active subwoofer.
Bass, midrange, treble and balance control.
Remote control of the player.
RESPONSE: 20-20,000 Hz
DISTORSION: THD+N: < 0.1% @ 1 kHz
S/N RATIO: Mic >60 dB
Aux >70 dB
INPUTS: 1 x MIC balanced Micro. Combo (XLR + 6.3 mm) connector. Signal level 30 mV RMS (-30 dBV) / 600 Ω (@ balanced and unbalanced output 1 V RMS)
2 AUX and LINE. 2 x RCA connector. Signal level: 350 mV RMS (-9 dBV) / 47K Ω (@ balanced 1 V RMS output). Signal level: 750 mV RMS (-2.5 dBV) / 47K Ω (@ unbalanced output 1 V RMS)
1 x digital audio (optical or coaxial). Connectors, TOSLINK and RCA. Priority of the optical input over the coaxial input
OUTPUTS: OUT 1 and OUT 2 unbalanced output. 2 x RCA connectors. Signal level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω
OUT 3 balanced output. 2 x XLR connectors. Output level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω
1 x REC. 2 x RCA connectors. Signal level. 1 V RMS (0 dBV) / 1K5 Ω
1 x Subwoofer. RCA connector. Signal level: 1 V RMS (0 dBV) / 1K5 Ω
1 x Headphones. 6.3 mm stereo connector.
FUNCTIONS: Microphone priority by signal level over all other inputs, level selectable
Stereo/mono output selector for OUT 1, OUT 2 and OUT 3
PLAYER: Bluetooth/USB/FM player
Supported MP3, WMA and WAV files
USB recorder of the microphone mix and AUX or Line inputs (does not record digital audio input)
USB sticks of 64 GB maximum, FAT32 and NTFS format
USB flash drive autoplay, starts playback automatically in USB mode on power-up
Playback mode memory (random, repeat).

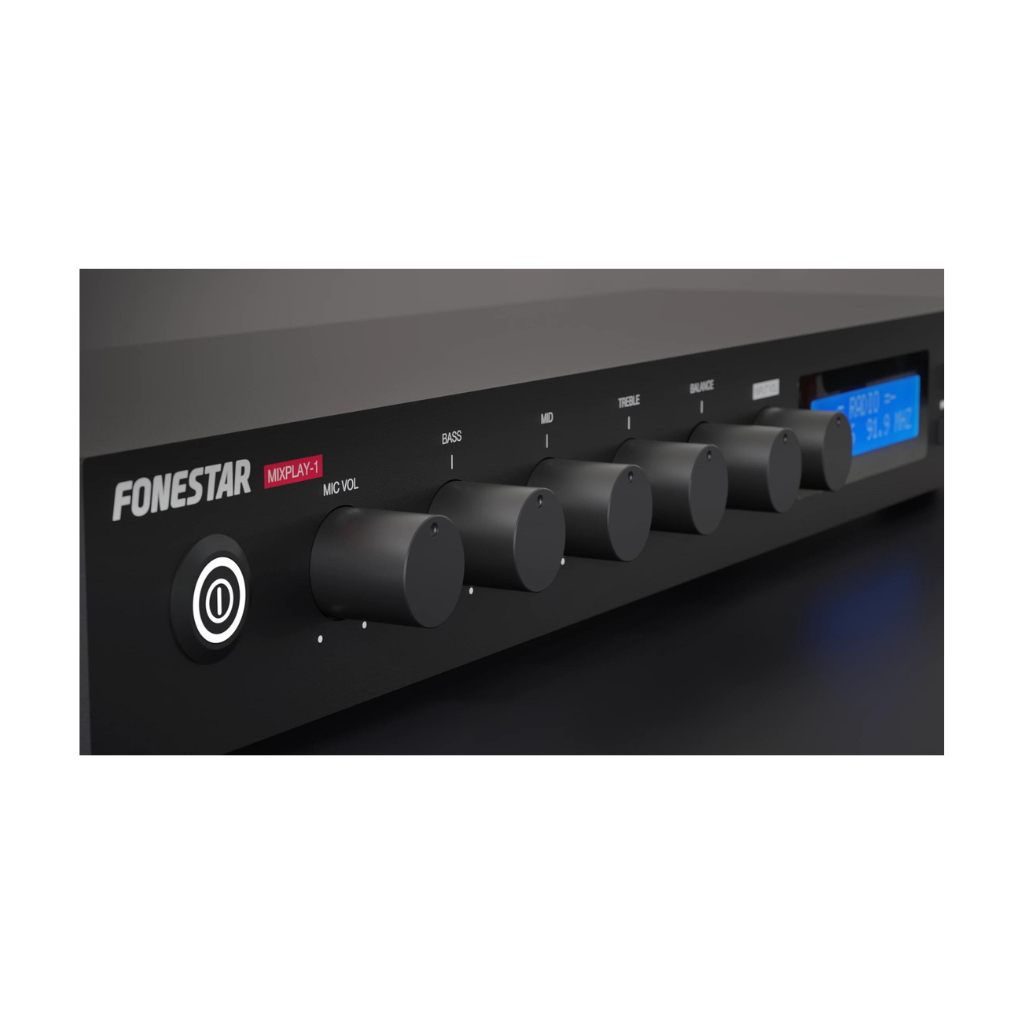

CONTROLS: Microphone volume.
Input selector or player
Volume of AUX, LINE, DIGITAL and player inputs with balance, bass, mid and treble control
Mono/stereo selector for outputs
Player/recorder controls
GND lift ground disconnection
POWER SUPPLY: 230/115 V AC, 7 W
DIMENSIONS: 433 x 45 x 155 mm depth. 1 U 19” rack
WEIGHT: 1.9 kg
ACCESSORIES: Remote control of the player.
FM antenna
Power cable
Brackets for 19" rack.
