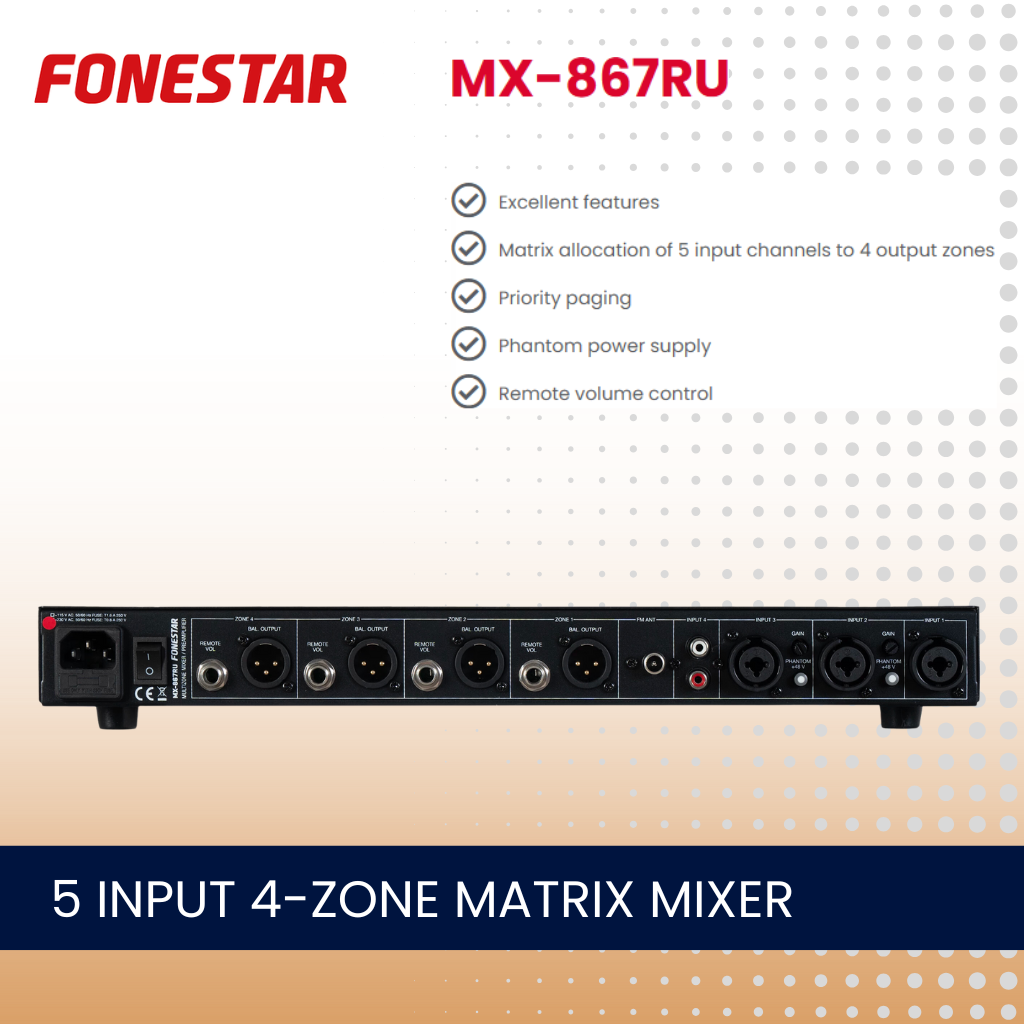

Fonestar MX-867RU 5 input 4-zone matrix mixer
FEATURES: Mixer/preamplifier.
Microphone input with paging priority.
Matrix allocation of 5 input channels to 4 output zones.
USB/SD player.
Digital FM radio tuner.
4 speaker zones with independent volume control.
Remote zone volume control.
Phantom power supply.
INPUTS: 1 balanced microphone, 6.3 mm stereo jack, 12 mV RMS
1 balanced mic., combo (XLR and 6.3 mm jack), 12 mV RMS
2 balanced mics./lines combo (XLR and 6.3 mm jack) adjustable, 12 mV RMS and 640 mV RMS
1 stereo aux, 2 x RCA, 230 mV RMS
1 stereo aux, 3.5 m jack, 450 mV RMS
OUTPUTS: 4 balanced zones, XLR, 2.5 V RMS
Remote volume control for the zones
1 stereo monitor, 6.3 mm jack, 1 V RMS
CONTROLS: 4 micro allocation switches for zones 1 to 4
Inputs 1 to 4: volume control
Inputs 2 and 3: gain control
Zones 1 to 4: volume control
Monitor: volume control and zone selection
USB/SD player
FM tuner
RESPONSE: 20-20,000 Hz
DISTORTION: Harmonic: < 0.2 % to 1 kHz
S/N RATIO: Microphones > 65 dB
Aux/Line > 80 dB
PHANTOM: 48 V in mics. 2 and 3, selectable
PRIORITY: Mic. 1 input level priority, selectable
POWER SUPPLY: 230/115 V AC, 9 W
DIMENSIONS: 483 x 44.5 x 200 mm depth. 1 U 19" rack
WEIGHT: 3.15 kg
