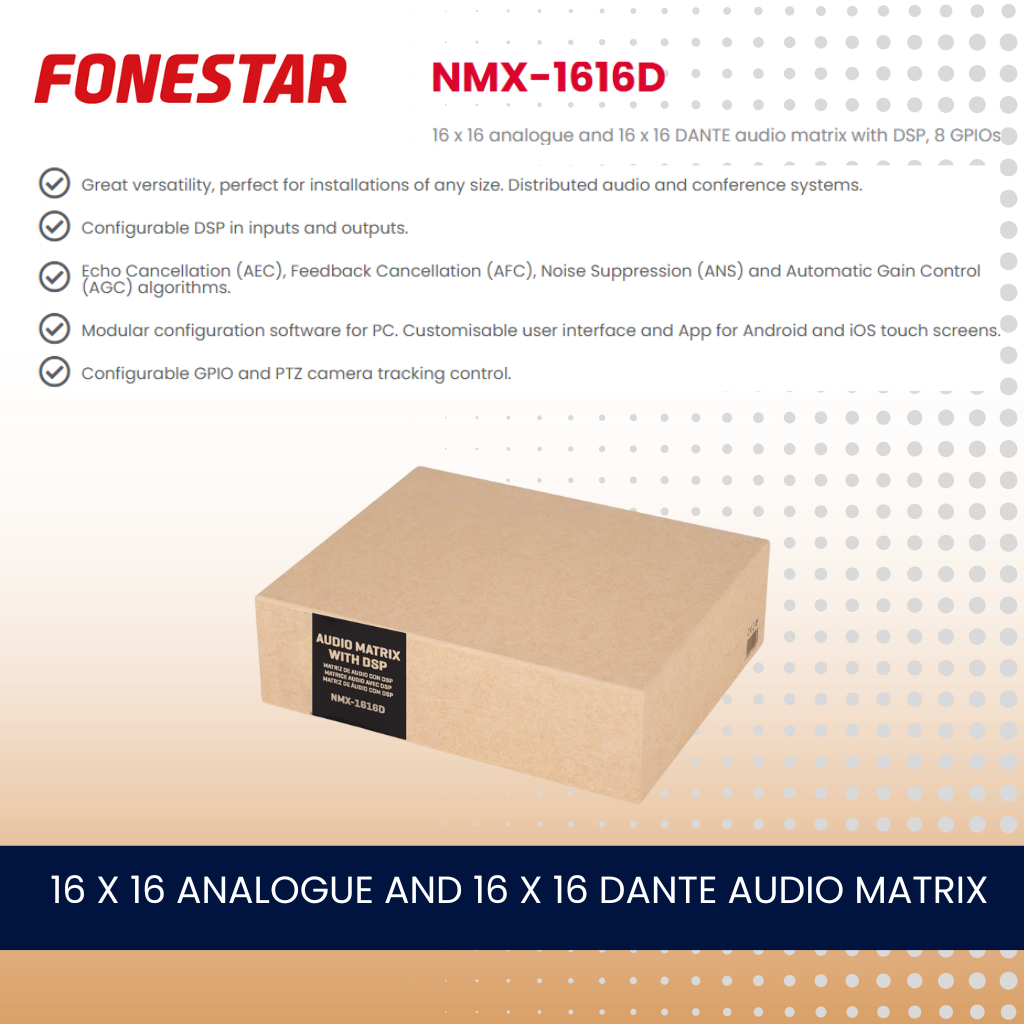

Fonestar NMX-1616D 16 x 16 analogue and 16 x 16 DANTE audio matrix

SKU NMX-1616D
£3,079.17 ex VAT / £3,695.00 inc VAT

✓ Available to order

Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.

Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.

  • 20-20,000 Hz ±0.3 dB
  • Inputs: 16 balanced lines with…
  • Outputs: 16 balanced lines.…
  • 100-240 V AC, 50-60 Hz…
Fitting out a venue? Get a free system design → Send us your floor plan and we'll design the zones and speaker layout, then quote. Free and no obligation.
Need a trade or project quote?

Talk to our team: 01284 652 949

Expert advice on choosing and designing your system.

Free delivery option

Express next-day service if ordered before 15:00 (Mon–Fri).

3-year manufacturer's warranty

Our products come with a 3-year manufacturer's warranty as standard.

UK installer network

We can quote for installation through our UK installer network.

Introducing a powerful 16 x 16 analogue and 16 x 16 DANTE audio matrix equipped with DSP and 8 GPIOs. This system offers remarkable versatility, making it ideal for installations of any scale, whether you're setting up distributed audio or conference systems.

With configurable DSP for both inputs and outputs, you can enhance audio quality through advanced algorithms for Echo Cancellation (AEC), Feedback Cancellation (AFC), Noise Suppression (ANS), and Automatic Gain Control (AGC).

Our modular configuration software for PC allows for a tailored user experience, complete with a customizable interface and a dedicated app for Android and iOS touch screens. Plus, enjoy the flexibility of configurable GPIO and PTZ camera tracking control to meet your specific needs.

16 x 16 analogue and 16 x 16 DANTE audio matrix with DSP and 8 GPIO. The NMX-1616D is an audio matrix with a digital signal processor (DSP) that offers a complete and versatile solution for handling and processing audio signals. With this matrix, sound systems can be configured with simple end-user control. It has powerful audio signal processing tools to match and enhance the signal to any venue or application, and get the best results for sound diffusion. It gives the installer the possibility to configure sound systems with multiple inputs and outputs. And gives the user an easy way to control the sound. It is based on an ADI SHARC 21489 architecture, with 40 floating point bits and a high processing power (400 MIPS, 1600 MFLOPS). It has 16 analogue inputs and 16 analogue outputs and 16 DANTE digital inputs and 16 digital outputs. In addition, it features a USB sound card input and output channel for PC playback and recording or use with video calling software. One of the outstanding features of the NMX-1616D audio matrix is its signal processing algorithms. The main ones include: Echo Cancellation (AEC) for video conferences. Feedback Cancellation (AFC) allows flexible placement of microphones and speakers, improving speech amplification and delivering audio where it is needed. Noise Suppression (ANS) effectively eliminates static noise other than speech. Automatic Gain Control (AGC) ensures that the inputs have an optimal level. In addition to other functions such as auto mix and priority control, it also has processing on signal dynamics such as parametric filters, graphic filters, noise gate, expander, compressor, delays, crossover and limiter. The processing can be applied to both analogue and DANTE digital channels. Each channel has a volume control that can operate independently or link two channels together to form a stereo channel. The assignment matrix allows inputs to be assigned to outputs with independent volume on each assignment. Achieving to select a different mix for each output. Up to 16 scenes that can be loaded and memory function with auto-save of the parameters selected in the last session. 8 GPIO ports to control actions on the matrix or other devices. For conference system applications, PTZ camera control is available for discussion monitoring. The matrix is equipped with powerful modular configuration software. You can configure each input channel with 5 different processing modules and each output channel with 4 processing modules. The processing algorithms are highly parameterised. It allows for great flexibility in configuration and customisation to provide a solution for each installation, such as audio distribution, conference systems, etc. The configuration software can manage several matrices to form a complex system. With the software it is possible to create customised control panels to run on touch screens, tablets or smartphones (Android and iOS). Where only the functions required for each user can be displayed. The matrix can be connected via an Ethernet port. It has UDP, RS-232 and RS-485 connectivity, and a communication protocol for integration with other control systems. Thanks to its flexibility, it can be used for voice applications such as conference systems or video call rooms and in music systems in restaurants, hotels, shopping centres, etc.

FeaturesAudio matrix with DSP, ADI SHARC 21489 architecture; 16 analogue inputs ( Microphone / selectable 48V line with Phantom).; 16 DANTE digital inputs.; 16 analogue outputs.; 16 DANTE digital outputs.; USB sound card input and output channel.
AlgorithmsEcho Cancellation (AEC), Feedback Cancellation (AFC), Noise Suppression (ANS), Automatic Gain Control (AGC).; Signal processing with 5 modules per input channel including expander, compressor, noise gate, automatic gain control (AGC), priority, parametric filter, graphic filter, priority, acoustic feedback cancellation (AFC) and delay. And 4 modules for each output channel between crossover, parametric filter, graphic filter, delay and limiter.; Two-channel stereo linking, Auto Mixing, Echo Cancellation (AEC), Noise Suppression (ANS), Matrix Volume Assignment, 8 GPIOs, 16 scenes, PTZ camera tracking control.; Ethernet connection and RS-232, RS-485 control port. UDP, RS-232 and RS-485 protocol.; Configuration software and modular user interface with App for touch screens.
Inputs16 balanced lines with gain selection in 3 dB steps: 0 dB to -48 dB. Signal level: 24 mV RMS (-30 dBu) ~ 6.15 V RMS (+18 dBu) 5.4K Ω. 110 dB dynamic range. Euroblock connector; 16 DANTE digital input channels; Selectable phantom power 48 V (10 mA max.); 1 x LAN port for local area network connection, RJ-45; 1 x RS-232 port, euroblock; 1 x RS-485 port, euroblock
Outputs16 balanced lines. Signal level: max. 6.15 V RMS (+18 dBu) 600 Ω. 112 dB dynamic range. Euroblock connector; 16 DANTE digital output channels
ControlsModular PC control software (input/output routing, DSP functions, equalisation, noise gates, compressor, gain controls, etc.); App for customised user control interface.; UDP, RS-232 and RS-485 protocol for integration with other systems.; RS-232 and RS-485 for PTZ camera tracking control.
Digital audio48 KHz, 24 bits
Latency<3 ms
Response20-20,000 Hz ±0.3 dB
DistortionTHD+N harmonic: <0.002% @4dBu
S/N ratio112 dB
Power supply100-240 V AC, 50-60 Hz, 30 W

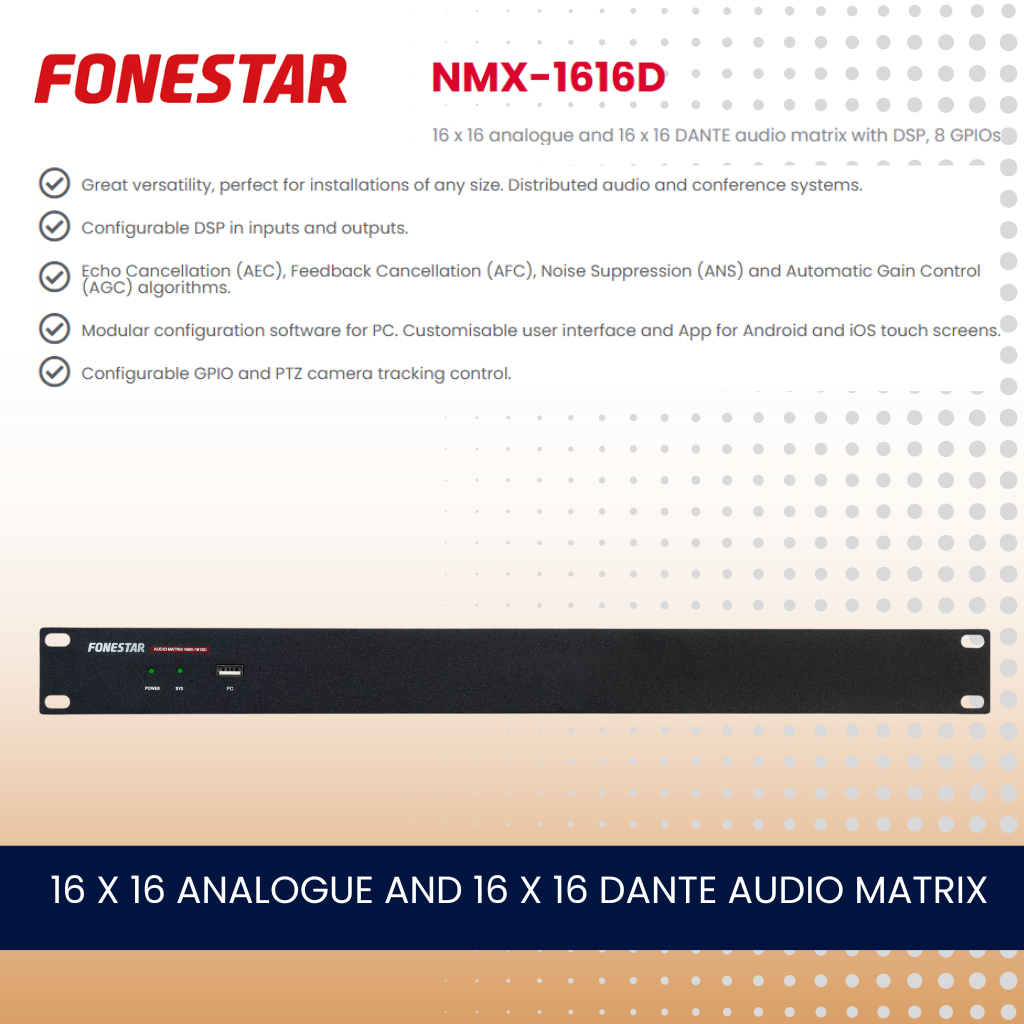

Dimensions482 x 44 x 268 mm depth. 1 U 19" rack
Weight3.1 kg
OptionalNMX-WP: Wall control unit
Tab-10-1610'' Android touch screen
Mcmd-1DANTE desktop microphone
