**Remote Control Unit for NMX Series Matrices**

The remote control unit for the NMX series matrices offers up to 32 programmable menus, ensuring a tailored user experience. Connection is straightforward via Ethernet with POE power support.

This programmable remote allows users to interact with the sound system directly, eliminating the need for navigating the complex matrix configuration. It simplifies management by letting users access the most common functions, enhancing overall usability. Featuring a sleek, neutral design, the remote has a selection button and a display for easy interaction. The control knob enables users to customize menus based on specific needs.

Programmable and customizable through PC control software, this unit lets you select functions such as volume control, gain adjustments, mute options, scene recalls, and other special actions using UDP, RS-232, or RS-485 commands. Additionally, multiple remotes can be integrated within a single installation, ensuring efficient management.

This controller is perfect for environments like music bars, restaurants, hotels, shopping centers, and conference rooms where local volume control and source selection is essential, along with a variety of other actions.

Wall Panel Specification

Fonestar NMX-WP Remote control unit for NMX series DANTE matrix

INPUTS: 1 x LAN port for local area network connection, RJ-45
FEATURES: Programmable remote control.

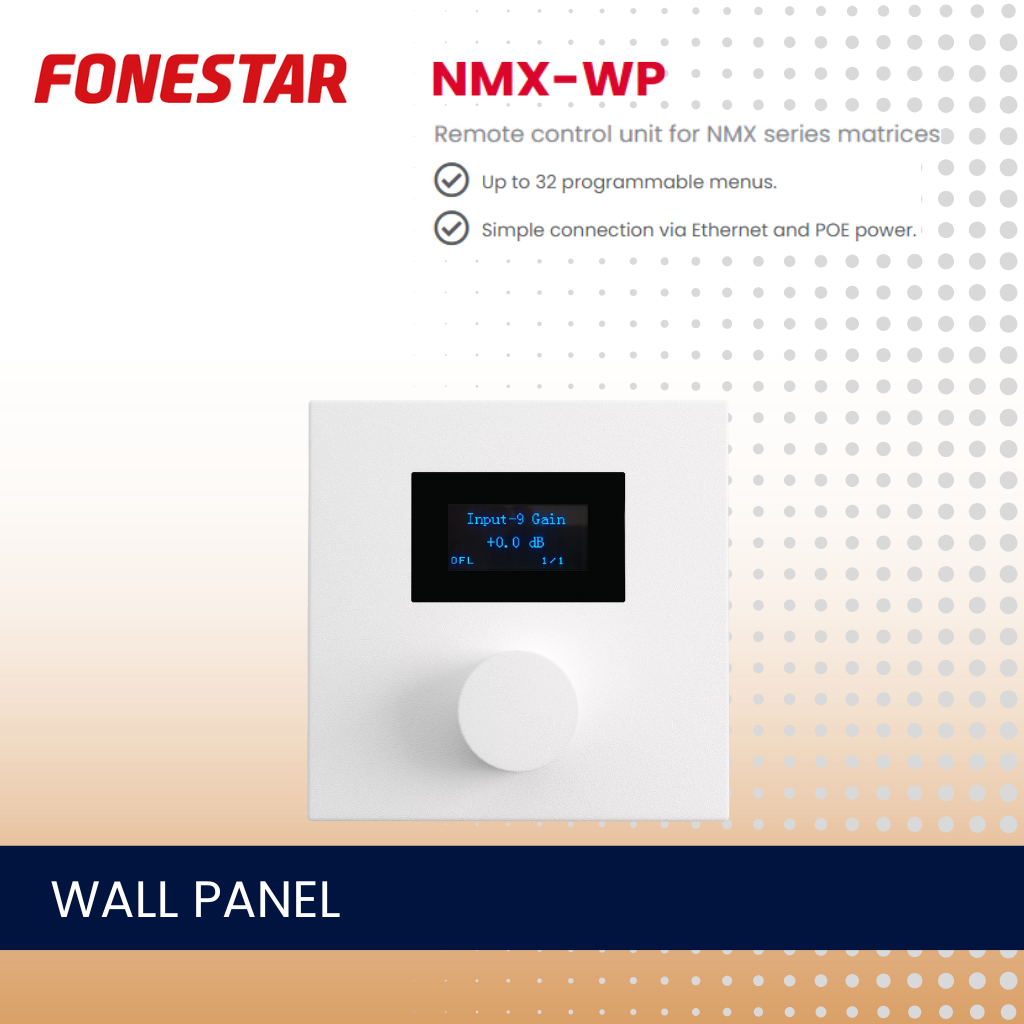

Neutral design with a selection button and information display.
Up to 32 programmable menus.
Programmable and customisable with PC control software.
The main functions are volume control, gain control, Mute, scene call and UDP, RS-232 or RS-485 commands.
Supports multiple controllers in one installation.
Simple connection via Ethernet and POE power.
Installation in 86 x 86 mm standard box.
CONTROLS: Selection and confirmation button
UDP control protocol
POWER SUPPLY: POE, consumption <300 mA
DIMENSIONS: Totals: 86 x 86 x 50 mm depth
Inset: 57 x 62 x 30 mm depth
Distance between screws: 60 mm
WEIGHT: 0.25 kg
OPTIONAL: DOT-BOX-B: Surface mounting box
