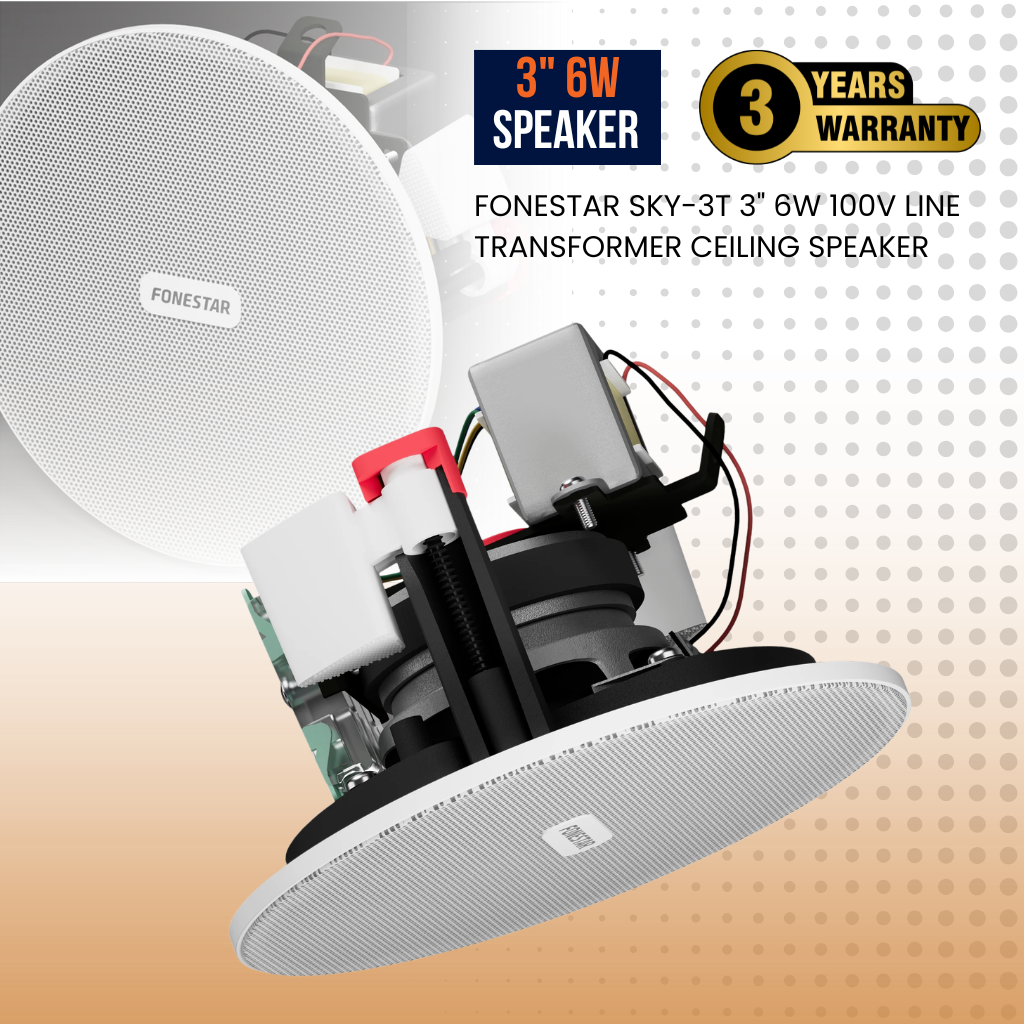

Fonestar SKY-3T 3" 6W 100V line transformer ceiling speaker

Fonestar SKY-3T 3" 6W 100V line transformer ceiling speaker

SKU:

Regular price £26.95
Regular price Sale price £26.95
Sale Sold out
Tax included. Shipping calculated at checkout.

SKY-3T | Compact Low-Profile Ceiling Speaker

The discreet audio solution for modern architecture, delivering clear sound and a clean, frameless aesthetic.

The SKY-3T is a professional passive ceiling speaker designed for seamless integration into any commercial or residential environment. As the foundation of the SKY series, it focuses on high voice intelligibility and smooth background music distribution. Its signature magnetic, frameless grille ensures that the speaker remains virtually invisible once installed, making it a favorite for architects and interior designers who prioritize minimalist aesthetics.


Key Features

Frameless Magnetic Grille: Features a micro-perforated steel grille that attaches magnetically, providing a completely flush finish with no visible plastic rim.

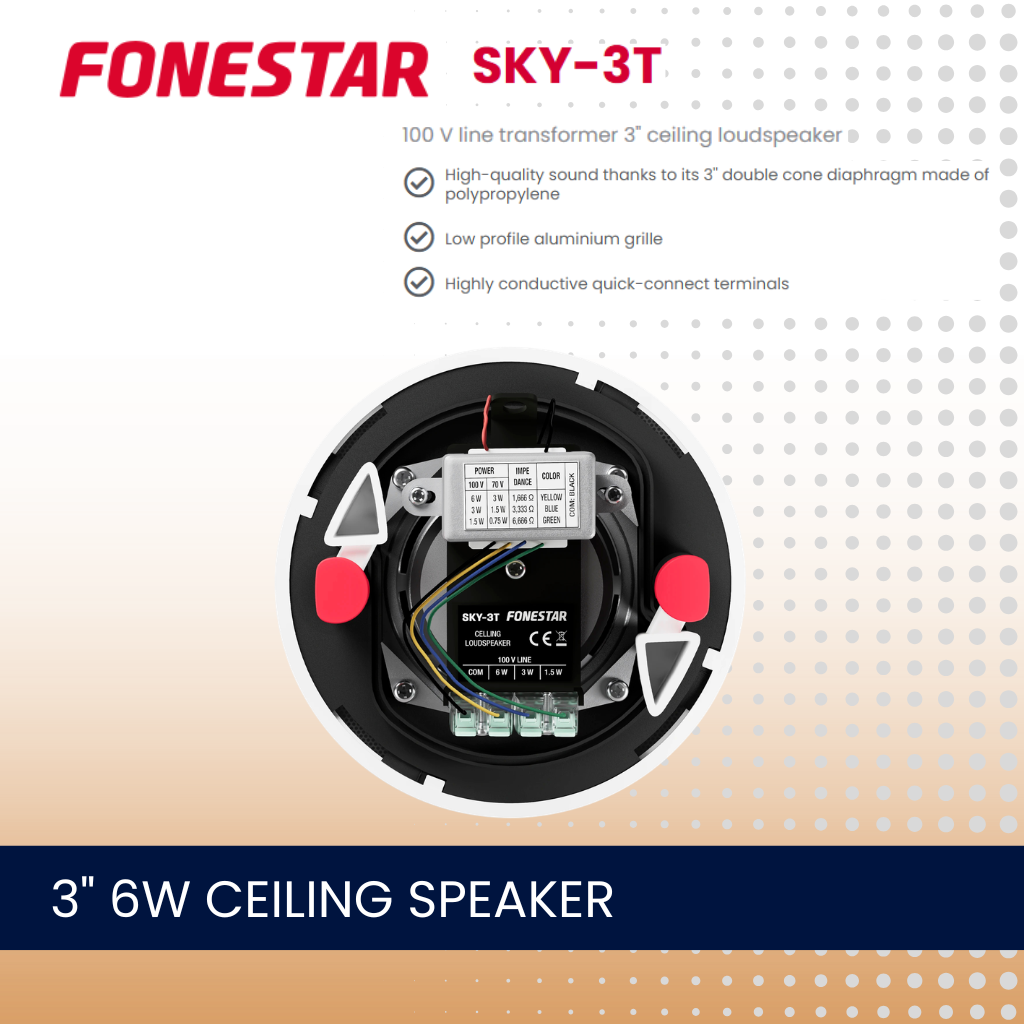

Dual Voltage/Impedance: Includes a built-in 100V line transformer for professional distributed systems and an 8Ω bypass for standard low-impedance amplifiers.

Wide Sound Dispersion: The 3" full-range driver is engineered to provide broad, uniform coverage, reducing the number of units needed for consistent audio levels.

Ultra-Compact Footprint: With a cutout diameter of only 105 mm, it fits perfectly alongside standard recessed lighting for a cohesive ceiling layout.

Easy Installation: Equipped with a secure "dog-ear" mounting system for quick and stable installation in suspended or plasterboard ceilings.

Why Choose the SKY-3T?

Minimalist Visual Impact

The SKY-3T is designed for spaces where the hardware should never distract from the décor. Whether in a high-end boutique, a hotel corridor, or a modern home, its ultra-low profile allows it to disappear into the ceiling, leaving only the sound behind.

Reliable 100V Performance

For large-scale installations, the built-in transformer allows for long cable runs and the connection of numerous speakers in parallel without signal loss. It is the perfect choice for consistent, reliable background music and paging across expansive facilities.

Space-Saving Depth

With a mounting depth of only 75 mm, the SKY-3T is ideal for ceilings with limited clearance or shallow voids. It offers a professional audio solution in spaces where larger, bulkier ceiling speakers simply won't fit.

Speaker Specification

FEATURES: Ceiling speaker with 100 V line transformer.
Frameless, low-profile grille made of oxidation-resistant aluminum. Removable, lockable by rotation. The logo can be removed and painted.
Quick connection terminals with high conductivity.
Safety cable hook.
Stable ceiling mounting brackets with worm-screw system.
Protection against dust and water.
POWER: 6 W RMS
12 W MAX.
SPEAKER: 3'' polypropylene double cone diaphragm
RESPONSE: 70-20,000 Hz @ -10 dB
100-20,000 Hz @ -3 dB
IMPEDANCE: 6 W RMS@100 V (1,666 Ω)
3 W RMS@100 V/70 V (3,333 Ω/1,633 Ω)
1.5 W RMS@100V/70 V (6,666/ 3,266 Ω)
0.75 W RMS@70 V (6,533 Ω)
SENSITIVITY: 86 dB @ 1 W/1 m
SOUND PRESSURE: 94 dB @ max. W/1m Continuous
97 dB @ max. W/1m Peak
COVERAGE ANGLE: 150º@1kHz (-6 dB)
PROTECTIONS: IP-44 in compliance with IEC 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid paint aluminium grille
CONNECTORS: Highly conductive quick-connect terminals
For 0.4 ~ 4 mm² cross section cable
OPERATION TEMPERATURE: -20ºC ~ 70°C (48 h)
STORAGE TEMPERATURE: 10ºC ~ 40°C
MAXIMUM HUMIDITY: 95%
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 144 mm Ø x 85 mm height
Grille section: 5 mm
Recessed height: 80 mm
Installation hole: 177 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 0.58 kg
INCLUDES: Installation template
