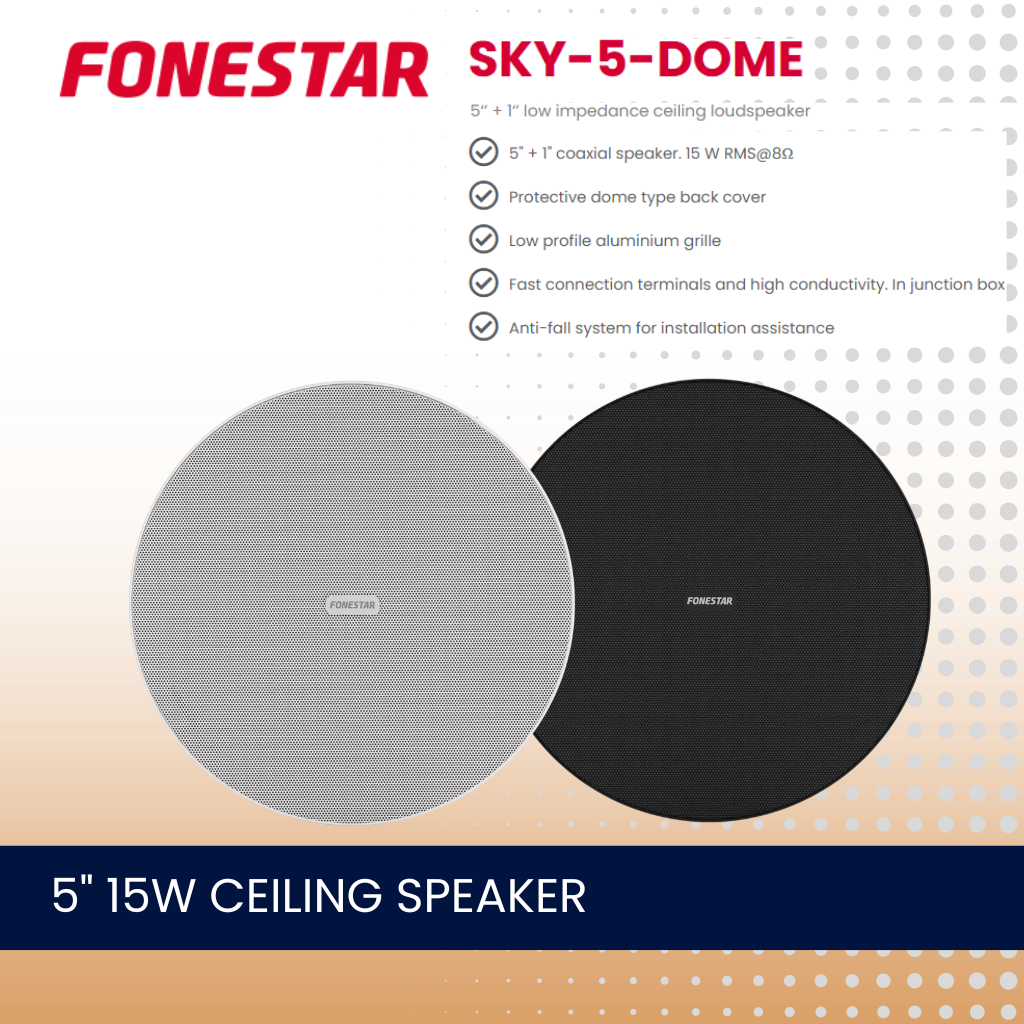

Fonestar SKY-5-DOME 5" 15W low impedance ceiling speaker
Fonestar SKY-5-DOME 5" 15W low impedance ceiling speaker
SKU:
Couldn't load pickup availability
Design by Fonestar products are the result of in-depth research and active listening to our customers, turning their needs into competitive solutions.
SKY-5-DOME ceiling loudspeaker: discretion and performance in any space
The SKY-5-DOME is a ceiling loudspeaker designed to meet the demands of installers and engineering professionals looking for sound quality, durability and versatile design. With robust construction, dust and water protection, and a minimalist profile, this model combines advanced technology with discreet aesthetics, ideal for spaces with specific technical requirements.
Maximum versatility for professional installations
- Certified resistance: With IP-65 rating and protection against harsh conditions such as dust and moisture, the SKY-5-DOME is suitable for challenging environments.
- Practical and safe design: It includes a removable and paintable aluminium grille, an anti-fall system and safety cable hooks, which make it easy to install even in ceilings with reduced access.
- Superior sound quality: It integrates a 5‘ coaxial polypropylene woofer and 1’ swiveling tweeter to ensure a clear and wide frequency response from 100 Hz to 20,000 Hz.
Why choose SKY-5-DOME?
The SKY-5-DOME is designed for applications where quality and robustness are essential:
- Long-lasting materials: Made of UV-resistant ABS and corrosion-resistant aluminium grille, guaranteeing a long service life.
- High acoustic precision: Its sensitivity of 86 dB and a maximum sound pressure of 99 dB make it ideal for a powerful and defined sound.
- Easy connectivity: It has quick-connect terminals that are compatible with cables of different thicknesses, optimising the installation process.
- Broad compatibility: Suitable for low impedance systems (8 Ω) and perfect for ceiling applications with limited space.
The SKY-5-DOME combines technical innovation with design features that make for exceptional installation and acoustic performance in any project.
Speaker Specification
Speaker Specification
Fonestar SKY-5-DOME ceiling speaker
FEATURES: Low impedance ceiling loudspeaker.
Protective dome type back cover.
Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable. The logo can be removed and the speaker can be painted.

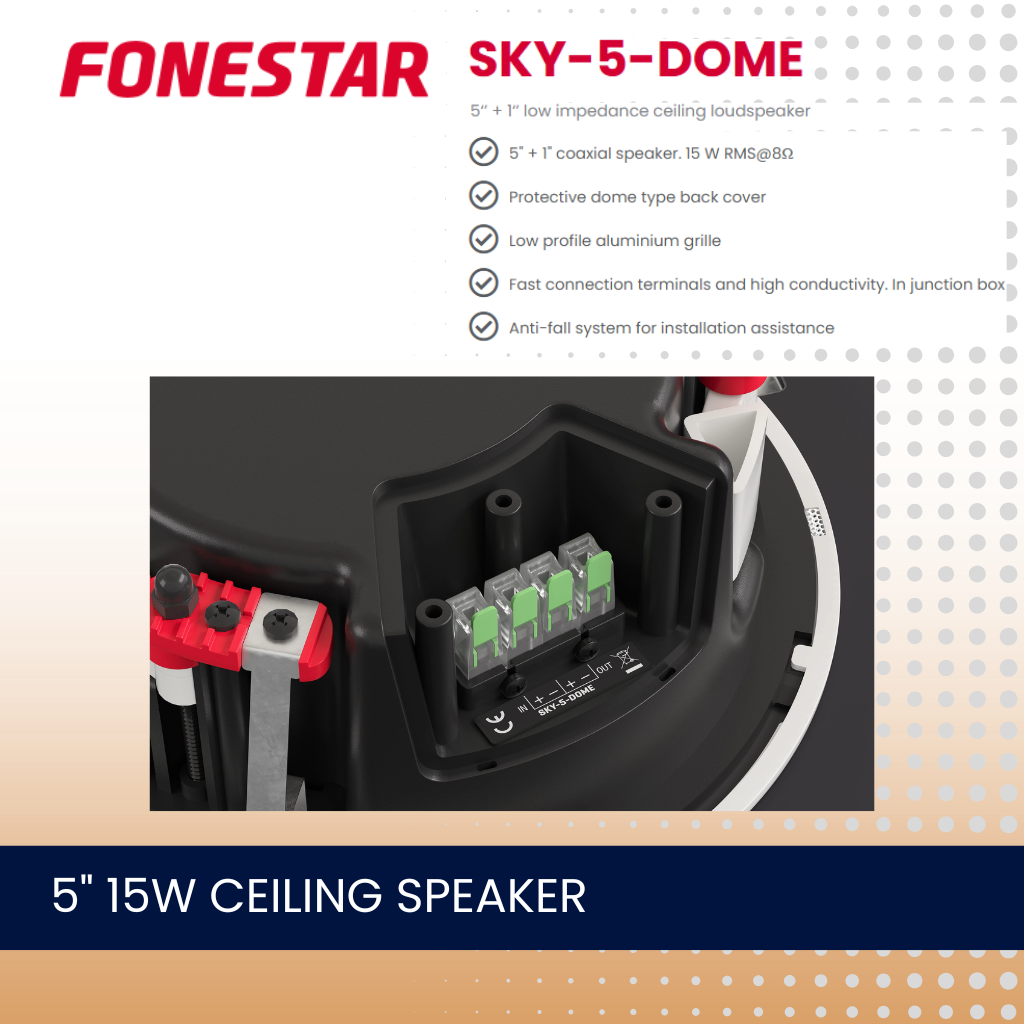

Fast connection terminals and high conductivity.
Junction box in the rear cover with inlet and outlet port.
Anti-fall system for installation assistance.
Hook for safety cable.
Stable, worm-gear ceiling brackets.
Installation in ceilings with limited space.
Protection against dust and water.
POWER: 15 W RMS
20 W MAX.
SPEAKER: Coaxial loudspeaker.
5'' polypropylene woofer
1'' swivelling tweeter
RESPONSE: 100-20,000 Hz @ -10 dB
120-20,000 Hz @ -3 dB
IMPEDANCE: 8 Ω
SENSITIVITY: 86 dB @ 1 W/1 m
SOUND PRESSURE: 98 dB @ max. W/1m Continuous
99 dB @ max. W/1m Peak
COVERAGE ANGLE: H/V (-6 dB): 60º@500Hz, 90º@1kHz, 60º@2kHz, 60º@4kHz
PROTECTIONS: IP-65 in compliance with IEC 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid paint aluminium grille
CONNECTORS: Highly conductive quick-connect terminals
For 0.4 ~ 4 mm² cross section cable
Junction box in the rear cover with inlet and outlet port
OPERATION TEMPERATURE: -20ºC ~ 70°C (48 h)
STORAGE TEMPERATURE: 10ºC ~ 40°C
MAXIMUM HUMIDITY: 95%
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 214 mm Ø x 100 mm height
Grille section: 5 mm
Recessed height: 95 mm
Installation hole: 180 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 1 kg
