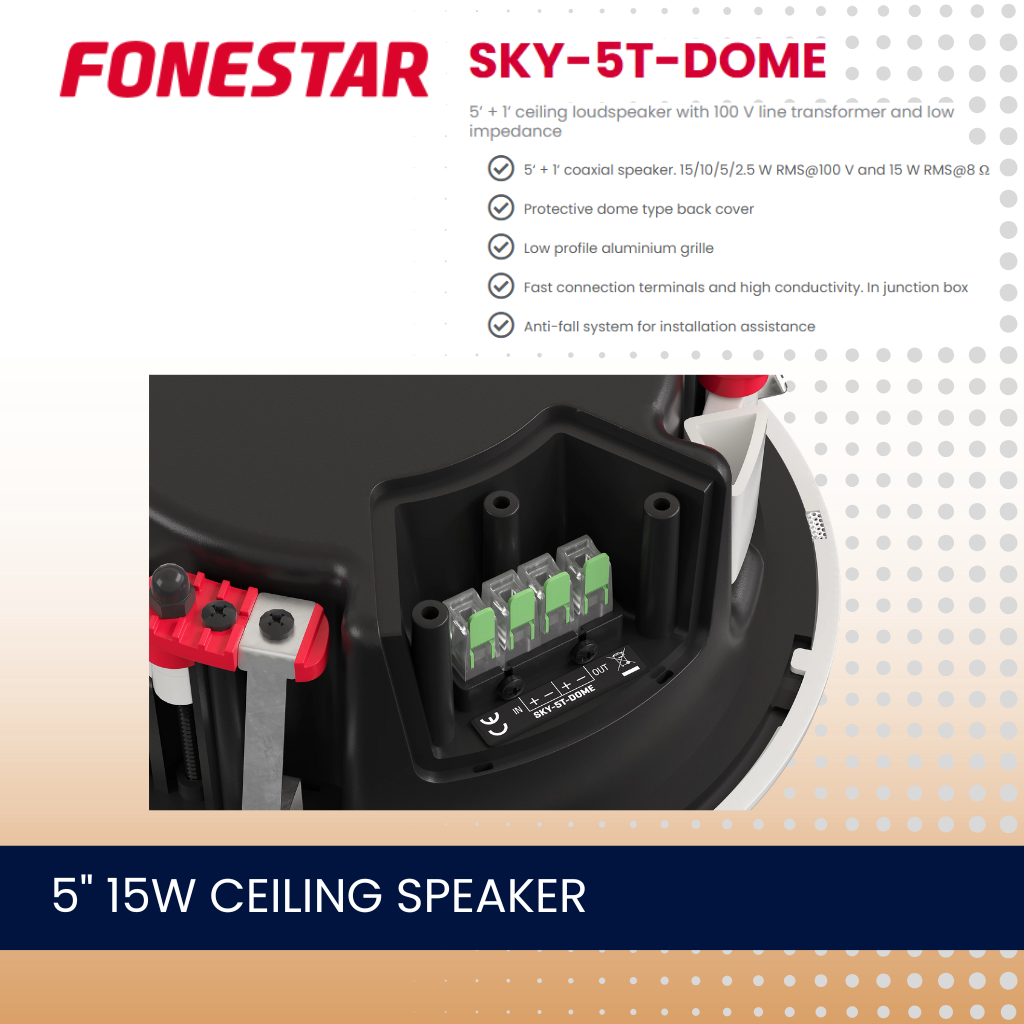

Fonestar SKY-5T-DOME 5" 15W 100V line transformer and low impedance ceiling speaker
✓ Available to order
Express delivery: order before 14:00 (Mon–Fri) and we'll dispatch that evening for next working day delivery.
Free delivery on orders over £100: allow up to 7 working days. Weekend orders are processed from Monday.
- 100 V line
- 15 W RMS
- IP65 rated
- 100-20.000 Hz @ -10 dB
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Talk to our team: sales@commercial-audio.co.uk
Email your quantities or project details and we'll send you a tailored quote.
3-year manufacturer's warranty
UK installer network
We can quote for installation through our UK installer network.
Design by Fonestar products are the result of in-depth research and active listening to our customers, turning their needs into competitive solutions.
Ceiling loudspeaker SKY-5T-DOME: quality and durability in demanding spaces
The SKY-5T-DOME is a ceiling loudspeaker designed for professional applications requiring sound quality, durability and easy installation. With a 5-inch woofer, a 1-inch swivel tweeter and a 100 V line transformer, this loudspeaker combines technical versatility with modern aesthetics to suit a variety of environments.
Strength and versatility in every detail
The SKY-5T-DOME stands out for its robust and adaptable design:
- Complete protection: made of waterproof, dustproof (IP-65) and rustproof materials, ideal for challenging environments.
- Efficient installation: includes anti-fall system, stable mounting brackets and a safety hook for easy mounting even in confined spaces.
- Flexible options: front-accessible power selector for high impedance (100 V) and low impedance (8 Ω) configurations.
- Removable and customisable grille, made of aluminium, with the possibility of painting to adapt to the design of the space.
Why choose the SKY-5T-DOME loudspeaker?
The SKY-5T-DOME is perfect for installers and acoustic engineering projects looking for a loudspeaker that combines high sound quality with strength and ease of installation:
- Exceptional acoustic performance: 100 to 20,000 Hz response range and up to 99 dB sound pressure for powerful and clear sound.
- Durable construction: high quality UV resistant materials and neutral salt spray testing to international standards.
- Adaptability: designed to integrate into low-profile ceilings to ensure a superior listening experience in any environment.
| Features | Ceiling loudspeaker with 100 V line transformer and low impedance.; Protective dome type back cover.; Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted.; Fast connection terminals and high conductivity.; Junction box in the rear cover with inlet and outlet port.; Anti-fall system for installation assistance.; Hook for safety cable.; Stable, worm-gear ceiling brackets.; Installation in ceilings with limited space.; Protection against dust and water. |
|---|---|
| Power | 15 W RMS; 20 W MAX. |
| Speaker | Coaxial loudspeaker.; 5'' polypropylene woofer; 1'' swivelling tweeter |
| Response | 100-20.000 Hz @ -10 dB; 120-20.000 Hz @ -3 dB |
| Impedance | 15 W RMS@100 V (666 Ω); 10 W RMS@100 V/70 V (1.000 Ω/490 Ω); 5 W RMS@100 V/70 V (2.000 Ω/980 Ω); 2'5 W RMS@100 V / 70 V(4.000 Ω/ 1.960 Ω); 1.25 W RMS@70 V (3.920 Ω) |
| Low Z | 8 Ω |
| Sensitivity | 86 dB @ 1 W/1 m |
| Sound pressure | 98 dB @ max. W/1m Continuo; 99 dB @ max. W/1m Pico |
| Coverage angle | 90º@1kHz (- 6 dB) |
| Protections | IP-65 in compliance with IEC 60529 |
| En iso 9227 | 2006 Neutral Salt Spray Test |
| Material | ABS (UV resistant); Liquid paint aluminium grille |
| Connectors | Highly conductive quick-connect terminals; For 0.4 ~ 4 mm² cross section cable; Junction box in the rear cover with inlet and outlet port |
| Switch | W selector in high Z and 8 Ω.; Accessible from the front. |
| Operation temperature | -20ºC ~ 70°C (48 h) |
| Storage temperature | 10ºC ~ 40°C |
| Maximum humidity | 95% |
| Colour | White (RAL 9003) |
| Dimensions | Total loudspeaker: 214 mm Ø x 100 mm height |
| Grille section | 5 mm |
| Recessed height | 95 mm |
| Installation hole | 180 mm Ø |
| Maximum ceiling thickness | 30 mm |
| Weight | 1.3 kg |
| Accessories | Installation template |
