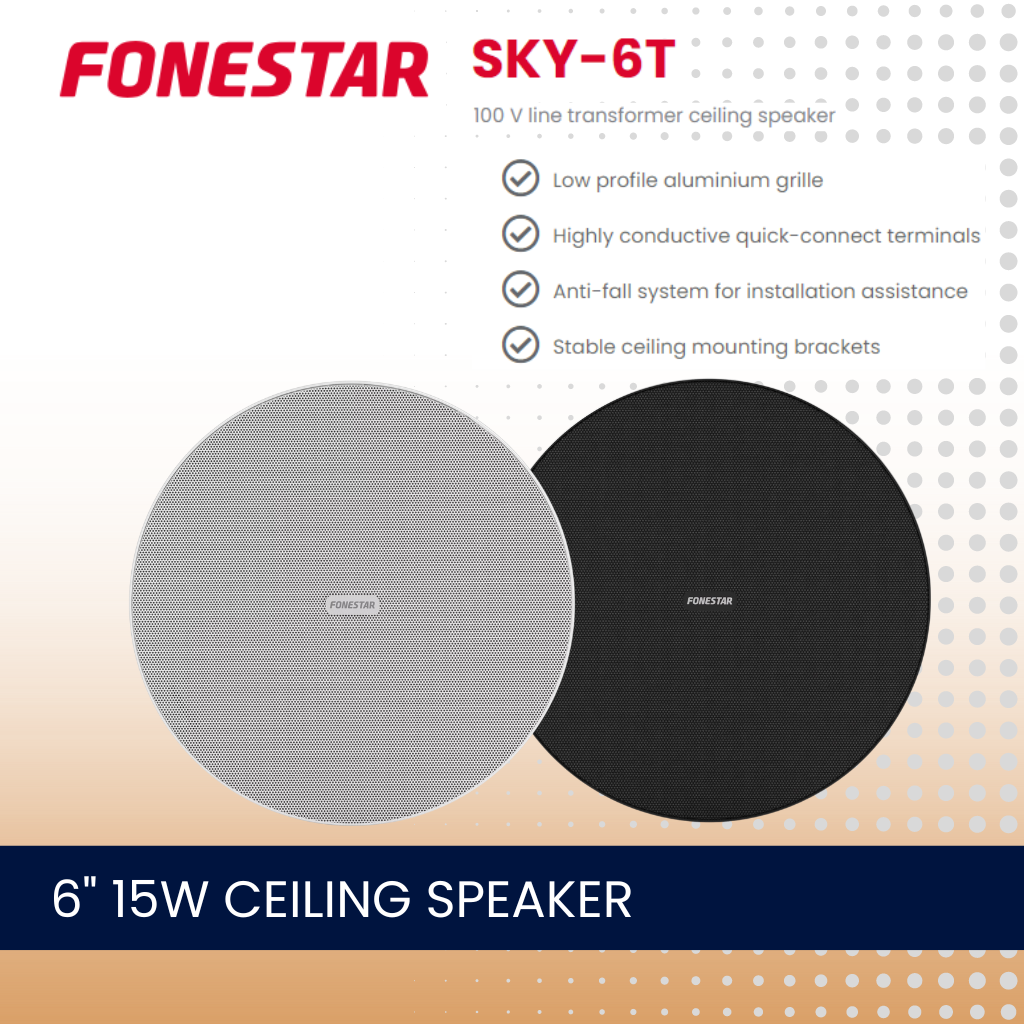

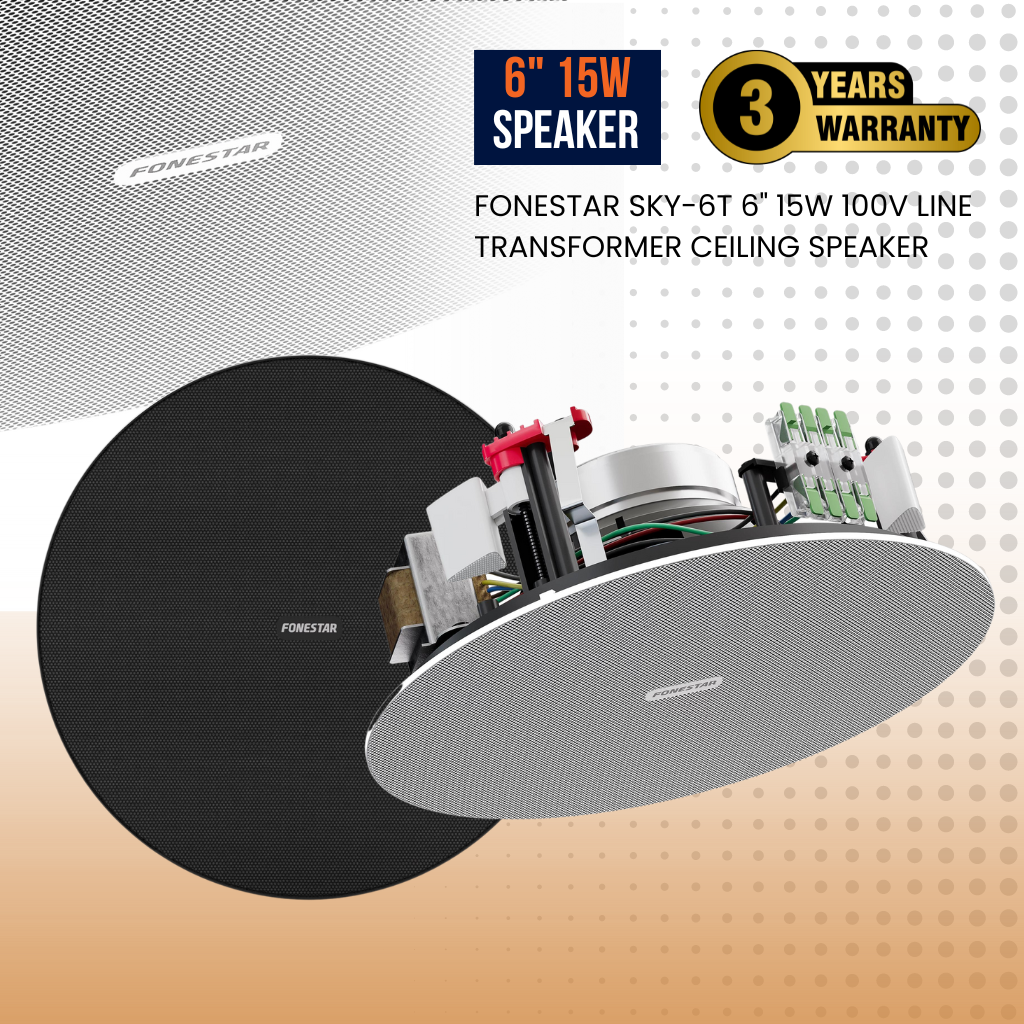

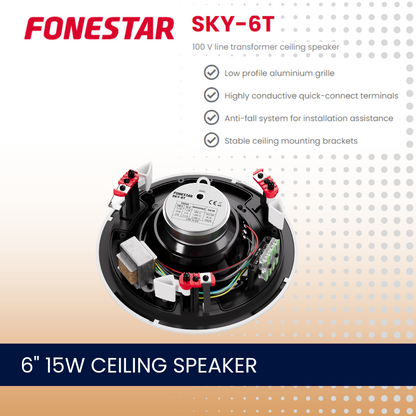

Fonestar SKY-6T ceiling speaker
FEATURES: 100 V line transformer ceiling loudspeaker.
Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable. The logo can be removed and the speaker can be painted.
Fast connection terminals and high conductivity.
Anti-fall system for installation assistance.
Hook for safety cable.
Stable, worm-gear ceiling brackets.
Protection against dust and water.
POWER: 15 W RMS
20 W MAX.
SPEAKER: 6'' polypropylene double cone diaphragm
RESPONSE: 55-18,000 Hz @ -10 dB
85-7,500 Hz @ -3 dB
IMPEDANCE: 15 W RMS@100 V (666 Ω)
10 W RMS@100 V (1,000 Ω)
5 W RMS@100 V (2,000 Ω)
SENSITIVITY: 88 dB @ 1 W/1 m
SOUND PRESSURE: 97 dB @ max. W/1m Continuous
100 dB @ max. W/1m Peak
COVERAGE ANGLE: H/V (-6 dB): 150º@500Hz, 150º@1kHz, 90º@2kHz, 60º@4kHz
PROTECTIONS: IP-44 in compliance with EN 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid paint aluminium grille
CONNECTORS: Highly conductive quick-connect terminals
For 0.4 ~ 4 mm² ross section cable
OPERATION TEMPERATURE: 5ºC ~ 40°C
STORAGE TEMPERATURE: 2ºC ~ 50°C
MAXIMUM HUMIDITY: 0.9
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 249 mm Ø x 85 mm height
Grille section: 5 mm
Recessed height: 80 mm
Installation hole: 219 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 0.95 kg
ACCESSORIES: Installation template
