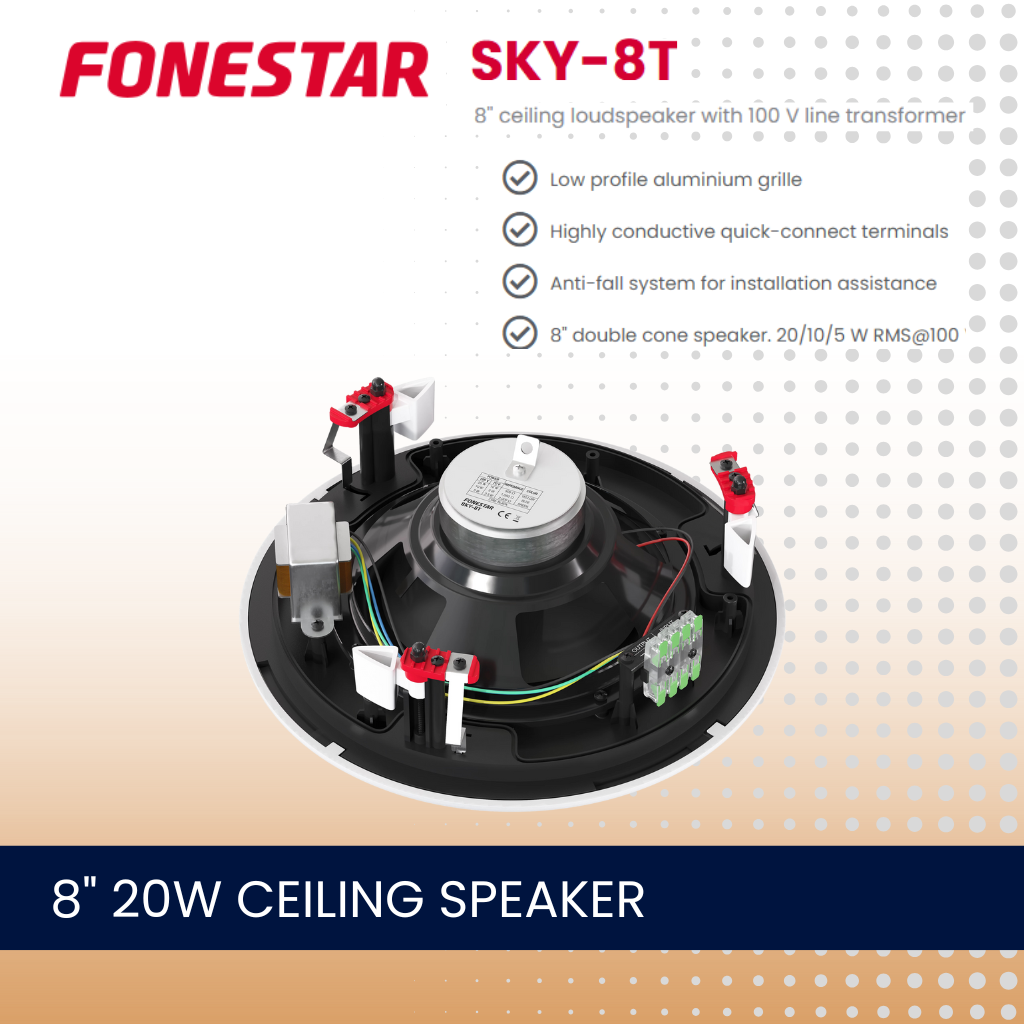

Fonestar SKY-8T ceiling speaker
FEATURES: Ceiling loudspeaker with 100 V line transformer.
Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted.
Fast connection terminals and high conductivity.
Anti-fall system for installation assistance.
Hook for safety cable.
Stable, worm-gear ceiling brackets.
Protection against dust and water.
POWER: 20 W RMS
27 W MAX.
SPEAKER: 8'' polypropylene double cone diaphragm
RESPONSE: 40-15,000 Hz @ -10 dB
90-15,000 Hz @ -3 dB
IMPEDANCE: 20 W RMS@100 V (500 Ω)
10 W RMS@100 V/70 V (1.000 Ω/490 Ω)
5 W RMS@100 V/70 V (2.000 Ω/980 Ω)
2'5 W RMS@70 V (1.960 Ω)
SENSITIVITY: 88 dB @ 1 W/1 m
SOUND PRESSURE: 103 dB @ max. W/1m Continuous
105 dB @ max. W/1m Peak
COVERAGE ANGLE:: 90º@1kHz (-6 dB)
PROTECTIONS: IP-44 in compliance with IEC 60529
EN ISO 9227:2006 Neutral Salt Spray Test
MATERIAL: ABS (UV resistant)
Liquid painted aluminium grille
CONNECTORS: Highly conductive quick-connect terminals
For cable cross-section 0.4 ~ 4 mm².
OPERATION TEMPERATURE: -20ºC ~ 70°C (48 h)
STORAGE TEMPERATURE: 10ºC ~ 40°C
MAXIMUM HUMIDITY: 95%
COLOUR: White (RAL 9003)
DIMENSIONS: Total loudspeaker: 306 mm Ø x 114 mm height
Grille section: 7 mm
Recessed height: 107 mm
Installation hole: 273 mm Ø
Maximum ceiling thickness: 30 mm
WEIGHT: 1.7 kg
ACCESSORIES: Installation template
