Fonestar TAB-10-16 10" Android tablet for NMX series DANTE matrix
✓ Available to order
Express delivery: order before 14:00 (Mon–Fri) and we'll dispatch that evening for next working day delivery.
Free delivery on orders over £100: allow up to 7 working days. Weekend orders are processed from Monday.
- Inputs: 1 x LAN port for local…
- Outputs: 1 x 3.5 mm Headphones
- POE and 12 V DC, 1.5 A
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Talk to our team: sales@commercial-audio.co.uk
Email your quantities or project details and we'll send you a tailored quote.
3-year manufacturer's warranty
UK installer network
We can quote for installation through our UK installer network.

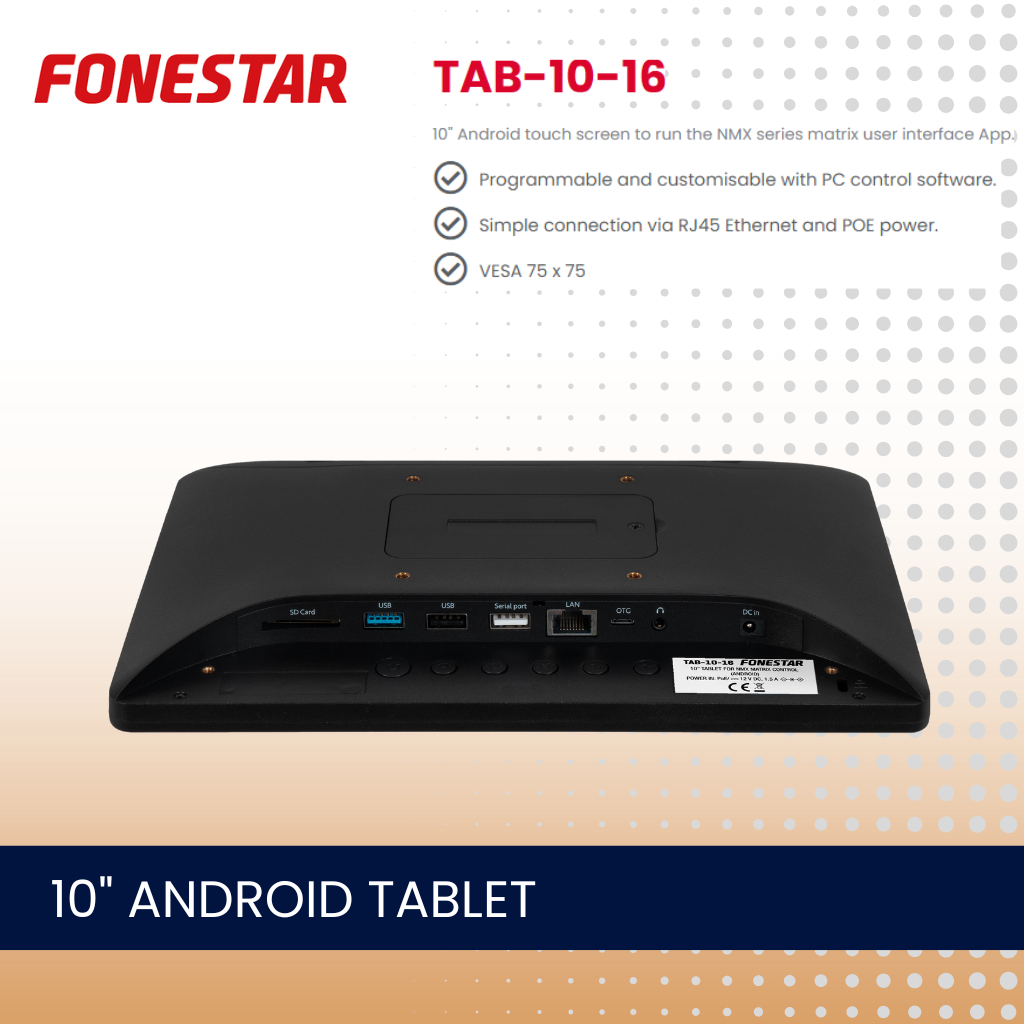

Introducing our 10-inch Android touch screen, designed specifically to run the user interface app for the NMX series matrix systems. This device is not only programmable but also fully customizable with our intuitive PC control software.
Enjoy seamless connectivity through an RJ45 Ethernet port and powered via POE, ensuring a hassle-free setup. With a VESA 75 x 75 mounting option, this touch screen fits perfectly into any environment.
This Android-based touch screen offers a user-friendly interface that streamlines the most common functions, making system management effortless for the end user. It allows local interaction without diving into complex matrix configurations. You can easily program the interface using PC software to control various features, including volume adjustments, gain control, muting, scene recalls, and executing specific actions through UDP, RS-232, or RS-485 commands.
For those on the go, the user interface app is available for both Android and iOS platforms. This touchscreen is ideal for applications like music bars, restaurants, hotels, shopping centers, and conference rooms—where local volume control and source selection are essential. Transform your space with a simple, effective interface that puts control at your fingertips.
| Features | 10'' touch screen based on Android 2G + 16G tablet.; To run the NMX Series Matrix User Interface App.; Programmable and customisable with PC control software.; The main functions are volume control, gain control, Mute, scene call and UDP, RS-232 or RS-485 commands.; Supports multiple touch screens in one installation. |
|---|---|
| Connection | via RJ45 Ethernet and POE power supply.; Compatible with VESA 75 x 75 mount. |
| Inputs | 1 x LAN port for local area network connection, RJ-45; 2 x USB ports; 1 x SD port; 1 x USB serial port; 1 x Micro USB OTG |
| Outputs | 1 x 3.5 mm Headphones |
| Controls | Power, home, brightness and volume buttons |
| Power supply | POE and 12 V DC, 1.5 A |
| Dimensions | 255 x 170 x 30 mm depth; Compatible with VESA 75 x 75 mounts |
| Weight | 0.8 kg |
| Accessories | Wall installation mount |
