Monacor EDL-80DT 8" 30W DANTE ceiling speaker
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- 100-20,000 Hz
- 2-way
- Inputs: RJ45
- PoE via RJ45
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.

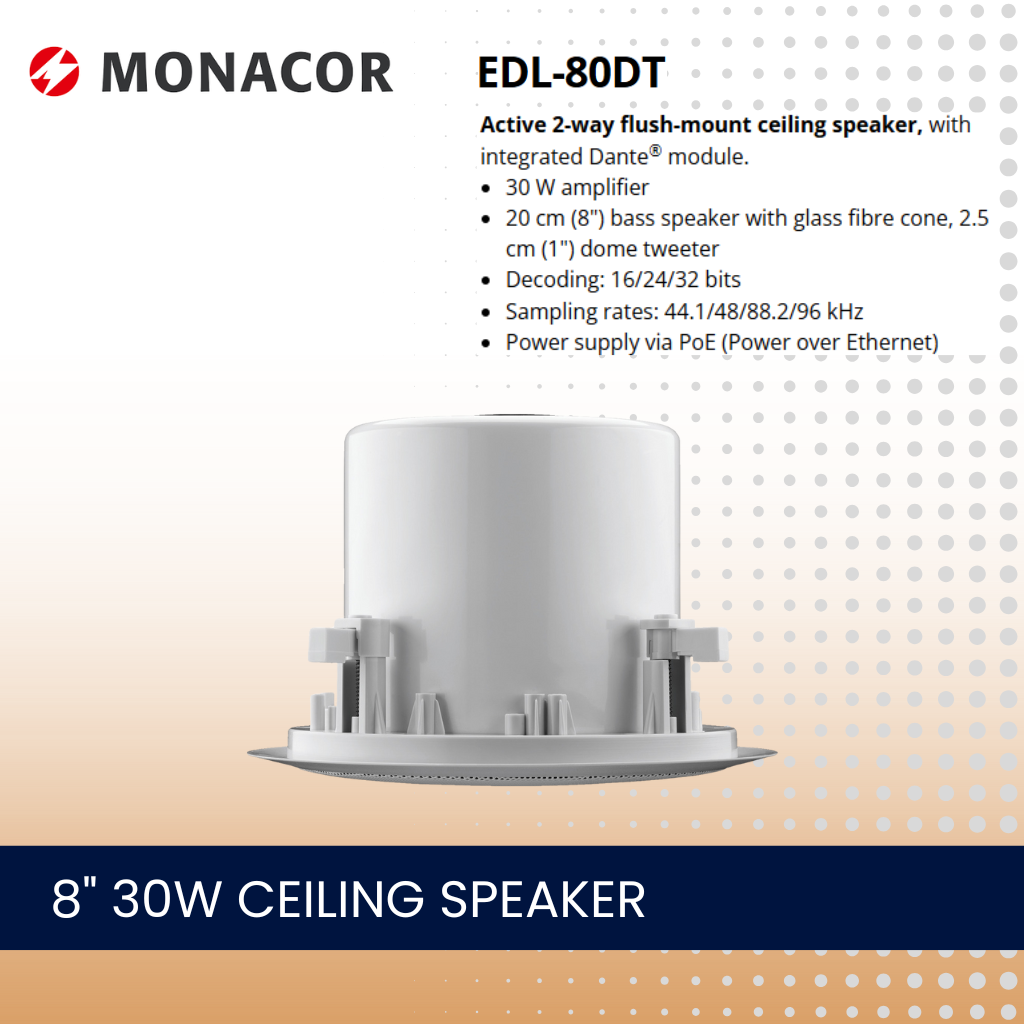

Active 2-way flush-mount ceiling speaker featuring an integrated Dante® module.
- Equipped with a 30 W amplifier.
- Includes a 20 cm (8") bass speaker made with a glass fiber cone and a 2.5 cm (1") dome tweeter.
- Supports decoding of 16/24/32 bits.
- Offers sampling rates of 44.1/48/88.2/96 kHz.
- Power is supplied via PoE (Power over Ethernet).
- Constructed with a plastic frame and a protective metal grille.
- Designed for ceilings up to 4 cm thick.
- Requires a mounting cutout of Ø 240 mm.
- Mounting depth is 225 mm, including space for the network connection.
| Active/passive | active |
|---|---|
| Transmission technology | Dante ® |
| Total output power | 40 W |
| Power rating (RMS) | 30 W |
| Frequency range | 100-20,000 Hz |
| Input signal | DANTE® |
| System | 2-way |
| Bass speaker | 1 x 20 cm |
| Tweeter | 1 x 2.5 cm |
| Number of speakers | 2 |
| Speaker size | 20 cm (8") |
| SPL | 93 dB/W/m |
| Max. rated SPL | 105 dB |
| Radiation angle/beam angle | 100° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Housing material | plastic frame, protective metal grille |
| Colour | white |
| Mounting device | ceiling suspension |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | PoE via RJ45 |
| Dimensions | Ø 272 mm x 187 mm |
| Width | Ø 272 mm |
| Height | Ø 272 mm |
| Depth | 187 mm |
| Weight | 2.7 kg |
| Inputs | RJ45 |
| Packaging dimensions (W x H x L) | 0.31 x 0.22 x 0.31 m |
| Gross weight | 3.64 kg |
| Net weight | 2.73 kg |
