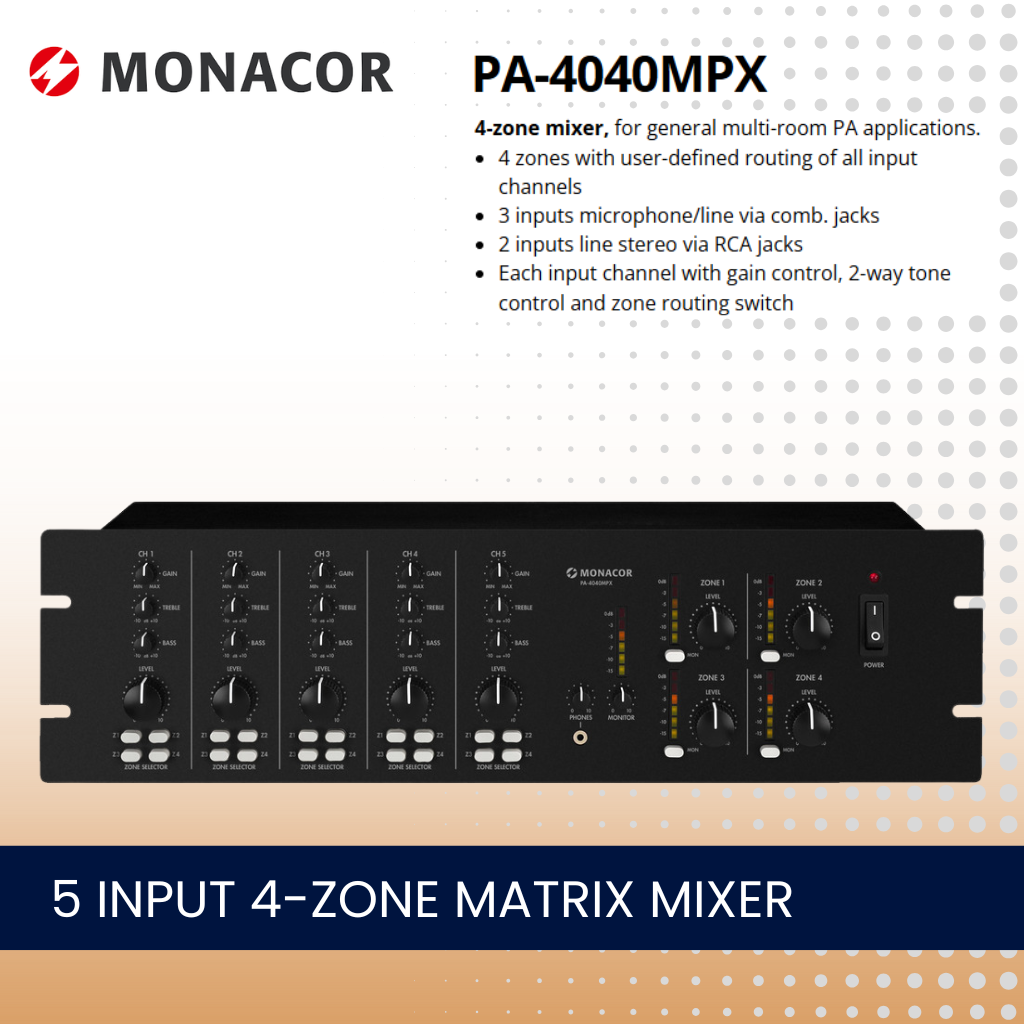

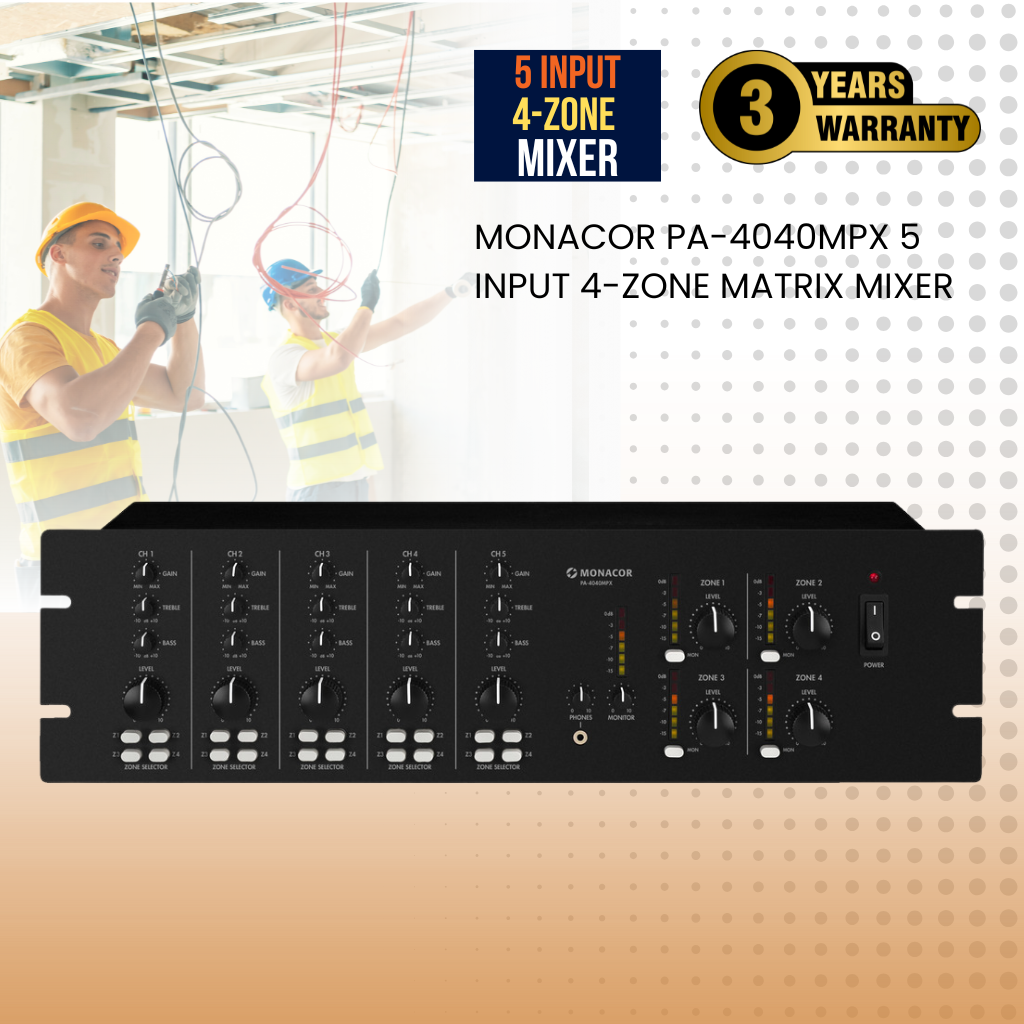

Monacor PA-4040MPX 5 input 4-zone matrix mixer
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- 4 zones
- 50-17,000 Hz
- 5 channels
- Inputs: 5 mV/4 kΩ, 100 mV/10 kΩ…
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.
4-zone mixer designed for versatile multi-room public address applications.
This mixer features four zones with customizable routing for all input channels. It includes three microphone/line inputs via combination jacks and two line stereo inputs through RCA jacks. Each input channel is equipped with gain control, a two-way tone control, and a zone routing switch. The microphone inputs provide 15 V phantom power, which can be activated as needed.
Channel 1 includes a switchable priority function. There is an independent paging input that can be directed to any zone. The mixer offers four zone outputs, each of which can be adjusted independently. Additionally, it has a connection for a monitor speaker, level control through VU meters for both the zone and monitor, and an adjustable headphone output. The unit can operate on mains power or 24 V emergency power.
| Channels | 5 |
|---|---|
| Zones | 4 |
| Inputs | 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line),; 100 mV/30 kΩ (line) |
| Frequency range | 50-17,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 65 dB (mic),; > 75 dB (line) |
| THD | < 1% |
| Phantom power | 15 V |
| Power supply | ˜ 230 V/50 Hz/20 VA,; DC 24 V/600 mA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 20 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 600 mA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 220 mm |
| Rack units, RU | 3 |
| Weight | 4.5 kg |
| Connections | 3 x combo 6.3 mm/XLR (mic/line),; 2 x RCA L/R (line),; 4 x plug-in screw terminal (zones),; screw contacts (monitor speakers),; screw contacts (mix out),; screw contacts (paging),; screw contacts (priority) |
| Packaging dimensions (W x H x L) | 0.28 x 0.22 x 0.57 m |
| Gross weight | 5.68 kg |
| Net weight | 4.7 kg |
