Monacor PA-4125DX 4 x 125W 4-zone matrix amplifier with software control
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- 500 W
- 4 zones
- 5 channels
- Inputs: 1.2 V, bal. (line), 1.9…
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.

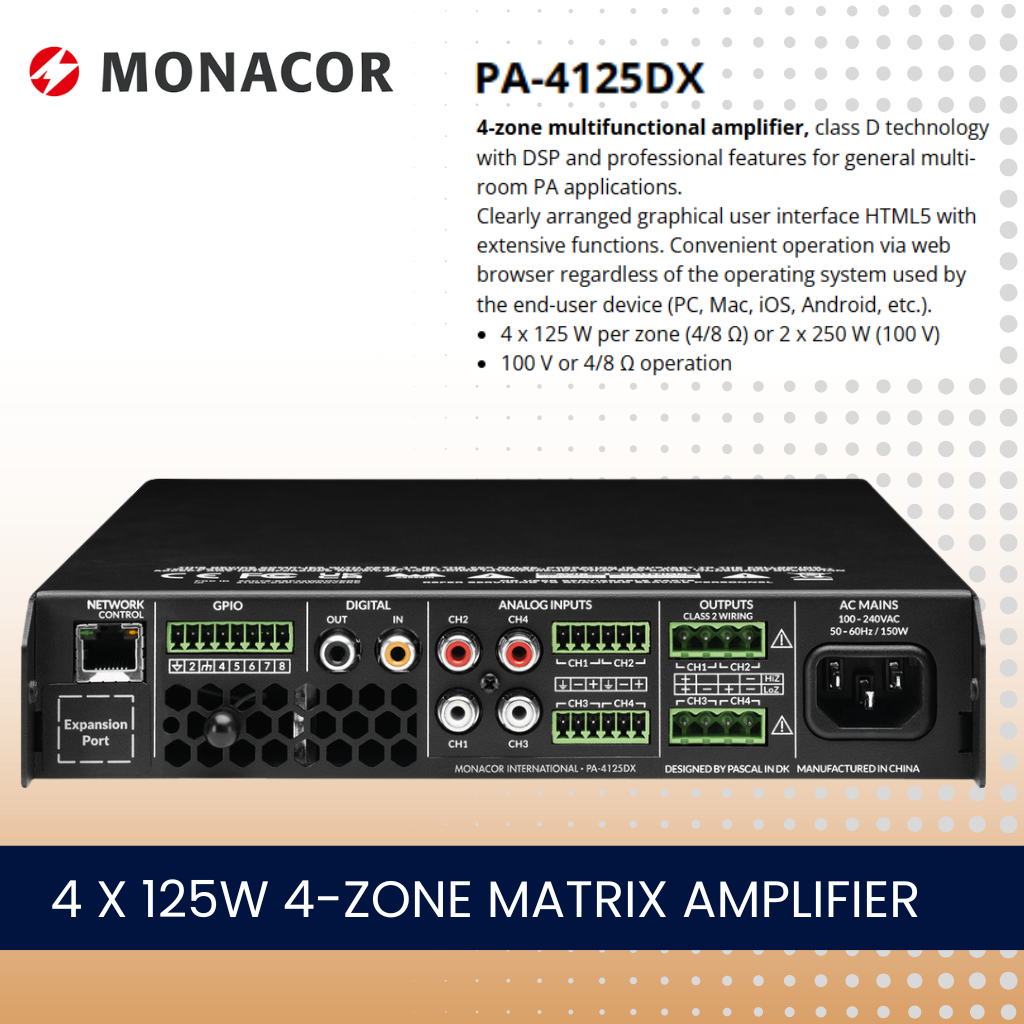

Introducing our advanced 4-zone multifunctional amplifier!
This powerhouse utilizes Class D technology combined with DSP, designed specifically for versatile multi-room PA applications. Its user-friendly HTML5 graphical interface offers a wide range of functions and can be accessed seamlessly through any web browser, no matter what operating system you’re using—be it PC, Mac, iOS, or Android.
Key features include:
- 4 x 125 W output per zone (for 4/8 Ω) or 2 x 250 W (at 100 V)
- Versatile operation with options for 100 V or 4/8 Ω
- 4 balanced analogue inputs for mic/line through plug-in screw terminals or RCA jacks
- 1 digital input/output using S/PDIF RCA jacks
- 4 outputs (for 4/8 Ω) or 2 zoned outputs (at 100 V) through plug-in screw terminals
- GPIO interface for remote volume adjustments and standby commands
- Network connectivity options through LAN or WLAN
- Intuitive configuration using the HTML5 user interface
- Adjustable high-pass/low-pass filters and a parametric equalizer
- Separate FIR filters for each output and precise speaker matching up to 10 ms
- Switchable output phase and adjustable compressor/limiter
- Flexible delay adjustments and mixing capabilities
- Talkover function with priority routing
- Built-in sine wave noise generator and a parametric 5-band equalizer for input tweaking
- Comprehensive protection mechanisms against short circuit, DC voltage overload, undervoltage, excessive heat, and overload situations
Please note that after the initial power-on, it's essential to update the firmware to at least version 1.6.4 for optimal performance.
| Peak output power | 500 W |
|---|---|
| Power rating | 500 W |
| Power rating at 4 Ω | 4 x 125 W |
| Power rating at 8 Ω | 4 x 125 W |
| Power rating at 100 V | 2 x 250 W |
| Channels | 5 |
| Zones | 4 |
| Inputs | 1.2 V, bal. (line), 1.9 mV, bal. (mic) |
| Integrated limiter | yes |
| Equalizer bass | via DSP |
| Equalizer midrange | via DSP |
| Equalizer treble | via DSP |
| S/N ratio | > 106 dB |
| THD | < 0.05% |
| Power supply | ˜ 100-240 V/50-60 Hz/150 W |
| Mains voltage | ~ 100-240 V |
| Mains frequency | 50-60 Hz |
| Power consumption, operation | 150 W, 1/8 output power |
| Power consumption, standby | < 0.5 W |
| Admiss. ambient temp. | 0-40 °C |
| Width | 220 mm |
| Height | 44 mm |
| Depth | 320 mm |
| Rack units, RU | 1 |
| Weight | 1.95 kg |
| Connections | 4 x RCA line; plug-in screw terminal (mic/line); 2 x RCA (digital in/out); plug-in screw terminal GPIO; plug-in screw terminal speakers; 1 x RJ45 network connection |
| Packaging dimensions (W x H x L) | 0.3 x 0.09 x 0.5 m |
| Gross weight | 2.8 kg |
| Net weight | 2.16 kg |
