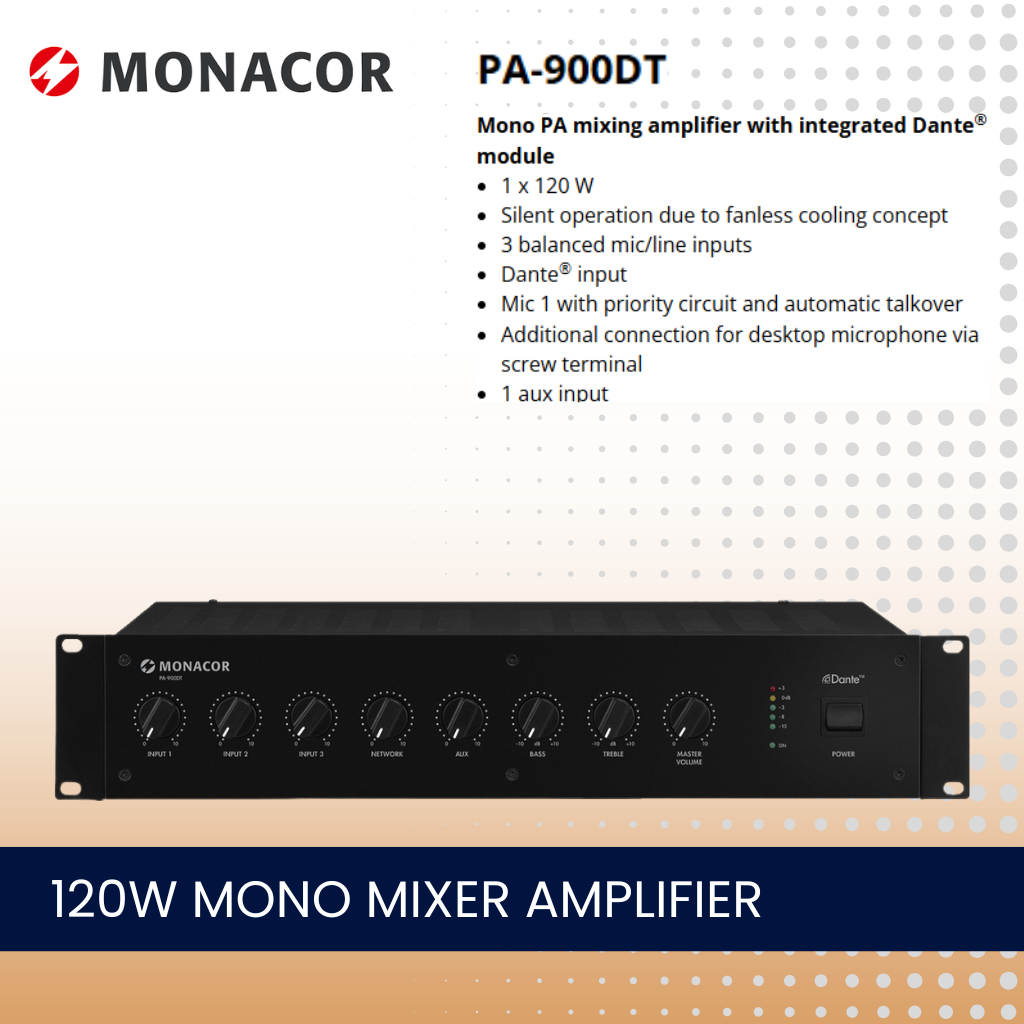

Monacor PA-900DT 120W mono DANTE mixer amplifier
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- 120 W
- 50-15,000 Hz
- 5 channels
- Inputs: 3 mV (mic)
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.
Experience seamless streaming with the trusted PA-900 amplifier systems, now enhanced with a 2-channel Dante® module, transforming them into versatile Dante® instreamers. These systems can effortlessly receive one digital stereo signal or two mono signals through RJ45 connections. The received signals are converted to analog audio, amplified, and streamed, allowing for the integration of traditional analog speaker systems into a modern digital Dante® network.
**Features:**
- Mono PA mixing amplifier with built-in Dante® module
- Power output: 1 x 120 W
- Silent operation thanks to a fanless cooling system
- Three balanced mic/line inputs
- Dedicated Dante® input
- Mic 1 includes a priority circuit with automatic talkover
- Additional desktop microphone connection via screw terminal
- One aux input
- Speaker outputs via screw terminal contacts
- Line output available
- Insert facility for effect units, equalizers, or feedback controllers
- Independent input and output level controls
- 2-way tone control for output adjustments
- 20 V phantom power for each microphone input, individually switchable
- Can be operated from mains power or 24 V emergency power supply
- Removable mounting brackets for easy installation
This versatile amplifier is your solution for effortless integration into any audio setup!
| Peak output power | 160 W |
|---|---|
| Power rating | 120 W |
| Power rating at 4 Ω | 120 W |
| Power rating at 100 V | 120 W |
| Power rating at 70 V | 120 W |
| Channels | 5 |
| Inputs | 3 mV (mic),; 200 mV (line),; 140 mV (aux) |
| Frequency range | 50-15,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 80 dB |
| THD | < 0.5% |
| Phantom power | 20 V |
| Power supply | ˜ 230 V/50 Hz/300 VA,; DC 24 V/9 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 300 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 9 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 88 mm |
| Depth | 275 mm |
| Rack units, RU | 2 |
| Weight | 9.9 kg |
| Connections | 3 x XLR (mic/line),; 1 x RCA L/R (aux),; 1 x RJ45 (Dante®),; screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.37 x 0.16 x 0.52 m |
| Gross weight | 12.07 kg |
| Net weight | 10.53 kg |
