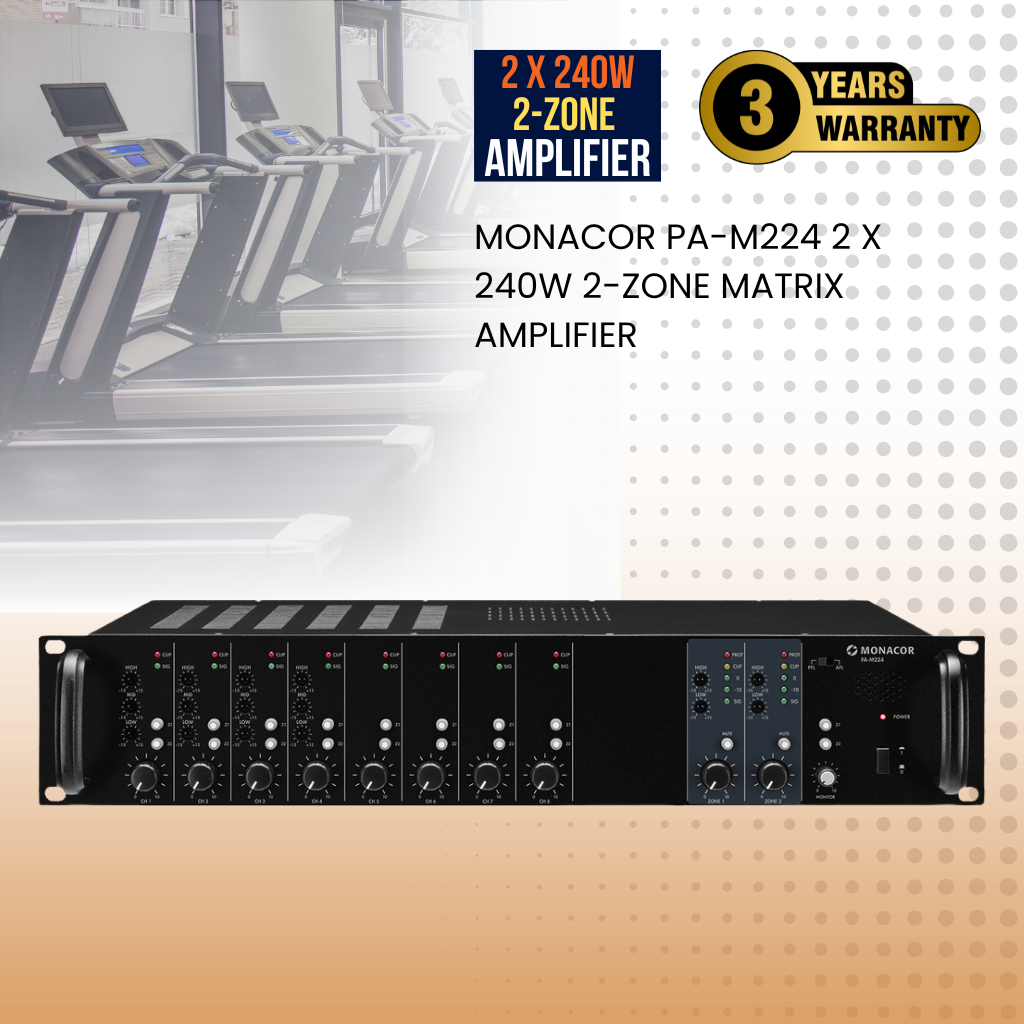

Monacor PA-M224 2 x 240W 2-zone matrix amplifier
✓ Available to order
Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.
Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.
- 2 x 240 W
- 2 zones
- 20-20,000 Hz
- 8 channels
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Free delivery option
Express next-day service if ordered before 15:00 (Mon–Fri).
3-year manufacturer's warranty
Our products come with a 3-year manufacturer's warranty as standard.
UK installer network
We can quote for installation through our UK installer network.
**2-Zone PA Matrix Mixing Amplifier**
- **Power Output**: 240 W per zone
- **Zone Control**: Independently controllable across 2 zones, featuring 2-way tone control
- **Efficiency**: Class D design ensures high efficiency, reducing energy costs
- **Inputs**:
- 4 adjustable mic/line inputs equipped with a 3-way equalizer and 24 V phantom power
- 4 adjustable line inputs
- **Mute Options**:
- Mute function for individual zones
- Connection available for an external mute switch, impacting all zones simultaneously
- **Talkover Feature**: Integrated on channel 1
- **Monitoring**: Adjustable monitor function for enhanced audio management
- **Paging & Accessories**:
- 1 connection for the zone paging microphone PA-M4RC
- 2 connections for wall module PA-M1WP
- **Rack Mounting**: Compatible with 482 mm (19") rack installations
| Peak output power | 2 x 290 W |
|---|---|
| Power rating | 2 x 240 W |
| Power rating at 100 V | 2 x 240 W |
| Channels | 8 |
| Zones | 2 |
| Inputs | 2.5 mV/20 kΩ (mic),; 2 V/20 kΩ (line) |
| Frequency range | 20-20,000 Hz |
| Equalizer bass | ±12 dB/80 Hz (channels 1-4); ±15 dB/80 Hz (zones 1-4) |
| Equalizer midrange | ±12 dB/2.5 kHz (channels 1-4) |
| Equalizer treble | ±12 dB/12.5 kHz (channels 1-4); ±15 dB/12 kHz (zones 1-4) |
| S/N ratio | > 70 dB |
| THD | < 0.1% |
| Phantom power | 24 V |
| Power supply | ˜ 230 V/50 Hz/800 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 800 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 88 mm |
| Depth | 320 mm |
| Rack units, RU | 2 |
| Weight | 5.7 kg |

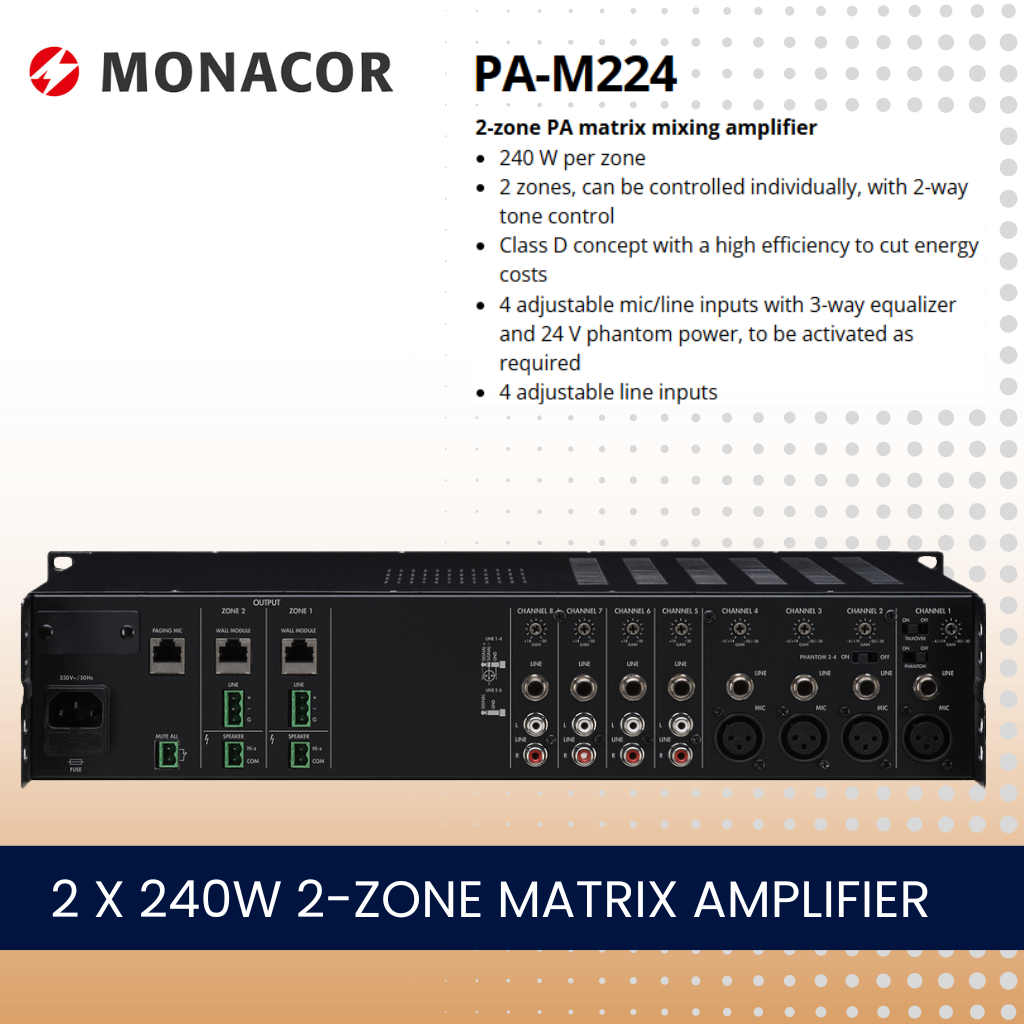

| Connections | 4 x XLR, bal. (mic 1-4),; 4 x 6.3 mm jack (line 1-4),; 4 x 6.3 mm jack (line 5-8),; 4 x RCA L/R (line 5-8); 1 x RJ45 (push-to-talk microphone),; 2 x RJ45 (remote in),; screw terminal (speakers) |
| Packaging dimensions (W x H x L) | 0.54 x 0.17 x 0.41 m |
| Gross weight | 6.83 kg |
| Net weight | 5.71 kg |
