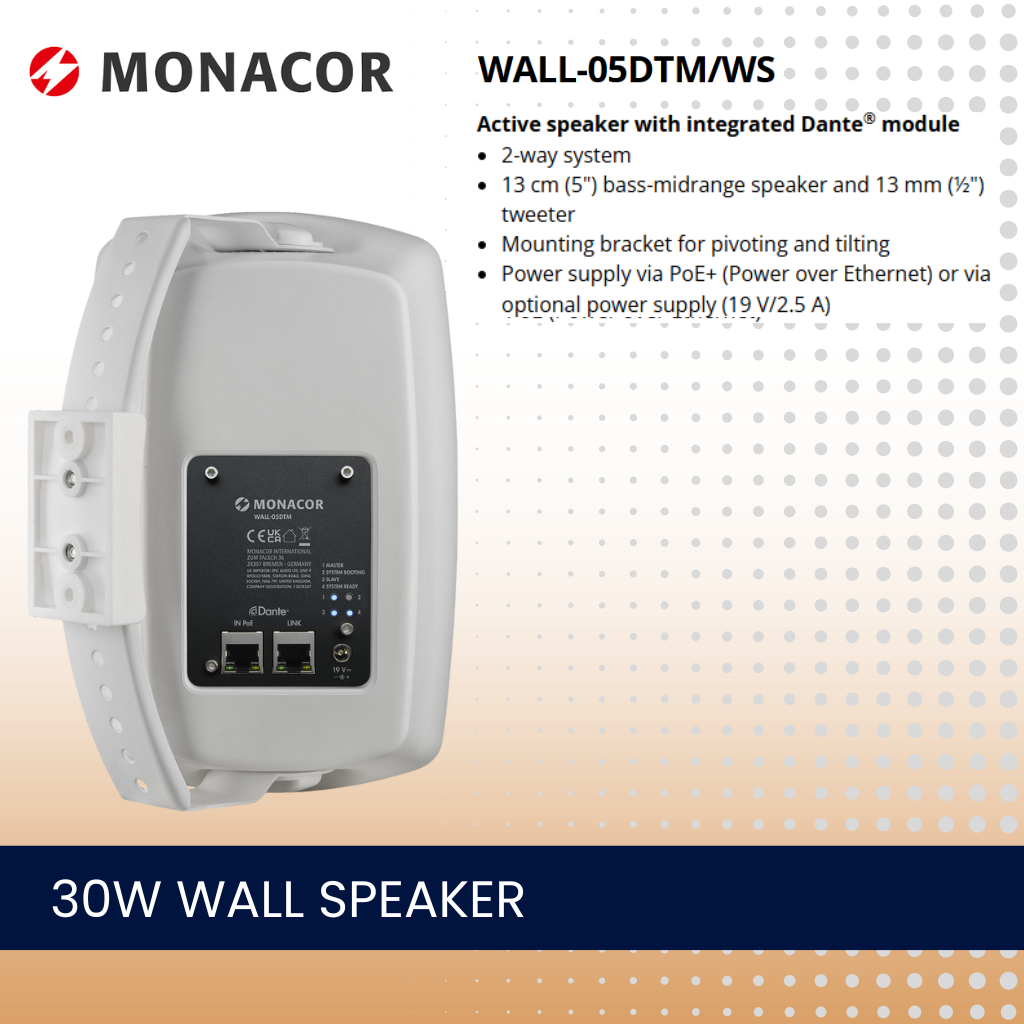

Monacor WALL-05DTM/WS 5" 30W DANTE wall speaker

SKU WALL-05DTM/WS
£395.83 ex VAT / £475.00 inc VAT

✓ Available to order

Express delivery: order before 15:00 (Mon–Fri) and we'll dispatch that evening for a next-day service.

Free delivery: allow up to 7 working days. Standard delivery (£6.50 inc VAT): 2–4 working days. Weekend orders are processed from Monday.

  • 62-20,000 Hz
  • 2-way
  • Inputs: 1 x RJ45 (Dante® IN)
  • Outputs: 1 x RJ45 (feed-through…
Fitting out a venue? Get a free system design → Send us your floor plan and we'll design the zones and speaker layout, then quote. Free and no obligation.
Need a trade or project quote?

Talk to our team: 01284 652 949

Expert advice on choosing and designing your system.

Free delivery option

Express next-day service if ordered before 15:00 (Mon–Fri).

3-year manufacturer's warranty

Our products come with a 3-year manufacturer's warranty as standard.

UK installer network

We can quote for installation through our UK installer network.

The WALL-05DTM/WS wall speaker comes equipped with an integrated 1-channel Dante® module, making it an ideal choice for professional commercial environments. This speaker is perfect for applications requiring the transmission of multiple audio channels over long distances to various locations. You’ll find it suitable for use in schools, office buildings, fitness centers, shops, and restaurants.

Digital transmission offers several advantages over analogue methods. With Dante®, the quality of the cable doesn’t need to be as high, and even over longer distances, the signal maintains low susceptibility to interference.

When compared to other Audio over Ethernet solutions like CobraNet or EtherSound, Dante® stands out with its integrated gigabit support, greater numbers of channels, lower latency, and automatic configuration.

The WALL-05DTM/WS is powered through PoE+ (Power over Ethernet) or, alternatively, can be powered using an external supply (19 V/2.5 A).

Key features include:
- Active speaker with an integrated Dante® module
- 2-way system
- 13 cm (5") bass-midrange speaker and a 13 mm (½") tweeter
- Mounting bracket for pivoting and tilting
- Power options: PoE+ or optional power supply (19 V/2.5 A)

Active/passiveactive
Transmission technologyDante ®
Total output power40 W
Power rating (RMS)30 W
Frequency range62-20,000 Hz
System2-way
Bass speaker13 cm (5") bass-midrange speaker
Tweeter13 mm (½") tweeter
Number of speakers2
Speaker size13 cm (5")
SPL89 dB/W/m
Max. rated SPL105 dB
Radiation angle/beam angleH: 110°/V: 90°
Radiation angle, horizontal110°
Radiation angle, vertical90°
Housing materialplastic
Colourwhite
Mounting devicemounting bracket, for pivoting and tilting
Admiss. ambient temp.0-40 °C
Power supplyPoE+ or; power supply 19 V/2.5 A (not supplied)
Dimensions163 x 252 x 165 mm
Width163 mm
Height252 mm
Depth165 mm
Weight2.12 kg
Inputs1 x RJ45 (Dante® IN)
Outputs1 x RJ45 (feed-through output)
Packaging dimensions (W x H x L)0.31 x 0.275 x 0.225 m
Gross weight2.72 kg
Net weight2.44 kg
