Outdoor PA System Horn Speaker Package Up To 8 Speakers
✓ Available to order
Express delivery: order before 14:00 (Mon–Fri) and we'll dispatch that evening for next working day delivery.
Free delivery on orders over £100: allow up to 7 working days. Weekend orders are processed from Monday.
- Outputs: 4 Ω and 100 V line (83Ω)
- 120 W RMS
- 40-20,000 Hz
- Inputs: CH 1 balanced mic/line…
Talk to our team: 01284 652 949
Expert advice on choosing and designing your system.
Talk to our team: sales@commercial-audio.co.uk
Email your quantities or project details and we'll send you a tailored quote.
3-year manufacturer's warranty
UK installer network
We can quote for installation through our UK installer network.

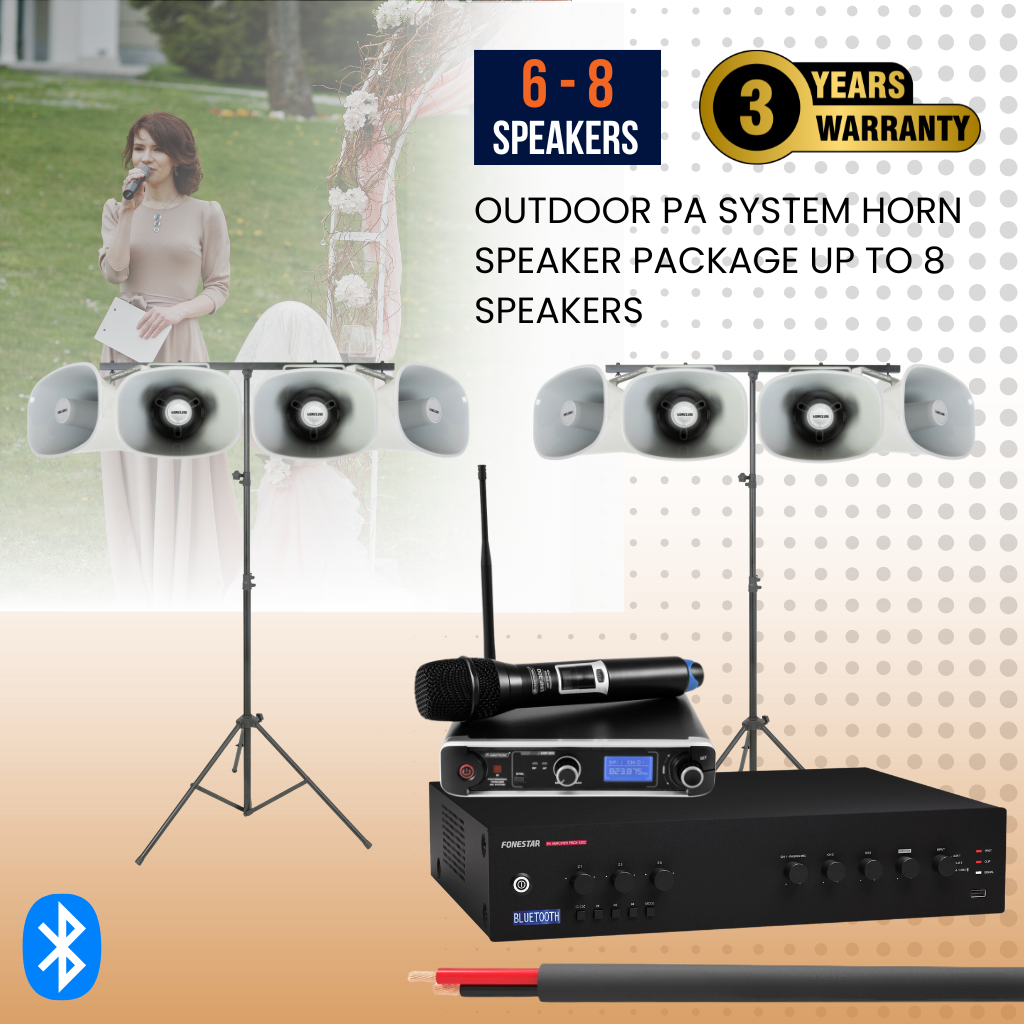

This premium horn speaker outdoor public address system offers an excellent solution at a great price.
The professional 2-zone amplifier features an integrated media player with Bluetooth connectivity, plus a built-in FM tuner for added convenience.
You can select between 6 to 8 white horn speakers, designed to effectively reproduce speech frequencies and transmit messages over long distances.
Included are 2 speaker stands, each capable of supporting up to 4 horn speakers.

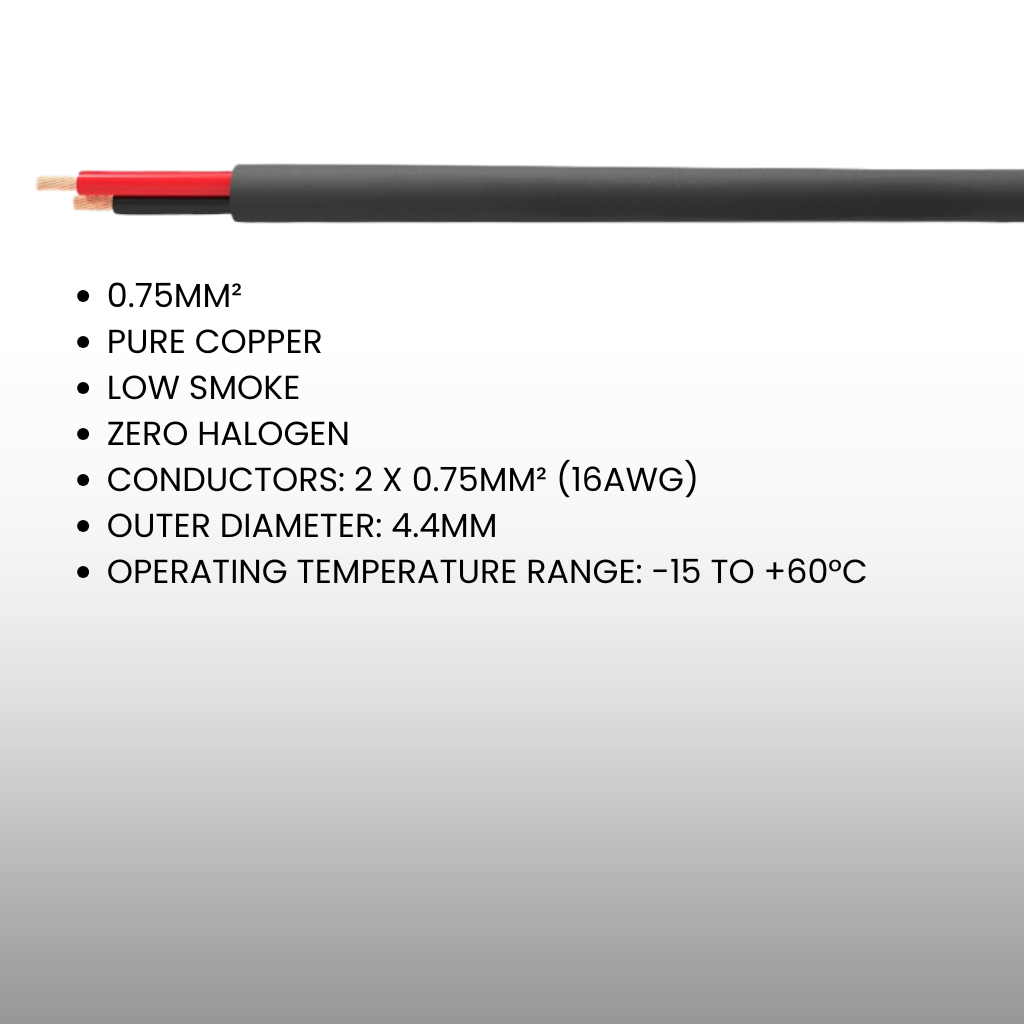

For hassle-free installation, it comes with 100 meters of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable.
If you’d like to enhance your system further, you can opt for a 1-channel microphone system to speak over the setup.
Features
- High quality professional outdoor public address system
- Affordable price
- 2-zone amplifier with integrated media player
- Bluetooth connectivity
- Lightweight speaker stands
- High quality horn speakers
- 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

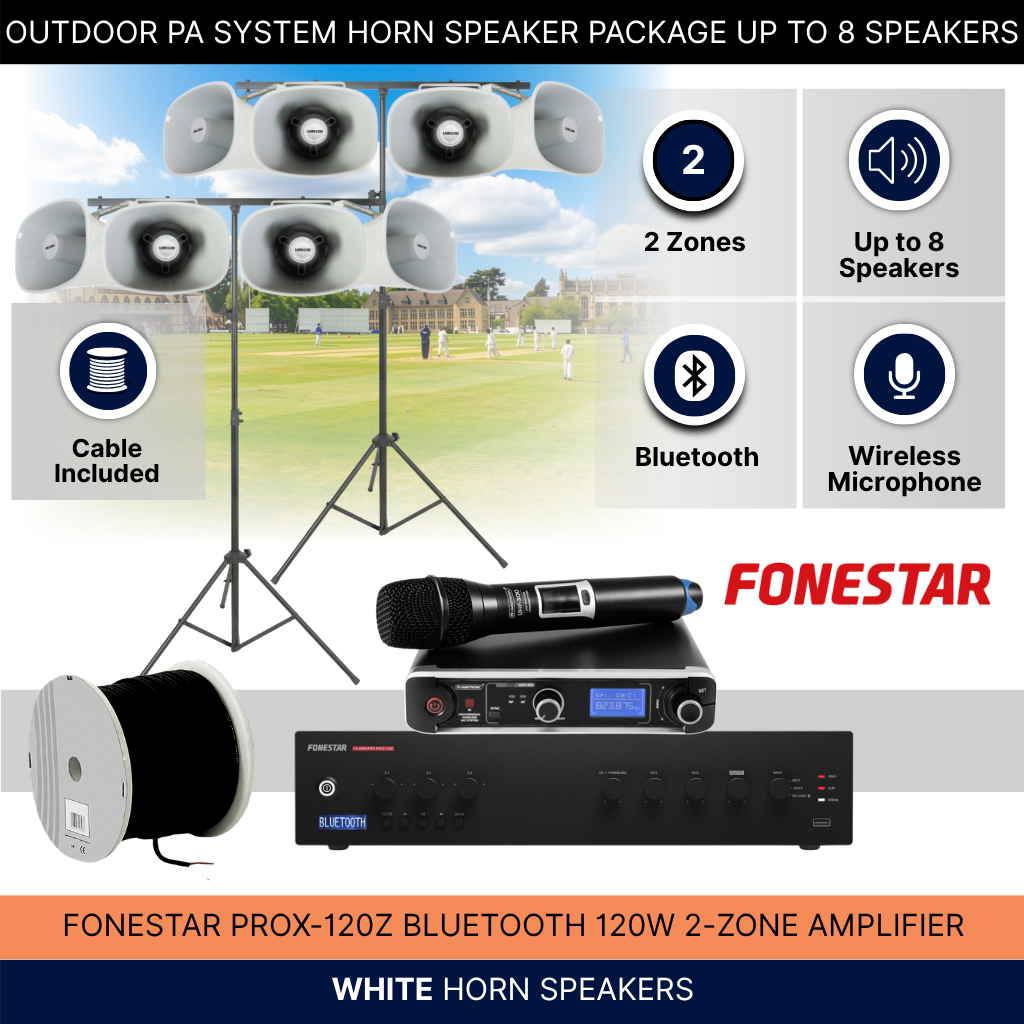

Included

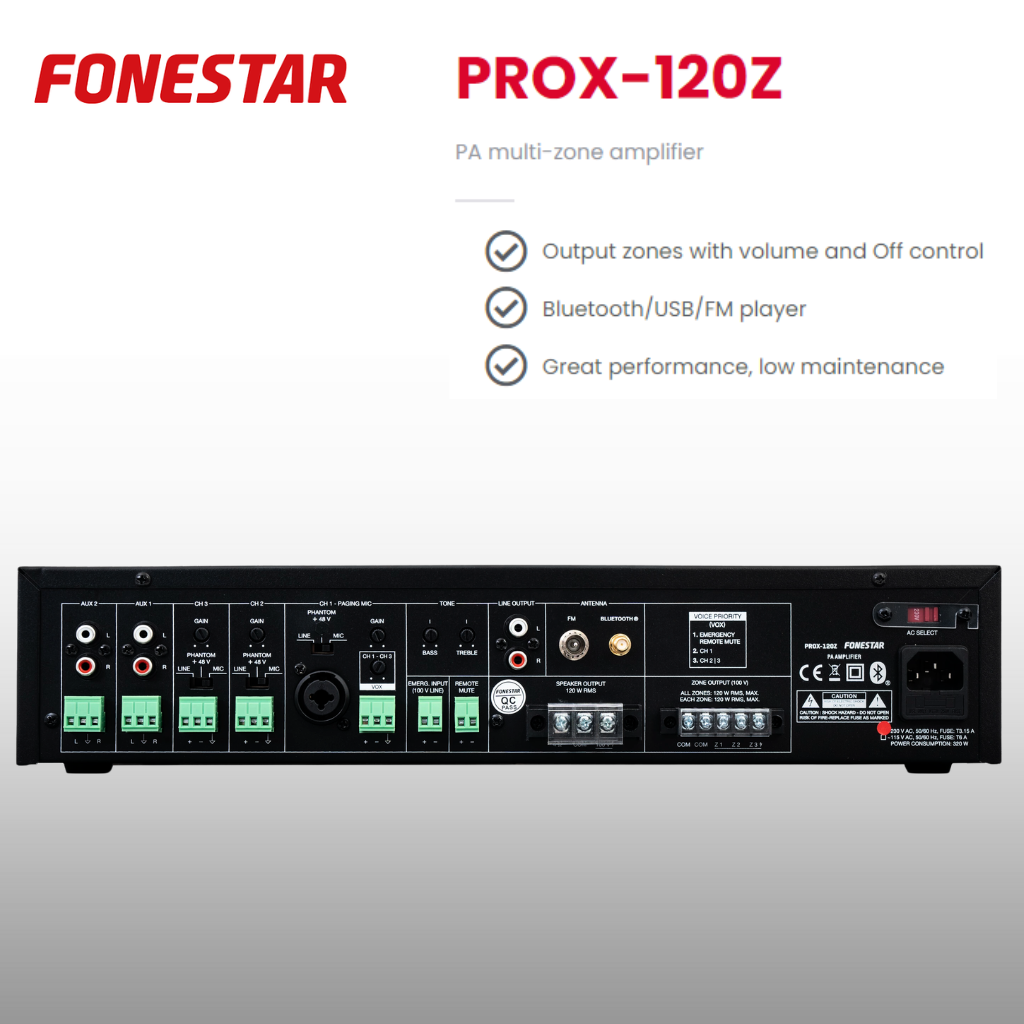

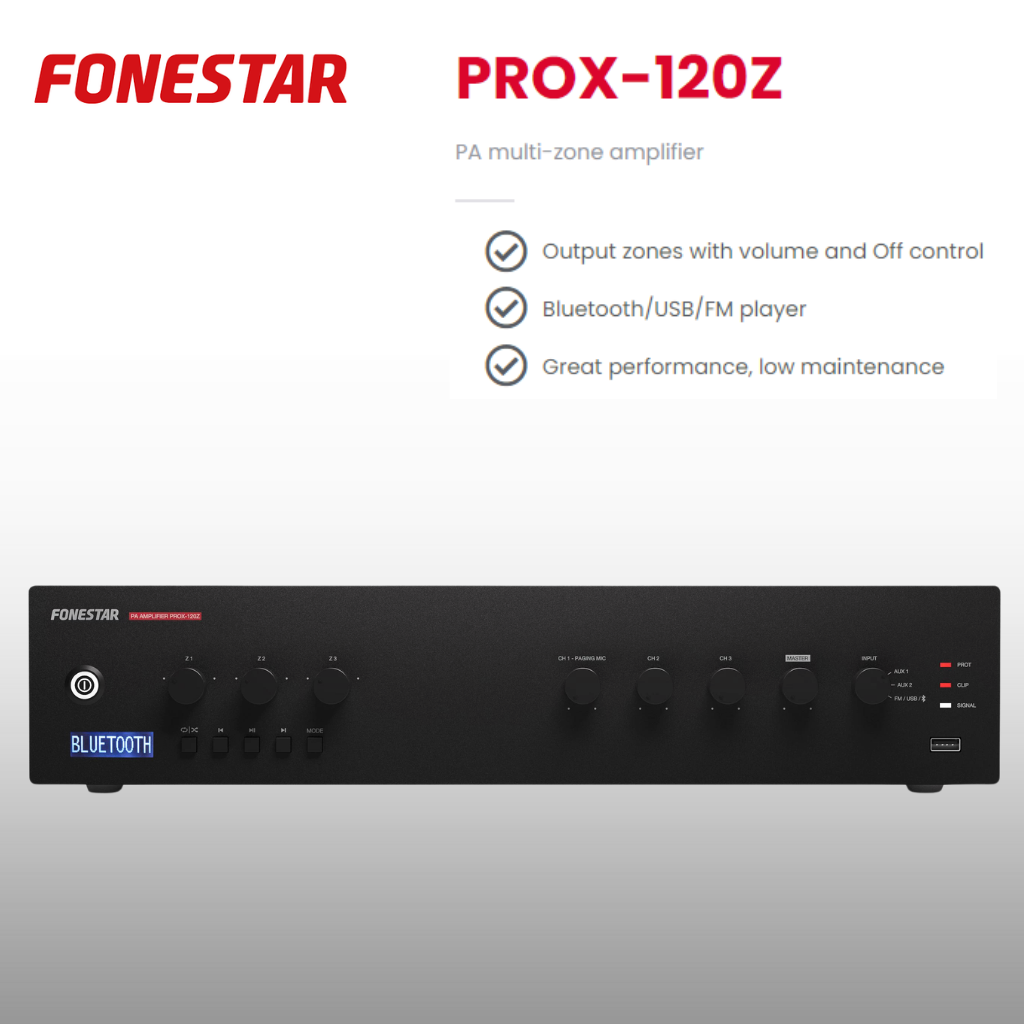

- Fonestar PROX-120Z mixer amplifier
- 6 to 8 Fonestar VULKAN-15T horn speakers (white)
- 2 QTX lightweight speaker stands (6 - 8 speaker packages)
- 100 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (6 - 8 speaker packages)
Optional Extras

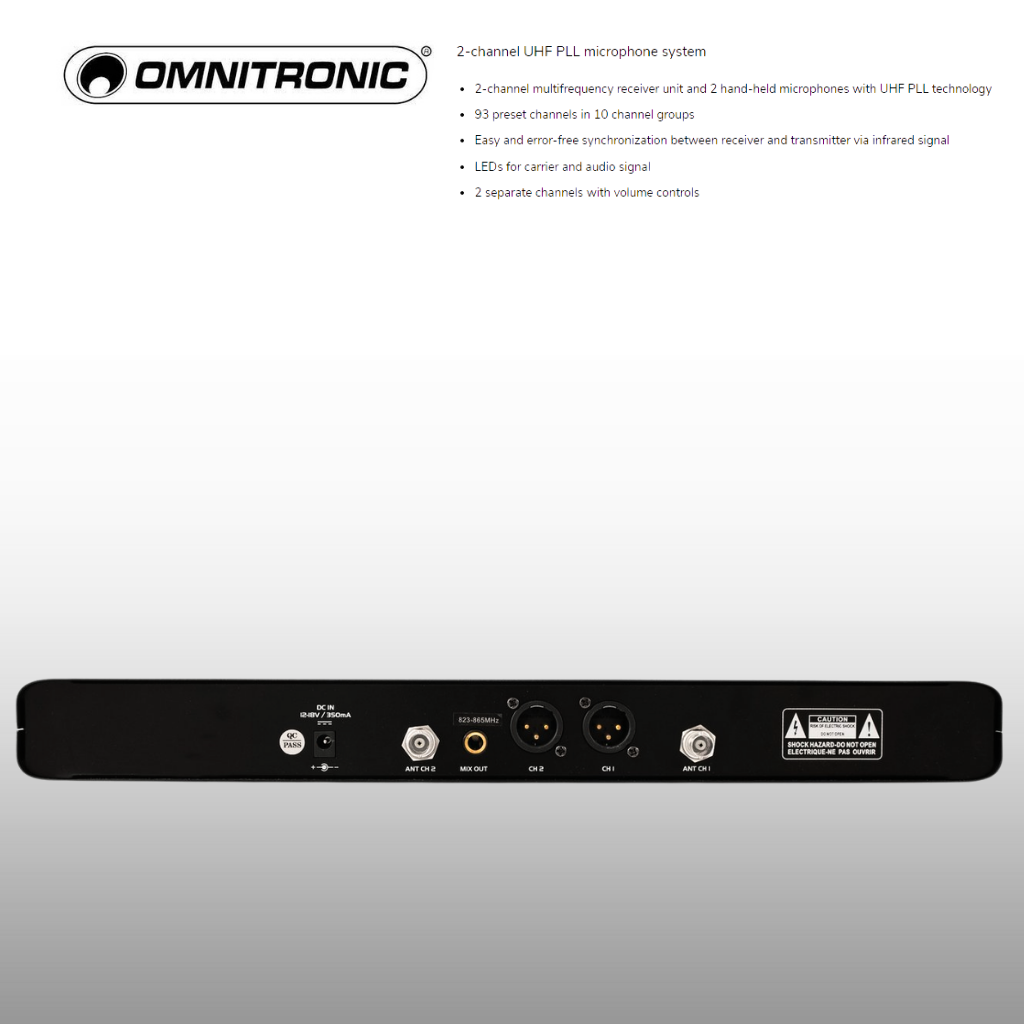

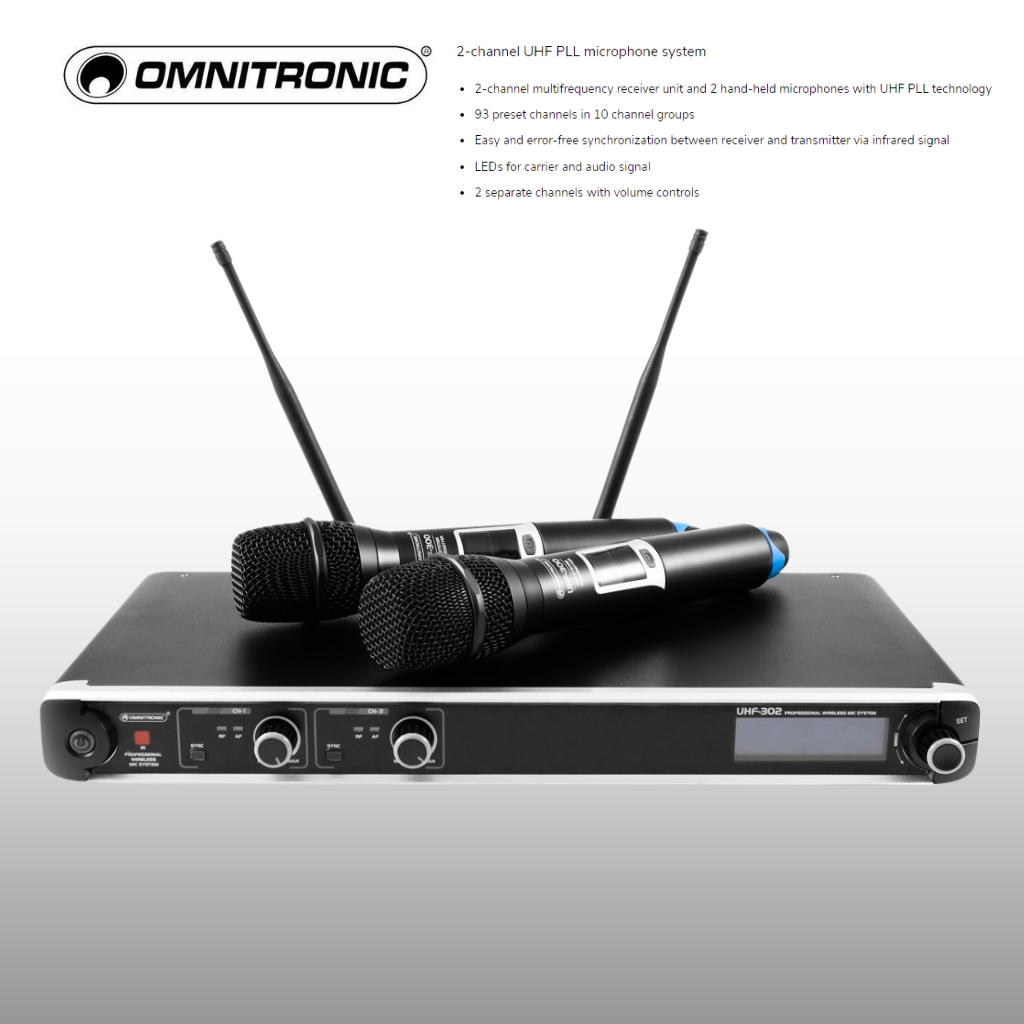

- Omnitronic UHF-601 1-channel true-diversity wireless microphone system
| Amplifier – Model | Fonestar PROX-120Z mixer amplifier |
|---|---|
| Amplifier – Features | Public address amplifier; Bluetooth/USB/FM player.; Microphone input with mix, gain and priority level control.; Input priorities by signal level.; Tone controls.; 100 V and 4 Ω outputs.; 3 outputs zones with volume control and Off. |
| Amplifier – Power | 120 W RMS |
| Amplifier – Response | 40-20,000 Hz (-10 dB) |
| Amplifier – Distortion | THD+N: < 1% @ 1 kHz |
| Amplifier – S/N ratio | >77 dB |
| Amplifier – Protections | Overcurrent, DC and short-circuit at the output |
| Amplifier – Inputs | CH 1 balanced mic/line with 48V Phantom, Combo (XLR + 6.3 mm) and euroblock.; CH 2 and 3 mic/line balanced with 48V Phantom. Euroblock connector. |
| Amplifier – Mic signal level | 6 mV RMS (-44 dBV) / 600 Ω |
| Amplifier – Line signal level | 250 mV RMS (-12 dBV) / 100k Ω; 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω; 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V; 1 Mute (Emergency Priority) by contact closure. Euroblock connector |
| Amplifier – Outputs | 1 line, 2 x RCA connector, 1.25 V RMS (+2 dBV) signal level; 100 V or 4 Ω speaker output, or 3 x 100 V speaker zones with 5-position volume selector switch and OFF; Connector screw terminals |
| Amplifier – Impedance | 4 Ω and 100 V line (83Ω) |
| Amplifier – Functions | Input priority (voice over VOX inputs):; 100V Emergency input with highest priority, attenuates all other inputs.; Mute by contact closure, attenuates all inputs except the 100 V Emergency input.; Channel 1 with priority over all other inputs, level selectable.; Channel 2 and 3 with priority over auxiliary inputs and player, level selectable. |
| Amplifier – Other functions | Power on, protection, signal peak and output signal indicator lights; Temperature-controlled forced ventilation cooling |
| Amplifier – Player | Bluetooth/USB/FM player for background music playback; MP3 and WAV files supported; Maximum USB memory capacity 64 GB; Autoplay, starts playback automatically on power on; Memory of last selected mode; Memory of playback mode (random, repeat) |
| Amplifier – Controls | Microphone volume; Mic/line/phantom selector; Master volume; Aux input or player selector; Zone volume |
| Amplifier – Tone | bass and treble (+/- 10 dB 100 Hz and 10k Hz); Microphone gain; Priority activation signal level (VOX) |
| Amplifier – Operating temperature | Operation: 0º ~ 40ºC |
| Amplifier – Maximum humidity | 95% |
| Amplifier – Power supply | 230/115 V AC 50-60 Hz, 320 W; Fuse AC 230 V 3.15 A / 115 V 6 A |
| Amplifier – Dimensions | 433 x 89 x 360 mm depth. 2 U 19” rack |
| Amplifier – Weight | 9'6 kg |
| Amplifier – Accessories | FM Antenna; Bluetooth antenna; Power cable; Rack mounts |

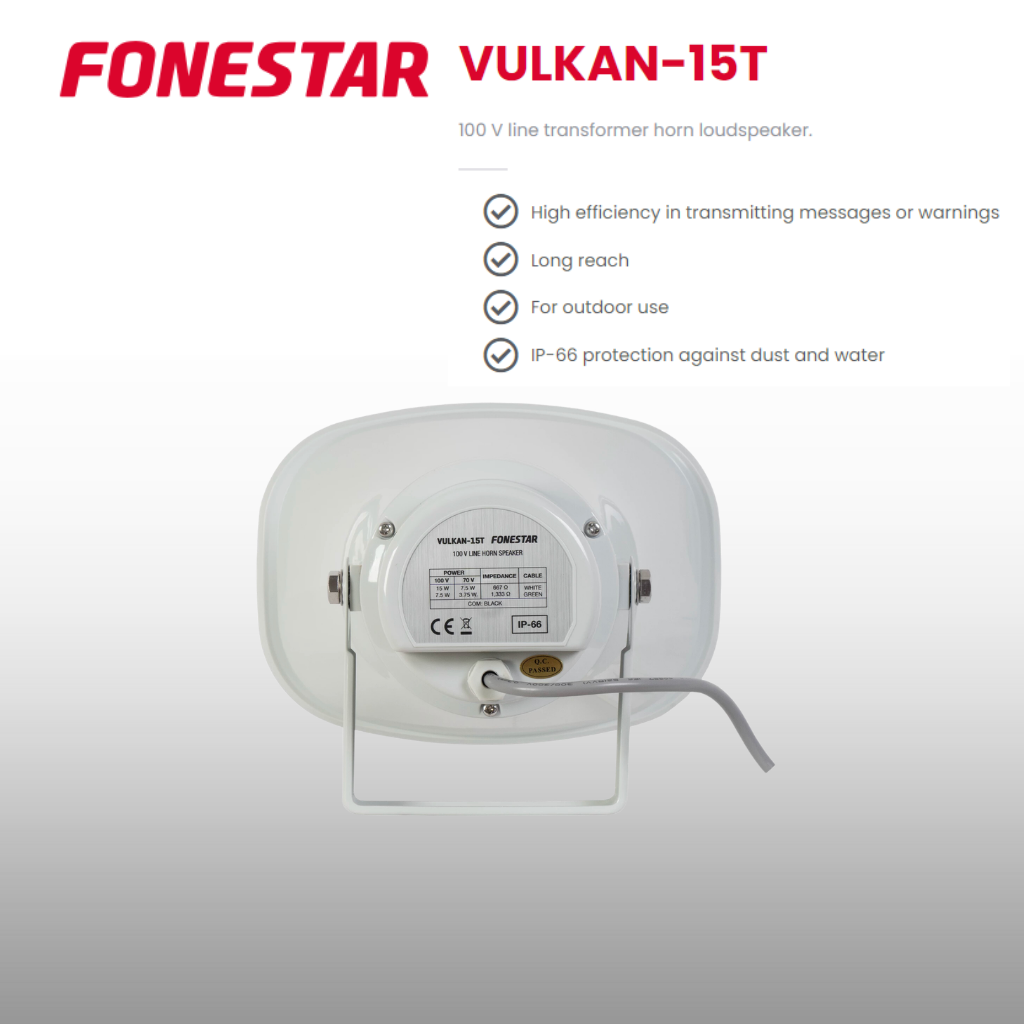

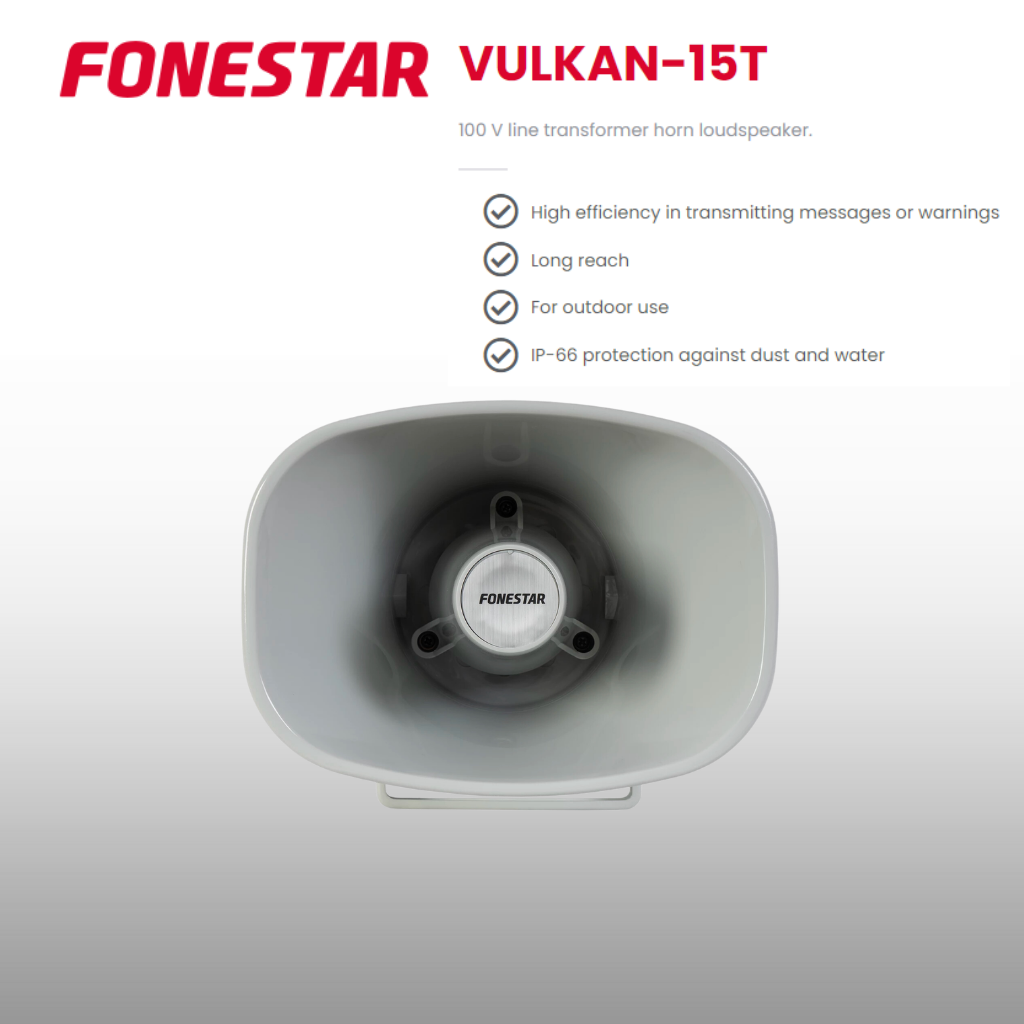

| Speaker – Model | Fonestar VULKAN-15T horn speakers (white) |
| Speaker – Features | 100 V line transformer horn loudspeaker.; Prepared for outdoor use with anti-corrosion materials.; Protection against water.; For long-range message playback. |
| Speaker – Power | 15 W RMS |
| Speaker – Loudspeakers | 1 x compression driver |
| Speaker – Response | 320-6,000 Hz (-10 dB) |
| Speaker – Impedance | 15 W RMS@100 V (666 Ω); 7.5 W RMS@100 V (1.333 Ω) |
| Speaker – Sensitivity | 105 dB @ 1 W/1 m |
| Speaker – Maximun sound pressure | 116 dB @ at maximum power/1 m |
| Speaker – Dispersion | H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB) |
| Speaker – Protections | IP-66 in compliance with EN 60529 |
| Speaker – Material | ABS diffuser and rear cover; Aluminium mount; A2 stainless steel screws |
| Speaker – Connection | 30 cm cable with stripped ends |
| Speaker – Temperature range | Operation: -25ºC ~ +55ºC |
| Speaker – Storage | -40ºC ~ +70ºC |
| Speaker – Humidity | <95% |
| Speaker – Colour | White (RAL 7035) |
| Speaker – Dimensions | 222 x 162 x 232 mm depth |
| Speaker – Weight | 1.36 kg |
| Wireless Microphone – Model | Omnitronic UHF-601 1-channel true-diversity wireless microphone system |
| Wireless Microphone – Type | Wireless set with handheld microphone, true diversity |
| Wireless Microphone – Frequency band | UHF 823 - 832 MHz; UHF 863 - 865 MHz (licence-free) |
| Wireless Microphone – Frequency selection | 120 frequencies, automatic scan, 10 groups |
| Wireless Microphone – Modulation | FM |
| Wireless Microphone – Range | Up to 60 m with line-of-sight |
| Wireless Microphone – Latency | <3 ms |
| Wireless Microphone – Number of channels | 1 |
| Wireless Microphone – S/N ratio | >80 dB |
| Wireless Microphone – THD | <0.5 % at 1 kHz |
| Wireless Microphone – Equaliser | 7-band graphic |
| Wireless Microphone – Display | Multicolour TFT (frequency, group, channel, RF and AF level, mute) |
| Wireless Microphone – Connections | Input: antenna via 2 x BNC (F); Output: 1 x 3-pin XLR (M) balanced; 1 x 6.3 mm jack (unbal.) |
| Wireless Microphone – Power supply | 100-240 V AC, 50/60 Hz; 12 V DC 1000 mA via mains adaptor (included) |
| Wireless Microphone – Receiver housing | Metal desktop housing, (19") rack installation possible 1 U; 205 x 210 x 44 mm |
| Wireless Microphone – Microphone | Handheld, dynamic, cardioid, metal body, colour LCD, on/off/mute switch |
| Wireless Microphone – Microphone frequency range | 50 - 16,000 Hz |
| Wireless Microphone – Microphone RF power output | 10 mW (HI); 5 mW (LO) |
| Wireless Microphone – Microphone battery | 2 x Mignon (AA) (not included) |
| Wireless Microphone – Microphone dimensions | Length 25.9 cm, Ø 4.95 cm; 350 g |

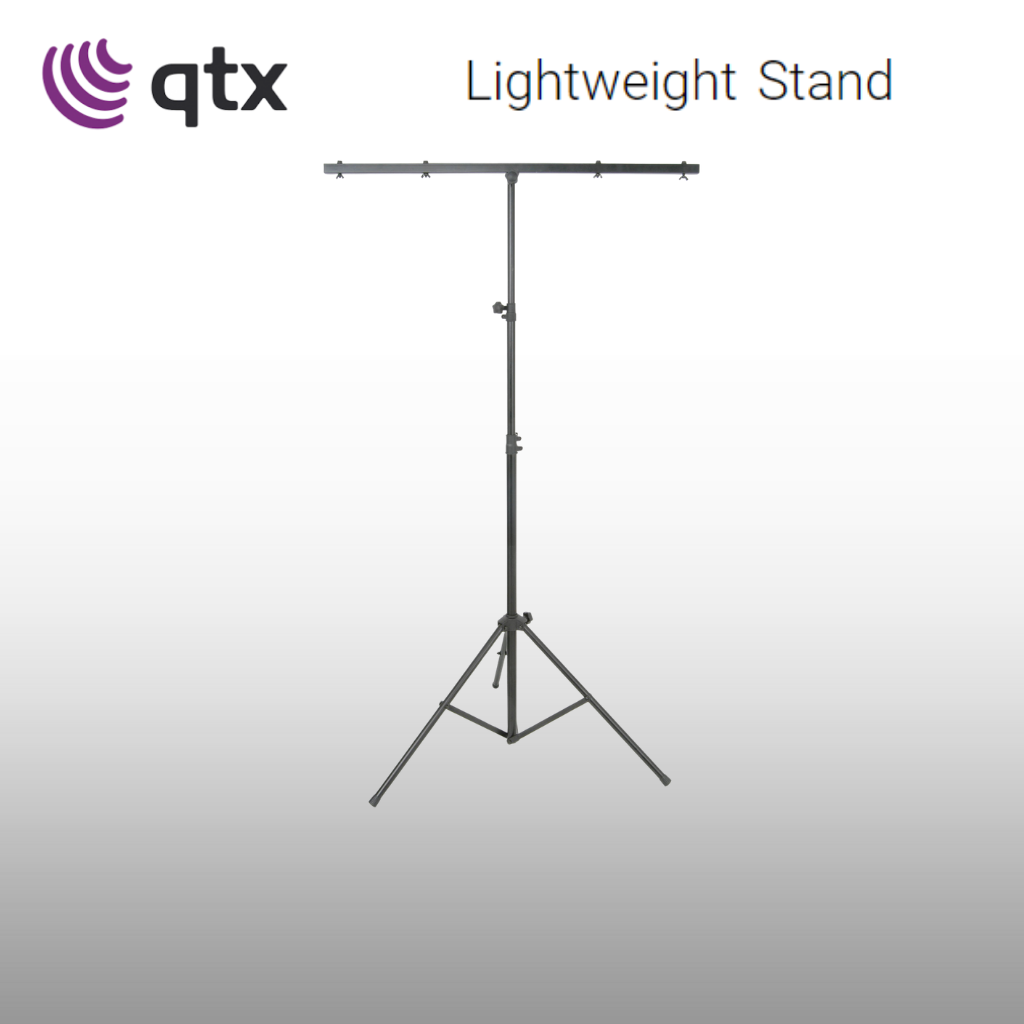

| Speaker Stands – Model | Speaker stands |
| Speaker Stands – Height | max. 1200 - 2500mm; Max. weight load 30kg |
| Speaker Stands – Width | T-bar 1000mm |
| Speaker Stands – Dimensions | collapsed 1100 x 80 x 80mm |
| Speaker Stands – Weight | 4kg |
