Outdoor Space Public Address/ Announcement Bluetooth System Up To 6 Speakers

Name: Outdoor Space Public Address/ Announcement Bluetooth System Up To 6 Speakers
Brand: Commerical Audio Outlet
Price: 329.0 GBP
Availability: InStock

Outdoor Space Public Address/ Announcement Bluetooth System Up To 6 Speakers

SKU:

£329.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Speaker Colour White

Speakers 2 4 6

Optional Extras None Desktop Microphone

Product variants

Quantity

Looking for an affordable yet high-quality public address system? This premium horn speaker setup might be just what you need.

The professional mixer amplifier is rack mountable and features an integrated media player with Bluetooth connectivity, along with a built-in DAB/FM tuner for versatile audio options.

You can select from two to six white horn speakers, designed to effectively reproduce speech frequencies and transmit messages over long distances.

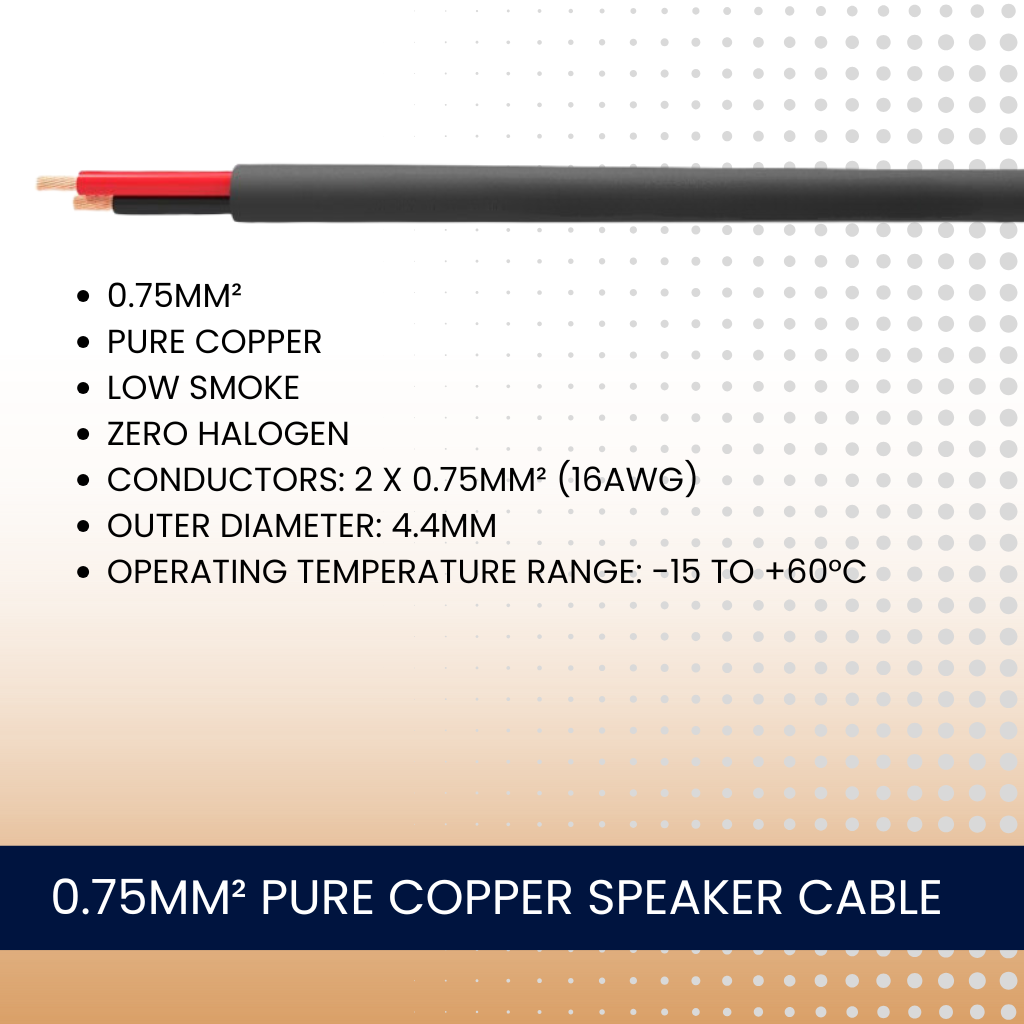

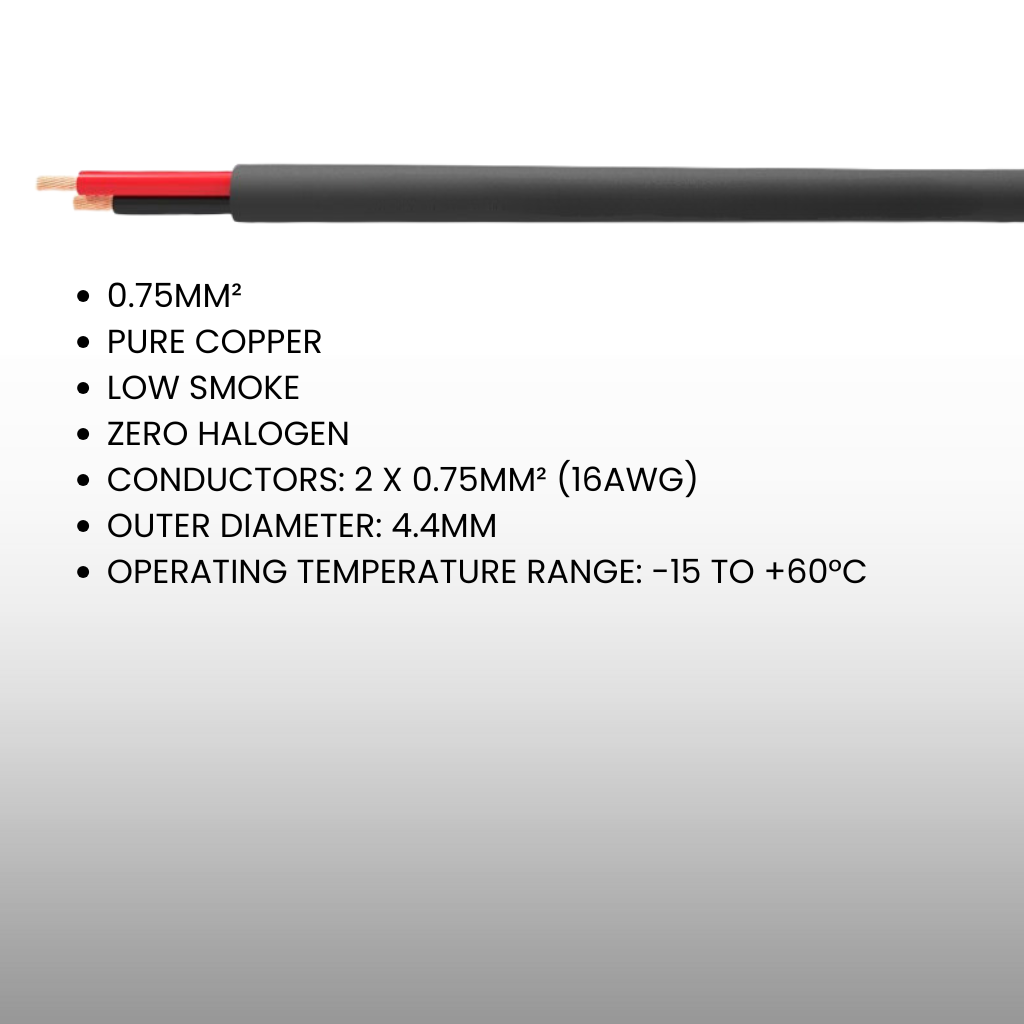

We include 20 or 50 meters of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable for straightforward installation, depending on your chosen package.

For announcements, consider adding an optional desktop microphone to complete your setup.

Features

High quality professional public address system
Affordable price
Rack mountable mixer amplifier with integrated media player
Bluetooth connectivity
High quality horn speakers
0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable

Included

Adastra RM120D mixer amplifier
2 to 6 Fonestar VULKAN-15T horn speakers (white)
20 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (2 - 4 speaker packages)
50 metres of 0.75mm² pure copper low smoke zero halogen 2 core insulated speaker cable (6 speaker package)

Optional Extras

Monacor PDM-302 desktop microphone

Amplifier Specification

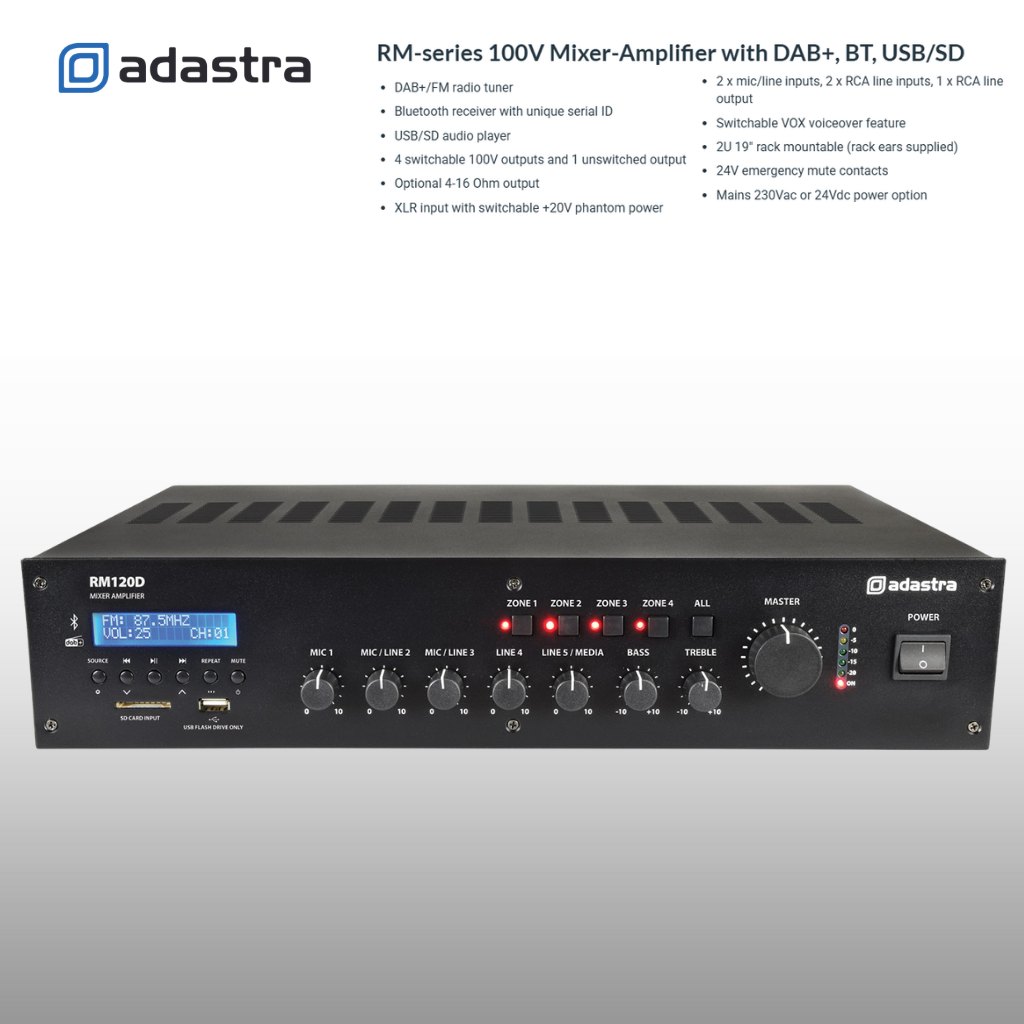

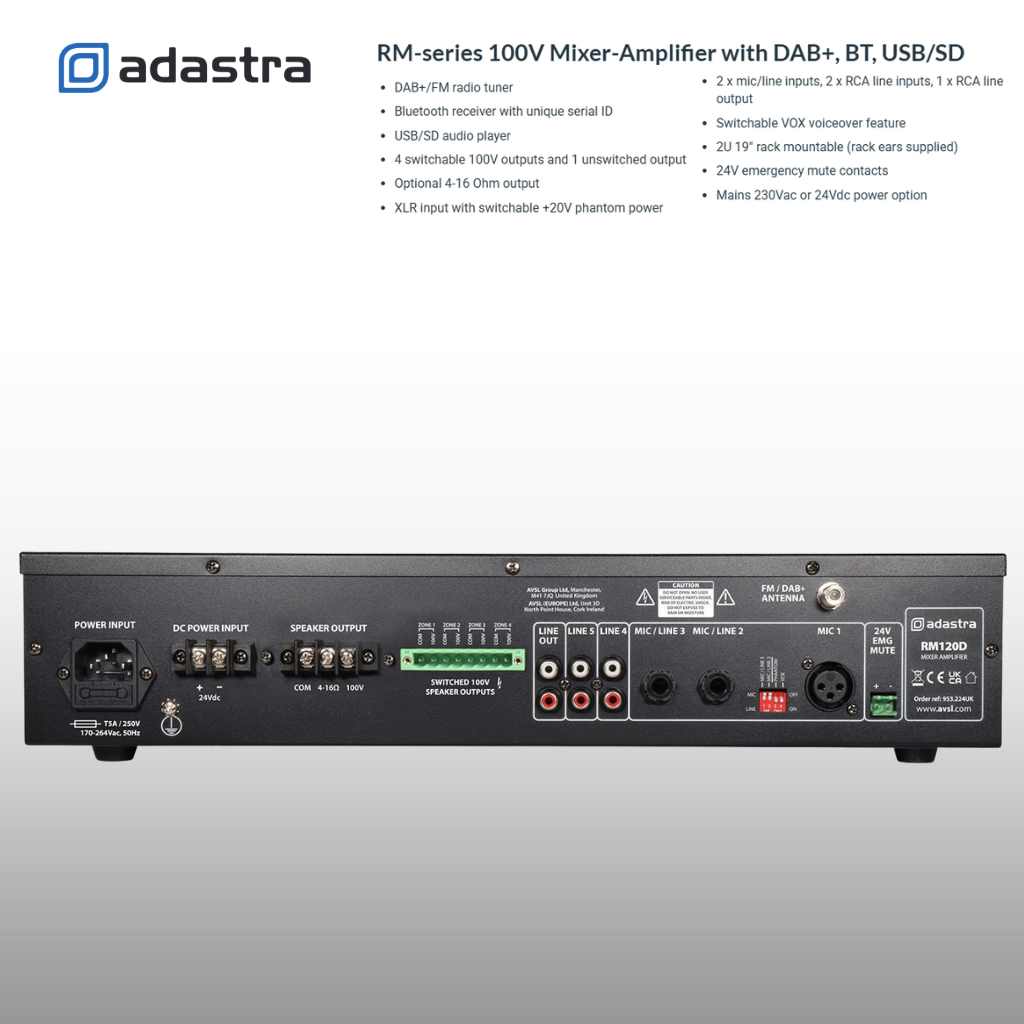

Adastra RM120D mixer amplifier

Weight
6.36kg
Dimensions
433 x 320 x 88mm
Fuse
T3.15A
Output power : rms
120W
Power supply
170-264Vac, 50Hz (IEC)
DC power
24Vdc (screw terminals)
Inputs
Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced)
-53dBV
Input impedance : mic 1
5k Ohms
Input sensitivity : line (unbalanced)
-15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5
1k Ohms
Line output
RCA
Speaker outputs
4 switched + 1 non-switched 100V / 4-16 Ohms / COM
Bluetooth version
5.0
Controls
Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass
100Hz ±10dB
Equaliser : treble
10kHz ±10dB
Rear panel switches
Phantom, Vox, Mic/Line (2 + 3)
Phantom power
+20V (mic 1 XLR, switchable)
Audio source
DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control
24V contacts - mute all except Mic.1 when triggered
THD
<1.0%

Speaker Specification

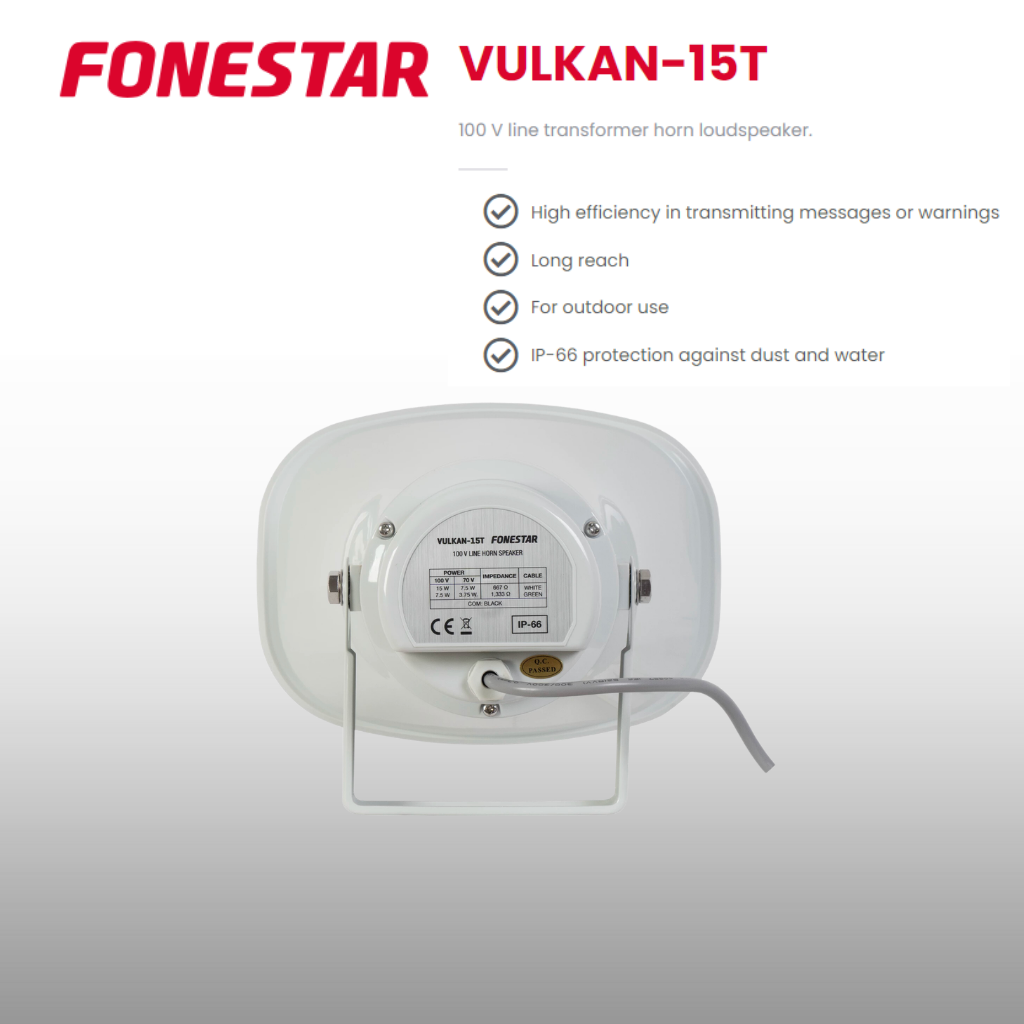

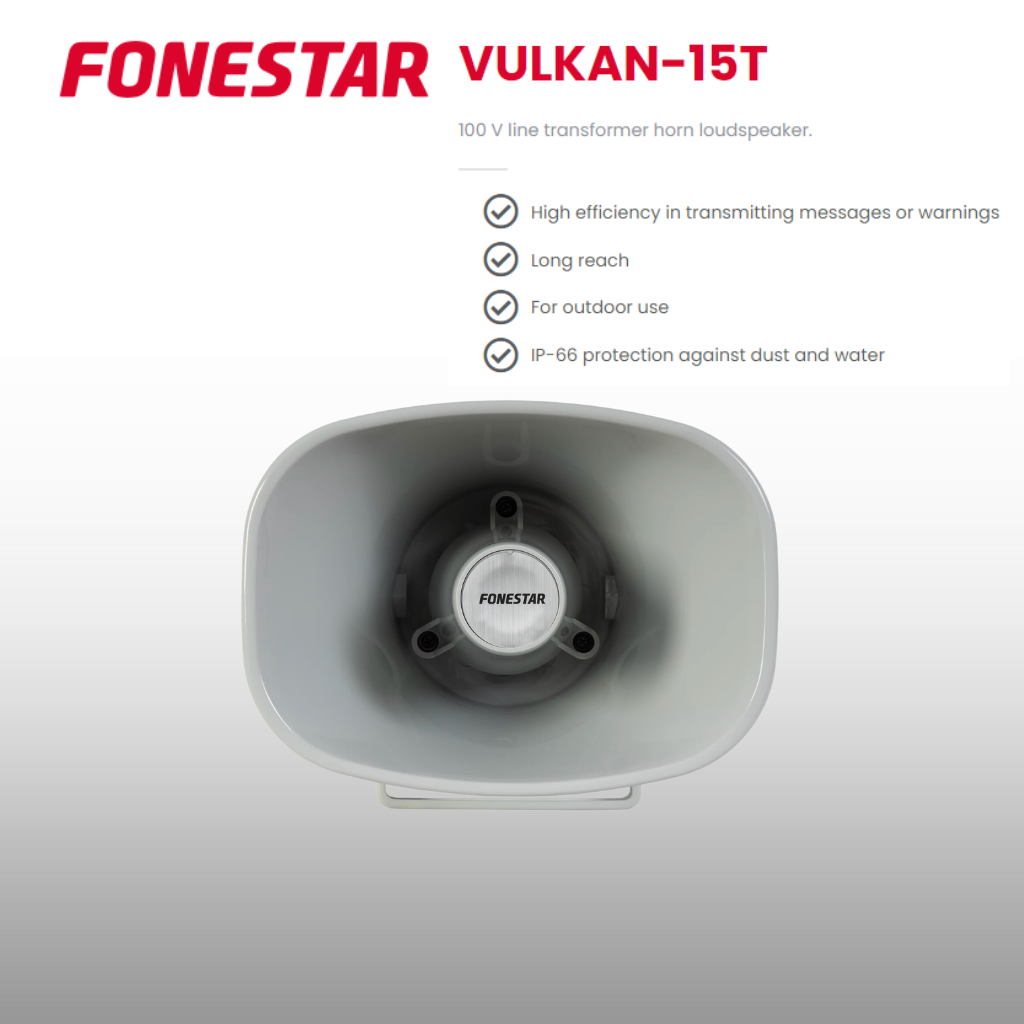

Fonestar VULKAN-15T horn speakers (white)

FEATURES: 100 V line transformer horn loudspeaker.
Prepared for outdoor use with anti-corrosion materials.
Protection against water.
For long-range message playback.
POWER: 15 W RMS
LOUDSPEAKERS: 1 x compression driver
RESPONSE: 320-6,000 Hz (-10 dB)
IMPEDANCE: 15 W RMS@100 V (666 Ω)
7.5 W RMS@100 V (1.333 Ω)
SENSITIVITY: 105 dB @ 1 W/1 m
MAXIMUN SOUND PRESSURE: 116 dB @ at maximum power/1 m
DISPERSION: H/V: 180º/160º@500Hz, 90º/80º@1kHz, 50º/40º@2kHz, 40º/30º@4kHz (-6 dB)
PROTECTIONS: IP-66 in compliance with EN 60529
MATERIAL: ABS diffuser and rear cover
Aluminium mount
A2 stainless steel screws
CONNECTION: 30 cm cable with stripped ends
TEMPERATURE RANGE: Operation: -25ºC ~ +55ºC
Storage: -40ºC ~ +70ºC
HUMIDITY: <95%
COLOUR: White (RAL 7035)
DIMENSIONS: 222 x 162 x 232 mm depth
WEIGHT: 1.36 kg

Desktop Microphone

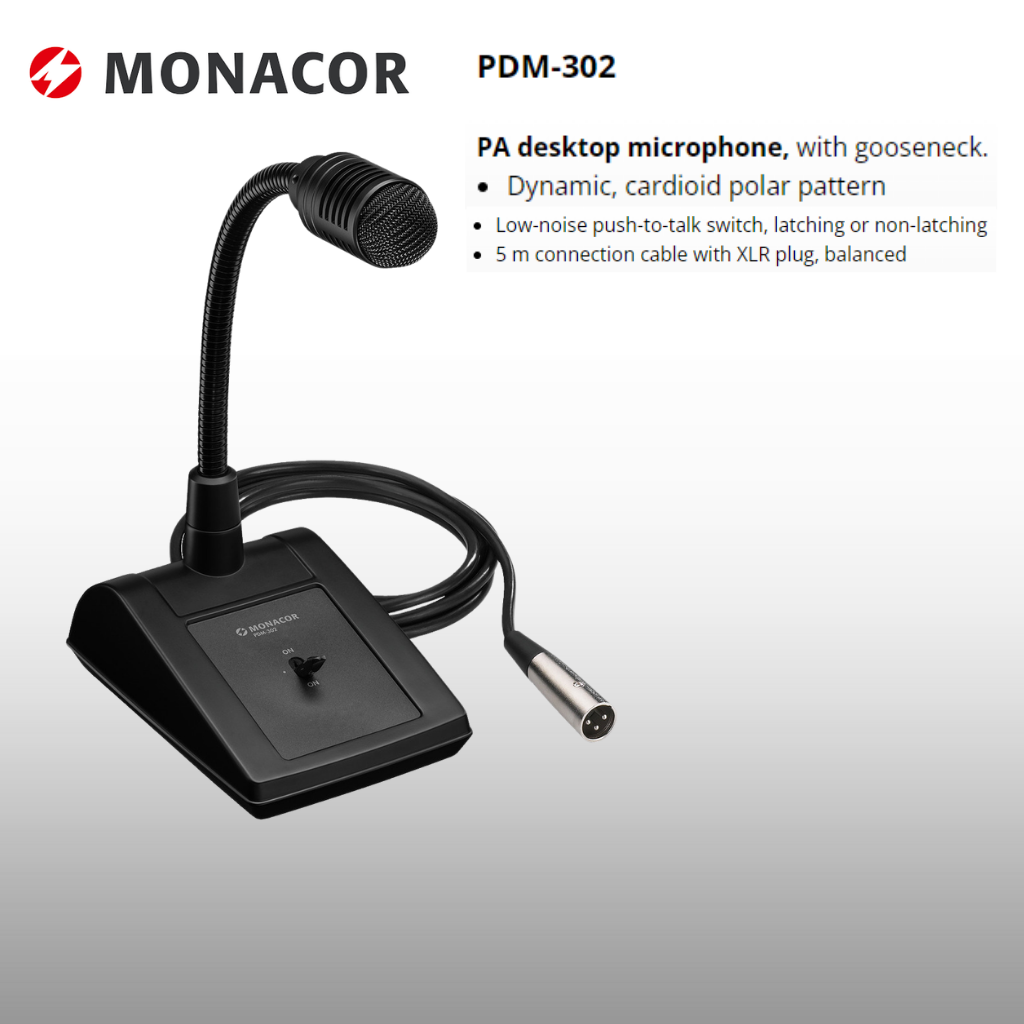

Monacor PDM-302 desktop microphone

Description desktop microphone
Transmission method cable
Polar pattern cardioid
System dynamic
Audio frequency range 60-12,000 Hz
Nominal impedance 600 Ω
Sensitivity 3.2 mV/Pa
Gooseneck length 310 mm
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 60 x 160 mm (console housing)
Weight 1 kg
Cable 5 m
Connection XLR, bal.
Packing dimensions (W x H x L) 0.18 x 0.27 x 0.13 m
Gross weight 1.185 kg
Net weight 1 kg
